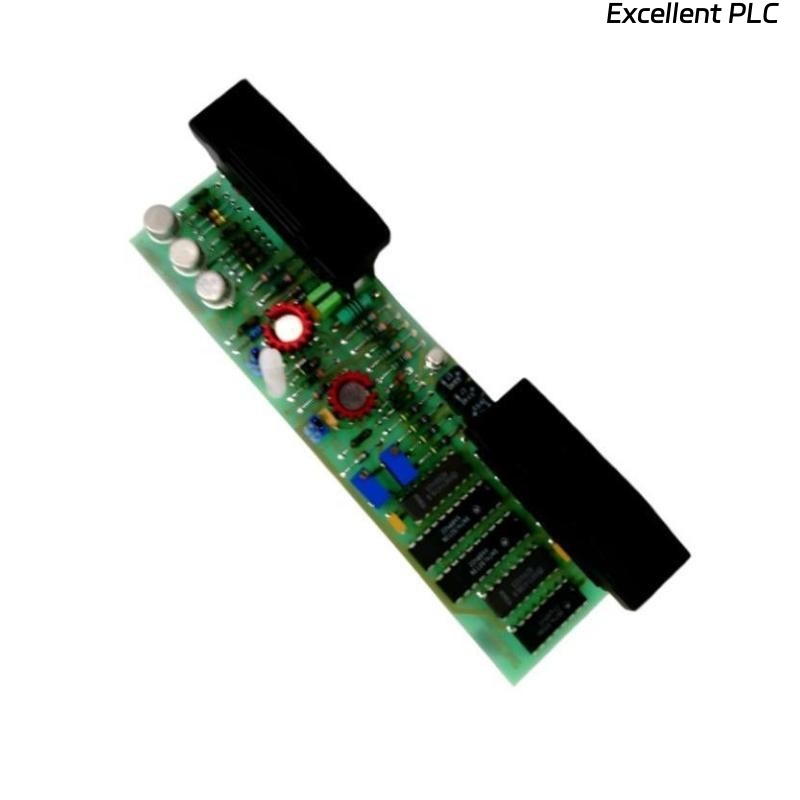

The ABB 07 EB 61 R1 (GJV3074341R1) is a high-performance binary input module designed for ABB PLC and DCS systems. It provides reliable detection of digital signals such as switches, relays, push buttons, and other discrete events. This article highlights the module’s features, applications, installation recommendations, typical logic usage, and troubleshooting guide, making it ideal for engineers and automation professionals.

1. Module Overview

Key specifications:

  • Input type: Digital / Binary

  • Voltage range: 24 VDC nominal, compatible with standard industrial signals

  • Number of channels: 16 inputs per module

  • Isolation: Channel-to-channel and channel-to-backplane

  • Integration: Fully compatible with ABB PLC/DCS and SCADA systems

Technical Configuration Example

MODULE_TYPE = "07 EB 61 R1"
INPUT_TYPE = "Binary / Digital"
CHANNEL_COUNT = 16
VOLTAGE = "24 VDC"
ISOLATION = TRUE
SCANNING_RATE = "1 ms typical"

2. Applications

The module is commonly used in:

  • Industrial automation and control systems

  • Monitoring of safety switches or emergency stops

  • Event detection from limit switches, sensors, or relays

  • Alarm triggering and system interlocks

Typical Use Case Logic

FOR EACH CHANNEL IN MODULE_07_EB_61_R1
IF INPUT_SIGNAL == HIGH THEN
STATUS[CHANNEL] = "ON"
ELSE
STATUS[CHANNEL] = "OFF"
END IF
END FOR

3. Installation Recommendations

Proper installation ensures accurate and reliable operation:

  1. Rack Mounting: Install in ABB standard backplane, ensuring full seating

  2. Wiring: Follow ABB wiring diagrams; check polarity and voltage

  3. Shielding: Use shielded cables in high-noise environments

  4. Environmental: Operate within recommended temperature and humidity ranges

Installation Logic Example

IF MODULE_POWER_OK AND BACKPLANE_SEATED THEN
MODULE_READY = TRUE
ELSE
MODULE_READY = FALSE
END IF

4. Engineering Logic Examples

Example 1 – Edge Detection for Counters

IF CHANNEL_3_TRANSITION == RISING_EDGE THEN
COUNTER_3 = COUNTER_3 + 1
END IF

Example 2 – Alarm Monitoring

FOR EACH CHANNEL
IF STATUS[CHANNEL] == "ON" AND CHANNEL_CONFIG[CHANNEL].ALARM_ENABLED THEN
RAISE ALARM "Channel " + CHANNEL + " Activated"
END IF
END FOR

Example 3 – System Interlock

IF EMERGENCY_STOP == HIGH THEN
SHUTDOWN_ALL_PROCESSES()
END IF

5. Troubleshooting Guide (FAQ)

Q1: Module not detected by PLC

Check:

  • Power supply and backplane connection

  • Module seating in the rack

  • Correct module type configured in software

Q2: Input status not changing

Check:

  • Field wiring, polarity, and voltage

  • Input device functionality

  • Noise interference

Q3: False triggers or flickering inputs

Check:

  • Shielding of cables

  • Electrical noise sources

  • Channel isolation and grounding

Q4: LED indicators meaning

  • No LEDs ON → Check power/backplane

  • Fault LED ON → Configuration error or hardware issue

  • Run LED ON but no input response → Check wiring and field devices

6. Conclusion

The ABB 07 EB 61 R1 is a versatile and reliable binary input module suitable for industrial automation, safety systems, and event detection applications. By following proper installation guidelines, using engineering logic for signal processing, and applying a structured troubleshooting approach, engineers can ensure consistent, reliable operation of digital inputs in ABB control systems.
