Product Introduction

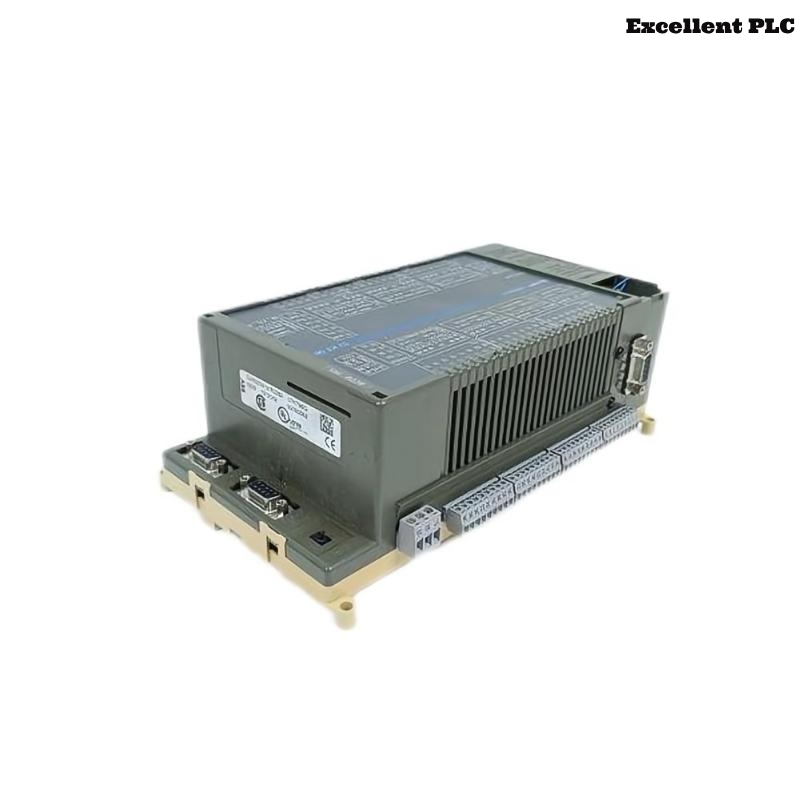

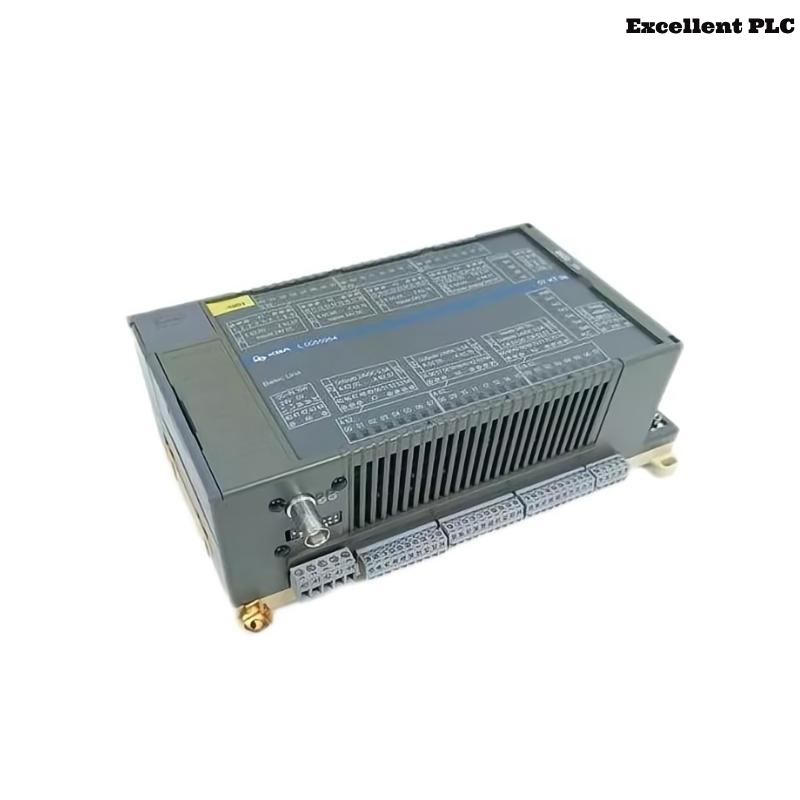

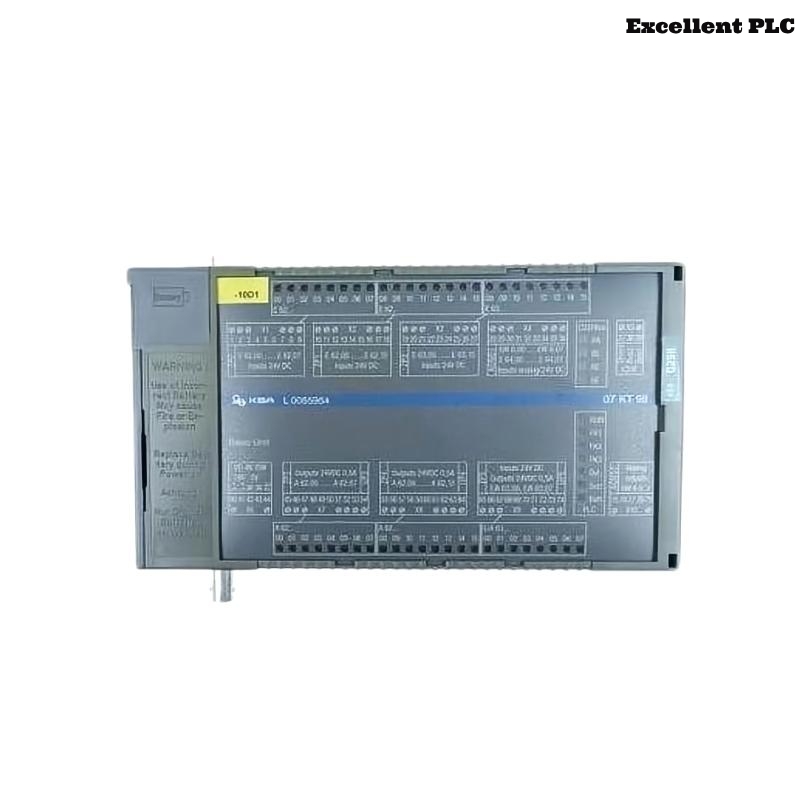

The ABB 07KT98 GJR5253100R0220 is a robust and versatile controller module from ABB’s Advant Controller 31 series. Designed for small to medium-sized industrial automation applications, this module offers a high-performance CPU, extensive I/O capabilities, and support for various communication protocols. Its modular design allows for scalability and easy integration into existing systems, making it a reliable choice for diverse industrial environments.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | ABB 07KT98 Controller Module |
| Model Number | GJR5253100R0220 |
| Series | Advant Controller 31 |
| Processor | High-performance microcontroller |
| User Program Memory | 480 kB (Flash EPROM, non-volatile RAM, SMC) |
| User Data Memory | 256 kB (Flash EPROM) |
| Digital Inputs (24V DC) | 24 |
| Digital Outputs (24V DC) | 16 |
| Analog Inputs | 8 channels (0…+5V, -5…+5V, 0…+10V, -10…+10V, 0…20mA, 4…20mA, PT100) |
| Analog Outputs | 4 channels (-10…+10V, 0…20mA) |
| Digital Configurable I/Os | 8 |
| Hardware Counters | 2 (up to 50 kHz) |
| Communication Interfaces | RS-232, RS-485, Ethernet TCP/IP |
| Fieldbus Support | Modbus, Profibus |
| Programming Software | AC1131 |
| Power Supply Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -25°C to +75°C |
| Mounting Options | DIN-rail or panel mounting |
| Dimensions (W x H x D) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
| Certifications | CE, IEC standards compliant |
Product Applications
The ABB 07KT98 GJR5253100R0220 Controller Module is suitable for a wide range of industrial applications, including:
-
Process Control: Monitoring and controlling industrial processes in chemical, pharmaceutical, and food production industries.
-
Machine Automation: Controlling manufacturing machines such as conveyors, robots, and packaging machines.
-
Building Automation: Managing HVAC systems, lighting, and security systems in commercial buildings.
-
Infrastructure Management: Controlling traffic signals, water treatment plants, and power distribution systems.
-
Research and Development: Developing and testing new industrial automation processes and equipment.
Product Advantages
-
High Performance: Equipped with a powerful microcontroller and ample memory for complex automation tasks.
-
Versatile I/O Options: Supports a mix of digital and analog inputs/outputs, allowing for flexible system configurations.
-
Robust Communication: Multiple communication interfaces and fieldbus support enable seamless integration with various devices and networks.
-
Scalability: Modular design allows for easy expansion to accommodate growing system requirements.
-
Reliability: Built to withstand industrial environments with a wide operating temperature range and durable construction.
-
Ease of Integration: Compatible with ABB’s AC1131 programming software, facilitating straightforward programming and configuration.
Frequently Asked Questions (FAQ)
1. What programming software is compatible with the ABB 07KT98 GJR5253100R0220?
The module is compatible with ABB’s AC1131 programming software, which supports IEC 61131-3 programming languages.
2. Can the 07KT98 GJR5253100R0220 be integrated into existing automation systems?
Yes, its support for standard communication protocols like Modbus and Profibus allows for easy integration into existing systems.
The module supports up to 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs, with additional configurable I/Os.
4. Is the module suitable for use in harsh industrial environments?
Yes, it operates reliably within a temperature range of 0°C to +55°C and complies with CE and IEC standards.
5. How is the module mounted within a control panel?
It can be mounted on a DIN rail or directly onto a panel, providing flexibility in installation.
6. Does the module support real-time clock functionality?
Yes, it includes an integrated real-time clock with battery backup for time-stamped event logging.
7. What types of analog signals are supported?
The module supports various analog signal types, including voltage (±5V, ±10V), current (0…20mA, 4…20mA), and temperature sensors like PT100.
8. Are firmware updates available for this module?
Firmware updates can be obtained through ABB’s support channels to ensure the module remains up-to-date with the latest features and security enhancements.
9. What is the typical lead time for ordering this module?
Lead times may vary based on stock availability and location. It’s recommended to contact ABB or authorized distributors for current lead time information.
10. Is technical support available for configuring and troubleshooting the module?
Yes, ABB provides technical support services to assist with configuration, programming, and troubleshooting of their automation products.
Recommended Related Models (Same Series or Similar)
| Model Number | Description |
|---|---|
| 07KT98 GJR5253100R0270 | Standard controller module with similar capabilities. |
| 07KT98 GJR5253100R0272 | Compact controller module optimized for space-saving applications. |
| 07KT98 GJR5253100R0278 | Enhanced controller module with additional features. |
| 07KT97 GJR5253100R0270 | Basic controller module for simpler automation tasks. |
| 07KT97B GJR5253100R4202 | Controller module with improved communication interfaces. |
| 07KT97A GJR5253100R3162 | Advanced controller module with extended memory. |
