Product Introduction

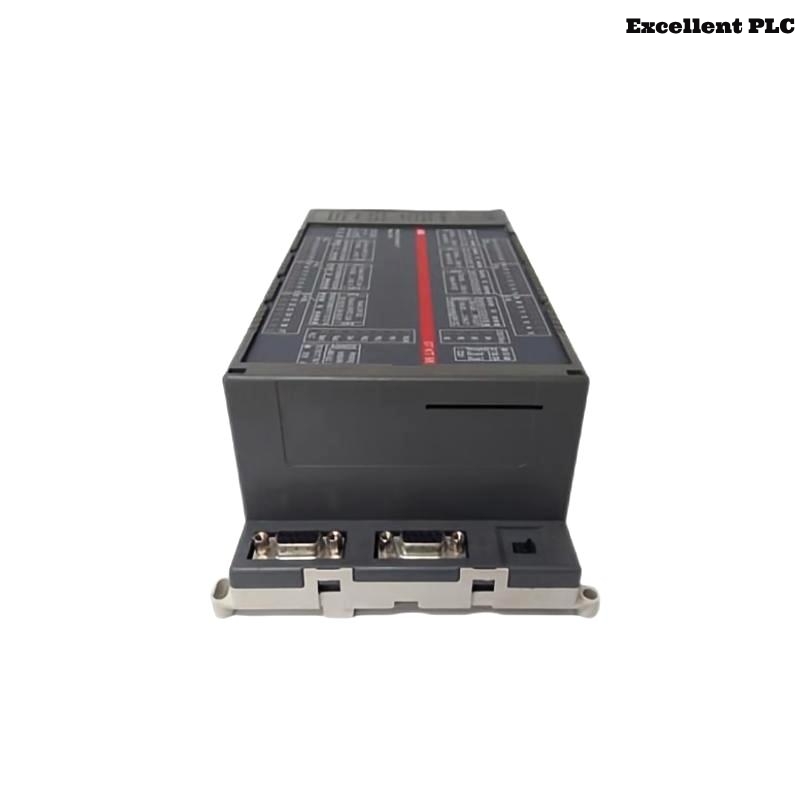

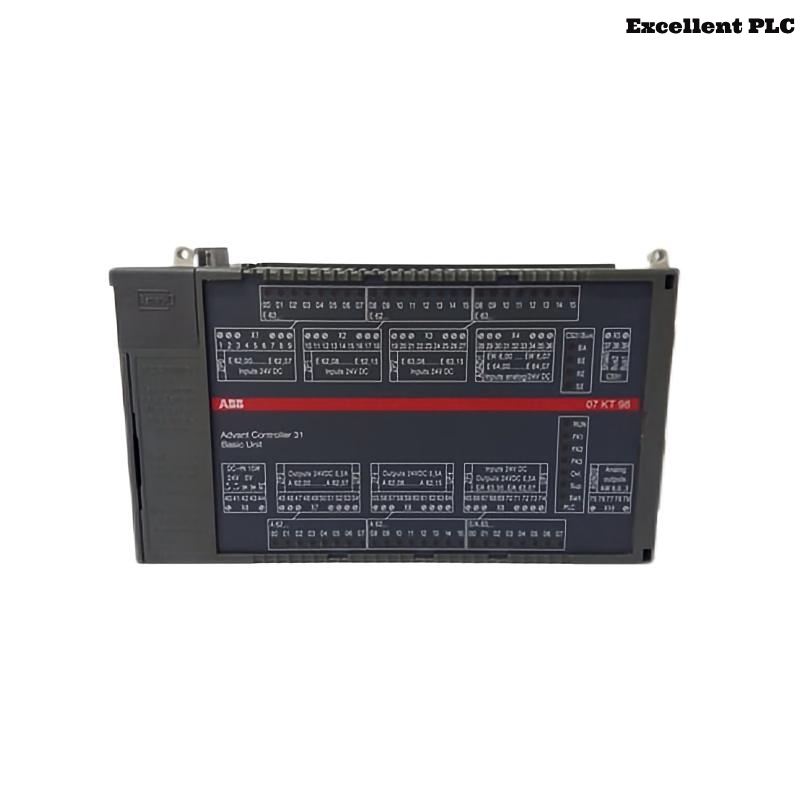

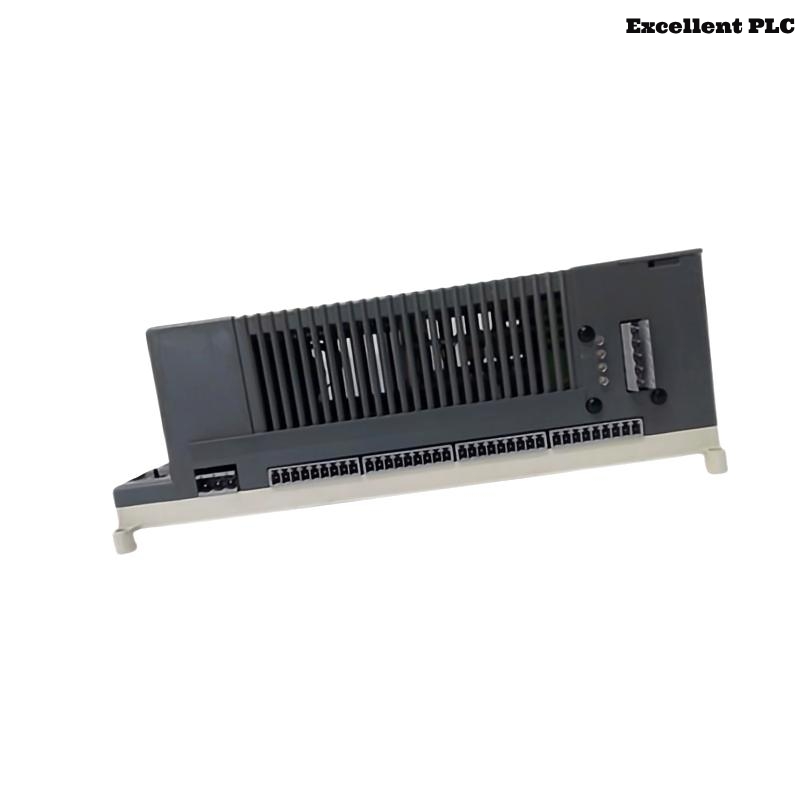

The ABB 07KT98 GJR5253100R4278 Controller Module is an integral component within ABB’s Advant Controller 31 series. Engineered for high reliability, efficiency, and seamless integration, it serves as a core control unit in various industrial automation systems. Designed with rugged hardware and advanced processing capabilities, it enables stable and precise control in critical applications such as manufacturing lines, process industries, and energy plants.
The 07KT98 Controller offers robust communication capabilities, extensive I/O interfacing, and superior performance, making it a preferred choice for system integrators and industrial operators demanding operational excellence and minimum downtime.
Product Specifications
Specification | Details |
---|---|
Product Name | ABB 07KT98 Controller Module |
Model Number | GJR5253100R4278 |
Brand | ABB |
Series | Advant Controller 31 Series |
Processor | 32-bit microprocessor |
Communication Ports | RS232, RS485, Ethernet-compatible (via additional modules) |
Memory | Non-volatile memory for program storage |
Digital Inputs/Outputs | Configurable (requires separate I/O modules) |
Programming Software | ABB Automation Builder, Composer, etc. |
Power Supply Voltage | 24V DC nominal |
Operating Temperature Range | 0°C to +55°C |
Storage Temperature Range | -40°C to +70°C |
Relative Humidity | 5% to 95%, non-condensing |
Mounting Type | DIN-rail or panel mounting |
Protection Class | IP20 |
Certifications | CE, UL, CSA compliant |
Dimensions (W x H x D) | 240 x 140 x 85 mm |
Weight | 1.6 kg |
Product Applications
The ABB 07KT98 GJR5253100R4278 Controller Module finds its application across a diverse range of industrial environments, including but not limited to:
-
Manufacturing Plants: Streamlining production processes with high-precision control.
-
Power Generation Stations: Monitoring and control of turbines, generators, and auxiliary systems.
-
Chemical Processing: Ensuring safe and optimized chemical reactions and workflows.
-
Oil & Gas Facilities: Managing critical operations under harsh environmental conditions.
-
Water Treatment Plants: Controlling pumps, valves, and filtration systems.
-
Automotive Production Lines: Enhancing automation in assembly, testing, and painting units.
-
Food and Beverage Processing: Maintaining strict control over temperature, mixing, and packaging systems.
Product Advantages
-
Exceptional Reliability: Built with industrial-grade components that ensure long operational life and minimal failures.
-
Flexible Integration: Supports multiple communication protocols for easy integration into existing and new systems.
-
High-Performance Processing: Fast and accurate execution of complex control tasks with 32-bit microprocessor.
-
Ease of Maintenance: Modular design allows quick replacement and minimal downtime during servicing.
-
Comprehensive Diagnostics: Built-in diagnostic tools facilitate rapid troubleshooting and system monitoring.
-
Energy Efficiency: Optimized design ensures lower power consumption without compromising performance.
-
Scalable System Architecture: Easily expandable with additional modules as system requirements grow.
-
Strong Security Features: Supports secure communications and program integrity checks.
-
Global Support Network: Backed by ABB’s worldwide service infrastructure for technical assistance and spare parts.
-
Compliance and Safety: Certified to meet international safety and quality standards.
FAQ (Frequently Asked Questions)
1. What industries typically use the 07KT98 controller module in real-world applications?
This module is widely used in heavy industries such as pulp and paper, steel manufacturing, chemical processing, and utility power systems where high-reliability automation is required.
2. Does the 07KT98 support both centralized and distributed I/O configurations?
Yes, it supports both centralized I/O setups for compact installations and distributed I/O through remote modules for large-scale systems.
3. Is there a limitation on how many communication interfaces can be active simultaneously?
While multiple ports are supported, the actual number of simultaneously active interfaces depends on system configuration and available expansion modules.
4. How is the 07KT98 typically mounted in a control cabinet?
It is designed for DIN-rail mounting but can also be installed on a backplate using screw mounts if required by the panel layout.
5. Can the 07KT98 be used in a SIL-rated safety system?
Not by default. The 07KT98 is not certified for SIL (Safety Integrity Level) functions, and its use in safety-related systems would require external certified protection logic.
6. What is the typical startup time from power-on to full operation?
Startup time ranges from 5 to 15 seconds depending on the program size and configuration complexity.
7. Are there any firmware compatibility concerns when replacing a 07KT98 unit with a newer revision?
Yes, firmware versions must match or be compatible with the existing system; otherwise, you may need to update the configuration software or adjust parameters.
8. How do I identify whether my 07KT98 has communication issues or hardware faults?
The front panel includes diagnostic LEDs indicating status. Red or blinking indicators often signify communication errors or internal faults.
9. Is the 07KT98 hot-swappable or must the power be shut down for replacement?
The module is not hot-swappable. Power must be shut off before removal or installation to prevent damage to the module or connected devices.
10. What precautions should be taken when installing the 07KT98 in high-vibration environments?
Install it in a shock-mounted enclosure and use vibration-resistant DIN rail clamps. ABB also recommends using terminal locking mechanisms to secure connections.
