Product Introduction

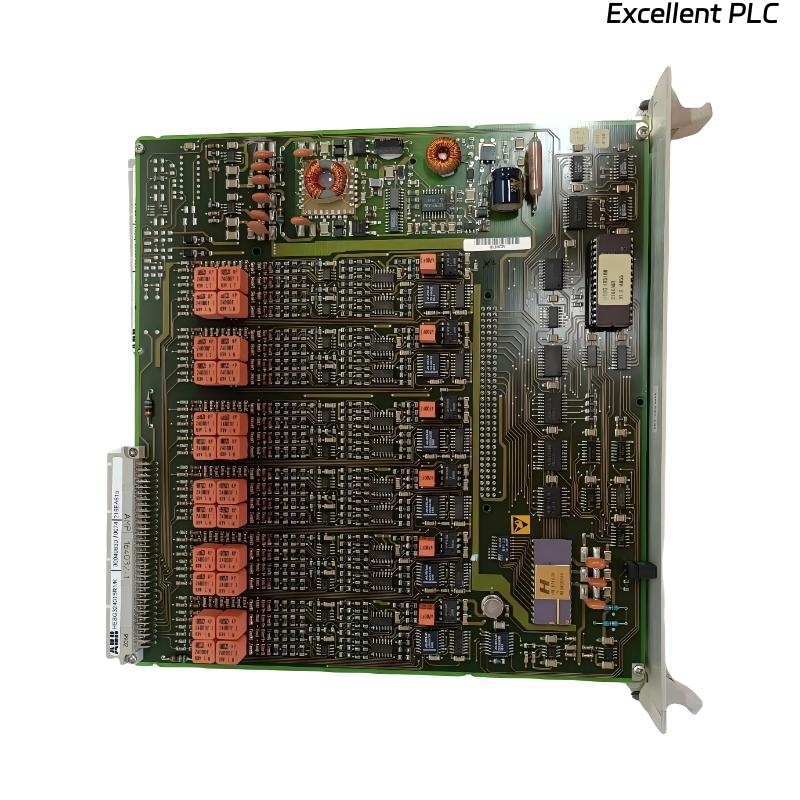

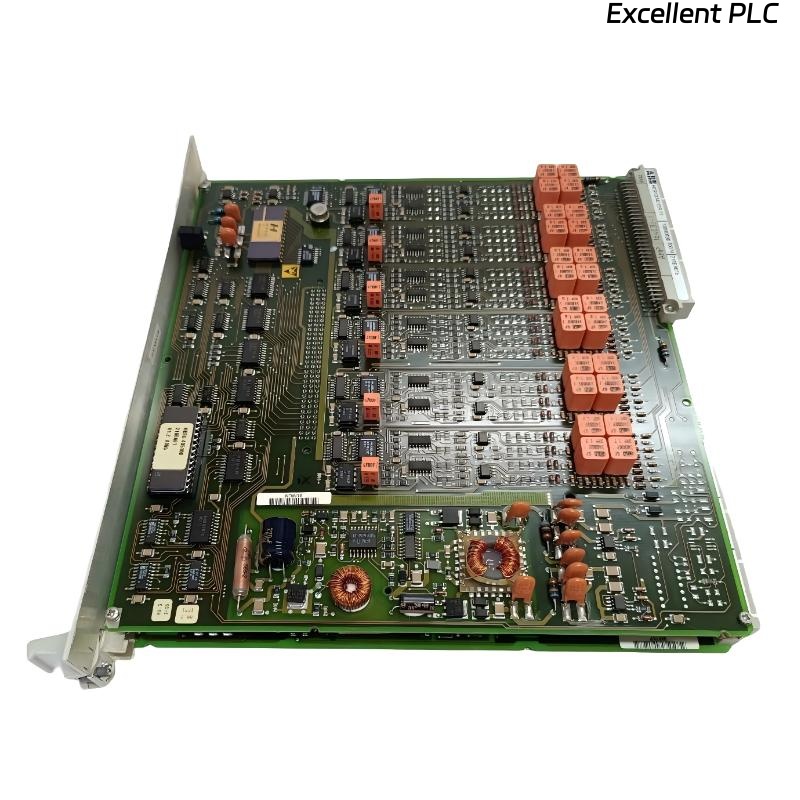

The ABB 216EA61B HESG324015R1/K Input Module is a high-reliability industrial signal acquisition module designed for protection and control systems. It receives, conditions, and transmits discrete input signals from field devices to higher-level control or protection logic.
The module ensures accurate, deterministic signal interpretation and maintains electrical robustness and noise immunity for reliable operation in demanding industrial environments. Its design separates field wiring from internal processing, improving system safety and simplifying troubleshooting.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | ABB |
| Product Code | 216EA61B |
| Part Number | HESG324015R1/K |
| Product Type | Input Module |
| Primary Function | Acquisition and conditioning of input signals |
| Input Signal Type | Discrete / Binary electrical inputs |
| Signal Processing | Logic-level conditioning and transfer |
| Electrical Isolation | Galvanic isolation between field inputs and logic |
| Typical Installation | Protection and control panels |
| Mounting Method | Panel-mounted |
| Operating Environment | Industrial electrical systems |
| Dimensions | 150 x 50 x 100 mm |
| Weight | 0.5 kg |
Applications
Protection Control Panels: Used to acquire binary status signals from field devices in protection systems.
Substation Automation: Collects discrete input signals for monitoring and control within substations.
Switchgear Systems: Interfaces with auxiliary contacts, limit switches, and breaker status signals.
Interlocking Logic: Provides reliable input data for permissive and blocking logic schemes.
Alarm and Status Monitoring: Processes alarm contacts and equipment status indications.
Industrial Power Distribution: Supports input signal acquisition in medium- and low-voltage systems.
System Modernization: Enables replacement or upgrade of legacy input modules in existing panels.
Control Cabinet Integration: Acts as a stable input interface within complex control assemblies.
Product Advantages
High Signal Accuracy: Ensures precise acquisition and interpretation of discrete input signals.
Galvanic Isolation: Protects control logic from field-side electrical disturbances.
Noise Immunity: Designed to operate reliably in environments with high electromagnetic interference.
Deterministic Behavior: Provides consistent and predictable signal processing performance.
Protection-Oriented Design: Optimized for use in protection and control applications.
Compact Construction: Allows efficient utilization of panel space.
System Compatibility: Integrates easily with ABB protection and control architectures.
Operational Stability: Maintains stable performance under continuous industrial operation.
FAQ
1. What type of signals can this input module process?
It processes discrete/binary electrical signals from field devices such as limit switches, breaker auxiliary contacts, and alarm contacts.
2. How does the module protect internal logic from disturbances?
Galvanic isolation separates the input stage from internal processing circuits, preventing voltage spikes, transients, and ground potential differences from affecting logic operation.
3. Is it suitable for protection and control applications?
Yes, it is specifically engineered to provide accurate input acquisition and safe transfer of binary signals in protection and automation systems.
4. Can it interface with switchgear auxiliary contacts?
Yes, it reliably monitors breaker auxiliary contacts and other binary field signals, ensuring timely and accurate status reporting.
5. How does it maintain signal integrity in electrically noisy environments?
The module includes signal conditioning circuitry that filters noise, suppresses transients, and stabilizes voltage levels for consistent logic interpretation.
6. Is the signal processing deterministic?
Yes, input signals are processed with repeatable timing and predictable logic, essential for coordinated protection and control actions.
7. Can it be used in retrofit or modernization projects?
Yes, the module can replace legacy input modules or integrate into existing panels without requiring major wiring changes.
8. Does the module support continuous input monitoring?
All input channels are continuously monitored during operation, ensuring immediate detection of state changes or abnormal conditions.
9. How does it integrate with ABB protection systems?
It connects seamlessly to ABB relay and control architectures, providing reliable binary input signals for downstream trip logic, interlocking, and monitoring functions.
10. How does this module contribute to overall system reliability?
By providing electrically isolated, conditioned, and deterministic input signal acquisition, it reduces the risk of false trips, missed signals, or control errors in critical protection and automation systems.
Related or Same-Series Models
| Model | Category | Primary Function |
|---|---|---|
| ABB 216EA61 | Input Module | Discrete input acquisition |
| ABB 216EA61B | Input Module | Enhanced signal processing |
| ABB 216EA62 | Input Interface Module | Extended input handling |
| ABB 216DB61 | Binary I/P & Trip Unit | Tripping signal processing |
| ABB HESG324014R1 | Input Processing Module | Signal conditioning |
| ABB 216EA65 | Combined I/O Module | Input and logic coordination |
