Product Introduction

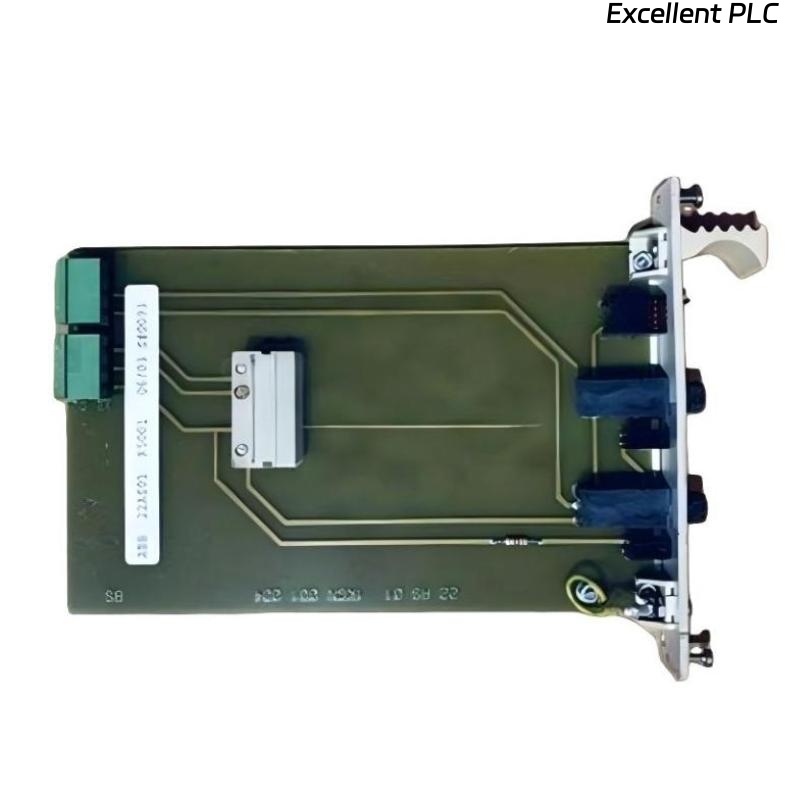

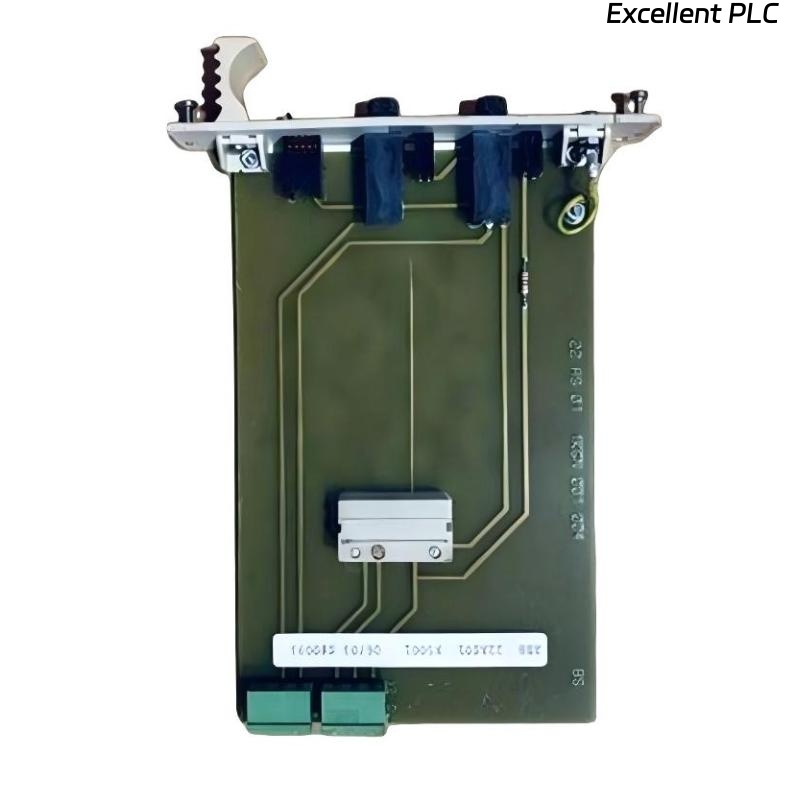

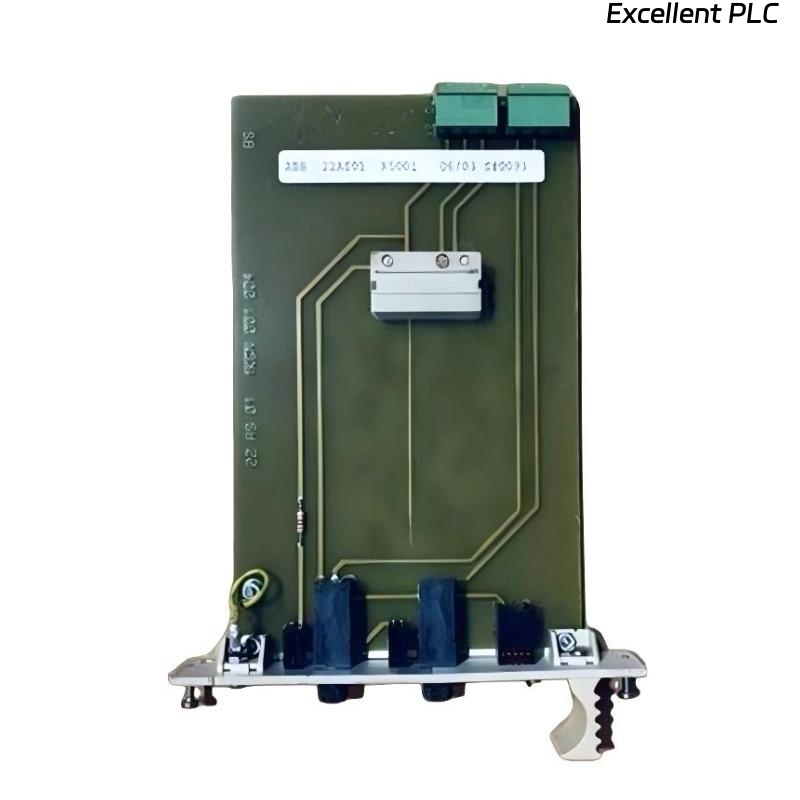

The ABB 22AS01 1KGN001004R5001 Control Module is a versatile control interface designed for industrial automation and protection systems. It processes input signals, executes co
ntrol logic, and provides output commands to downstream devices, ensuring coordinated operation of protection, monitoring, and automation systems.
The module is suitable for installation in control panels, switchgear assemblies, and automation cabinets. Its robust design emphasizes reliable signal processing, electrical noise immunity, and safe operation in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | ABB |
| Product Code | 22AS01 |
| Part Number | 1KGN001004R5001 |
| Product Type | Control Module |
| Primary Function | Processing input signals and executing control logic |
| Input Signal Type | Digital/binary inputs |
| Output Signal Type | Relay or logic outputs |
| Signal Processing | Deterministic control logic execution |
| Electrical Isolation | Galvanic isolation between inputs and outputs |
| Typical Installation | Control panels, switchgear, and automation cabinets |
| Mounting Method | Panel-mounted |
| Operating Environment | Industrial electrical systems |
| Dimensions | 100 × 150 × 50 mm |
| Weight | 0.3 kg |
Applications
Protection Panels: Executes control logic for protection relays and circuit breakers.
Automation Systems: Interfaces with other control modules for coordinated operation.
Switchgear Control: Manages interlocking, permissive logic, and command execution.
Industrial Process Control: Processes discrete input signals for machinery and plant automation.
Alarm and Event Logic: Provides output signals to indicate fault conditions or status changes.
System Modernization: Upgrades legacy control panels with improved logic processing capabilities.
Remote Control Interface: Supports integration with supervisory or remote control systems.
Safety Interlocks: Implements deterministic control for safety-critical operations.
Product Advantages
High Reliability: Designed for continuous operation in industrial environments.
Deterministic Logic Processing: Ensures predictable execution of control commands.
Galvanic Isolation: Protects internal circuitry from input/output electrical disturbances.
Noise Immunity: Maintains stable performance in electrically noisy environments.
Compact Construction: Efficient panel installation without occupying excessive space.
System Compatibility: Integrates with ABB control and protection architectures.
Operational Stability: Provides consistent performance under varying conditions.
Simplified Integration: Facilitates easy connection to input/output devices and other modules.
FAQ
1. What types of signals does the module process?
It processes digital/binary input signals from field devices and sensors.
2. How are output commands delivered?
Outputs are provided as relay or logic signals suitable for downstream devices.
3. Is it suitable for protection applications?
Yes, it is designed to execute control logic for protection relays and interlocking schemes.
4. How does the module handle electrical noise?
Signal processing circuits include noise suppression and galvanic isolation to maintain reliable operation.
5. Can multiple modules be used together in a panel?
Yes, multiple control modules can operate in parallel within the same panel.
6. Is the logic processing deterministic?
Yes, input signals are processed with predictable timing for reliable control execution.
7. Can it interface with remote monitoring systems?
Yes, it can be integrated with supervisory control or remote monitoring systems.
8. How does it support system modernization?
It can replace legacy control modules, providing improved logic capabilities and reliability.
9. Is the module compatible with ABB protection and control architectures?
Yes, it integrates seamlessly into ABB automation and protection systems.
10. How does it contribute to overall system reliability?
By providing stable, deterministic control logic, it reduces the risk of misoperation and ensures safe system performance.
