Product Introduction

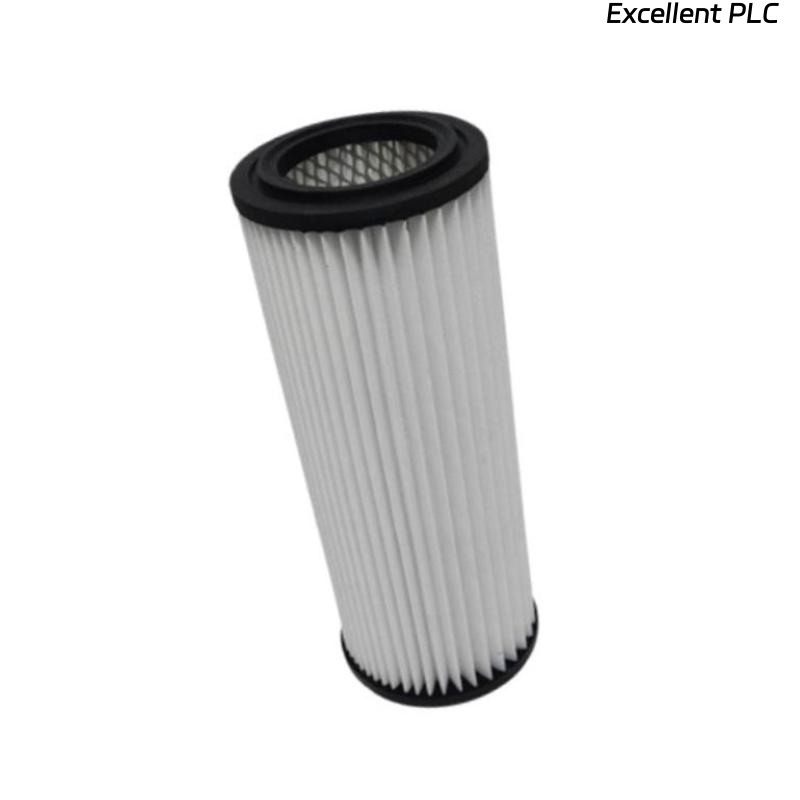

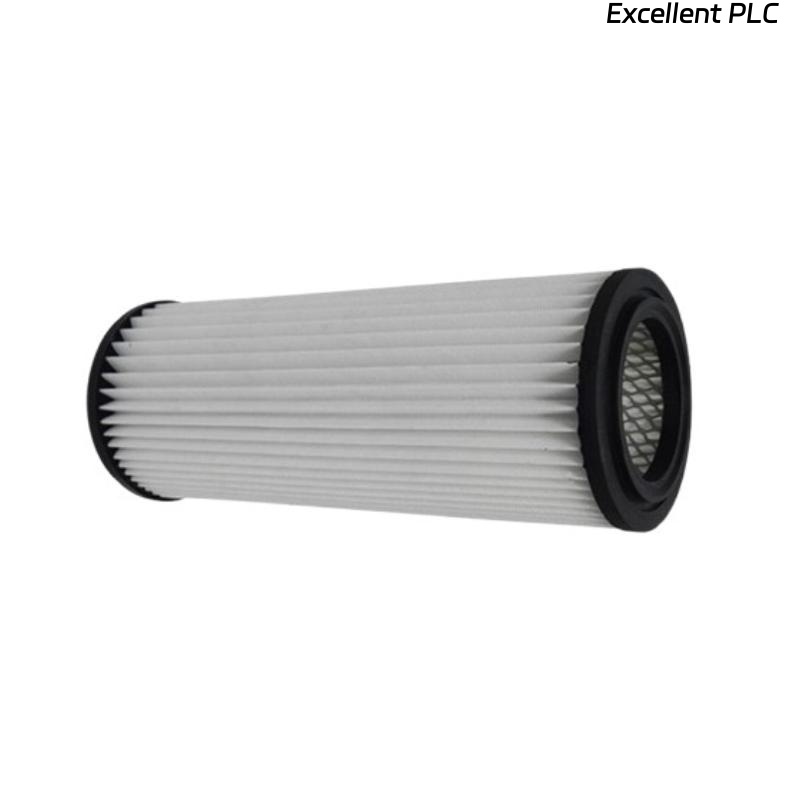

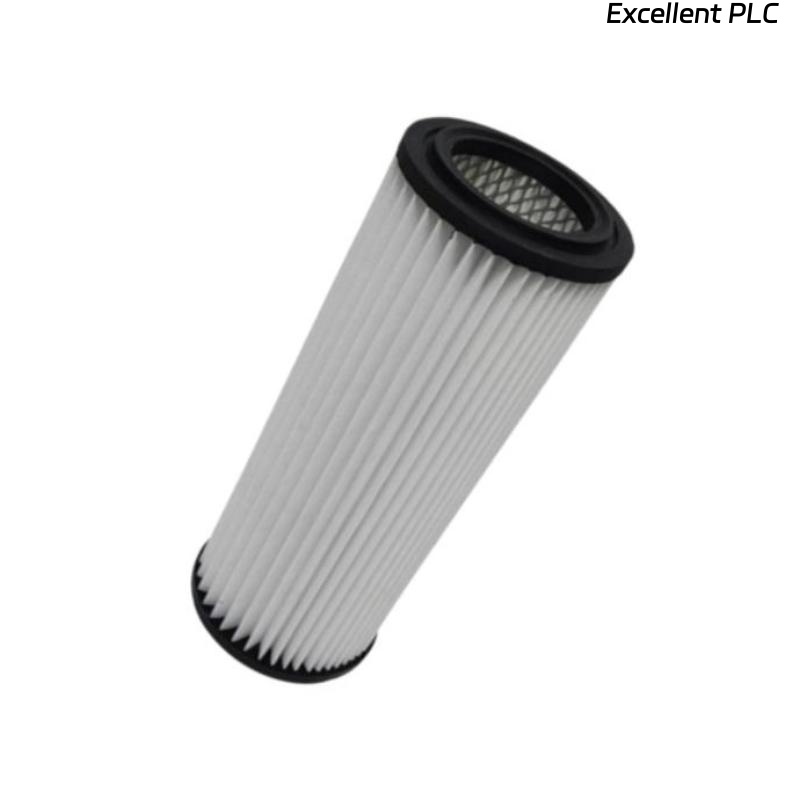

The ABB 3BHL001434P0002 Filter Cartridge is a high-performance industrial filtration component designed to maintain purity and operational reliability in ABB drive systems, power modules, and automation units. Built with premium filtration materials, this cartridge ensures the removal of particulates, oil mist, and other contaminants from air or liquid circuits, thereby extending the life of sensitive components and improving system efficiency.
Product Advantages
-
High Filtration Efficiency: Effectively captures fine particles and micro-contaminants to maintain clean operating environments.
-
Enhanced System Protection: Safeguards sensitive electronics and power modules from contamination-related failures.
-
Durable Construction: Manufactured from industrial-grade filter media resistant to chemical and thermal degradation.
-
Stable Flow Characteristics: Maintains consistent pressure and flow performance throughout its service period.
-
Easy Installation and Replacement: Designed for straightforward fitting in ABB equipment with minimal downtime.
-
Optimized for ABB Systems: Specifically engineered to meet ABB’s quality standards and performance requirements.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 3BHL001434P0002 |
| Type | Filter Cartridge |
| Filter Medium | High-efficiency synthetic fiber |
| Filtration Rating | 5–10 µm nominal |
| Operating Pressure | Up to 10 bar |
| Operating Temperature Range | -20°C to +80°C |
| Flow Direction | Inside to outside |
| Compatibility | ABB drive and converter systems |
| Dimensions (mm) | 85 × 210 mm |
| Weight (kg) | 0.48 kg |
| Connection Type | Sealed push-fit or threaded end |
| Maintenance Interval | Based on system contamination level |
| Manufacturer | ABB Group, Switzerland |
Product Applications
-
Variable speed drives (VSDs) and inverter cooling systems
-
Power converter modules and control cabinets
-
Industrial automation assemblies
-
High-performance rectifiers and thyristor units
-
Turbine and generator control panels
-
Motor control centers (MCCs) and switchgear enclosures
Product Advantages in Operation
-
Improved Reliability: Minimizes risk of electrical shorts or overheating due to dust accumulation.
-
Reduced Maintenance Costs: Extends cleaning intervals and reduces the need for frequent servicing.
-
Energy Efficiency: Supports optimal airflow and minimizes system pressure drop.
-
Consistent Quality: Every unit undergoes ABB’s rigorous quality control and performance testing.
FAQ
Q1: What is the primary function of the ABB 3BHL001434P0002 Filter Cartridge?
A1: It filters out particulate contaminants and ensures clean airflow or fluid flow within ABB power and automation systems.
Q2: Is the filter compatible with both air and oil applications?
A2: Yes, the filter medium is designed to handle both air and light oil mist filtration in ABB systems.
Q3: What type of filtration media is used in this cartridge?
A3: It uses high-efficiency synthetic fiber with uniform pore structure for reliable contaminant retention.
Q4: Can this filter be used in high-temperature environments?
A4: Yes, it can operate effectively within the temperature range of -20°C to +80°C.
Q5: Does the cartridge require a specific installation orientation?
A5: Yes, the flow direction is designed from inside to outside, and must be respected for proper operation.
Q6: How is the filter connected to the system?
A6: It uses a push-fit or threaded connection compatible with ABB converter and drive housings.
Q7: How does the filtration efficiency change over time?
A7: Filtration efficiency increases slightly as particles accumulate, but flow resistance also rises; replacement should follow ABB maintenance guidelines.
Q8: Can this filter be cleaned and reused?
A8: It is generally recommended for single-use; cleaning may damage the fiber structure and reduce performance.
Q9: What pressure limits should be observed?
A9: The maximum operating pressure should not exceed 10 bar to avoid cartridge deformation or rupture.
Q10: How does this filter contribute to system stability?
A10: It maintains consistent air or fluid purity, ensuring stable voltage regulation, reduced heat stress, and improved component lifespan in ABB systems.
Related or Same-Series Models
| Model Number | Description | Application Area | Filter Medium | Operating Pressure |
|---|---|---|---|---|
| 3BHL001434P0001 | Standard filter cartridge | Drives and inverters | Synthetic fiber | 10 bar |
| 3BHL001434P0003 | High-capacity version | Cooling circuits | Microglass fiber | 12 bar |
| 3BHL001434P0004 | Oil mist filtration type | Converter modules | Polyester fiber | 8 bar |
| 3BHL001434P0005 | Dust retention optimized | Automation cabinets | Synthetic fiber | 10 bar |
| 3BHL001434P0006 | Extended life cartridge | Power units | Composite fiber | 10 bar |
| 3BHL001434P0007 | High-temperature resistant type | Industrial drives | Aramid fiber | 15 bar |
Popular ABB Models
| Model Number | Product Type | Main Application | Voltage Rating | Weight (kg) |
|---|---|---|---|---|
| 3BHL000386P0101 | IGCT Module | Power converter | 4500 V | 1.2 |
| 5SHX1445H0002 | IGCT Module | Industrial inverter | 4500 V | 0.9 |
| 5SHX2645L0001 | IGCT Module | Drive systems | 6500 V | 1.4 |
| AR771LTS45 3BHB025698R0001 | Communication Module | Control systems | 24 V DC | 0.35 |
| SDCS-CON-3A-COAT 3ADT312000R1 | Converter Control Board | DC drives | 230 V | 0.6 |
| CP6415 1SAP541510R0001 | Control Panel Module | PLC systems | 24 V DC | 0.8 |
