Product Introduction

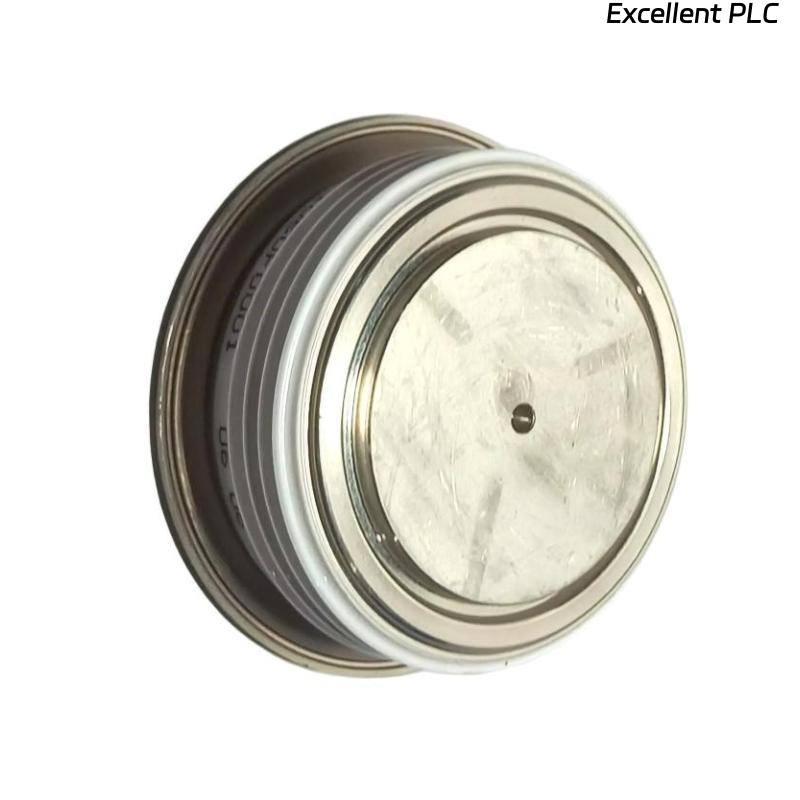

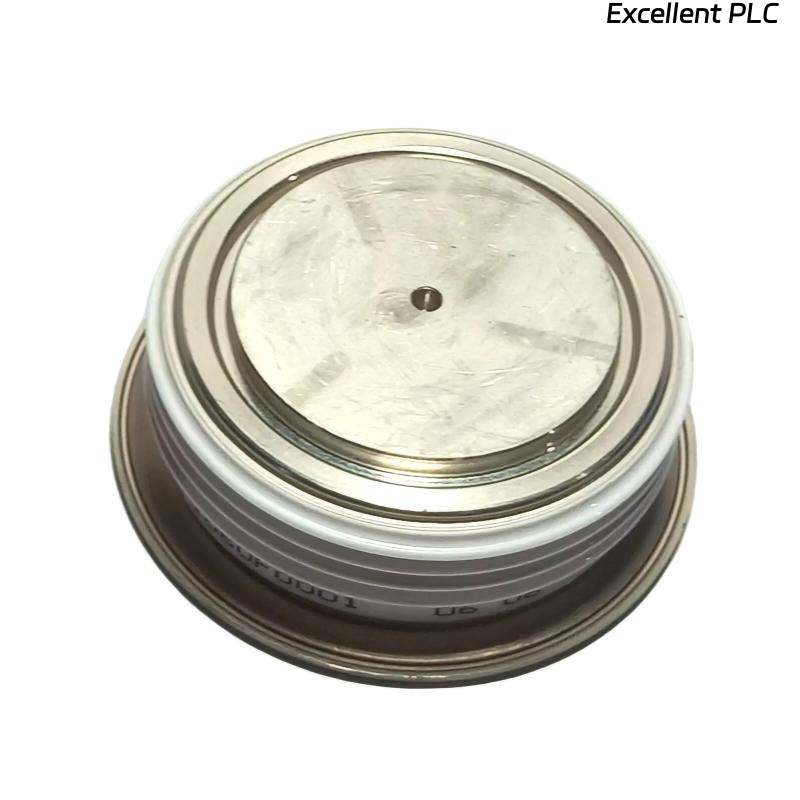

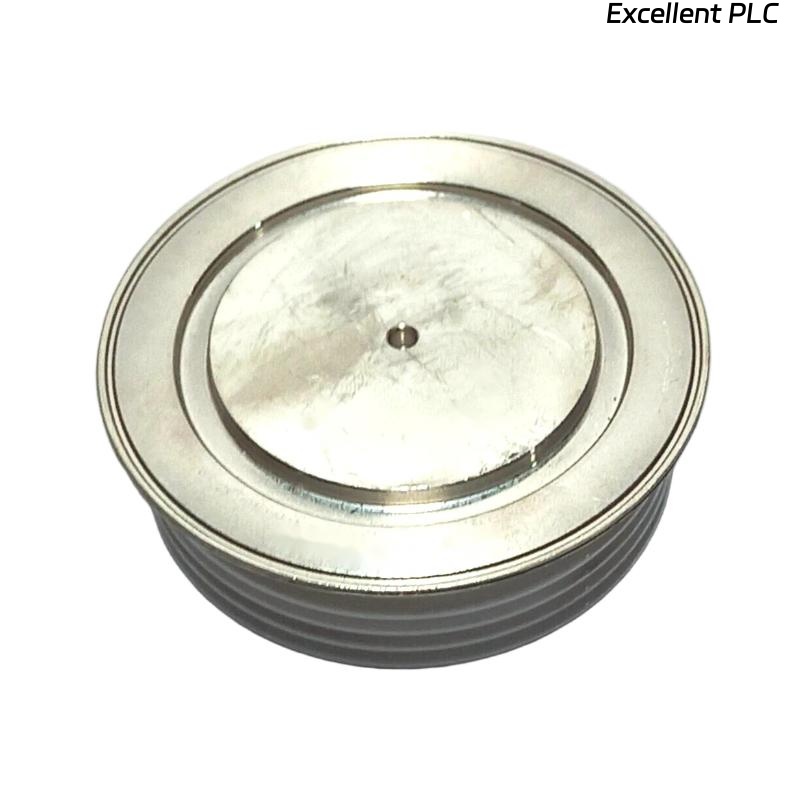

The ABB 5SDD1060F0001 3BHL001863P0001 Diode is a high-performance power semiconductor device designed for industrial applications that require efficient rectification and reliable current handling. This diode is part of ABB’s industrial-grade power electronics series, optimized for high-current rectification, minimal voltage drop, and stable operation under fluctuating electrical loads.
The device is constructed with high-quality silicon and robust packaging, allowing it to withstand harsh industrial conditions, including electrical stress and thermal cycling. With a diameter of 50 mm and weight of 0.45 kg, the diode combines compactness with high power capacity, making it suitable for integration into power converters, drives, and industrial rectifier modules. It is engineered to deliver consistent performance in high-demand applications such as AC/DC conversion, motor drives, and renewable energy systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | ABB 5SDD1060F0001 3BHL001863P0001 Diode |
| Device Type | Power diode |
| Maximum Reverse Voltage (V_R) | 1.8 kV |
| Forward Current (I_F) | 600 A |
| Forward Voltage Drop (V_F) | 1.2 V typical at rated current |
| Reverse Recovery Time (t_rr) | 5 µs typical |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -40°C to +150°C |
| Thermal Resistance (Junction to Case) | 0.3 °C/W |
| Cooling Method | Forced air or conduction cooling recommended |
| Material | High-quality silicon with ceramic and metal encapsulation |
| Mounting Type | Flange or module mounting compatible |
| Diameter | 50 mm |
| Weight | 0.45 kg |
Product Applications
The ABB 5SDD1060F0001 diode is used in a variety of industrial and high-power applications where reliable rectification and fast switching are critical.
Applications include:
-
Industrial Rectifiers: Conversion from AC to DC for power modules.
-
Variable Frequency Drives (VFDs): Rectifier stage in motor speed and torque control.
-
Renewable Energy Systems: DC conversion in solar inverters and wind turbines.
-
HVDC and Medium Voltage Applications: High-current rectification for transmission systems.
-
Industrial Power Supplies: Stable DC supply for control and auxiliary systems.
-
Uninterruptible Power Supplies (UPS): Ensures clean and reliable DC output for critical loads.
Product Advantages
The ABB 5SDD1060F0001 diode provides high reliability, efficiency, and robust operation in industrial power systems.
Advantages include:
-
High Current Handling: Supports continuous forward currents up to 600 A.
-
Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
-
Fast Switching Capability: Short reverse recovery time allows rapid response in power circuits.
-
Robust Construction: Designed to withstand thermal and electrical stress.
-
Thermal Efficiency: Low thermal resistance enables effective heat dissipation.
-
Versatile Mounting: Compatible with flange and module installation in industrial setups.
-
Wide Temperature Operation: Reliable performance from -40°C to +125°C.
-
Industrial Compatibility: Suitable for drives, rectifiers, and renewable energy systems.
-
Stable Performance: Ensures minimal voltage fluctuations and consistent operation.
-
Maintenance-Free Operation: Designed for long-term reliability in high-demand industrial environments.
FAQ
-
What is the maximum reverse voltage for this diode?
The ABB 5SDD1060F0001 diode supports a maximum reverse voltage of 1.8 kV, suitable for high-voltage industrial applications. -
What is the maximum continuous forward current?
It can handle up to 600 A continuously, allowing high-current rectification in power modules. -
What is the typical forward voltage drop?
The diode exhibits a typical forward voltage drop of 1.2 V at rated current, reducing conduction losses. -
How fast is the diode’s switching capability?
The reverse recovery time is typically 5 µs, enabling rapid response in high-frequency rectifier circuits. -
What is the operating temperature range of the diode?
It operates reliably from -40°C to +125°C in harsh industrial environments. -
What cooling methods are recommended?
Forced air or conduction cooling is recommended to maintain optimal thermal performance. -
Is the diode suitable for renewable energy applications?
Yes, it can be used in solar inverters and wind turbines for efficient DC conversion. -
What mounting options are available for this diode?
It supports both flange and module mounting for flexible industrial integration. -
What is the thermal resistance of the diode?
The junction-to-case thermal resistance is 0.3 °C/W, ensuring efficient heat dissipation. -
Can this diode be used in VFDs and industrial drives?
Yes, it is ideal for the rectifier stage in variable frequency drives and industrial motor control systems.
