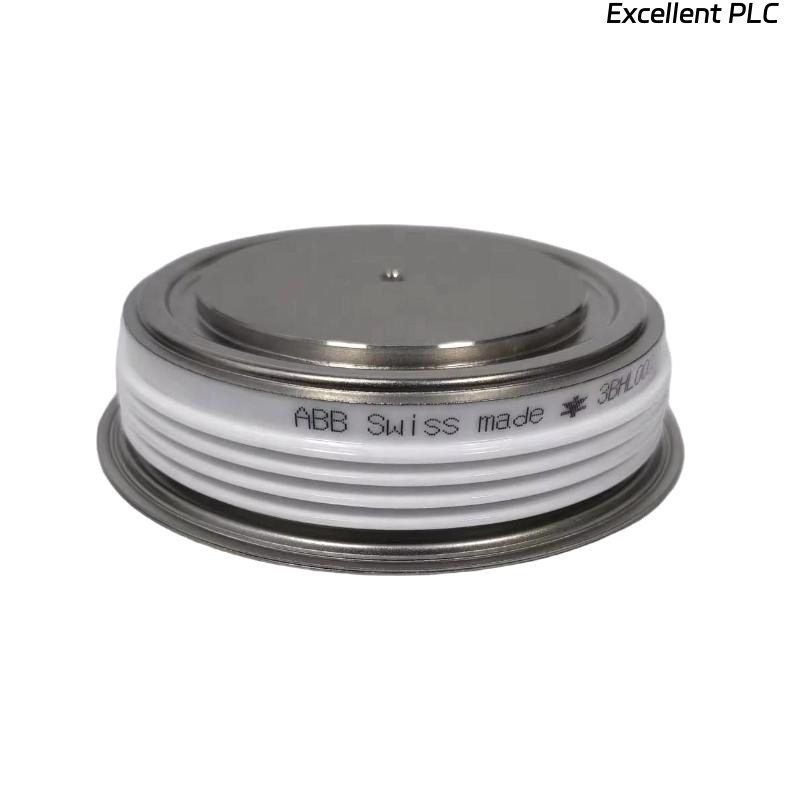

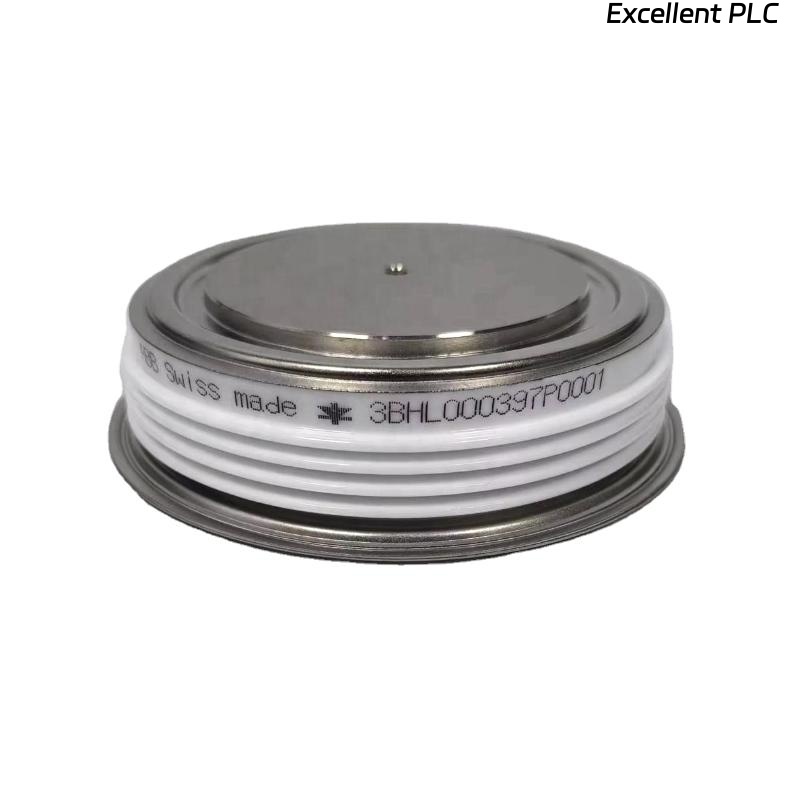

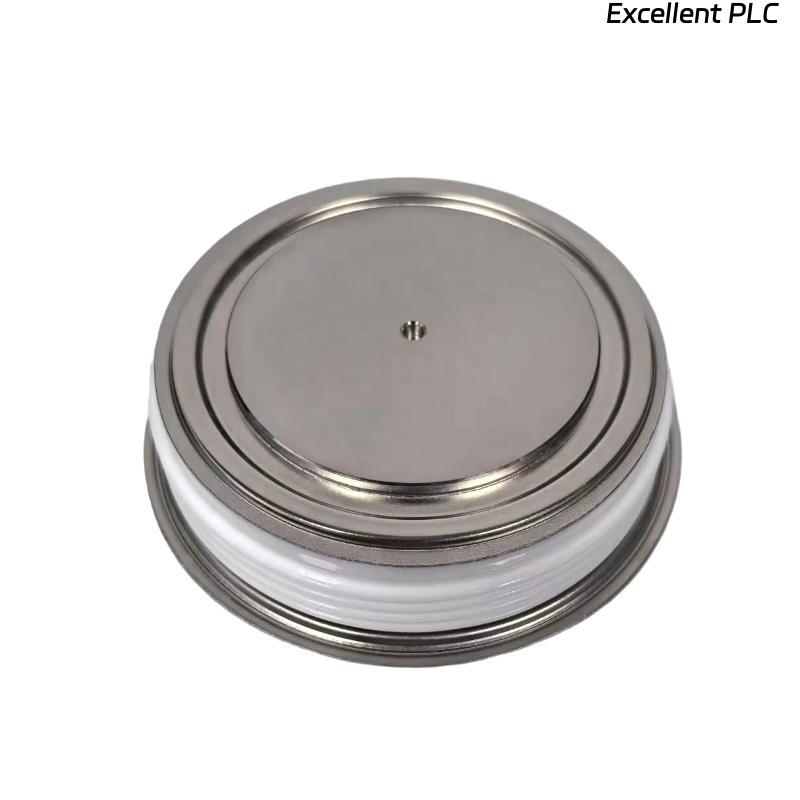

ABB 5SDF0860H0003 3BHL000397P0001 Diode

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB 5SDF0860H0003 3BHL000397P0001 Diode is a high-performance semiconductor component designed for industrial power conversion and rectification systems. It belongs to ABB’s high-power diode series, which are widely recognized for their superior efficiency, durability, and reliability in heavy-duty electrical and electronic equipment.

This diode is primarily engineered to handle high current and voltage demands with low power losses, ensuring maximum efficiency in both continuous and transient operations. The 5SDF0860H0003 features a robust hermetically sealed design to protect against humidity, dust, and environmental stress, making it suitable for applications in harsh industrial environments.

The device is optimized for use in converters, inverters, and rectifier systems, where it ensures controlled and efficient current flow. With ABB’s advanced thermal management and junction technology, this diode delivers excellent heat dissipation, minimal reverse recovery losses, and superior electrical performance even under extreme load conditions.

---

Technical Specifications

---

Product Applications

The ABB 5SDF0860H0003 Diode is specifically designed for industrial-grade power conversion and rectification systems where high current and voltage capabilities are essential. Its versatility allows it to be used across a wide range of industries and equipment.

• Power Converters and Inverters: Used in AC/DC and DC/AC conversion stages in high-power drive systems and converters.

• Industrial Drives: Provides rectification for variable frequency drives (VFDs), enabling precise motor control.

• HVDC (High Voltage Direct Current) Transmission Systems: Ensures efficient energy conversion and protection in high-voltage DC links.

• UPS and Power Supply Units: Acts as a key component in the rectifier and inverter sections for uninterruptible power systems.

• Renewable Energy Systems: Used in solar inverters and wind turbine converters for efficient DC link management.

• Traction and Transportation Systems: Suitable for railway power systems, electric locomotives, and marine propulsion units.

This diode’s robust performance and stable thermal characteristics make it a preferred choice for continuous operation in demanding power electronics environments.

---

Product Advantages

• High Current Capacity: Rated for 860 A continuous forward current, supporting heavy-load operations without performance degradation.

• Low Power Losses: Optimized junction design ensures minimal conduction and switching losses for improved energy efficiency.

• Fast Recovery Time: Provides rapid switching with minimal reverse recovery energy, reducing heat generation.

• Superior Thermal Management: Low thermal resistance enables effective heat dissipation and higher system reliability.

• Rugged Construction: Hermetically sealed press-pack design offers protection against environmental stress, moisture, and dust.

• High Surge Capability: Can handle up to 9000 A surge current for transient protection and overload conditions.

• Electrical Isolation: Electrically insulated case enhances installation safety and flexibility in system integration.

• Long-Term Stability: Proven reliability in industrial applications due to ABB’s strict quality and testing standards.

• Versatile Mounting: Supports both press-pack and axial mounting configurations for flexible system design.

• Global Standard Compliance: Meets IEC and UL industrial semiconductor performance standards for safety and efficiency.

---

FAQ

1. What type of diode is the ABB 5SDF0860H0003?
   It is a high-current, fast recovery power diode designed for industrial converters and rectifier systems.

2. What is the maximum reverse voltage rating?
   The diode supports a maximum repetitive reverse voltage (VRRM) of 3600 V.

3. How much forward current can it handle continuously?
   It can handle a continuous forward current (IFAV) of 860 A under rated cooling conditions.

4. What type of packaging is used in this diode?
   The diode features a press-pack metal-ceramic package for maximum mechanical robustness and heat dissipation.

5. Does the diode provide electrical isolation between the case and junction?
   Yes, it has an electrically isolated case that simplifies installation and improves system safety.

6. What cooling methods are recommended for this diode?
   Forced air or liquid-cooled heat sinks are recommended to maintain thermal stability during high-load operation.

7. What is the typical forward voltage drop during operation?
   The forward voltage drop (VFM) is typically 1.2 V at the rated current of 860 A.

8. Can it handle surge currents, and if so, how much?
   Yes, the diode can withstand a surge current (IFSM) of up to 9000 A for short durations.

9. What is the reverse recovery time for this diode?
   The typical reverse recovery time (trr) is around 2 microseconds, suitable for high-frequency applications.

10. Is this diode compliant with international industrial standards?
    Yes, it complies with IEC 60747-2, UL, and RoHS standards for performance and safety.

---
