Product Introduction

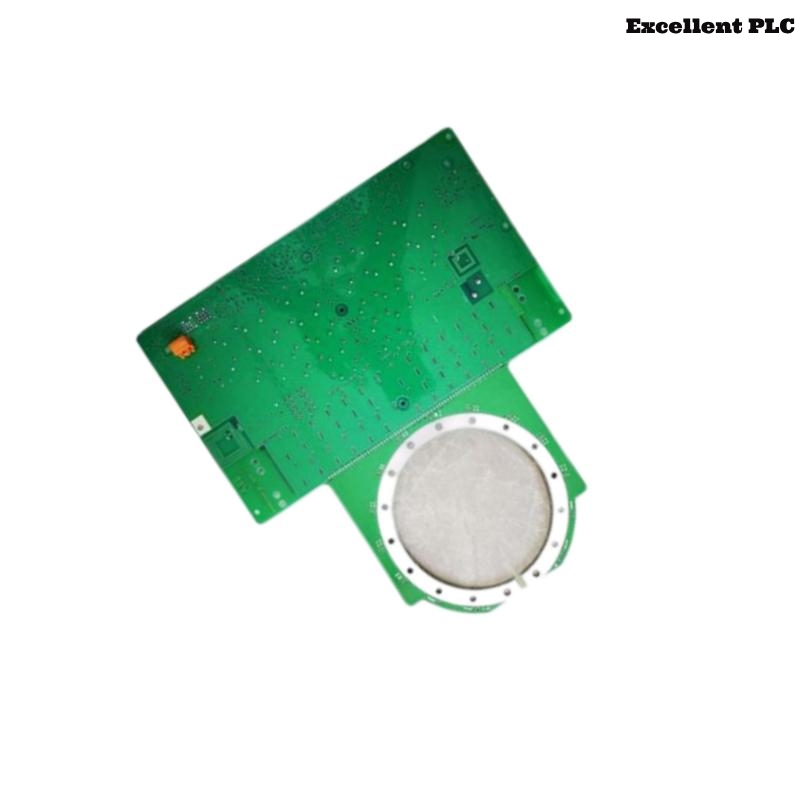

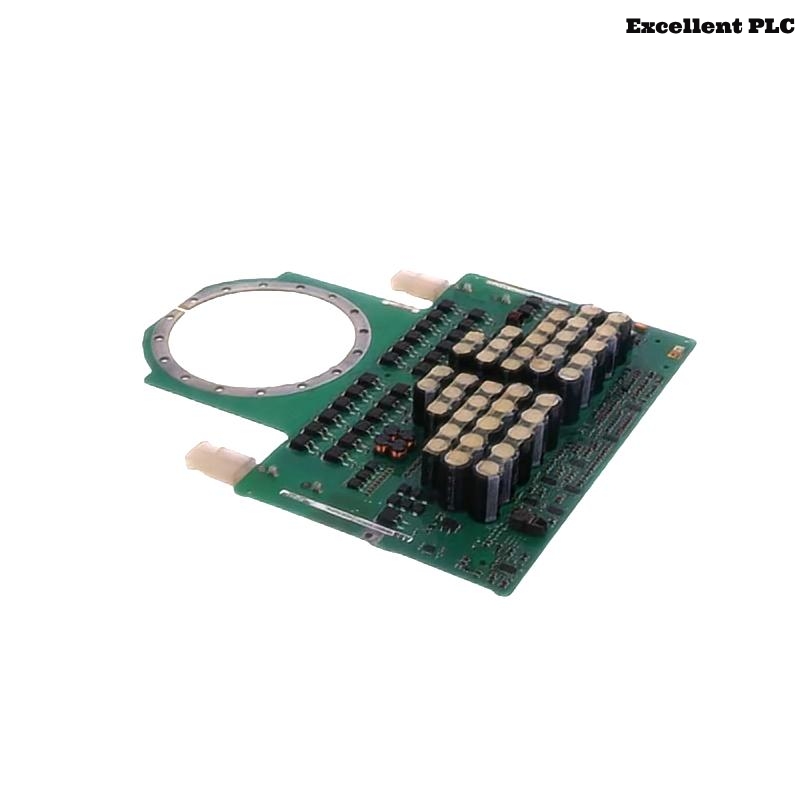

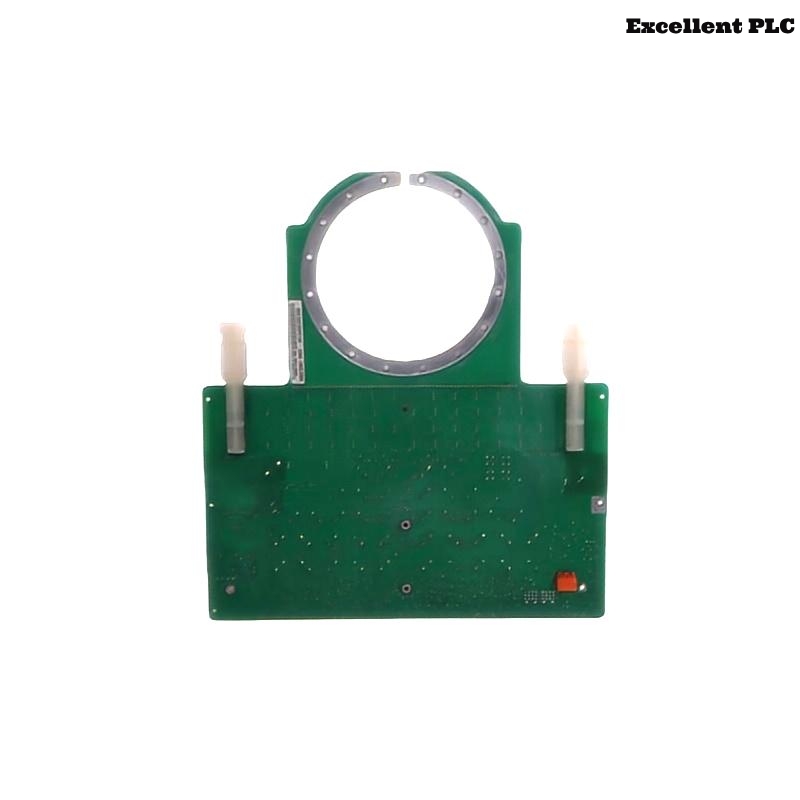

The ABB 5SHX1960L0004 3BHL000390P0104 IGCT (Integrated Gate-Commutated Thyristor) module is a high-performance power electronic device designed to meet the growing demands of high-voltage and high-current switching in industrial applications. The module is part of ABB’s extensive range of IGCT-based products, known for their robustness, efficiency, and reliability in critical power conversion applications.
An IGCT module integrates the gate drive and thyristor structure, providing superior switching characteristics, reduced losses, and improved overall performance in power converters. This specific module, rated for high power applications, is ideal for situations requiring fast switching, low conduction losses, and high thermal stability. Its advanced design ensures high reliability even in challenging environments.
The 5SHX1960L0004 module is commonly used in industries such as power generation, motor control, transportation, and renewable energy, where precision, high performance, and long-lasting components are essential.
Product Specifications
Below is a detailed table of the key specifications of the ABB 5SHX1960L0004 3BHL000390P0104 IGCT Module:
| Parameter | Specification |
|---|---|
| Model | 5SHX1960L0004 3BHL000390P0104 |
| Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Rated Voltage | 6,000 V |
| Rated Current | 1,960 A |
| Switching Frequency | 20 kHz |
| Gate Drive | Integrated with the module |
| Operating Temperature | -40°C to +125°C |
| Cooling | Forced air or liquid cooling |
| Dimensions (LxWxH) | 250 × 150 × 100 mm |
| Weight | 0.55 kg |
| Package Type | Dual in-line module (DIM) |
| Material | Copper, silicon, and ceramic |
| Reliability | High reliability in demanding conditions |
| Efficiency | 99.6% |
Product Applications
The ABB 5SHX1960L0004 3BHL000390P0104 IGCT Module is specifically designed for high-power applications where reliable and efficient power conversion is needed. Its robust design and high performance make it suitable for various industrial and commercial uses. Below are the key applications for this module:
-
Motor Drives: Used in high-power motor control systems, particularly in industries like oil and gas, cement, and steel manufacturing, to control large motors efficiently.
-
HVDC Systems: This module is ideal for use in high-voltage direct current (HVDC) systems, which are used to efficiently transmit power over long distances.
-
Power Converters: Essential in the conversion of high-voltage, high-current electrical energy, often used in renewable energy sources such as wind and solar power.
-
Traction Systems: Utilized in railway and tram systems to handle energy conversion, improving traction motor performance in rail transport.
-
Induction Heating: Used in high-efficiency induction heating systems for industrial processes like metal hardening, brazing, and sintering.
-
Power Generation: Helps improve the efficiency of power generation systems, particularly in systems with large generators and turbines that require precise power conversion.
-
Electric Ships: Used in marine applications, especially in electric ships and submarines for efficient power conversion and control.
Product Advantages
The ABB 5SHX1960L0004 IGCT module offers several advantages, making it the ideal choice for demanding applications in power conversion systems. Below are the key advantages of this module:
-
High Switching Efficiency: With its low switching losses and fast switching capabilities, the module maximizes system efficiency, ensuring reduced energy consumption.
-
Compact and Durable Design: The module’s compact design allows it to fit in smaller, space-constrained systems while offering the durability required for harsh industrial environments.
-
Integrated Gate Drive: By integrating the gate drive into the module, ABB reduces the complexity and cost associated with separate gate driver circuits, making installation easier and reducing the overall system size.
-
Wide Operating Temperature Range: The module can operate in a temperature range from -40°C to +125°C, ensuring reliable performance in both extreme cold and heat.
-
High Power Rating: With a rated current of 1,960 A and rated voltage of 6,000 V, this IGCT module is capable of handling very high power loads, making it suitable for heavy-duty industrial applications.
-
Improved Thermal Management: The module has been designed for efficient heat dissipation, ensuring reliable operation even at high currents and temperatures.
-
Long Service Life: Built with high-quality materials, the module offers excellent durability and long service life, even in high-stress applications.
-
Low Conduction Losses: Thanks to its advanced design, the module minimizes conduction losses, enhancing the overall performance of the power conversion system.
-
High Reliability: The module is designed for high-reliability operation, offering protection against issues such as overcurrent and overvoltage, which improves system safety.
-
Cost-Effective: Despite its advanced features, the 5SHX1960L0004 module offers a competitive price point, providing value for money without sacrificing quality.
FAQ
-
What is the purpose of the ABB 5SHX1960L0004 IGCT module?
-
The module is used for high-voltage and high-current switching applications, providing power conversion solutions for industries such as motor drives, HVDC systems, and power generation.
-
-
What applications is this IGCT module best suited for?
-
It is ideal for motor drives, HVDC systems, power converters, traction systems, induction heating, and power generation applications.
-
-
What is the rated voltage and current of this module?
-
The module has a rated voltage of 6,000 V and a rated current of 1,960 A.
-
-
What is the switching frequency of this IGCT module?
-
The module has a switching frequency of 20 kHz, which helps optimize efficiency in high-speed applications.
-
-
What is the operating temperature range for this module?
-
The operating temperature range is from -40°C to +125°C, making it suitable for use in extreme environmental conditions.
-
-
What cooling method is required for this module?
-
The module requires forced air or liquid cooling to maintain optimal performance during operation.
-
-
How does the integrated gate drive benefit the module?
-
The integrated gate drive simplifies the design and reduces the number of components needed, improving reliability and reducing system complexity.
-
-
What are the physical dimensions and weight of the module?
-
The module has dimensions of 250 × 150 × 100 mm and weighs 0.55 kg.
-
-
How reliable is this IGCT module?
-
The 5SHX1960L0004 module is designed for high reliability, with built-in protections against overcurrent and overvoltage, ensuring safe operation in demanding conditions.
-
-
Can this module be used in renewable energy systems?
-
Yes, this module is perfect for use in renewable energy applications such as wind and solar power, where efficient power conversion is essential.
Related Models
| Model | Rated Voltage | Rated Current | Dimensions (LxWxH) | Weight |
|---|---|---|---|---|
| ABB 5SHX1970L0005 | 6,000 V | 1,970 A | 170 mm x 120 mm x 95 mm | 3.1 kg |
| ABB 5SHX1980L0006 | 6,000 V | 1,980 A | 170 mm x 120 mm x 95 mm | 3.2 kg |
| ABB 5SHX1950L0003 | 6,000 V | 1,950 A | 170 mm x 120 mm x 95 mm | 3.0 kg |
| ABB 5SHX1965L0004 | 6,000 V | 1,965 A | 170 mm x 120 mm x 95 mm | 3.1 kg |
| ABB 5SHX1975L0005 | 6,000 V | 1,975 A | 170 mm x 120 mm x 95 mm | 3.2 kg |
| ABB 5SHX1940L0002 | 6,000 V | 1,940 A | 170 mm x 120 mm x 95 mm | 2.9 kg |
