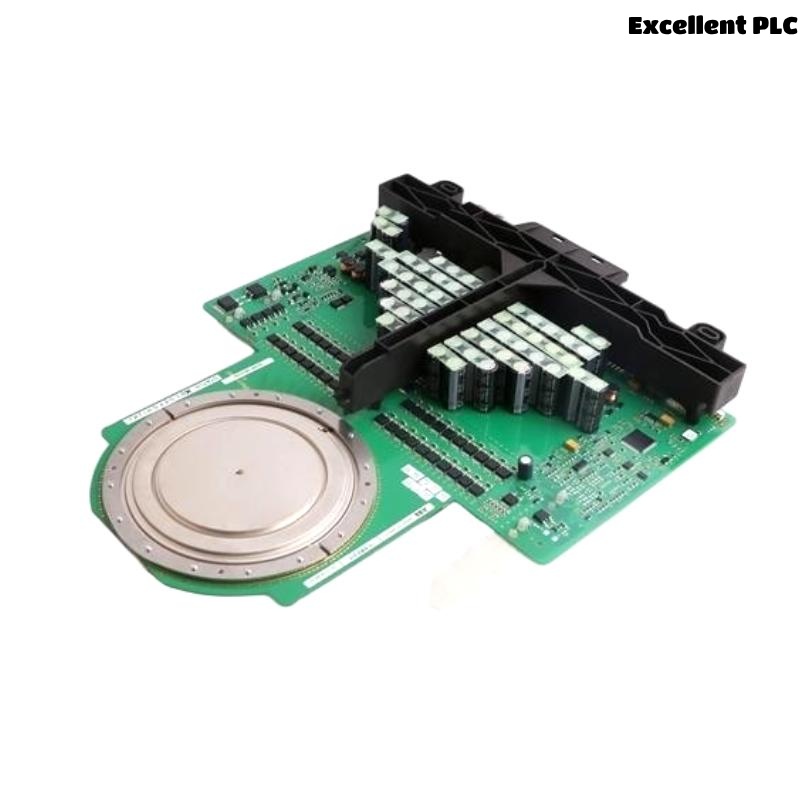

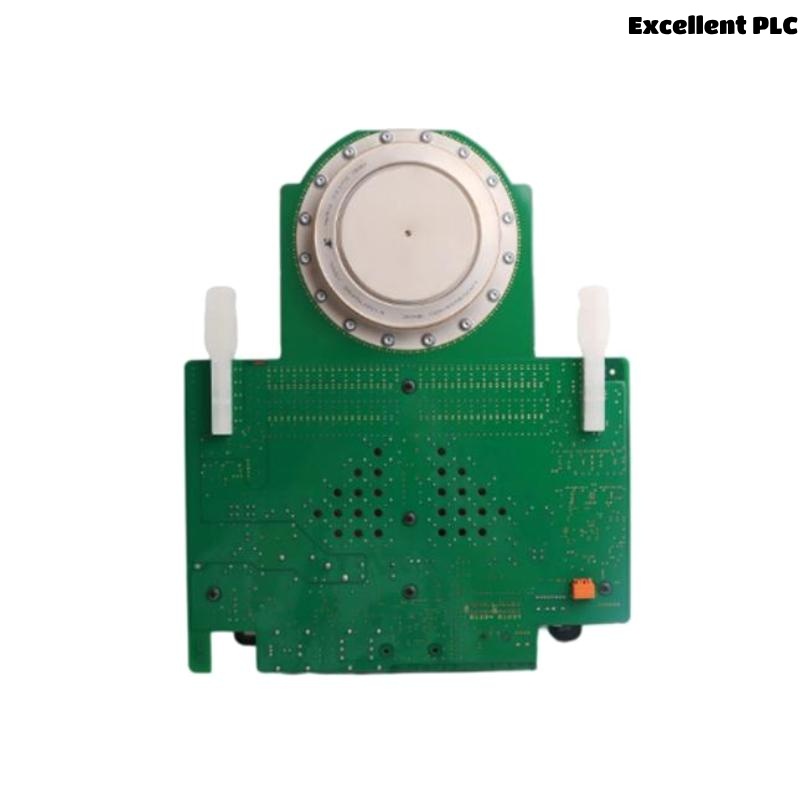

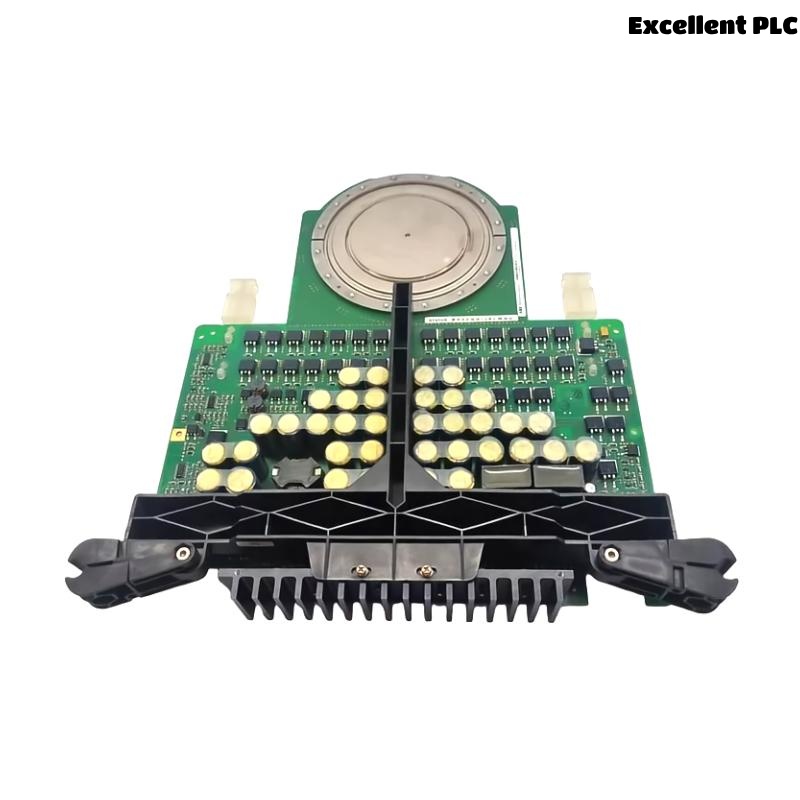

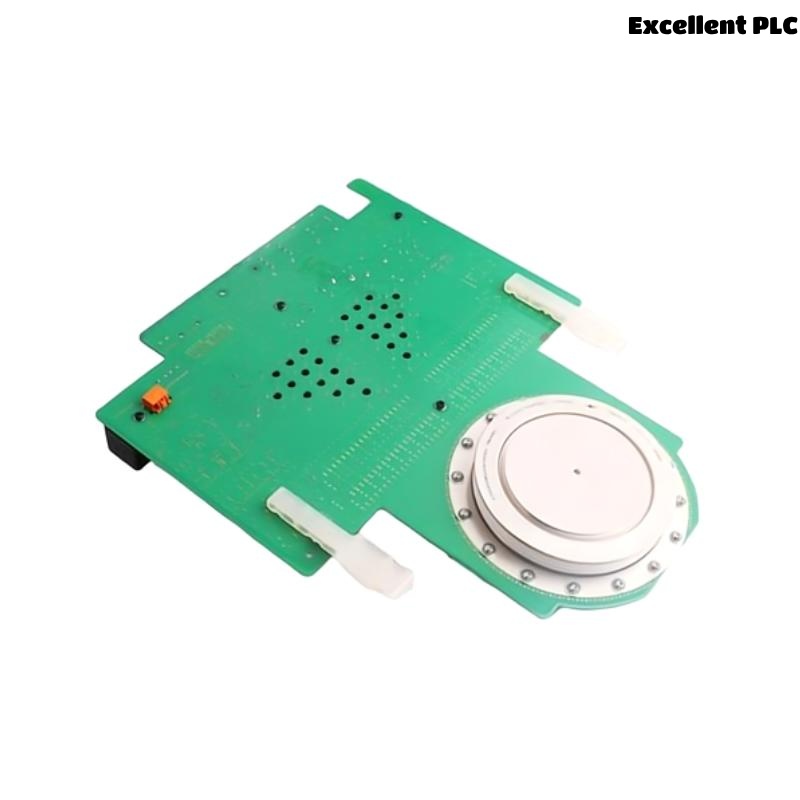

ABB 5SHY3545L0014 3BHE023784R0001 Thyristor Module

Product Introduction

The ABB 5SHY3545L0014 (3BHE023784R0001) is a high-power thyristor module engineered for use in demanding industrial environments where robust power conversion and switching capabilities are essential. As part of ABB’s high-performance 5SHY series, this module is designed for use in medium- and high-voltage motor drives, soft starters, static excitation systems, and frequency converters.

This model is widely recognized for its ability to handle high surge currents, rapid switching, and excellent thermal stability. Engineered for long-term operation and minimal maintenance, the 5SHY3545L0014 is a trusted component in ABB’s industrial automation and drive systems, particularly in large-scale infrastructure and power applications.

Product Specifications

Product Applications

The ABB 5SHY3545L0014 thyristor module is engineered for heavy-duty industrial switching and control applications, offering outstanding reliability in systems that demand high surge current tolerance and high voltage blocking capabilities. Common application scenarios include:

• Large Synchronous and Asynchronous Motor Drives

• HVDC (High Voltage Direct Current) Systems

• Static Excitation Systems in Power Generation

• Soft Starters for Industrial Motors

• Medium and High Voltage Frequency Converters

• Renewable Energy Systems (e.g., wind and hydroelectric generators)

• Traction and Railway Systems (locomotive drives)

Its rugged construction and high current handling make it especially suitable for mission-critical environments, such as power stations, steel mills, and offshore oil rigs.

Product Advantages

• High Voltage Capability: Rated up to 4500 V, suitable for medium- and high-voltage applications.

• Extreme Current Handling: Capable of withstanding 44,000 A surge current, ideal for load-heavy operations.

• Robust Construction: Press-pack design ensures uniform current distribution and mechanical stability.

• High Thermal Endurance: Operates efficiently even under elevated junction temperatures (up to 180°C).

• Long Service Life: Built with optimized semiconductor materials for long-term reliability.

• Low Gate Trigger Current: Efficient activation without the need for high drive power.

• Compact and Durable: Small footprint with solid construction for space-constrained environments.

• Global Standards Compliance: Meets IEC 60747-6, RoHS, and CE for universal industrial usage.

• Flexible Cooling Options: Compatible with both forced air and liquid cooling systems.

• Trusted ABB Technology: Supported by ABB’s global service and reliability record.

Frequently Asked Questions (FAQ)

1. What type of thyristor is the 5SHY3545L0014?
   It is a phase-controlled press-pack thyristor, commonly used in high-power AC-DC and DC-AC conversion systems.

2. What cooling method is recommended?
   The module supports both forced air and liquid cooling, depending on the installation design and heat dissipation needs.

3. Can it be used in regenerative motor drive systems?
   Yes, the high surge capacity and thermal stability make it suitable for regenerative applications.

4. Does it include gate triggering components?
   No, external gate drive circuitry is required for proper triggering and control.

5. What mounting configuration does it use?
   It uses a press-pack axial mounting, designed for mechanical clamping between heat sinks.

6. Is this module compatible with all ABB DCS or drive systems?
   It is specifically intended for integration into ABB drive and excitation systems, but can also be used in other compatible high-power designs.

7. What is the gate trigger current for this model?
   The gate trigger current (I_GT) is typically ≤ 150 mA, which is standard for high-power modules.

8. Does this module support bidirectional current flow?
   No, thyristors are unidirectional devices and conduct in one direction once triggered.

9. How should the module be handled during installation?
   Handle using static protection measures and avoid mechanical stress. Ensure correct alignment in press-pack mounting.

10. What safety certifications does it meet?
    The 5SHY3545L0014 complies with IEC 60747-6, is RoHS compliant, and CE marked for safe use globally.
