Product Introduction

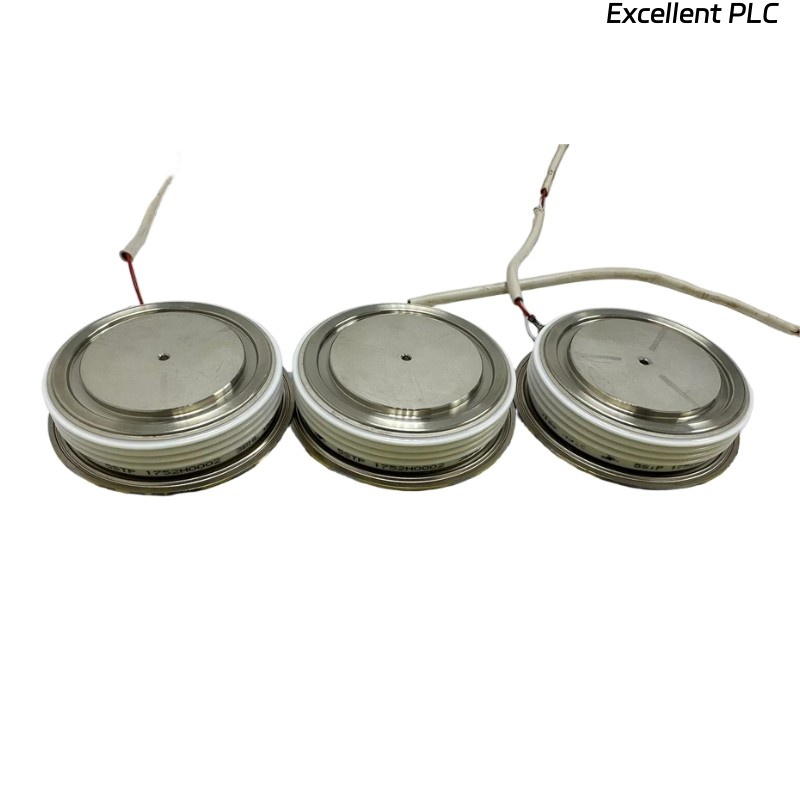

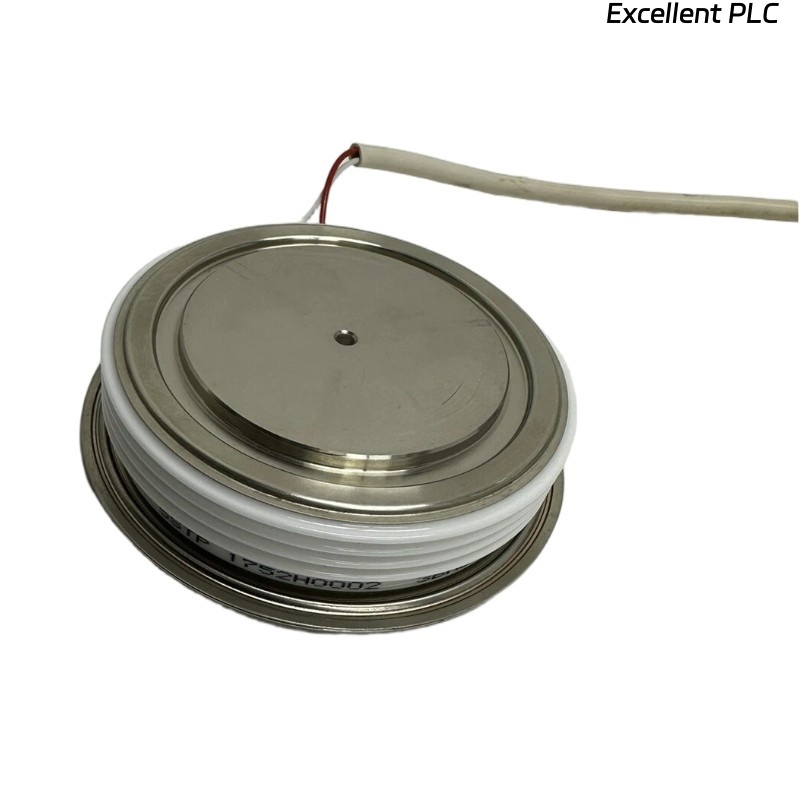

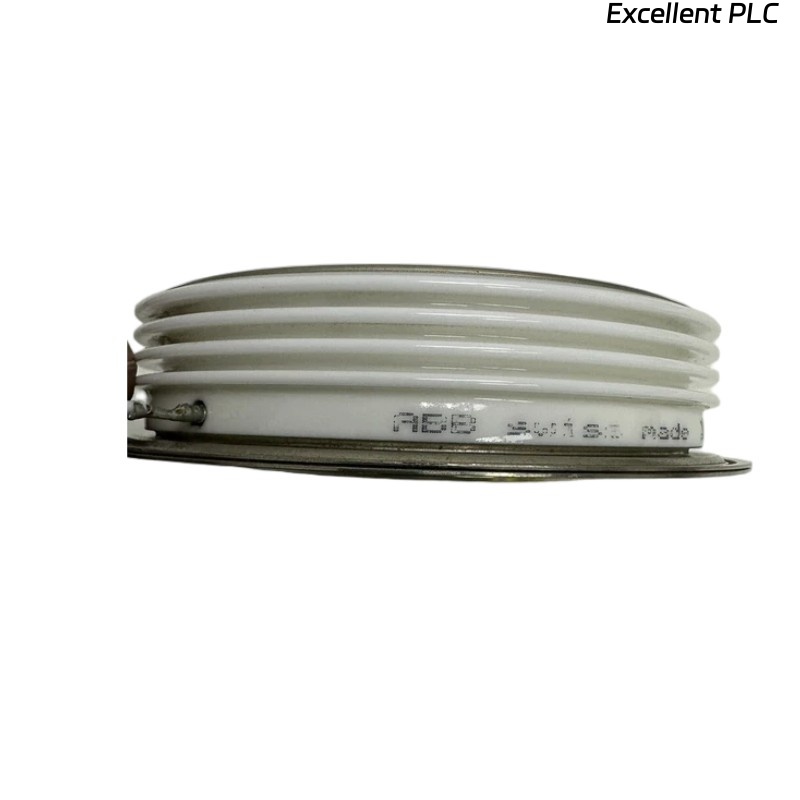

The ABB 5STP1752H000 3BHL000986P3016 Thyristor Power Module is a high-performance semiconductor device designed for industrial power applications. It integrates multiple thyristors into a compact, rugged module, enabling efficient handling of high currents and voltages in power electronic circuits. This module is commonly used in power converters, motor drives, and other industrial equipment where reliability and precise control of electrical power are critical.
ABB’s manufacturing expertise ensures that this module provides superior thermal performance, long-term operational stability, and resistance to environmental stresses such as vibration and humidity. Its design allows for simplified integration into existing systems, reducing installation time and maintenance requirements.
Product Advantages
-
High current and voltage handling capability, suitable for heavy-duty industrial applications.
-
Robust thermal management design to ensure stable operation under high loads.
-
Compact and modular design simplifies integration into power electronic systems.
-
High reliability and durability due to ABB’s rigorous quality standards.
-
Low conduction and switching losses, enhancing overall system efficiency.
-
Compatible with a wide range of industrial converters and drives.
-
Protective encapsulation ensures resistance to environmental stresses.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Thyristor Power Module |
| Part Number | 5STP1752H000 / 3BHL000986P3016 |
| Rated Current (IT) | 1750 A |
| Rated Voltage (VR) | 1200 V |
| Surge Current (ITSM) | 25 kA |
| Switching Time (tq) | 3 µs |
| Control Voltage | 15-30 V DC |
| Gate Trigger Current | 200 mA |
| Operating Temperature | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Cooling Method | Liquid or forced air |
| Dimensions | 140 × 100 × 30 mm |
| Weight | 0.45 kg |
| Mounting Type | Bolt-on |
Product Applications
-
Medium and high-power motor drives
-
Industrial power converters and inverters
-
Renewable energy systems, such as wind or solar power converters
-
High-current AC/DC rectification systems
-
Induction heating and welding equipment
-
Power supply for large industrial machinery
FAQ
Q1: What is the maximum switching frequency this module can handle?
A1: The ABB 5STP1752H000 can reliably operate at switching frequencies up to 2 kHz under nominal conditions.
Q2: Can this module operate in parallel with other thyristor modules?
A2: Yes, it is designed for parallel operation, provided that proper current sharing measures are implemented.
Q3: What is the typical gate trigger current required for reliable firing?
A3: The typical gate trigger current is 200 mA.
Q4: Is this module suitable for use in regenerative circuits?
A4: Yes, it supports regenerative braking and bidirectional current flow in controlled environments.
Q5: How is thermal management handled for continuous high-load operation?
A5: The module features an optimized baseplate for efficient heat dissipation and is compatible with liquid or forced air cooling systems.
Q6: What is the maximum surge current rating?
A6: The module can handle surge currents up to 25 kA for short durations.
Q7: Are there any special considerations for gate voltage control?
A7: The gate voltage should be maintained between 15-30 V DC, ensuring sufficient margin to trigger the thyristor under all load conditions.
Q8: Can the module be used in high-humidity environments?
A8: Yes, the module is encapsulated to resist moisture ingress, allowing operation in humid industrial environments.
Q9: What is the recommended method to protect the module from overvoltage transients?
A9: Use snubber circuits or surge arresters to protect the module from voltage spikes above the rated repetitive peak voltage.
Q10: How should the module be mounted to ensure optimal performance?
A10: The module should be mounted on a flat, thermally conductive surface using the bolt-on mounting method specified by ABB, ensuring proper torque for mechanical stability and heat dissipation.
