Product Overview

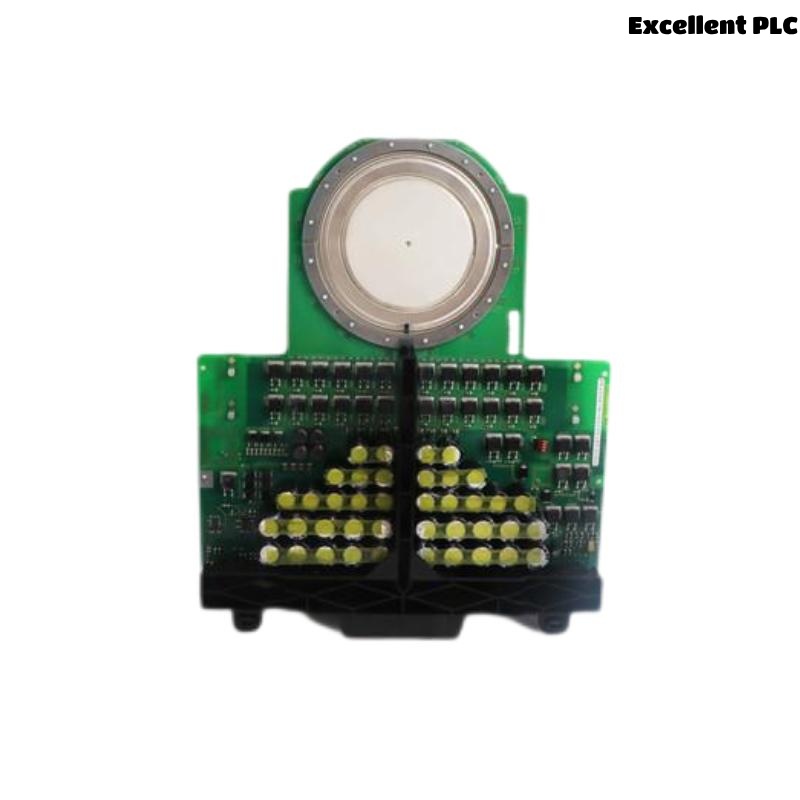

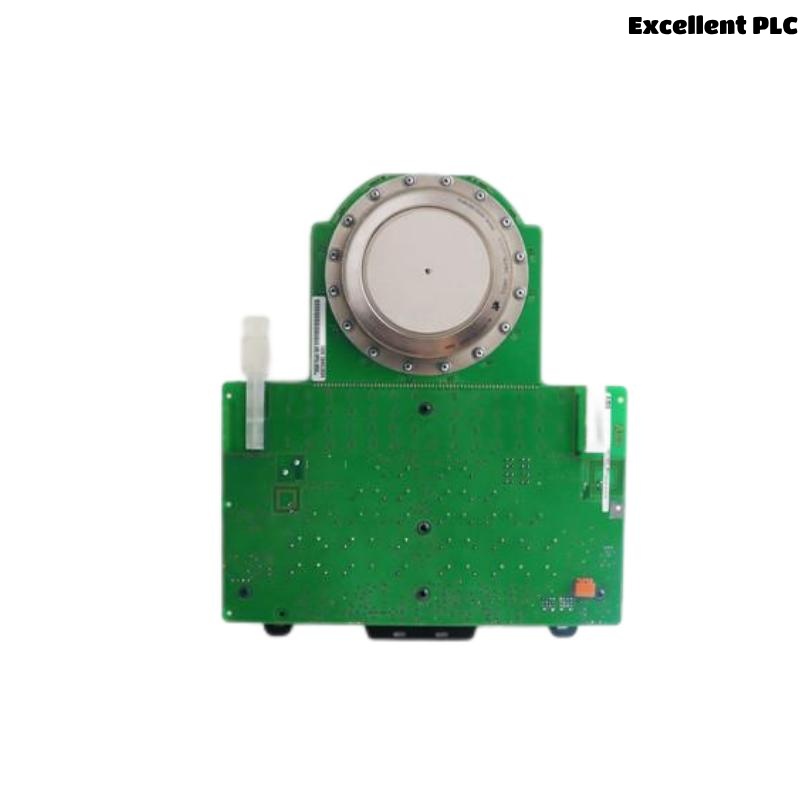

The ABB 5SXE03-0141 3BHB003154R0101 is an advanced Integrated Gate-Commutated Thyristor (IGCT) module engineered for high-power industrial applications requiring ultra-reliable switching performance. As part of ABB’s trusted power semiconductors portfolio, this IGCT module is optimized for medium-voltage drives, power converters, and traction systems, where high efficiency, robustness, and thermal performance are critical.
This module integrates the gate unit and commutation circuitry into a compact package, enabling fast turn-off capability, low conduction losses, and extended operational lifetimes, even under harsh electrical conditions.
Key Features
-
IGCT (Integrated Gate Commutated Thyristor) technology for high current and voltage handling
-
Compact design with integrated gate drive and protection circuit
-
High di/dt and dv/dt ruggedness, allowing use in demanding applications
-
Optimized for low switching losses and high thermal efficiency
-
Suitable for harsh environments, including vibration, dust, and thermal stress
-
Provides fail-safe operation through integrated diagnostics
-
Compliant with global industrial standards and ABB’s quality benchmarks
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5SXE03-0141 |
| Part Number | 3BHB003154R0101 |
| Technology | IGCT (Integrated Gate-Commutated Thyristor) |
| Current Rating (ITGQ) | 3000 A |
| Voltage Rating (VDRM/VRRM) | 4500 V |
| Turn-Off Capability | Yes (with integrated Gate Unit) |
| Gate Drive Unit Included | Yes |
| Switching Frequency | Up to 500 Hz (application-dependent) |
| Conduction Losses | Low, optimized for efficiency |
| Thermal Resistance (RthJC) | Typically < 0.02 K/W |
| Cooling Method | Conduction or forced-air (module-specific) |
| Insulation Voltage | >6000 V |
| Operating Temperature | -40°C to +125°C |
| Dimensions | 120 x 80 x 40mm |
| Weight | 0.5 kg |
| Mounting | Panel/Chassis mounting with bolt-through holes |
| Compliance | IEC 60747, RoHS |
Industry Applications
The ABB 5SXE03-0141 3BHB003154R0101 IGCT Module is widely adopted in industrial sectors where high-power, fast switching, and long-term reliability are essential:
-
Medium Voltage Drives – For high-power motors in heavy industries
-
Traction Systems – High-performance rail and transport drives
-
Energy Storage Systems – Inverters and power converters
-
HVDC (High Voltage Direct Current) – For robust voltage switching
-
Wind and Hydro Power Generation – Handling cyclic loads and high power
-
Steel, Cement, and Paper Industries – Where heavy machinery demands high reliability
Product Advantages
-
Robust Design – Handles extreme electrical and thermal stress
-
Long Service Life – Suitable for continuous industrial operation
-
Reduced Downtime – Integrated diagnostics support predictive maintenance
-
Compact Footprint – Ideal for panel integration in tight enclosures
-
ABB Reliability – Backed by ABB’s stringent testing and support ecosystem
-
Superior Switching – High-speed commutation with reduced system losses
-
System Compatibility – Seamlessly integrates with ABB gate units and drives
Frequently Asked Questions (FAQ)
-
What is an IGCT and how does it differ from an IGBT?
An IGCT (Integrated Gate Commutated Thyristor) is a power semiconductor device that offers higher current handling and lower conduction losses than IGBTs, particularly in medium- to high-voltage applications. -
Is the gate unit included with this module?
Yes, the module comes with an integrated gate drive unit for optimal performance and protection. -
What type of cooling is required?
It supports conduction or forced-air cooling depending on installation and application power density. -
Can this IGCT be used in regenerative systems?
Yes, it is suitable for regenerative applications, such as active front ends in motor drives or grid-tied systems. -
What is the maximum switching frequency?
The maximum frequency depends on the application but typically reaches up to 500 Hz. -
Is this module RoHS-compliant?
Yes, it adheres to RoHS directives regarding hazardous materials. -
Does ABB provide software or tools for monitoring or diagnostics?
Yes, ABB gate units often support diagnostics and integration with system monitoring tools. -
Can this module be used in mobile systems like electric locomotives?
Absolutely. IGCTs are specifically used in rail traction and transportation applications due to their high efficiency and ruggedness. -
What are the mechanical mounting options?
The module is designed for bolt-through panel or heatsink mounting. -
Does ABB offer technical support or design assistance?
Yes, ABB provides technical documentation, design guides, and direct engineering support for integration.
Recommended Related Models (Same Series or Function)
| Model Number | Description |
|---|---|
| 5SHX26L4510 | ABB IGCT Module, 4500 V, 2600 A |
| 5SHX1060L0001 | ABB IGCT with Gate Drive Unit, 6000 V, 1000 A |
| 5SHX2645L0004 | ABB IGCT, 4500 V, 2600 A, Integrated Commutation |
| 5SHY3545L0001 | ABB IGCT Module, 4500 V, High-Speed Switching |
| 5SHX1060L0002 | IGCT with Low Conduction Losses, 6000 V |
| 5SNA1500E330100 | ABB Power Diode Module for IGCT applications |
