Product Introduction

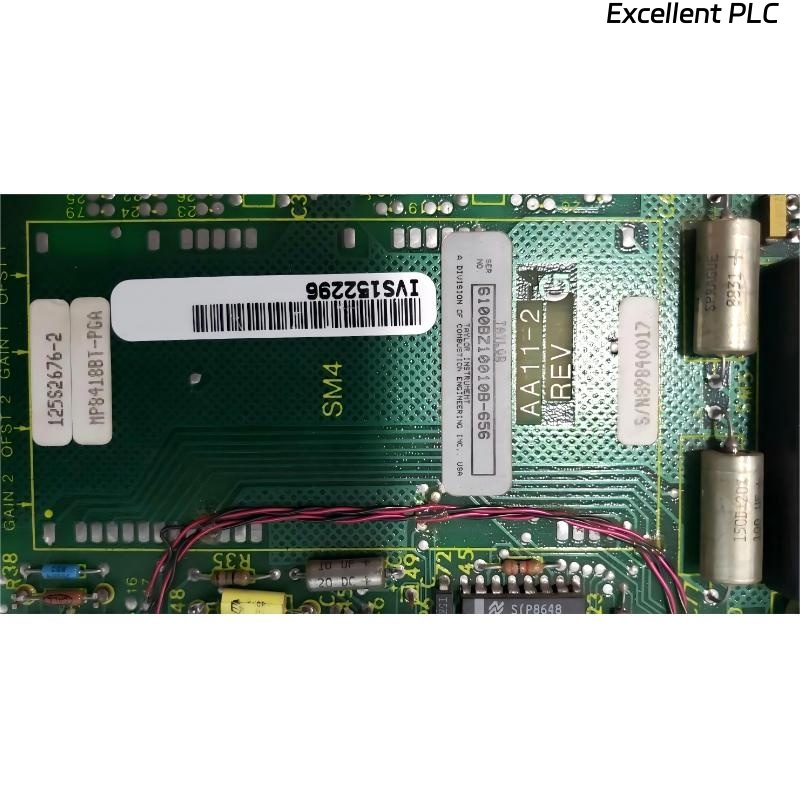

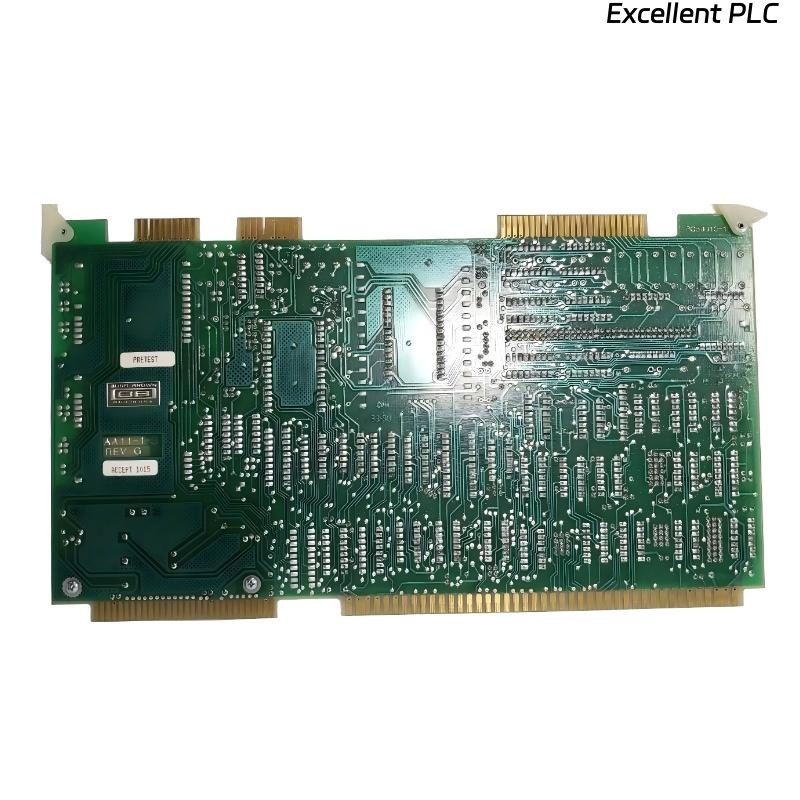

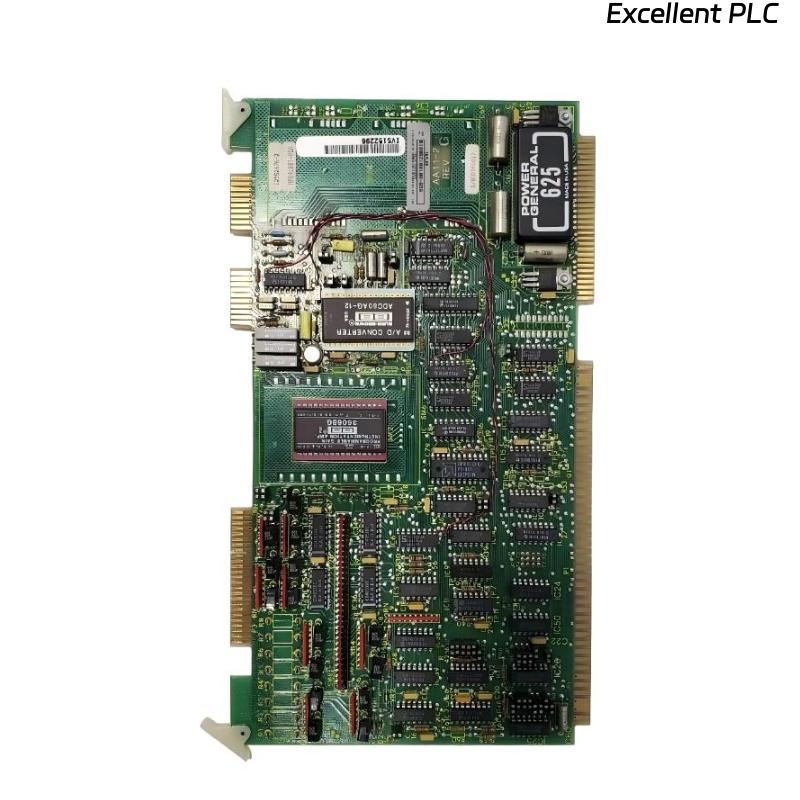

The ABB 6100BZ10010B Analog Input Expansion Board is an industrial-grade module designed to extend the analog input capacity of ABB automation and process control systems. It allows additional sensors and field devices to be connected to ABB controllers, providing reliable and accurate analog signal acquisition.
The board is engineered for continuous industrial operation, maintaining signal integrity under harsh conditions such as electrical noise, vibration, and temperature fluctuations. Its compact design allows easy integration into control cabinets or racks, supporting modular system expansion and maintenance.
This module is suitable for applications where precise analog measurement is required for process monitoring, automation control, or industrial diagnostics.
Product Specifications
| Parameter |
Description |
| Product Name |
Analog Input Expansion Board |
| Model |
6100BZ10010B |
| ABB Order Number |
3BHC10201R0001 |
| Module Type |
Analog input expansion module |
| Functional Role |
Expands analog input capacity for ABB controllers |
| System Compatibility |
ABB automation and control platforms |
| Installation Method |
Rack or cabinet-mounted module |
| Input Channels |
Configurable analog input channels for voltage/current signals |
| Signal Type |
Voltage, current, or sensor-specific analog signals |
| Operating Mode |
Continuous industrial operation |
| Environmental Rating |
Resistant to vibration, EMI, and industrial temperature ranges |
| Dimensions |
200 × 100 × 35 mm |
| Weight |
0.45 kg |
Product Applications
• Expanding analog input capacity in ABB control systems for additional sensors or field devices.
• Process monitoring and real-time measurement in industrial automation applications.
• Integration into control panels or racks for flexible system expansion.
• Supporting precise analog measurements in manufacturing, energy, or material handling systems.
• Enhancing system diagnostics and operational data acquisition capabilities.
Product Advantages
• Increases the number of analog inputs without redesigning the main controller.
• Provides accurate and reliable signal acquisition under industrial conditions.
• Compact and modular design allows easy installation and replacement.
• Designed to maintain signal integrity in environments with EMI and vibration.
• Supports flexible system expansion and improved process monitoring.
FAQ
1. What is the primary function of the ABB 6100BZ10010B Analog Input Expansion Board?
It increases the analog input capacity for ABB controllers, enabling additional sensor connections.
2. How many input channels does the board support?
The number of channels depends on configuration, supporting multiple voltage or current analog signals.
3. Can the board operate continuously in industrial environments?
Yes, it is designed for continuous duty under typical industrial temperature, vibration, and EMI conditions.
4. What types of analog signals are supported?
The board supports standard voltage, current, and sensor-specific analog signals.
5. How is the board installed?
It can be mounted in racks or control cabinets compatible with ABB automation systems.
6. Is the board resistant to electromagnetic interference?
Yes, it is engineered to maintain stable analog signal acquisition in high-EMI environments.
7. Can this board be used to upgrade existing ABB controllers?
Yes, it allows system expansion without requiring redesign or replacement of the main controller.
8. How is signal accuracy ensured?
Signal accuracy is maintained through industrial-grade components, PCB design, and proper grounding.
9. What maintenance procedures are recommended?
Standard ABB installation and handling practices apply; the board can be replaced without shutting down the system.
10. Can multiple boards be installed in a single system?
Yes, multiple analog input expansion boards can be used to meet higher channel requirements.
