Product Introduction

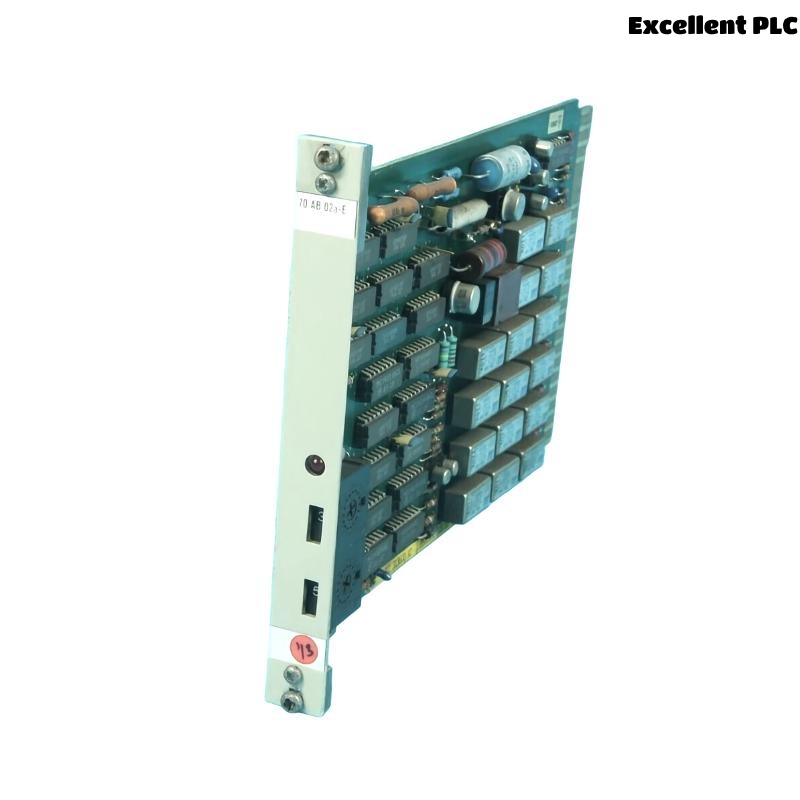

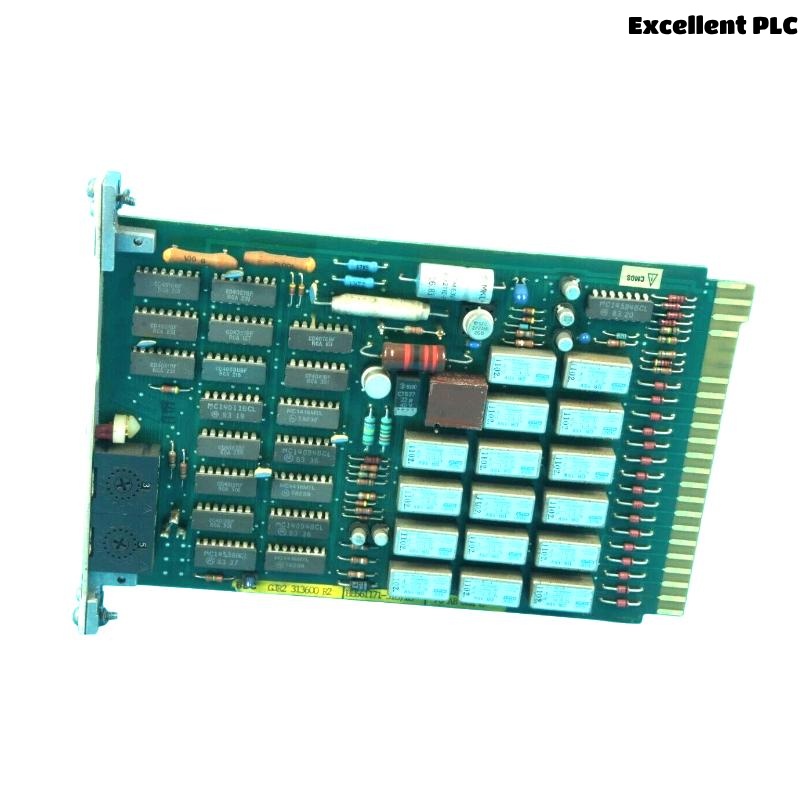

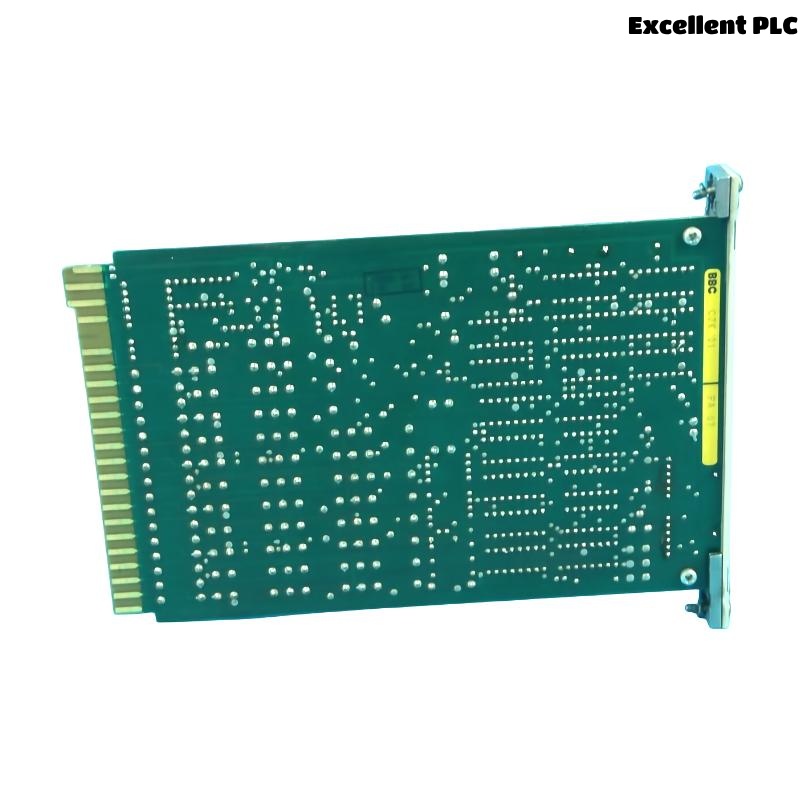

The ABB 70AB02a-E (GJR2313600R0003) is a robust and reliable digital output module designed for industrial automation and control systems. As part of ABB’s extensive lineup of automation components, this module serves as a critical interface for controlling actuators, relays, and other output devices in complex machinery and process control environments.
Engineered for seamless integration into ABB’s distributed control systems (DCS) and programmable logic controllers (PLC), the 70AB02a-E delivers precise switching and high reliability even under demanding electrical and environmental conditions. Its compact design, rugged construction, and advanced diagnostics capabilities make it a preferred choice for manufacturers aiming to optimize system performance and reduce downtime.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Digital Output Module |
| Model Number | 70AB02a-E |
| Ordering Code | GJR2313600R0003 |
| Number of Outputs | 8 Channels |
| Output Type | Digital (Relay or Transistor outputs) |
| Output Voltage | 24 V DC nominal |
| Max Output Current per Channel | 0.5 A |
| Isolation Voltage | 1500 V AC between input/output |
| Response Time | ≤ 10 ms |
| Power Consumption | Approx. 3 W |
| Communication Interface | Compatible with ABB DCS/PLC systems |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 140 x 70 x 25 mm |
| Weight | 0.25 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Standards Compliance | CE, UL, RoHS |
Product Applications
The ABB 70AB02a-E Digital Output Module is widely deployed across various industrial automation fields, including:
-
Process Control Systems for chemical, pharmaceutical, and food industries
-
Manufacturing Automation for controlling motors, valves, and indicators
-
Building Automation for lighting, HVAC, and security system controls
-
Power Generation Plants for control and monitoring of auxiliary equipment
-
Water and Wastewater Treatment Plants for pump and valve actuation
-
Material Handling Systems such as conveyors and automated storage/retrieval units
Product Advantages
-
High Reliability: Designed for long-term stable operation in harsh industrial environments.
-
Compact and Modular Design: Saves panel space and simplifies system expansion.
-
Fast Response Time: Ensures accurate and timely control signals.
-
Easy Integration: Compatible with ABB control systems and industry-standard PLCs.
-
Built-in Diagnostics: Facilitates quick troubleshooting and preventive maintenance.
-
Wide Operating Temperature Range: Suitable for diverse climatic conditions.
-
Robust Electrical Isolation: Protects control systems from voltage spikes and interference.
-
Low Power Consumption: Enhances energy efficiency across the control system.
-
Flexible Mounting Options: Supports both DIN rail and panel mounting.
-
Compliance with International Standards: Guarantees safety and interoperability.
Frequently Asked Questions (FAQ)
1. What types of output signals does the ABB 70AB02a-E module provide?
It provides 8 digital output channels, typically relay or transistor type signals suitable for on/off control.
2. Can this module be used in systems other than ABB’s DCS?
Yes, it is compatible with many PLC systems that support standard digital output modules.
3. What is the maximum current that each output channel can handle?
Each channel can handle up to 0.5 A at 24 V DC nominal voltage.
4. How is the module powered?
The module operates on the control system’s 24 V DC power supply.
5. What diagnostic features does the module have?
It includes LED indicators for output status and fault detection to facilitate troubleshooting.
6. Is the module suitable for mounting in confined control cabinets?
Yes, its compact dimensions (45 × 125 × 115 mm) allow installation in space-constrained panels.
7. How does the module protect against electrical noise and spikes?
It has 1500 V AC isolation between inputs and outputs, preventing damage from voltage surges.
8. What is the operating temperature range for the module?
The module is rated for operation between -20°C and +60°C.
9. Can this module be replaced or upgraded easily in existing installations?
Yes, it supports plug-and-play installation and standard connections for easy replacement.
10. What safety standards does this module comply with?
The module meets CE, UL, and RoHS standards ensuring operational safety and environmental compliance.
