Product Introduction

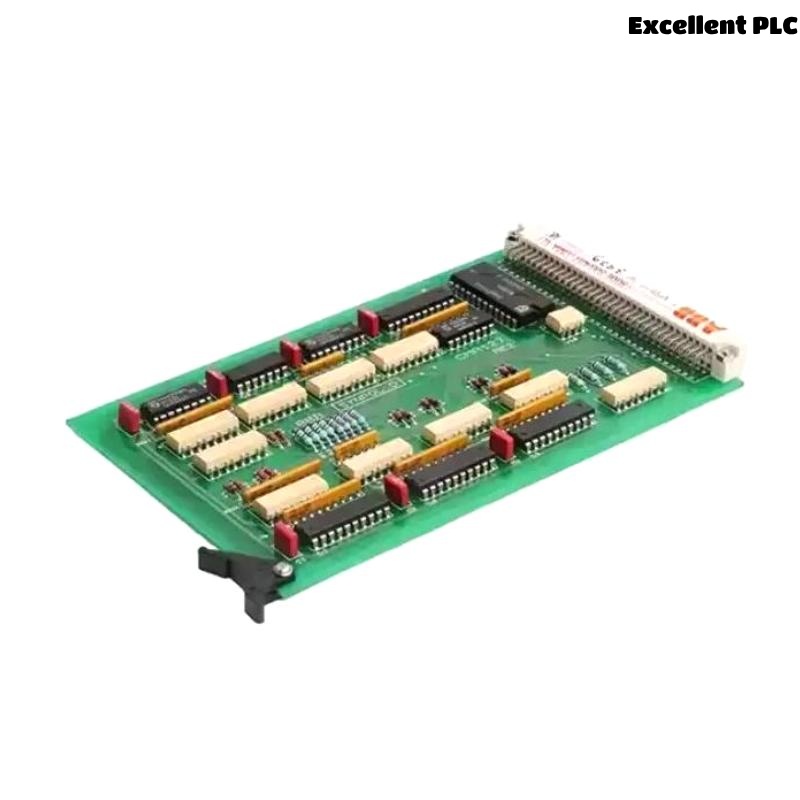

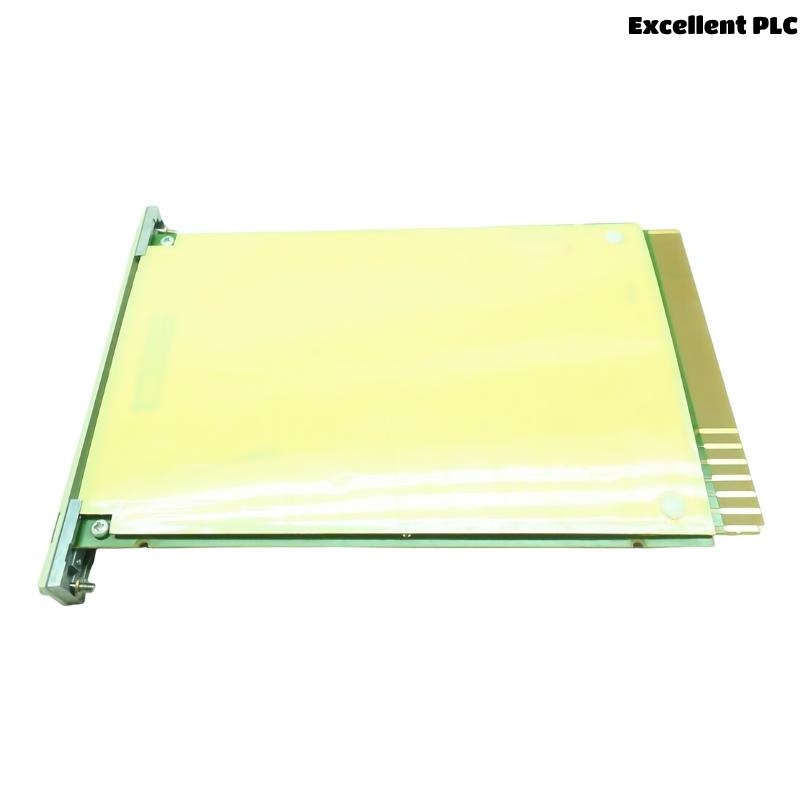

The ABB 70BT01C (HESG447024R1) Bus Transmitter is a key component in modern industrial automation and control systems. Designed to facilitate reliable and high-speed data transmission over fieldbus networks, this transmitter ensures seamless communication between field devices and control units.
Engineered for harsh industrial environments, the 70BT01C guarantees signal integrity, robustness, and ease of integration into various ABB and third-party automation platforms. It supports multiple communication protocols, making it highly versatile for applications requiring precise data transfer and monitoring.
With its compact form factor and durable construction, this bus transmitter is ideal for optimizing system responsiveness and ensuring the stability of communication links in complex automation networks.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Bus Transmitter |
| Model Number | 70BT01C |
| Ordering Code | HESG447024R1 |
| Communication Protocol | Fieldbus (e.g., Profibus, Modbus) |
| Data Rate | Up to 12 Mbps |
| Transmission Distance | Up to 1200 meters (depending on cable) |
| Power Supply Voltage | 24 V DC ± 10% |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Response Time | ≤ 5 ms |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 105 x 150 x 72 mm |
| Weight | 1.8 kg |
| Mounting Type | DIN Rail |
| Certifications | CE, UL, RoHS |
Product Applications
The ABB 70BT01C Bus Transmitter finds extensive use in the following sectors:
-
Process Automation for chemical, pharmaceutical, and petrochemical plants
-
Manufacturing Automation for real-time control and monitoring of production lines
-
Power Generation and Distribution for substation automation and control
-
Building Management Systems (BMS) to integrate HVAC, lighting, and security controls
-
Water and Wastewater Treatment Plants for equipment communication and control
-
Transportation Systems including rail and traffic control networks
Product Advantages
-
Reliable Data Transmission: Ensures robust and consistent communication over industrial networks.
-
Versatile Protocol Support: Compatible with common fieldbus protocols like Profibus and Modbus.
-
Compact and Durable: Small footprint with IP20 protection for reliable operation in harsh conditions.
-
Wide Temperature Range: Suitable for use in various environmental conditions.
-
Low Power Consumption: Designed for energy-efficient operation.
-
Easy Installation: DIN rail mounting simplifies integration into existing control cabinets.
-
Fast Response Time: Enables timely and accurate data exchange crucial for control systems.
-
Certified for Safety and Compliance: Meets international standards including CE and UL.
-
Extensive Support and Documentation: Backed by ABB’s global service network.
-
Improves System Stability: Reduces communication errors and downtime.
Frequently Asked Questions (FAQ)
1. What communication protocols does the ABB 70BT01C support?
It supports standard industrial fieldbus protocols such as Profibus and Modbus.
2. Can this transmitter be used in high-humidity environments?
Yes, it is rated for 5% to 95% non-condensing humidity.
3. What is the maximum transmission distance supported?
Up to approximately 1200 meters, depending on cable type and environment.
4. How is the module powered?
It operates on a 24 V DC power supply with ±10% tolerance.
5. Is the 70BT01C suitable for outdoor installations?
It has IP20 protection and is generally designed for indoor industrial environments; additional protection is needed outdoors.
6. What mounting options are available?
The module is designed for DIN rail mounting, common in industrial control panels.
7. What are the dimensions and weight of the module?
Dimensions are 105 x 150 x 72 mm, weighing 1.8 kg.
8. How can I check if the bus transmitter is working correctly?
You can verify operation by checking the status indicators on the module and ensuring stable communication on the network.
9. Are there any special installation requirements for minimizing communication errors?
Yes, proper cable shielding and grounding, as well as following ABB’s wiring guidelines, are essential for reliable operation.
10. What certifications does this product hold?
It complies with CE, UL, and RoHS standards.
Related Models from the Same Series
| Model | Description | Communication Protocol | Key Feature |
|---|---|---|---|
| 70BT02C | Bus Transmitter, Enhanced | Profibus | Higher data rate support |
| 70BT03A | Bus Transmitter with Diagnostics | Modbus | Integrated diagnostics |
| 70BT04B | Fieldbus Repeater Module | Profibus | Extends transmission range |
| 70BT05D | Bus Coupler Module | Profibus | Network segmentation |
| 70BT06E | Wireless Bus Transmitter | Wireless fieldbus | Wireless communication |
| 70BT07F | Redundant Bus Transmitter | Profibus | Redundancy for critical systems |
