Product Introduction

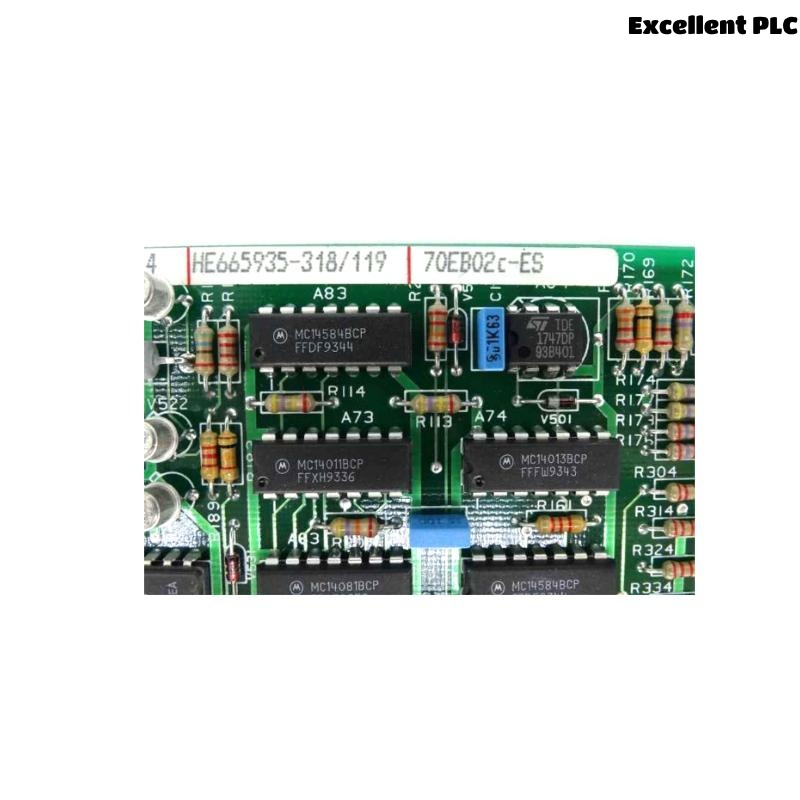

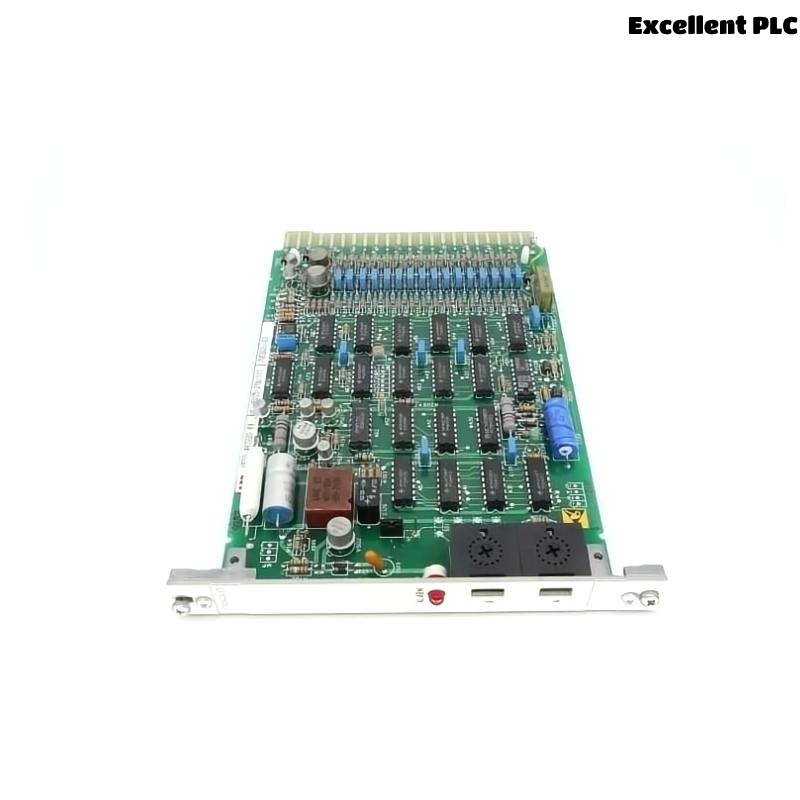

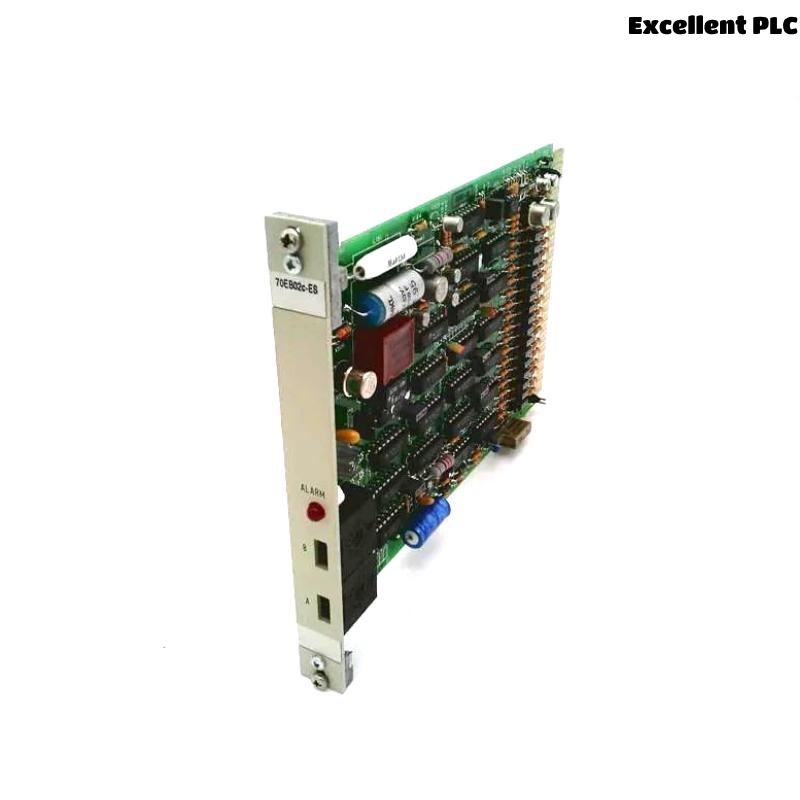

The ABB 70EB02C-ES is a robust and high-performance digital input module designed for use within the ABB Advant OCS and MOD300 control systems. It serves as a crucial component in gathering discrete input signals from field devices and sensors in various industrial environments. By providing reliable and real-time acquisition of status inputs such as switch states, contact closures, and sensor signals, this module ensures that industrial controllers have an accurate view of field conditions at all times.
Part of ABB’s trusted control systems offering, the 70EB02C-ES enables precise monitoring in power plants, chemical plants, and manufacturing facilities, contributing to safe and optimized operation. With industrial-grade durability, strong diagnostic features, and seamless DCS integration, this module remains a preferred choice for mission-critical systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 70EB02C-ES |
| Part Number | 70EB02C-ES |
| Type | Digital Input Module |
| Input Signal Type | Discrete (Digital) |
| Number of Channels | 16 isolated input channels |
| Input Voltage Range | 24 V DC (nominal), with tolerance for industrial field levels |
| Input Isolation | Channel-to-channel and channel-to-bus isolation |
| Input Filtering | Configurable debounce filtering |
| Status Indication | LED indicators per channel |
| Logic Type | Positive logic |
| Power Supply | Supplied through system backplane |
| Response Time | < 5 ms typical |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted in Advant OCS backplane |
| Dimensions (W x H x D) | 263 x 212 x 40 mm |
| Weight | 0.227 kg |
| Certifications | CE, UL, cUL, RoHS compliant |
| Compatibility | ABB Advant OCS / MOD300 |
Applications
The 70EB02C-ES module is ideally suited for use in a broad spectrum of automation applications where discrete status detection is essential. Key application areas include:
-
Power Generation Facilities: Status monitoring for circuit breakers, isolators, and safety relays.
-
Oil & Gas Operations: Wellhead monitoring, alarm inputs, valve open/close status.
-
Water Treatment Systems: Input detection from pumps, valves, and level switches.
-
Industrial Manufacturing: Discrete input acquisition from control buttons, safety barriers, and machine sensors.
-
Chemical & Petrochemical Plants: Interface for interlocks, emergency shutdowns, and safety systems.
-
Automated Warehousing and Conveyance: Input signals from limit switches, sensors, and logic controllers.
Product Advantages
-
Reliable Input Signal Processing: Supports 16 high-speed, optically isolated digital inputs for accurate field signal acquisition.
-
Noise Immunity and Robust Isolation: Channel-to-channel and field-to-system isolation enhances protection and signal integrity.
-
Industrial-Grade Durability: Designed for continuous operation in demanding environments with extended temperature and humidity ranges.
-
Diagnostic Feedback: LED indicators provide instant status monitoring for each channel.
-
Flexible Integration: Seamlessly integrates into ABB Advant OCS and MOD300 systems.
-
Compact and Space-Efficient: High channel density in a standard rack-mounted form factor.
-
Reduced Downtime: Modular construction allows for easy maintenance and module replacement.
-
Fast Response: Ensures minimal delay in digital input recognition for time-critical applications.
-
Compliance Ready: Certified for international industrial and safety standards.
-
Proven Performance: Used globally in critical infrastructure systems with long field lifespans.
Frequently Asked Questions (FAQ)
-
-
What type of signals does the 70EB02C-ES accept?
It is designed for discrete digital signals, typically 24 V DC from field devices. -
How many input channels are supported by this module?
The 70EB02C-ES supports 16 isolated digital input channels. -
Is this module compatible with the ABB Advant OCS system?
Yes, it is fully compatible with ABB’s Advant OCS and MOD300 control platforms. -
Can I see the status of individual channels on the module?
Yes, each input channel has an associated LED for real-time visual feedback. -
Does the module offer input filtering?
Yes, configurable input debounce filtering is supported to prevent false triggering. -
Is there channel-to-channel isolation?
Yes, each input channel is optically isolated to prevent cross-interference. -
What is the power requirement for this module?
Power is supplied via the system backplane. No external power is required per channel. -
How is the module installed?
It is rack-mounted into a dedicated Advant OCS backplane chassis. -
Can it be used in outdoor or high humidity areas?
While it is suitable for high humidity (up to 95% non-condensing), outdoor use requires enclosure protection. -
Is this module hot-swappable?
Depending on system configuration, it may allow replacement without complete shutdown, but always refer to the system manual for confirmation.
-
