Product Introduction

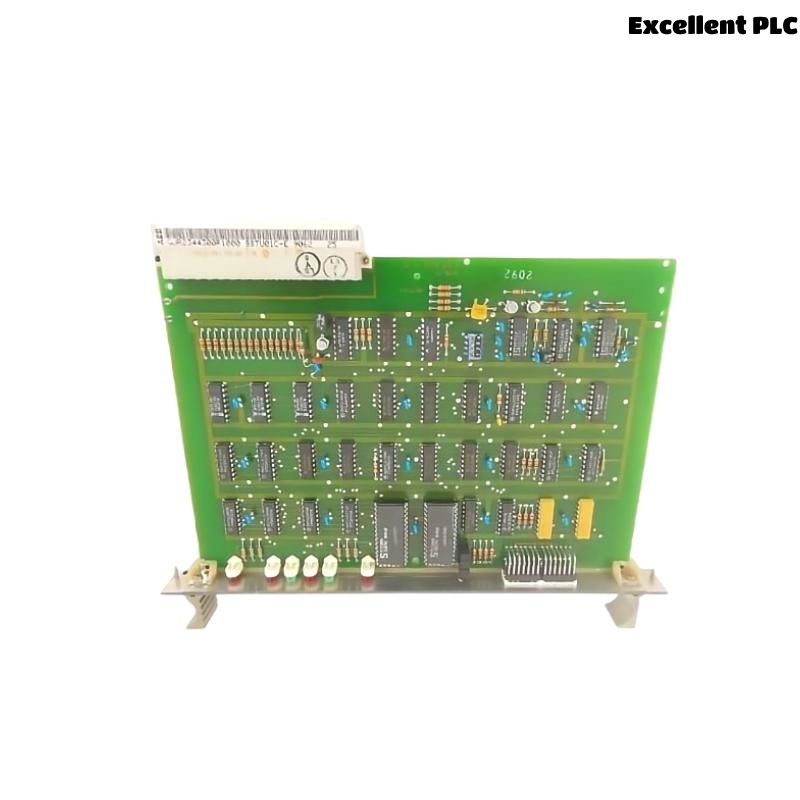

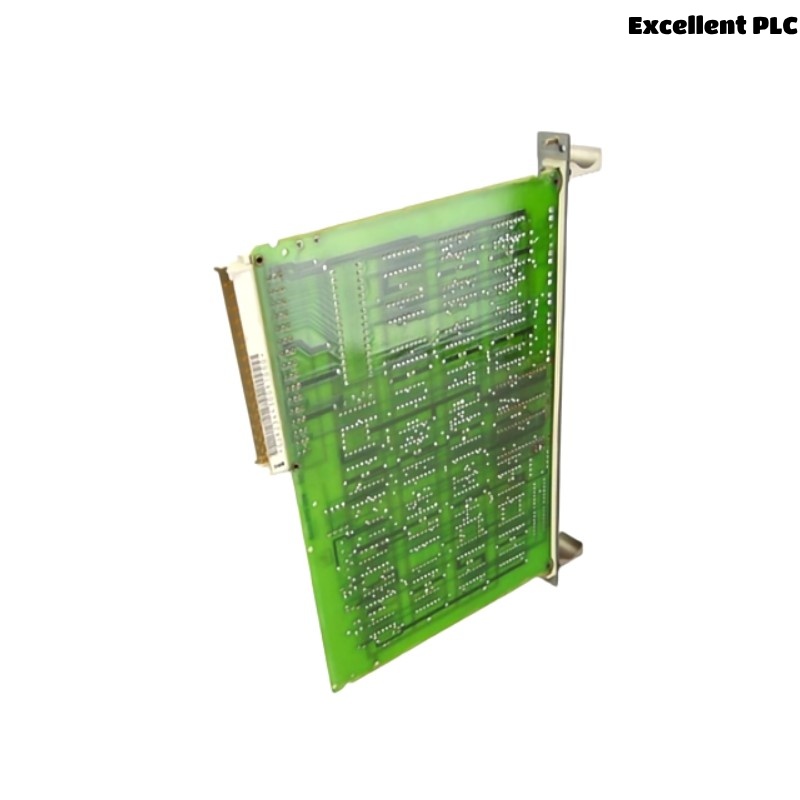

The ABB 88TU01E GJR2344300R1000 Control Module is a highly efficient and reliable module designed for use in complex industrial automation systems. It is a part of ABB’s extensive range of automation products that provide seamless integration and precise control over various industrial applications. The 88TU01E module serves as a central controller that communicates with other devices in the system, ensuring that processes are managed efficiently and effectively.
This control module is engineered for high-performance operations and can be integrated into various industrial control systems, ranging from manufacturing lines to energy management systems. Its ability to handle multiple control processes simultaneously makes it an indispensable component in environments that require precise timing and synchronization of operations.
Built for both small and large-scale systems, the 88TU01E provides the flexibility needed for a wide range of applications. Its robust construction and reliable performance ensure that it can withstand the rigors of industrial environments while delivering continuous operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ABB 88TU01E GJR2344300R1000 Control Module |
| Type | Control Module |
| Input Voltage | 24V DC |
| Current Consumption | Approx. 300 mA |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Weight | 0.75 kg |
| Dimensions (H x W x D) | 132 x 53 x 65 mm |
| Mounting | DIN Rail Mountable |
| Power Consumption | 7W |
| Protection Rating | IP20 (Protection against solid objects larger than 12.5 mm) |
| Communication Interface | Serial communication with other control devices |
| Compliance | CE certified, RoHS compliant |
| Signal Inputs/Outputs | Supports analog and digital I/O, configurable via software |
| Application Type | Industrial Automation, Energy Management, Manufacturing Systems |
Product Applications
The ABB 88TU01E GJR2344300R1000 Control Module is designed for integration into a variety of industrial systems where precise control, monitoring, and communication between devices is required. Its applications span across numerous industries and sectors, including:
-
Industrial Automation: The control module is essential for managing complex control systems, including automated manufacturing lines and process control systems.
-
Energy Management: It helps integrate and control energy distribution networks, ensuring the stable operation of energy systems and optimized power consumption.
-
Building Automation: The module is widely used in building automation systems, managing HVAC, lighting, and security operations within commercial and industrial buildings.
-
Manufacturing Systems: It is often employed to monitor and control machinery, robotic systems, and production lines in manufacturing environments, where synchronization is key.
-
Process Control: The module can interface with sensors, actuators, and controllers to manage processes in industries like chemical, pharmaceutical, and food processing.
-
Power Distribution: Ensures the proper distribution and management of electrical power across a wide range of systems, from small facilities to large plants.
Product Advantages
-
High Precision Control: The ABB 88TU01E module offers precise control over various systems, ensuring smooth operation and minimizing the chances of errors in industrial processes.
-
Versatility: Suitable for a wide range of applications across diverse industries, making it a flexible solution for various automation requirements.
-
Reliable Performance: Designed to operate efficiently in industrial environments, the module guarantees long-term reliability and minimal downtime.
-
Easy Integration: The 88TU01E can be easily integrated into existing systems, thanks to its standard communication protocols and DIN rail mounting.
-
Robust Design: Built to withstand challenging conditions, the module operates effectively in harsh industrial environments with temperatures ranging from -20°C to +60°C.
-
Energy Efficient: With low power consumption and efficient operation, the 88TU01E helps reduce operational costs while maintaining high performance.
-
Modular Flexibility: The module offers scalability, allowing users to add additional modules or extend the control system as the needs of the operation grow.
-
Customizable I/O: The I/O configuration is customizable via software, making it easier to adapt the system to specific needs.
-
Compliance with Standards: The module is CE certified and RoHS compliant, ensuring it meets industry standards for safety and environmental friendliness.
-
Compact and Space-Saving: Its compact design makes it ideal for applications with limited space for installation.
Frequently Asked Questions (FAQ)
-
What is the main function of the ABB 88TU01E Control Module?
The 88TU01E module functions as a central controller for industrial automation systems, managing communication and coordination between devices and ensuring the smooth operation of processes. -
What is the input voltage required for this module?
The module operates on a 24V DC input voltage. -
What are the operating temperature ranges for the ABB 88TU01E?
The module can operate in temperatures ranging from -20°C to +60°C. -
How is the ABB 88TU01E module mounted?
The module is DIN rail mountable, ensuring easy installation in standard industrial control cabinets. -
What is the weight of the ABB 88TU01E module?
The module weighs 0.75 kg. -
Can the ABB 88TU01E module be used in energy management systems?
Yes, the module is ideal for energy management systems, where it helps control and monitor power distribution. -
What is the protection rating of the ABB 88TU01E?
The module has an IP20 protection rating, making it suitable for indoor use in environments with minimal dust and exposure to water. -
What types of inputs and outputs does the ABB 88TU01E support?
The module supports both analog and digital I/O, which can be configured according to the specific needs of the application. -
What industries can benefit from using the ABB 88TU01E?
This module is widely used in industries such as manufacturing, process control, energy management, and building automation. -
Is the ABB 88TU01E module compliant with industry standards?
Yes, it is CE certified and RoHS compliant, ensuring it meets all relevant safety and environmental standards.
Related Models (Same Series / Similar Functionality)
| Model Number | Description |
|---|---|
| ABB 88TU02E | Enhanced control module with additional I/O support |
| ABB 88TU03E | Compact version for smaller systems with fewer I/O requirements |
| ABB 88TU04E | Modular control module for scalable automation systems |
| ABB 88TU05E | Advanced control module with integrated safety functions |
| ABB 88TU06E | Control module designed for high-speed communication systems |
| ABB 88TU07E | Compact, cost-effective control module for basic applications |
Popular ABB Models (Same Brand)
| Model Number | Description |
|---|---|
| ABB 88PS50 | Power supply module for ABB control systems |
| ABB 88DI20 | Digital input module for robust signal acquisition |
| ABB 88DO10 | Digital output module for industrial control |
| ABB 88AI30 | Analog input module for precise measurements in control systems |
| ABB 88RO20 | Relay output module for switching control circuits |
| ABB 88TC80 | Communication terminal for ABB bus systems |
