Product Introduction

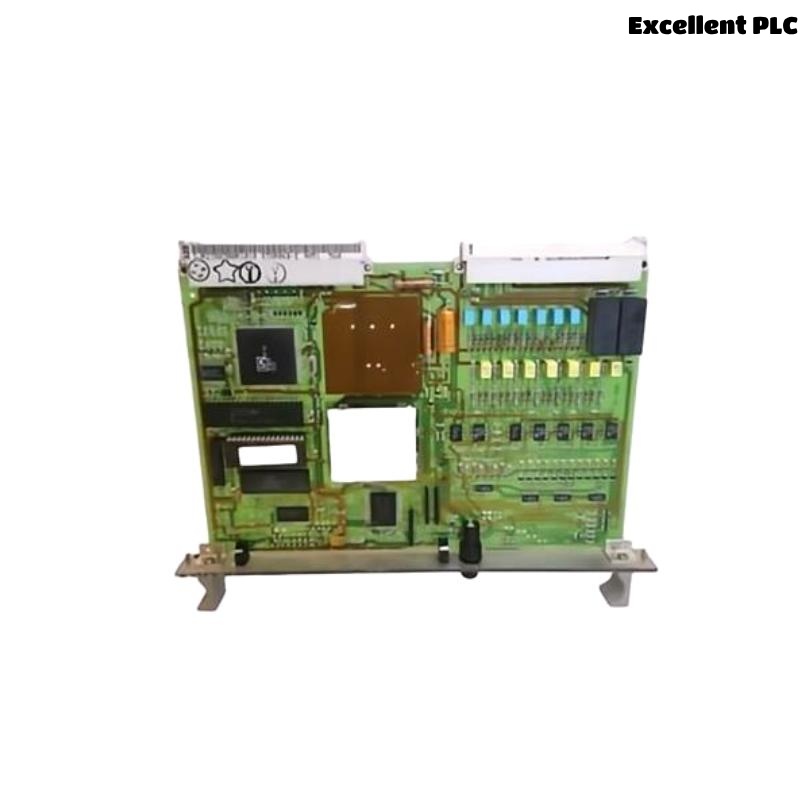

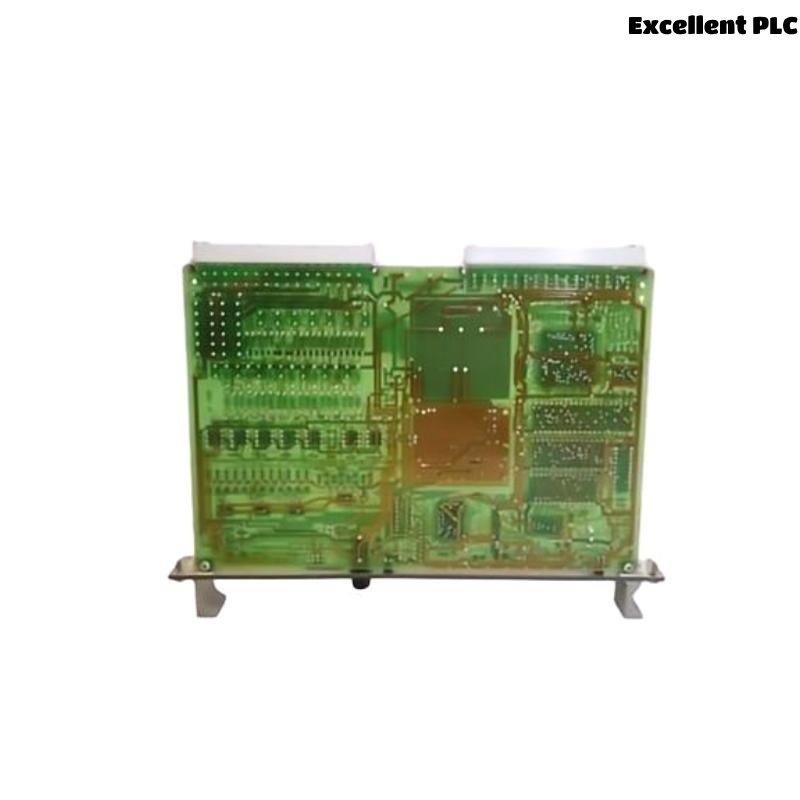

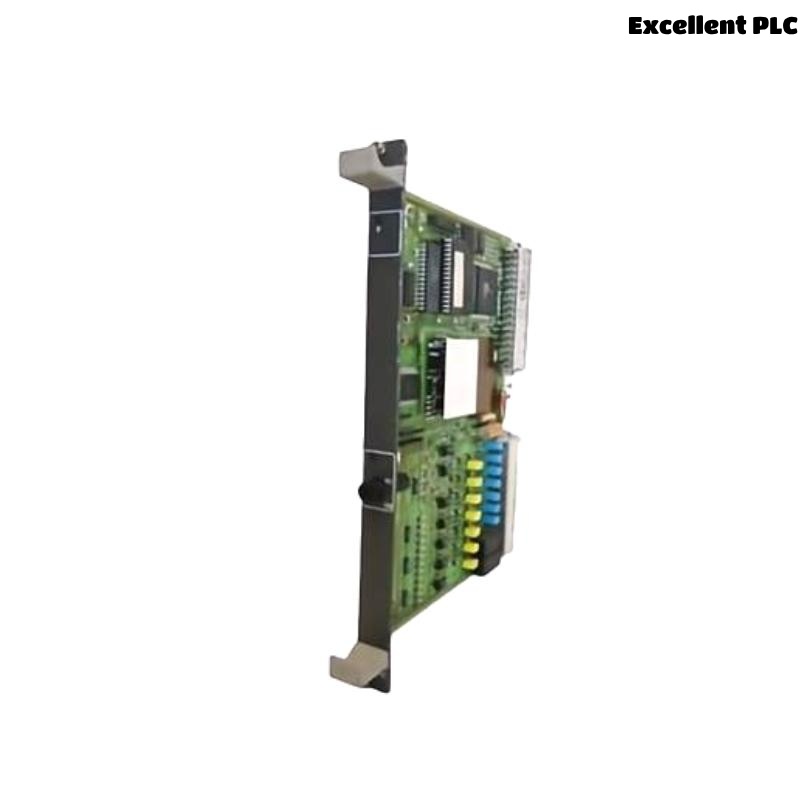

The ABB 88VA02A-E GJR23657R1010 is a high-precision, industrial-grade control module designed to provide stable and efficient operation in automation and process control systems. As a key component of ABB’s renowned Procontrol P14 system, this control module integrates seamlessly with various process applications in industries ranging from power generation to chemical manufacturing. Built for durability and reliability, the module ensures long-term operational stability, even under harsh environmental conditions.
The 88VA02A-E stands out for its compact form factor, excellent signal handling capabilities, and protective design features. It is commonly utilized for handling output relay functions and interfacing with actuators and indicators within automation frameworks.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | 88VA02A-E |
| Part Number | GJR23657R1010 |
| Series | Procontrol P14 |
| Type | Control Output Module |
| Output Channels | 10 Relay Outputs |
| Relay Type | Electromechanical |
| Rated Load (Per Channel) | 10A @ 24VDC / 230VAC |
| Control Voltage | 24 VDC |
| Power Consumption | Approx. 5 W |
| Input Signal | Logic level signals via control system interface |
| Insulation Resistance | > 100 MΩ |
| Dielectric Strength | 500 VDC |
| Protection Level | Conformal coated, IP20 (module level) |
| Mounting | DIN rail / Panel mount |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30g / 11ms |
| Vibration Resistance | 5g, 10 – 500 Hz |
| Dimensions (W x H x D) | 254 x 254 x 13 mm |
| Weight | 0.4 kg |
Applications
The ABB 88VA02A-E module finds widespread use in industrial and utility automation environments where robust relay output control is required. Common application areas include:
-
Power Plants – For turbine control, generator monitoring, and breaker control.
-
Chemical and Petrochemical Plants – Process sequencing, valve actuation, and pump control.
-
Oil and Gas Facilities – Compressor, motor, and drilling system control.
-
Water and Wastewater Management – Control of pumps, gates, and treatment processes.
-
Factory Automation – Conveyor systems, robotic arms, and sensor feedback integration.
-
Substation Automation – Relay output for circuit breaker actuation and alarm signaling.
Product Advantages
-
Highly Reliable Output Control
Designed with robust relay outputs that support high current loads, ensuring precise and safe actuation in industrial systems. -
Rugged Design for Harsh Environments
With IP-rated protection, conformal coating, and strong vibration/shock resistance, the module performs dependably under tough conditions. -
Compact Size and Easy Installation
Its slim profile allows easy integration into dense control cabinets, saving space without compromising on functionality. -
Broad System Compatibility
Fully compatible with ABB’s Procontrol P14 system and adaptable to other standard PLC platforms. -
Long Lifecycle and Low Maintenance
Designed for extended use with minimal need for replacement or servicing, reducing system downtime and lifecycle costs.
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB 88VA02A-E GJR23657R1010 Control Module?
It serves as a control module in industrial automation systems, managing input and output signals to control various devices.
-
What types of outputs does this module support?
It supports 10 relay outputs, each capable of handling up to 10 A.
-
Can this module operate in high-vibration environments?
Yes, it is designed to withstand vibrations up to 5 g at frequencies ranging from 10 to 500 Hz.
-
Is the module protected against environmental contaminants?
Yes, it features a conformal coating that protects against dust, moisture, and other contaminants.
-
What are the input voltage requirements?
The module accepts input voltages of 24 VDC or 12 VDC.
-
What is the operating temperature range?
It operates effectively in temperatures ranging from -25°C to +55°C.
-
What are the dimensions and weight of the module?
The module measures 254 x 254 x 13 mm and weighs 0.4 kg.
-
Is the module suitable for motor control applications?
Yes, it can be used to control motors, including those in pumps, fans, and conveyors.
-
Does the module support both manual and remote control functions?
Yes, it supports manual start/stop as well as remote control functionalities.
-
What kind of warranty is provided with this module?
We provide one year warranty.
