Product Introduction

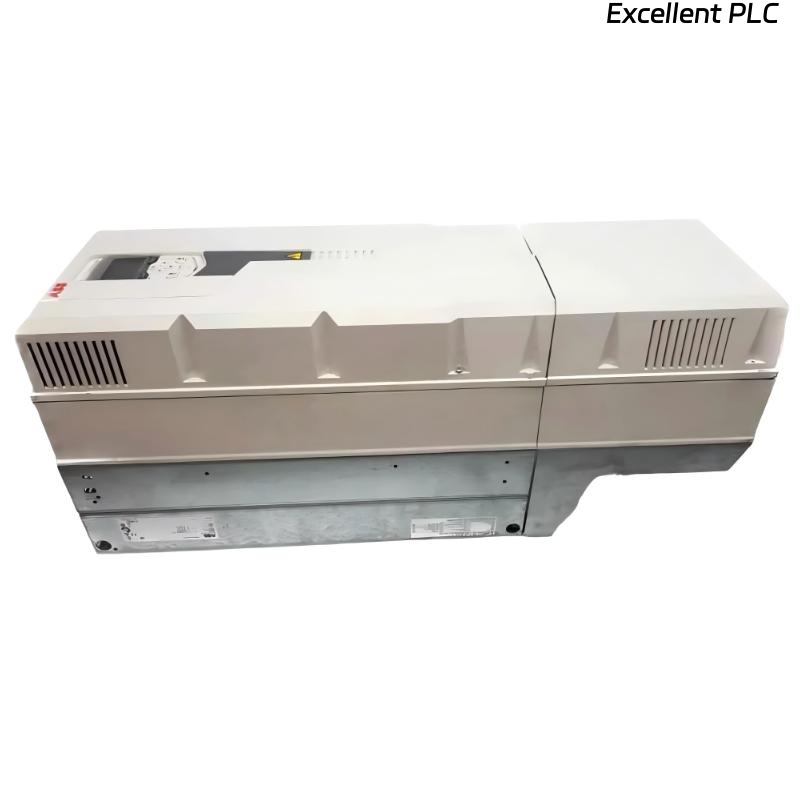

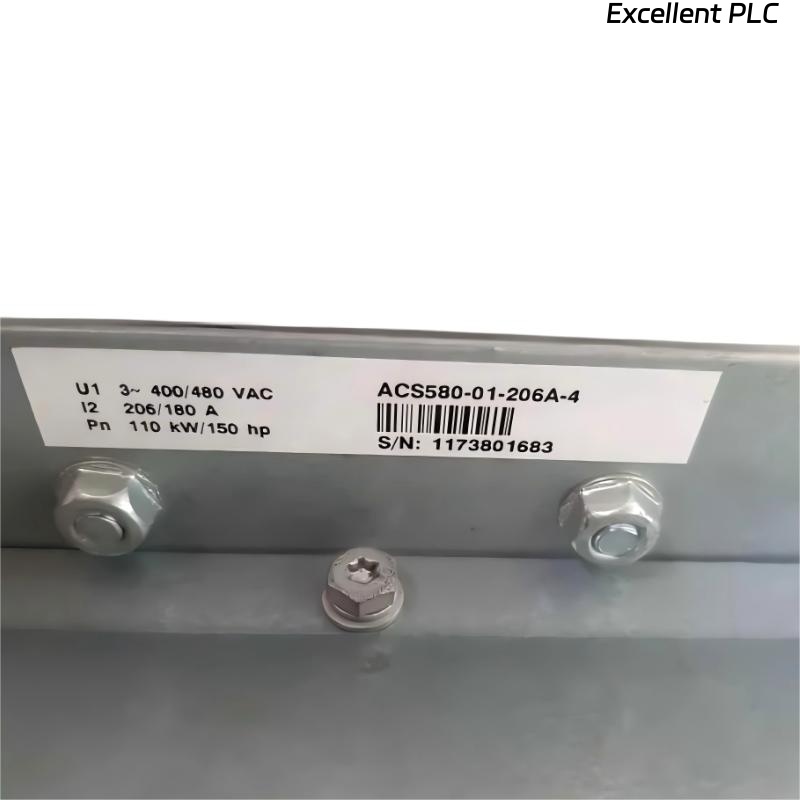

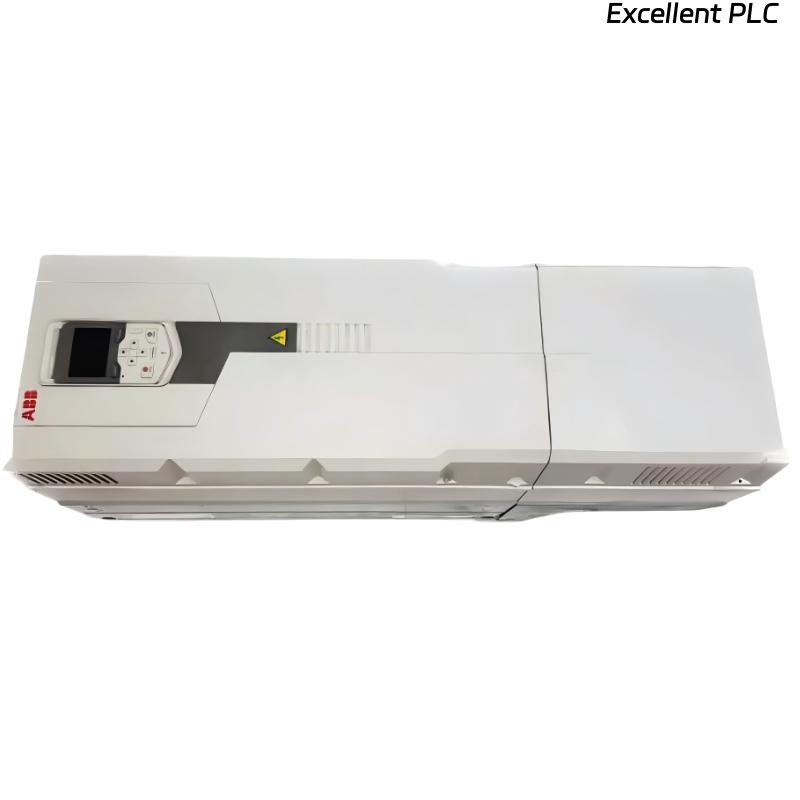

The ABB ACS580-01-206A-4 (Part Number: 3ABD00045439-D) is a three-phase frequency converter engineered for industrial motor control applications. It enables precise control of AC motors, optimizing speed, torque, and energy efficiency in a wide range of processes. Designed for both new installations and retrofitting projects, the ACS580 series supports smooth operation of pumps, fans, compressors, conveyors, and other machinery.
The ACS580-01-206A-4 also emphasizes energy efficiency, achieving IE2 performance across a wide load range, reducing electricity consumption, and lowering operating costs. Its wall-mounted design with IP21 protection simplifies installation and maintenance, making it suitable for standard industrial control cabinets. With built-in diagnostics, communication options, and compatibility with ABB automation systems, the drive ensures both high operational reliability and integration flexibility in modern industrial processes.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Frequency Converter |
| Model | ACS580-01-206A-4 |
| Part Number | 3ABD00045439-D |
| Manufacturer | ABB |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Output Current, Normal Use (In) | 206 A |
| Output Current, Light-Overload Use (ILD) | 196 A |
| Output Current, Heavy-Duty Use (IHD) | 169 A |
| Output Power, Normal Use (Pn) | 110 kW |
| Output Power, Heavy-Duty Use (PHD) | 90 kW |
| Efficiency Level | IE2 |
| Dimensions | 880 × 284 × 370 mm |
| Weight | 54 kg |
Applications
• Industrial motor control for pumps, fans, compressors, and conveyors
• Process automation in chemical, food & beverage, water treatment, and manufacturing industries
• Energy-efficient speed control, optimizing electrical consumption and reducing operating costs
• Retrofitting and upgrading legacy motor control systems to modern inverter technology
• Wall-mounted drive applications where space optimization is important
Advantages
• Precise motor speed and torque control, ensuring smooth operation and improved process performance
• High efficiency (IE2), reducing energy costs and heat generation
• Robust IP21 enclosure suitable for standard industrial environments
• Supports normal, light-overload, and heavy-duty operation, providing operational flexibility
• Wall-mounted design, simplifying installation and maintenance
• Comprehensive protection features, including overload, short-circuit, and over-temperature safeguards
