Product Overview

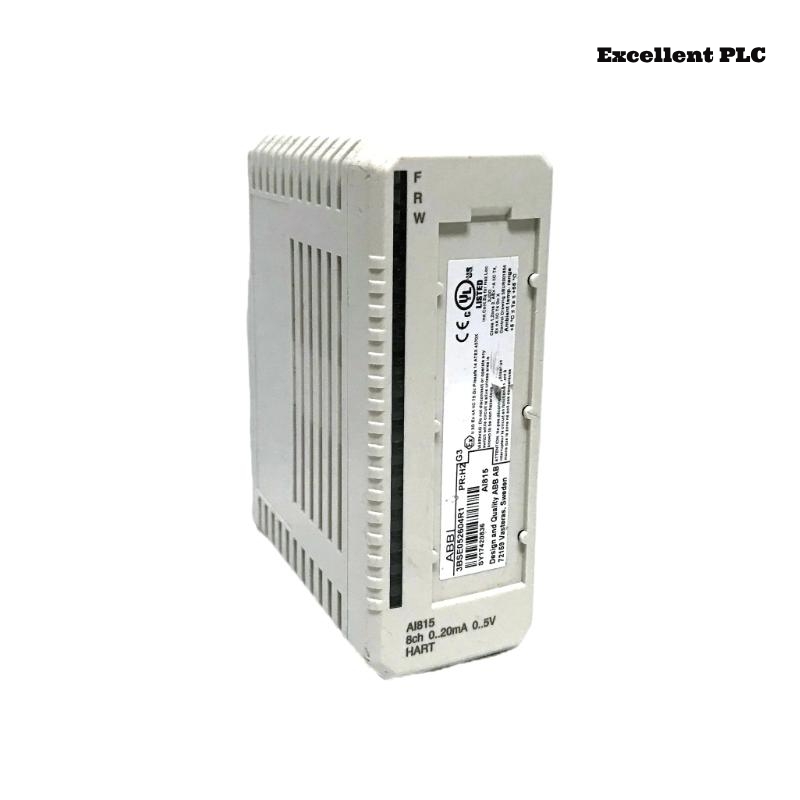

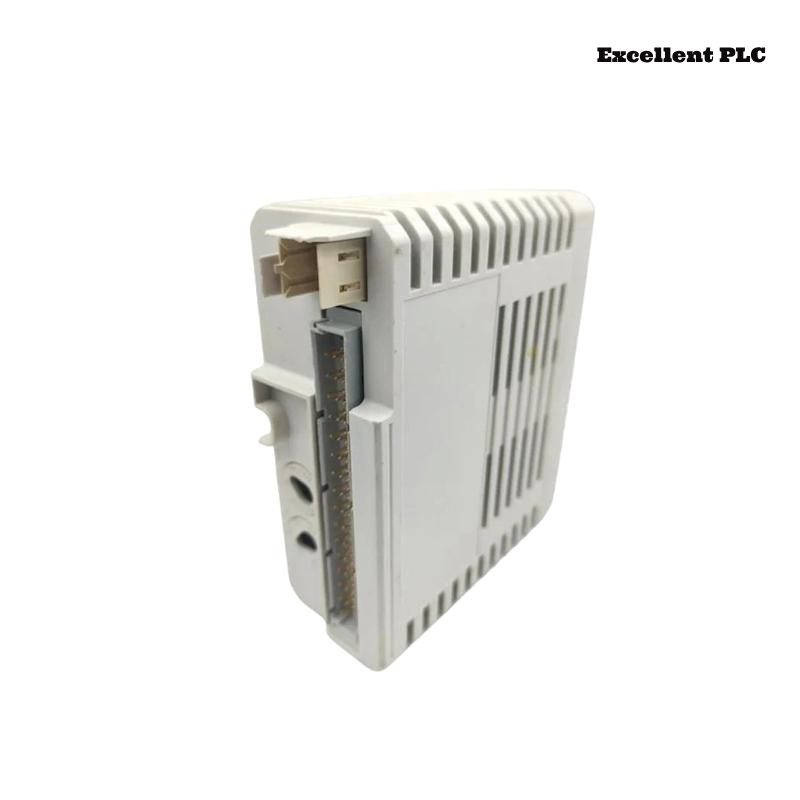

The ABB AI815 3BSE052604R1 Analog Input Module is an advanced component designed for use in ABB’s AC 800M control system. This module provides 8 differential analog input channels, making it ideal for high-precision data acquisition in industrial automation applications. With a compact and robust design, the AI815 ensures reliable and accurate analog signal processing, allowing seamless integration into complex industrial systems.
It supports various input signal ranges, including 0-20 mA and 4-20 mA, and provides high-resolution signal conversion to enhance system performance. Designed to operate in harsh industrial environments, the module features strong electrical isolation, reducing interference and improving signal quality.
Product Specifications
The following table outlines the key specifications of the ABB AI815 3BSE052604R1:
| Specification | Details |
|---|---|
| Product Type | Analog Input Module |
| Part Number | AI815 3BSE052604R1 |
| Number of Channels | 8 differential inputs |
| Input Signal Range | 0-20 mA, 4-20 mA |
| Resolution | 12-bit ADC |
| Input Impedance | ~250Ω (current input) |
| Isolation | 1500 V AC between field and system |
| Scan Rate | 10 ms per channel |
| Communication Interface | PROFIBUS DP, Modbus RTU |
| Power Consumption | 2.5 W |
| Operating Voltage | 24V DC |
| Operating Temperature | -25°C to +70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, ATEX |
| Dimensions | 45 x 102 x 119 mm |
| Weight | 0.23 kg |
Product Applications
The ABB AI815 Analog Input Module is widely used in industrial environments requiring highly accurate analog signal processing. Some of its key applications include:
- Process Automation: Provides precise monitoring and control of process variables such as temperature, pressure, and flow.
- Power Generation: Used in power plants to monitor critical parameters and ensure system stability.
- Oil & Gas Industry: Helps in monitoring pipeline pressures, flow rates, and temperature variations.
- Chemical & Pharmaceutical Industries: Used in batch control systems to maintain optimal conditions for production.
- Water & Wastewater Treatment: Assists in real-time monitoring of water quality parameters such as pH, turbidity, and dissolved oxygen levels.
Product Advantages
The ABB AI815 module offers several benefits that make it an excellent choice for industrial automation systems:
High Accuracy – Features 12-bit resolution for precise analog signal conversion.
Wide Input Signal Compatibility – Supports 0-20 mA and 4-20 mA input ranges.
Fast Response Time – Provides 10 ms scan rate per channel, ensuring real-time monitoring.
High Isolation Protection – Offers 1500 V AC isolation, reducing noise interference.
Rugged Industrial Design – Operates reliably in harsh environments with a temperature range of -25°C to +70°C.
Low Power Consumption – Efficiently runs on 2.5W, making it energy-efficient.
Flexible Communication Interfaces – Supports PROFIBUS DP and Modbus RTU, enabling seamless integration.
Latest News Titles
Here are some of the latest headlines related to ABB automation products:
- “ABB Expands AI-based Industrial Automation Solutions for Smarter Manufacturing”
- “ABB Introduces Next-Gen AC 800M Modules with Enhanced Processing Power”
- “How ABB’s Analog Input Modules Are Revolutionizing Data Acquisition”
- “ABB AI815: A Game Changer for Precision Monitoring in Power Plants”
- “ABB Strengthens Industrial Safety with High-Isolation Signal Processing Technology”
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB AI815 module?
- The AI815 is an 8-channel analog input module designed for precise signal acquisition in industrial automation systems.
-
What types of input signals does the AI815 support?
- It supports 0-20 mA and 4-20 mA current input signals.
-
What is the resolution of the AI815 module?
- The module has a 12-bit ADC resolution, providing high-accuracy signal processing.
-
Is the AI815 module compatible with ABB’s AC 800M controller?
- Yes, the AI815 is specifically designed for use with ABB’s AC 800M control system.
-
What type of isolation does the AI815 module provide?
- It offers 1500V AC isolation between the field and system, ensuring high electrical protection.
-
What is the power consumption of the AI815?
- The module consumes only 2.5W, making it an energy-efficient solution.
-
Can the AI815 module be used in hazardous environments?
- Yes, it is ATEX-certified and suitable for hazardous industrial environments.
-
What is the maximum operating temperature of the AI815?
- It can operate in temperatures up to +70°C, making it ideal for harsh conditions.
-
Does the AI815 support remote diagnostics?
- Yes, it supports remote diagnostics and status monitoring via ABB’s control system interface.
-
What are the typical applications of the AI815 module?
- The AI815 is used in power generation, oil & gas, chemical processing, and water treatment for precise signal acquisition and monitoring.
