Product Introduction

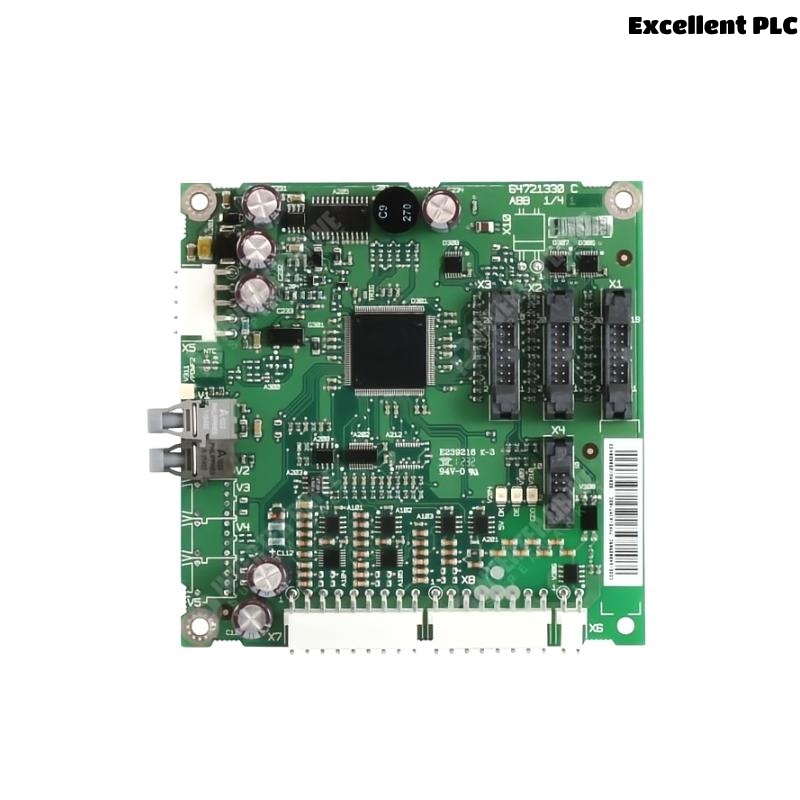

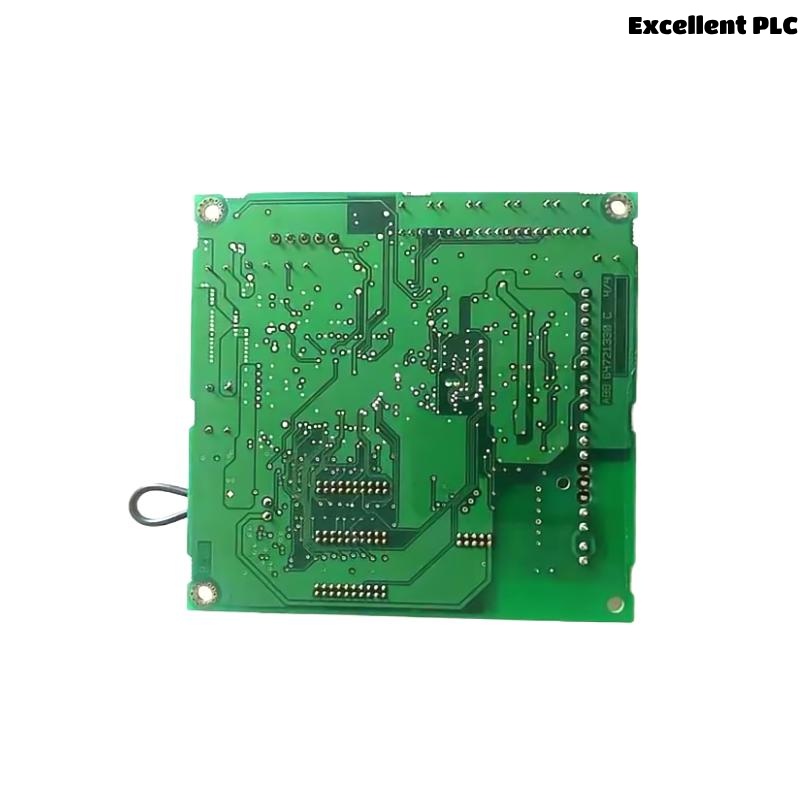

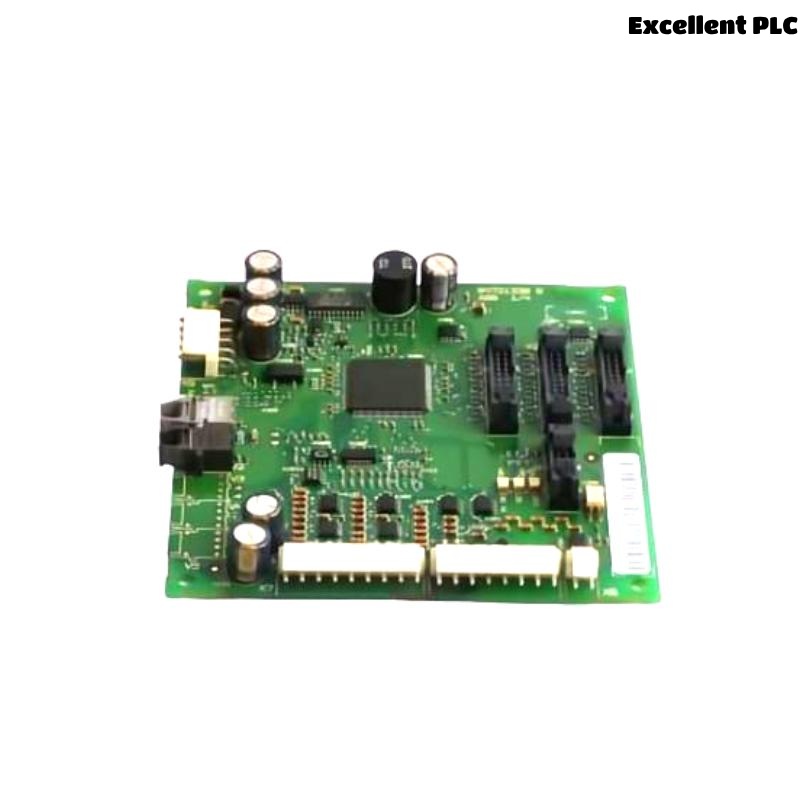

The ABB AINT-02C 64802909A SP KIT Main Interface Module is a critical communication interface used within ABB’s control systems, particularly designed for the Symphony Plus, Advant, or MOD 300 platforms. This module acts as the central gateway that connects system-level controllers to local and remote I/O modules, operator stations, and engineering workstations.
With its robust design, enhanced communication capabilities, and high-speed data handling, the AINT-02C module ensures seamless integration and real-time data flow across various automation layers. ABB’s emphasis on reliability and compatibility makes this interface module a favored choice in process industries like power generation, oil & gas, petrochemical, and pulp & paper.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | AINT-02C SP KIT Main Interface |
| Part Number | 64802909A |
| Manufacturer | ABB |
| System Compatibility | Symphony Plus, MOD 300, Advant |
| Interface Type | Main Control System Interface |
| Communication Protocols | Ethernet, MODBUS, MasterBus 300 |
| Power Supply Voltage | 24 VDC |
| Power Consumption | < 10W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Installation | DIN rail / Rack mounting |
| Certifications | CE, RoHS, UL, CSA |
| Firmware Support | Upgradable via engineering tools |
| Diagnostic Features | LED indicators for status and fault |
| Dimensions (W×H×D) | 140 × 110 × 60 mm |
| Weight | 0.1 kg |
Applications
The ABB AINT-02C module is utilized across a broad spectrum of industries requiring high-reliability control and monitoring:
-
Power Plants: Used in turbine control, boiler control, and balance-of-plant systems.
-
Petrochemical Plants: Facilitates communication in complex distributed control environments.
-
Oil & Gas: Supports upstream and midstream pipeline and compressor station operations.
-
Pulp and Paper: Enables smooth operation and integration of process control systems.
-
Water Treatment Facilities: Ensures effective SCADA integration and plant-wide monitoring.
-
Metallurgy and Mining: Delivers real-time interfacing between field equipment and control layers.
Advantages
-
High Compatibility: Designed specifically for ABB’s control platforms, guaranteeing seamless integration.
-
Robust Communication: Supports a wide array of industrial protocols for greater flexibility.
-
Compact and Modular Design: Saves panel space while offering easy installation and replacement.
-
Enhanced Diagnostics: Real-time LED indicators for operational status and faults reduce downtime.
-
Long Lifecycle Support: ABB ensures extended support and spare parts availability.
-
Upgradeable Firmware: Keeps the module up-to-date without physical replacement.
-
Secure Communication: Ensures data integrity and protection in mission-critical applications.
Frequently Asked Questions (FAQ)
-
What is the primary function of the AINT-02C module in an ABB control system?
The AINT-02C serves as the main interface module, managing communication between the control processor and remote I/O devices, HMIs, and engineering stations within ABB control architectures. -
Which communication protocols are supported by the AINT-02C?
It supports standard industrial communication protocols such as Ethernet, MODBUS, and ABB’s proprietary MasterBus 300, ensuring integration flexibility. -
Can the AINT-02C be hot-swapped during system operation?
No, the AINT-02C does not support hot-swapping. Power to the unit should be turned off before installation or replacement to avoid communication disruptions or hardware damage. -
How does the AINT-02C handle network failures or communication loss?
The module features built-in diagnostic capabilities and fault indication LEDs. In the event of network issues, it can initiate predefined fail-safe behavior based on system configuration. -
Is the AINT-02C suitable for use in SIL-rated safety applications?
While reliable and robust, the AINT-02C is not rated for Safety Integrity Level (SIL) applications. For safety-critical functions, ABB recommends using safety-certified modules. -
Does the module require any special configuration tools?
Yes, ABB-specific configuration tools such as Composer or Control Builder are required for parameter settings, firmware updates, and communication setup. -
What are the cooling requirements when installing the AINT-02C in control cabinets?
Passive ventilation is typically sufficient, but in high-density installations or warm environments, forced-air cooling is recommended to maintain reliability. -
Can the module operate in systems with high electromagnetic interference (EMI)?
Yes, the AINT-02C is designed with industrial EMI shielding and complies with IEC/EN 61000-6 standards for electromagnetic compatibility. -
How do I know if the AINT-02C is functioning correctly after installation?
Upon powering up, the status LEDs will indicate normal operation. Additionally, a successful handshake with the control processor will be visible in the ABB system engineering interface. -
What maintenance is required for the AINT-02C during regular system checks?
Maintenance involves periodic visual inspection for dust accumulation, checking terminal connections for looseness, and reviewing LED indicators and system logs for early signs of wear or communication faults.
Related or Same Series Models
| Model | Description | System Compatibility | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AINT-01C | Interface Module for Symphony DCS | Symphony DCI | 140 × 110 × 60 | 0.55 |
| INICT03A | Network Interface for INFI 90 Systems | INFI 90, Symphony Plus | 150 × 120 × 65 | 0.65 |
| IMMFP12 | Multi-Function Processor Module | Symphony Plus | 200 × 140 × 60 | 0.85 |
| IEPAS02 | Power Supply Interface Module | Advant OCS | 140 × 110 × 60 | 0.60 |
| IEMMU01 | Memory Module for Main Processor | Symphony DCI | 130 × 100 × 55 | 0.50 |
| INNIS21 | Network Interface Slave Module | Symphony Plus | 140 × 110 × 60 | 0.55 |
