Product Introduction

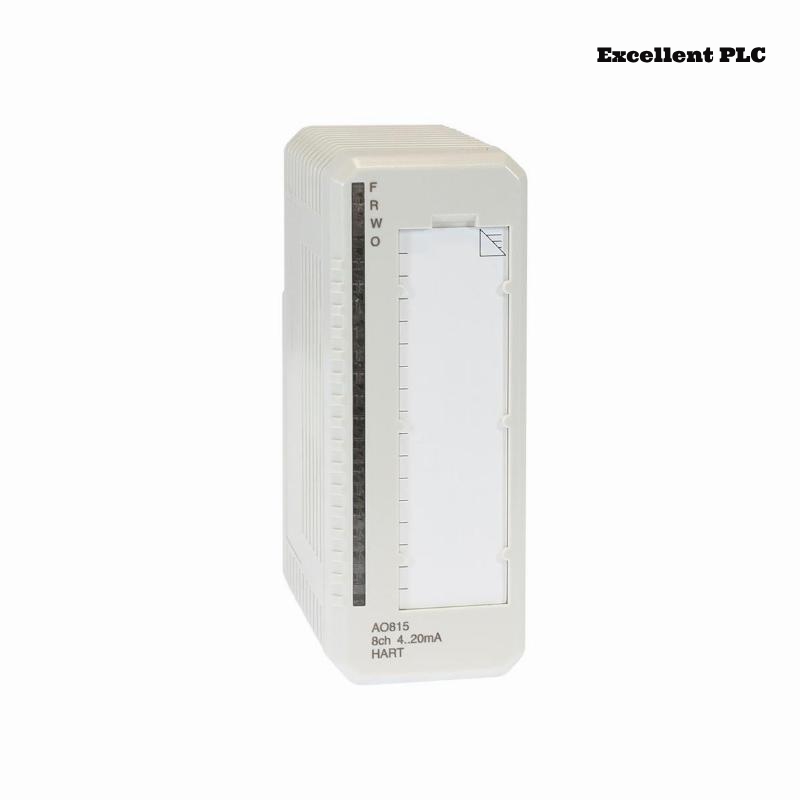

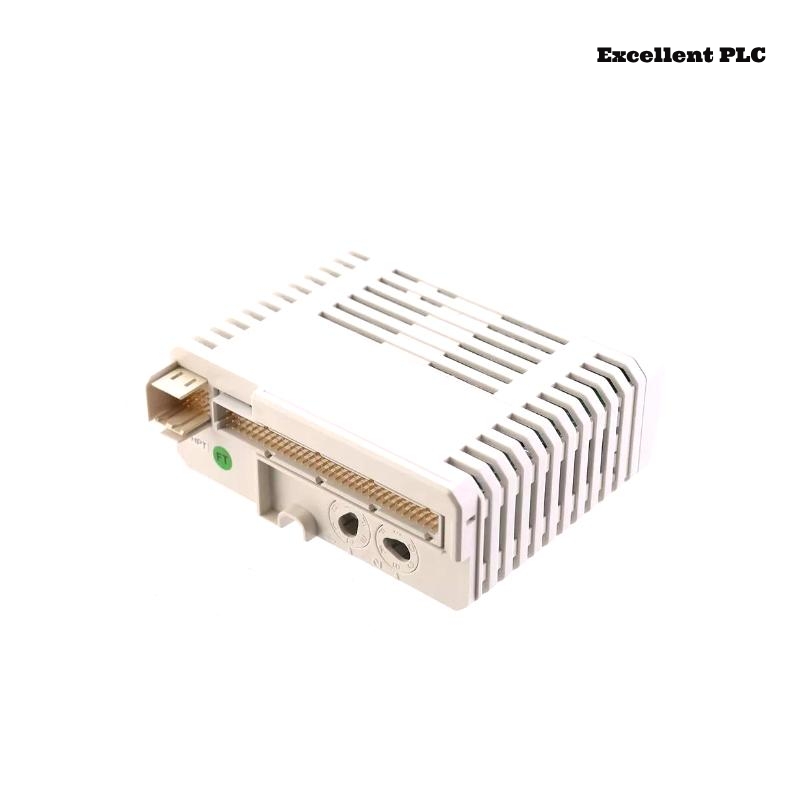

The ABB AO815 3BSE052605R1 Analog Output Module is an integral component of ABB’s 800xA control system, designed for industrial automation and process control applications. This module is specifically built to convert digital signals from a controller into corresponding analog outputs. It ensures that control systems can accurately regulate various field devices such as actuators, valves, and drives, which require analog control signals for proper operation.
The AO815 module is engineered for high performance and reliability, providing high-precision analog output in a wide range of industrial environments. It is capable of supporting 8 output channels, each with 12-bit resolution, ensuring precise control over the connected devices. The module is designed to operate seamlessly with ABB’s 800xA and other compatible control systems, offering flexibility and scalability for a wide range of industrial applications.
The module features robust communication protocols, high reliability, and easy integration into complex automation systems, making it an ideal solution for industries such as chemical processing, power generation, and oil and gas.
Product Specifications
| Specification | Details |
|---|---|
| Model | ABB AO815 3BSE052605R1 Analog Output Module |
| Number of Channels | 8 analog output channels |
| Output Range | -10 V to +10 V (Standard) |
| Resolution | 12-bit resolution |
| Output Type | Voltage output (can be configured for current output) |
| Signal Isolation | Galvanic isolation between outputs and the system |
| Mounting Type | DIN rail mounting |
| Dimensions (L x W x H) | 45 × 102 × 119 mm |
| Weight | 0.21 kg |
| Power Supply | 24 V DC |
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Communication Protocol | Profibus DP, Modbus RTU, or other compatible protocols |
| Environmental Protection | IP20 (Dust and contact protection) |
| Certifications | CE, UL, RoHS |
Applications
The ABB AO815 3BSE052605R1 Analog Output Module is widely used across various industries for critical control and automation applications. Below are some of the primary industries and applications where this module is deployed:
- Chemical and Petrochemical Industry: Used in controlling valves and actuators in chemical processing plants to regulate the flow of liquids and gases.
- Power Generation: The module is used for regulating the operation of steam turbines, gas turbines, and other essential equipment in power plants, ensuring stable and efficient power generation.
- Oil and Gas Industry: In refineries and offshore platforms, it controls critical equipment such as pressure control valves and pumps, ensuring operational safety and efficiency.
- Water Treatment: The module helps in controlling pumps, valves, and other devices used in water treatment plants, ensuring that the treatment process remains within specified parameters.
- Manufacturing: In industrial manufacturing systems, the module is used for controlling temperature, pressure, and flow rates in production lines.
- HVAC Systems: Used in the control of heating, ventilation, and air conditioning systems, ensuring optimal environmental conditions in large buildings and factories.
- Food and Beverage: Controls systems like pasteurization, mixing, and fermentation processes, ensuring food safety and quality.
- Pharmaceutical Industry: Critical in temperature and pressure control within pharmaceutical manufacturing to maintain product quality and safety.
Advantages
-
High Accuracy: The 12-bit resolution provides precise control and measurement, ensuring the accurate regulation of critical processes.
-
Wide Output Range: The module supports a wide output range from -10 V to +10 V, ensuring compatibility with various field devices, including actuators and valves that require precise voltage control.
-
Easy Integration: The AO815 module is designed for easy integration with ABB’s 800xA control system, making it an ideal choice for users who are already utilizing ABB automation solutions.
-
Versatile Communication: It supports multiple communication protocols such as Profibus DP and Modbus RTU, ensuring broad compatibility with other industrial control systems and field devices.
-
Reliability and Durability: Designed for demanding industrial environments, the AO815 module provides exceptional reliability and durability, even in harsh conditions.
-
Galvanic Isolation: The module features galvanic isolation between the control system and field devices, protecting the equipment from electrical surges and preventing damage to sensitive components.
-
Compact Design: With a compact form factor, the module can be easily mounted in control cabinets or distributed I/O racks, saving valuable space in the control room or panel.
-
Energy Efficiency: Operating on a low 24 V DC power supply, the module is energy-efficient and helps reduce operational costs.
-
Broad Operating Temperature Range: The module can operate in temperatures ranging from -20°C to 60°C, making it suitable for a variety of environmental conditions, from industrial plants to outdoor facilities.
-
Enhanced Diagnostics: Built-in diagnostic features allow for early detection of potential issues, reducing downtime and maintenance costs.
