Product Introduction

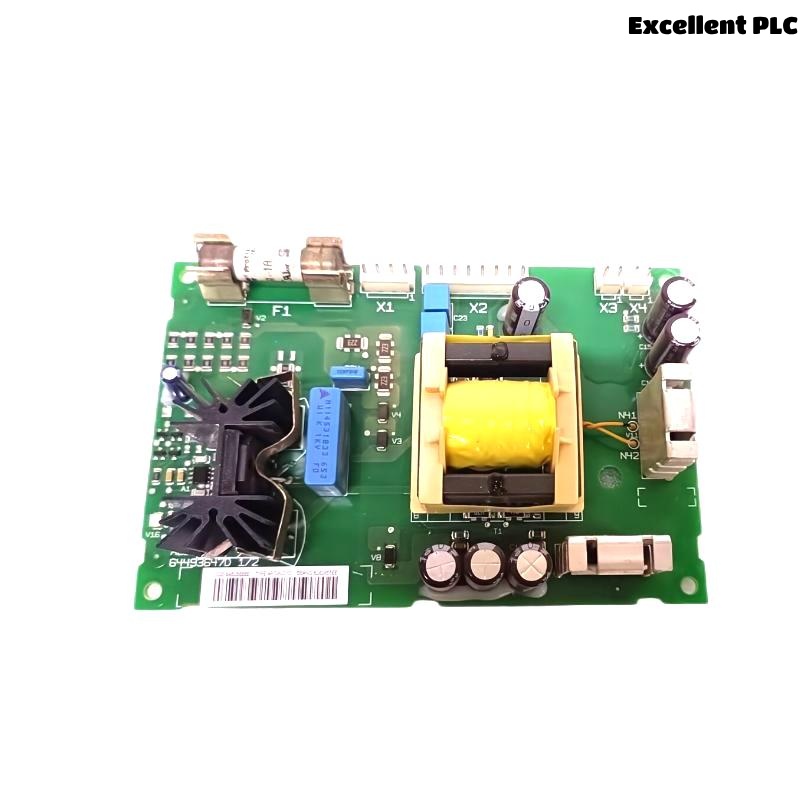

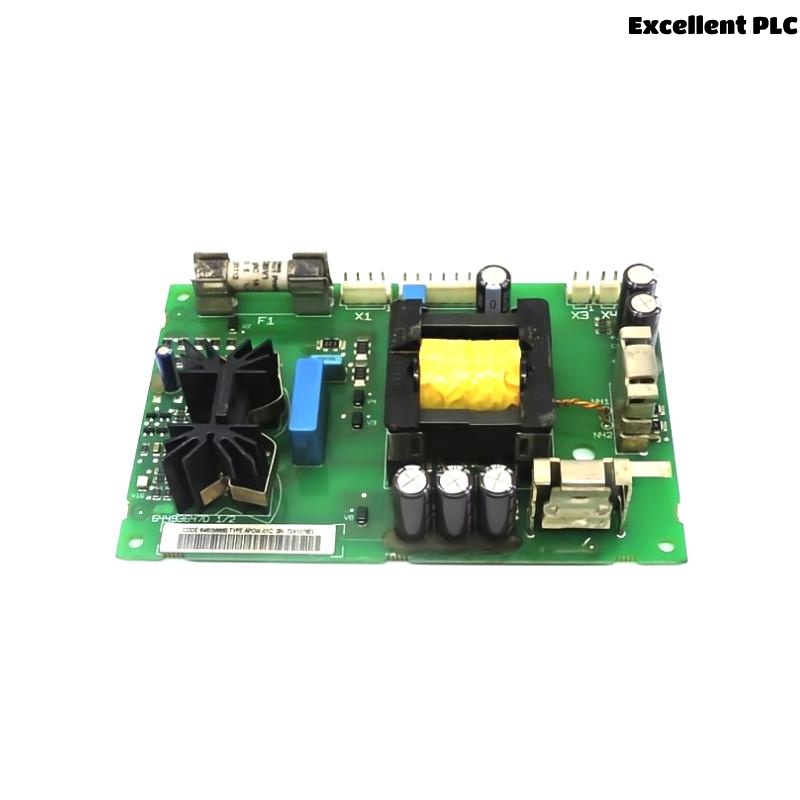

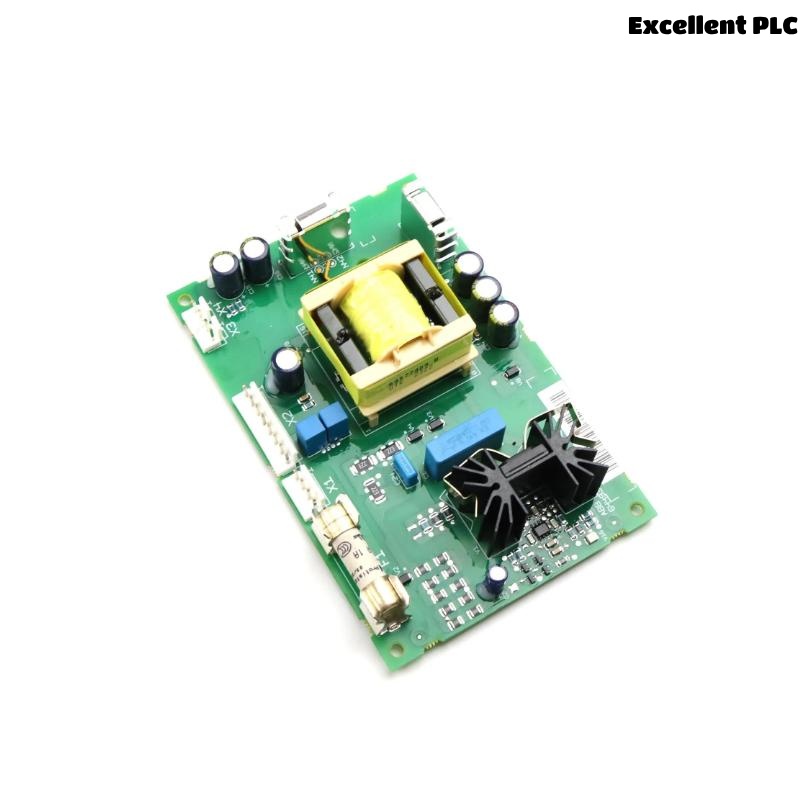

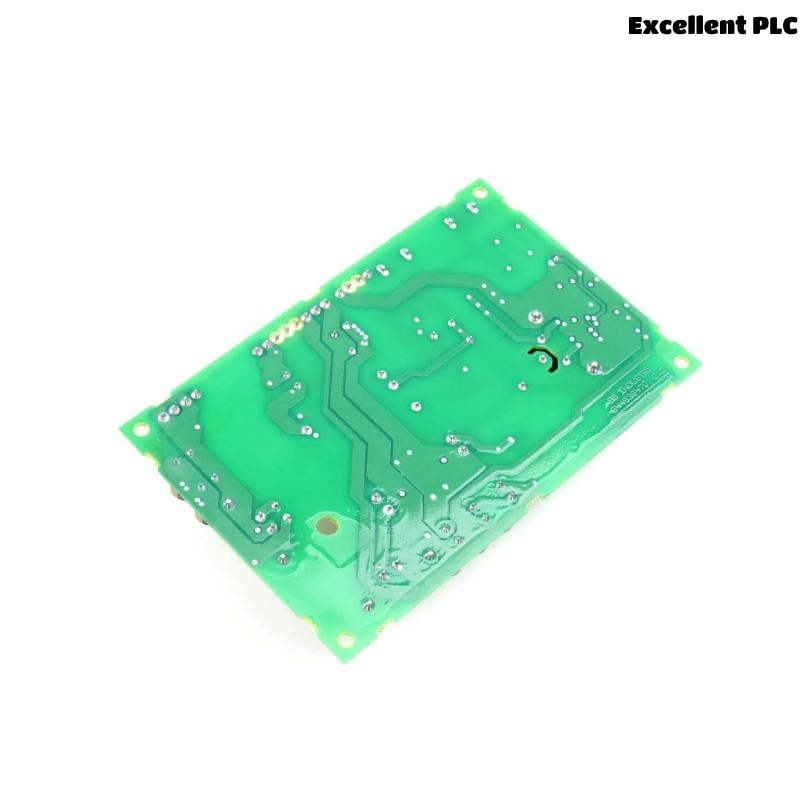

The ABB APOW-01C is a coated power supply board designed to provide reliable and efficient power conversion for industrial automation systems. Engineered for integration with ABB’s ACS series drives and other control systems, this module ensures stable 24V DC output from a wide range of AC input voltages. Its compact design and protective coating make it suitable for various industrial environments, offering durability and consistent performance.
Product Specifications
| Parameter | Description |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Current | 1.3 A |
| Efficiency | Up to 91% |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Features | Short circuit, overload, overvoltage protection |
| Housing Material | Plastic |
| Protection Class | IP20 |
| Certifications | CE, RoHS |
| Dimensions (H x W x D) | 95 × 90 × 55 mm |
| Weight | 0.2 kg |
Product Applications
The ABB APOW-01C power supply board is utilized in various industrial applications, including:
-
Industrial Automation: Provides stable power to control systems and PLCs.
-
Machine Control: Powers components in machinery requiring consistent voltage.
-
Building Automation: Supplies power to building management systems.
-
LED Lighting: Powers LED systems in industrial settings.
-
Medical Equipment: Delivers reliable power to sensitive medical devices.
Product Advantages
-
High Efficiency: Up to 91% efficiency reduces energy consumption and heat generation.
-
Wide Operating Temperature Range: Functions reliably in temperatures from -25°C to +70°C.
-
Compact Design: Small footprint allows for easy integration into existing systems.
-
Protective Coating: Coated board enhances durability in harsh environments.
-
Comprehensive Protection: Built-in safeguards against short circuits, overloads, and overvoltage conditions.
-
Global Certifications: CE and RoHS compliance ensures adherence to international standards.
Frequently Asked Questions (FAQ)
-
What is the input voltage range for the APOW-01C?
The module accepts an input voltage range of 100–240 VAC at 50/60 Hz. -
What is the output voltage provided by the APOW-01C?
It delivers a stable 24 VDC output. -
What is the maximum output current of the APOW-01C?
The board can supply up to 1.3 A of current. -
What are the dimensions and weight of the APOW-01C?
The module measures 95 × 90 × 55 mm and weighs 0.2 kg. -
What protection features are included in the APOW-01C?
It includes protection against short circuits, overloads, and overvoltage. -
Is the APOW-01C suitable for use in harsh environments?
Yes, its coated design and wide operating temperature range make it suitable for various industrial conditions. -
What certifications does the APOW-01C have?
The module is CE and RoHS certified. -
Can the APOW-01C be used with ABB’s ACS series drives?
Yes, it is designed for compatibility with ABB’s ACS series and other control systems. -
What is the efficiency rating of the APOW-01C?
The power supply board operates with up to 91% efficiency. -
What is the protection class of the APOW-01C?
It has an IP20 protection class, suitable for indoor industrial applications.
Related Models in the Same Series
| Model Number | Description | Compatibility |
|---|---|---|
| APOW-11C | Power Supply Board with higher capacity | ACS800 Series |
| APOW-12C | Enhanced Power Supply Board | ACS880 Series |
| APOW-13C | Compact Power Supply Module | ACS580 Series |
| APOW-14C | High-efficiency Power Supply Board | ACS880 Series |
| APOW-15C | Ruggedized Power Supply Module | Harsh Environment Systems |
| APOW-16C | Modular Power Supply Board | Custom Control Systems |
