Product Introduction

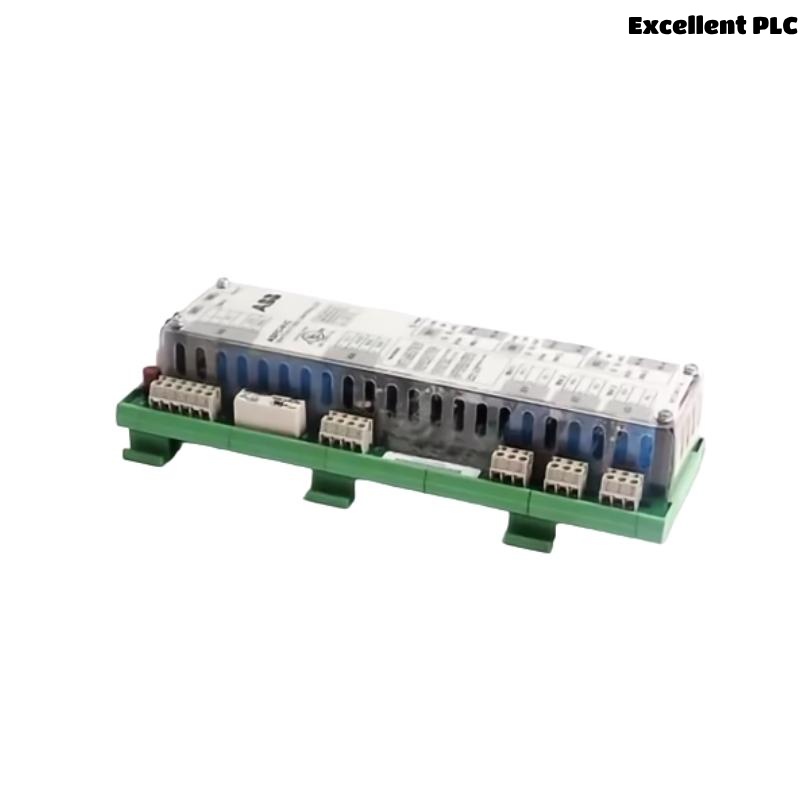

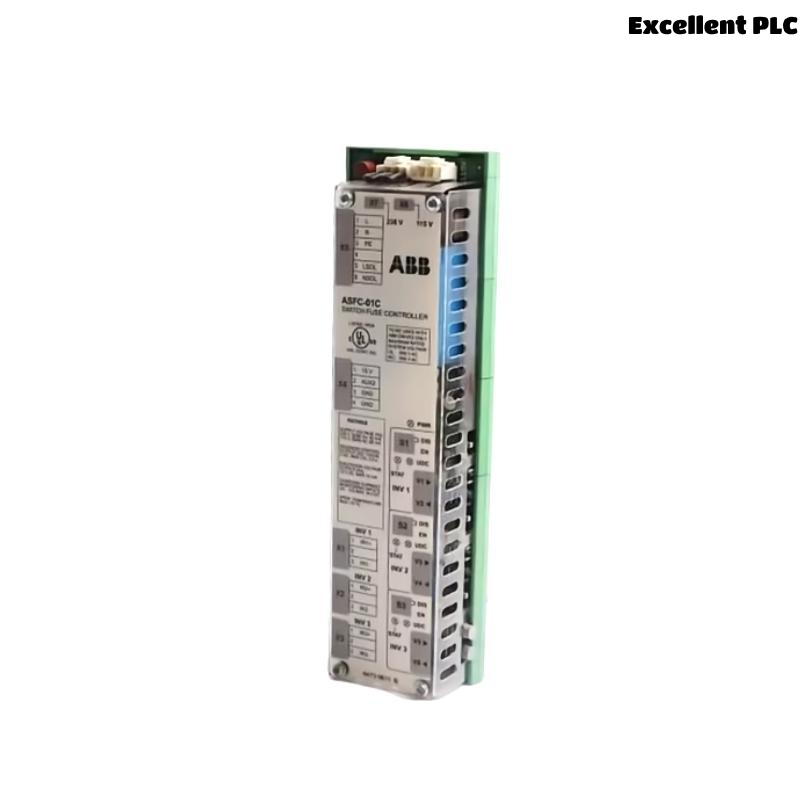

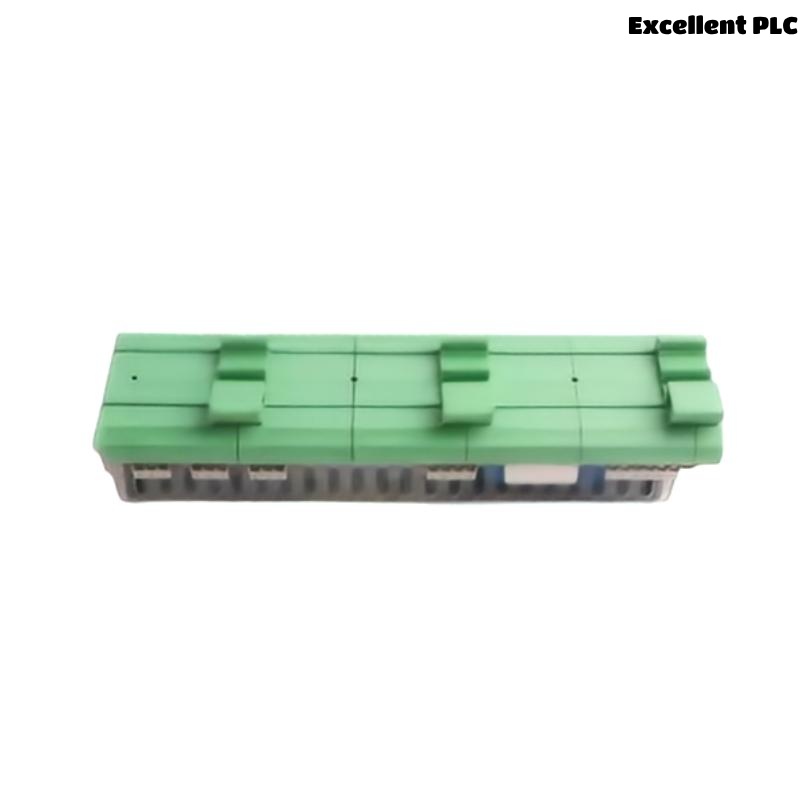

The ABB ASFC-01C 64739611C Switch Fuse Controller is an essential component designed for advanced monitoring, control, and protection of fused electrical circuits. This controller is part of ABB’s comprehensive range of solutions for medium- and low-voltage systems. The ASFC-01C combines superior functionality with user-friendly features to help ensure reliable and efficient protection for fuses, ensuring that industrial applications and critical infrastructure systems are safeguarded against overcurrent and fault conditions.
The ASFC-01C is designed to optimize the performance of fuse-based systems, providing real-time fault detection, clear indication of fuse status, and precise control. It is an ideal choice for industries that require effective power distribution, safety monitoring, and remote access to fuse status information.
This device supports an array of fuse types and can be integrated into existing systems to enhance operational efficiency and safety.
Product Specifications
| Parameter | Details |
|---|---|
| Model | ASFC-01C 64739611C |
| Product Type | Switch Fuse Controller |
| Manufacturer | ABB |
| Control Voltage Range | 100–240 VAC (Control Input), 24 VDC (Auxiliary Input Optional) |
| Fuse Type Compatibility | Type gG, aM, class J, and T fuses |
| Input/Output Interface | Dry contact input, relay output |
| Status Indicators | LEDs for Power, Fuse Tripped, Fault, and Status |
| Digital I/O | 2 DI (Digital Inputs), 2 DO (Digital Outputs) |
| Communication Port | RS-485 (Modbus RTU protocol) |
| Response Time | ≤ 5 ms |
| Mounting Type | DIN Rail or Panel Mounting |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Enclosure Rating | IP20 |
| Compliance Standards | IEC 60947, CE, RoHS |
| Dimensions (L × W × H) | 100 x 80 x 25 mm |
| Weight | 0.61 kg |
Product Applications
The ABB ASFC-01C Switch Fuse Controller is designed for diverse industrial and commercial applications where fuse protection and monitoring are critical. Its capabilities make it particularly suitable for:
-
Industrial Control Systems: Used in industrial automation panels, it ensures that fuses are effectively monitored and protected.
-
Motor Control Centers (MCCs): Protects motors and associated equipment by providing fuse monitoring and fault detection.
-
Power Distribution Networks: Ensures safe operation in both low and medium voltage power distribution panels.
-
Renewable Energy Systems: Provides protection for fuses in solar and wind energy systems, optimizing system efficiency.
-
Transportation Infrastructure: Used in rail signaling and power systems where fuse monitoring and quick fault response are crucial.
-
Process Industry: Prevents equipment damage and downtime in applications such as manufacturing, chemicals, and petrochemicals by ensuring proper fuse operation.
Product Advantages
-
Real-Time Fuse Monitoring
Quickly detects blown or degraded fuses, minimizing downtime and enhancing operational reliability. -
Flexible Compatibility
Supports a wide range of fuses, including gG, aM, J, and T types, providing versatile protection for various systems. -
Fast Response Time
The ASFC-01C boasts a quick response time of less than 5 milliseconds, allowing immediate action to be taken in the event of a fuse failure. -
Remote Monitoring and Control
The RS-485 Modbus RTU interface enables remote monitoring, making it ideal for integration into SCADA or PLC systems. -
Compact and Space-Saving
The device has a small form factor, making it easy to integrate into both new and existing systems without requiring significant space. -
Enhanced Safety and Diagnostics
The controller’s LED indicators and remote relay outputs provide clear, actionable information about fuse status and faults, ensuring greater safety and quicker diagnostics.
Frequently Asked Questions (FAQ)
-
What is the function of the ABB ASFC-01C?
The ASFC-01C is a fuse monitoring and control system designed to detect fuse faults and provide immediate indication and alarm capabilities. -
Can the ASFC-01C control multiple fuse types?
Yes, the ASFC-01C supports a wide range of fuse types, including gG, aM, and class J/T fuses, providing broad compatibility. -
How does the device communicate with other systems?
The ASFC-01C uses the RS-485 Modbus RTU protocol, which allows it to communicate with SCADA systems or other controllers. -
Does the ASFC-01C support remote monitoring?
Yes, the RS-485 interface supports remote monitoring of fuse status, allowing operators to manage fuses from a centralized location. -
What happens when a fuse is detected as blown?
The ASFC-01C triggers an output relay and illuminates an LED indicator, signaling the fault. It can also trigger remote alarms or automation systems. -
Can the ASFC-01C be installed outdoors?
The device must be installed in a protected environment, such as a weatherproof enclosure, as it has an IP20 rating. -
Is the device suitable for harsh industrial environments?
Yes, the ASFC-01C is designed for industrial environments and can operate in temperatures ranging from -25°C to +70°C. -
What are the digital inputs and outputs used for?
The digital inputs (DI) can be used for external control signals, while the digital outputs (DO) can be used to trigger alarms or control other devices based on fuse status. -
What type of fuse failures can the ASFC-01C detect?
The ASFC-01C can detect open or blown fuses and provide real-time feedback to operators or control systems. -
Is there any software required to configure the ASFC-01C?
The ASFC-01C does not require additional software for basic operation but can be integrated into Modbus-compatible SCADA or PLC systems for advanced monitoring.
Related Models (Same Series or Similar Functionality)
| Model | Description | Application |
|---|---|---|
| ASFC-02C | Enhanced version with additional I/O | Large automation panels |
| ASFC-01A | Basic model for general applications | Simple fuse monitoring |
| SFCM-01 | Modular fuse monitoring sensor | Field installation in various sectors |
| FMS300 | Fuse monitoring solution for panels | Small- to medium-sized distribution boards |
| UMC100.3-FUSE | Motor control with integrated fuse check | Motors and heavy machinery protection |
| FSO-01 | Advanced fuse protection and monitoring | Smart grids and high-voltage systems |
Popular ABB Models (Same Brand, Other Applications)
| Model | Description | Primary Use |
|---|---|---|
| PM864AK01 | AC 800M controller CPU module | Process automation and complex control systems |
| REF620 | Feeder protection relay | Medium voltage protection in electrical distribution |
| ACS580-01 | General purpose drive | HVAC, pump, fan applications |
| DCS880-S01 | Industrial DC drive | Metal industries, paper mills |
| CP600-Pro | Industrial HMI panel | SCADA, control visualization for processes |
| UMC100.3 | Universal motor controller | Motor protection and control |
