Product Introduction

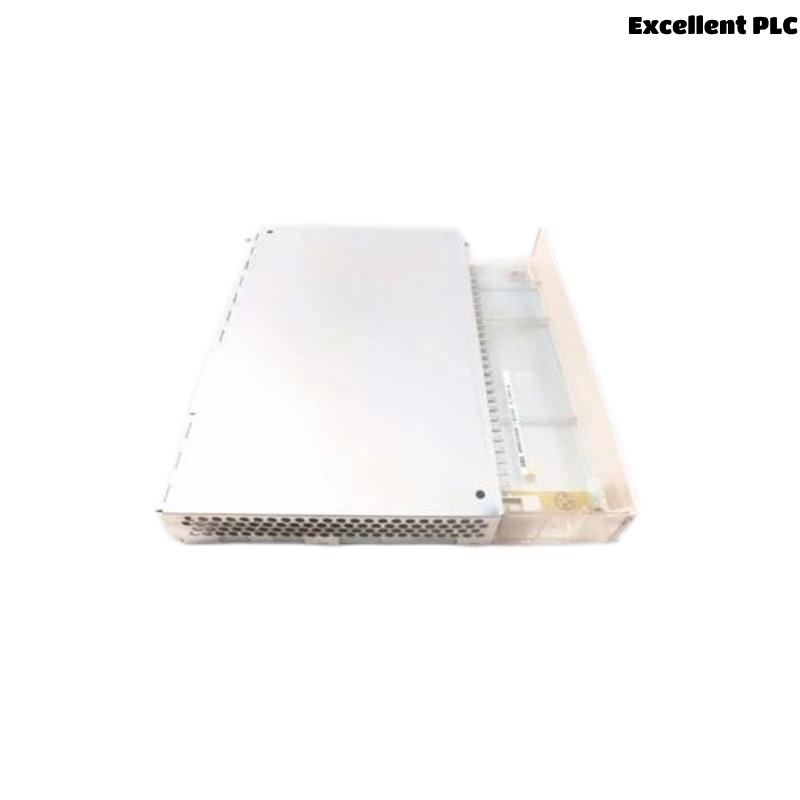

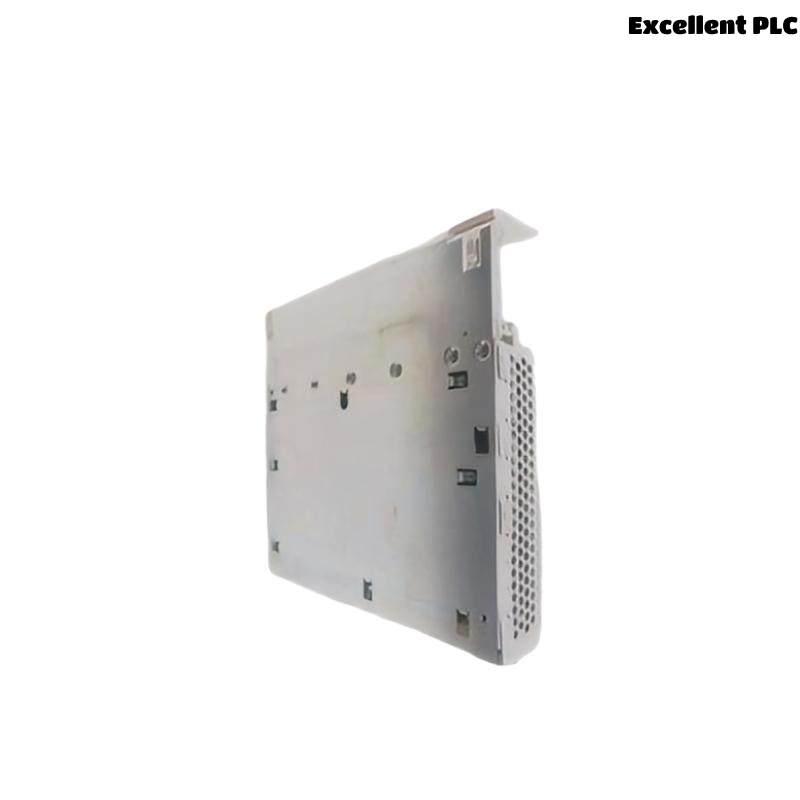

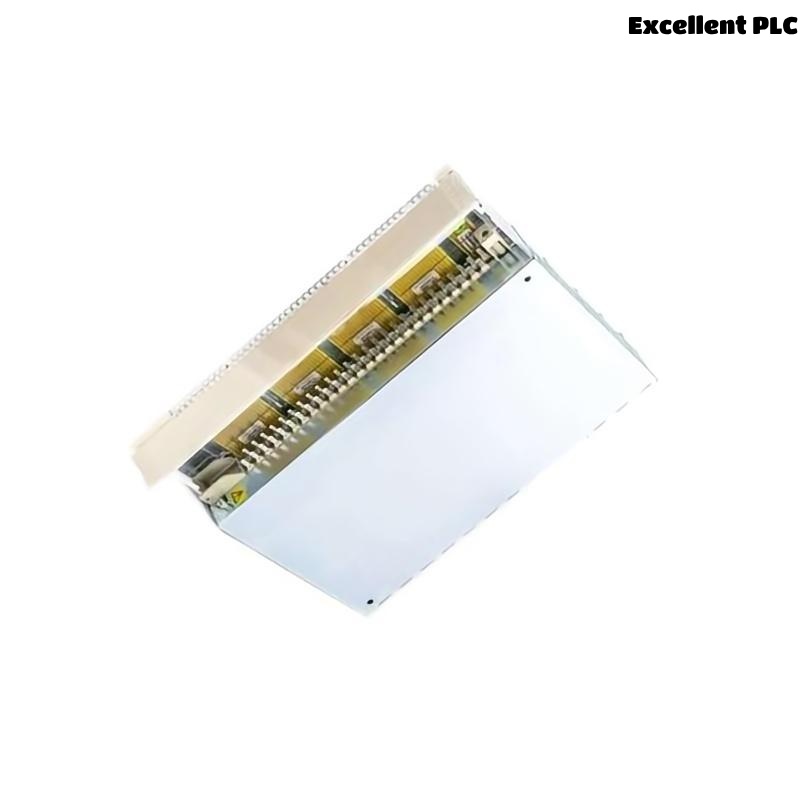

The ABB AX645 3BHB001914R0001 is a precision-engineered analog I/O module developed to serve as a reliable interface between field analog signals and control systems within ABB’s Advant Master DCS environment. With robust construction and high signal integrity, the AX645 ensures optimal performance in process automation systems. Whether it’s acquiring analog measurements from transmitters or driving analog actuators, this module provides dependable operation and consistent signal processing in critical industrial applications.
The AX645 is widely adopted across industries due to its consistent quality, high accuracy, and seamless integration with ABB control platforms. It reflects ABB’s commitment to innovation, reliability, and process optimization.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | AX645 Analog I/O Module |
| Part Number | 3BHB001914R0001 |
| Manufacturer | ABB |
| Function | Analog Input and Output Module |
| Input Channels | 8 Analog Inputs |
| Output Channels | 8 Analog Outputs |
| Signal Types Supported | Voltage (0–10V), Current (4–20mA) |
| Input Resolution | 12-bit |
| Output Resolution | 12-bit |
| Update Rate | ≤ 1 millisecond per channel |
| Electrical Isolation | Galvanic isolation between field and logic |
| Mounting Style | DIN rail or backplane |
| Connector Type | Removable screw terminals |
| Operating Voltage | 24 V DC |
| Power Consumption | < 6 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | 200 x 150 x 50 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS |
| System Compatibility | ABB Advant Master DCS |
Applications
The ABB AX645 3BHB001914R0001 is utilized across a wide spectrum of industrial applications that require reliable analog signal acquisition and output control:
-
Thermal and Hydro Power Plants: Used to monitor and control temperature, pressure, and flow variables in turbines and auxiliary systems.
-
Chemical Production Facilities: Ideal for precision dosing, level control, and reactor monitoring where signal integrity is critical.
-
Oil & Gas Operations: Functions in harsh upstream and downstream environments for pressure and flow control.
-
Pharmaceutical Manufacturing: Ensures strict process control and traceability in sensitive production conditions.
-
Water and Wastewater Management: Interfaces with sensors and actuators to manage fluid levels, chemical dosing, and treatment processes.
-
Food and Beverage Automation: Supports hygienic, regulated operations with high reliability.
Product Advantages
-
High Accuracy and Resolution: 12-bit resolution provides fine signal granularity, crucial for process control.
-
Strong Electrical Isolation: Galvanic isolation ensures that signal disturbances do not compromise control logic or damage internal circuitry.
-
Rugged Industrial Build: Designed for reliable operation in environments with vibration, electrical noise, and temperature variation.
-
Space-Saving Design: Compact form factor suitable for high-density installations.
-
Quick Integration: Plug-and-play compatibility with ABB’s Advant Master DCS for seamless engineering and commissioning.
-
Diagnostics Ready: Built-in diagnostics help identify wiring or configuration issues promptly.
-
Versatile Signal Handling: Supports both voltage and current inputs/outputs, enabling broad field compatibility.
-
Energy Efficient: Operates at low power consumption levels while maintaining performance.
Frequently Asked Questions (FAQ)
-
What types of analog signals are supported by the AX645 module?
It supports both voltage (0–10V) and current (4–20mA) signals for input and output. -
Can the AX645 module be used with third-party DCS or PLC systems?
While optimized for ABB systems, it may be adaptable with external systems via analog interfacing and proper signal conditioning. -
Does the AX645 provide electrical isolation?
Yes, it features galvanic isolation between the field and system-side electronics. -
How does the module handle signal resolution?
Both input and output signals are processed with a 12-bit resolution, offering precise analog measurement and control. -
Is the module suitable for installation in harsh environments?
Yes, its wide operating temperature range and certified construction make it suitable for industrial-grade applications. -
How many channels does the AX645 module support?
It offers 8 analog input and 8 analog output channels. -
Is the AX645 hot-swappable?
Hot swapping is not generally supported; always follow proper shutdown and installation procedures. -
What are the dimensions of the module?
The AX645 measures 200 x 150 x 50 mm. -
What is the weight of the unit?
The module weighs 1.2 kg. -
Is it certified for use in industrial systems?
Yes, the AX645 meets CE, RoHS, and UL standards for industrial automation equipment.
Related Models (Same Series or Function)
| Model | Description | Channels | Signal Type |
|---|---|---|---|
| AX460 | Analog I/O Module (High Input Density) | 16 Inputs | Voltage |
| AX521 | Universal Analog Input Module | 16 Inputs | Voltage/Current |
| AX561 | Dedicated Analog Output Module | 16 Outputs | Current |
| AO810 | Analog Output Module for S800 I/O | 8 Outputs | 4–20 mA |
| AI810 | Analog Input Module for S800 I/O | 8 Inputs | 4–20 mA |
| AX670 | High-Speed Analog I/O Module | 8 In / 8 Out | Voltage/Current |
