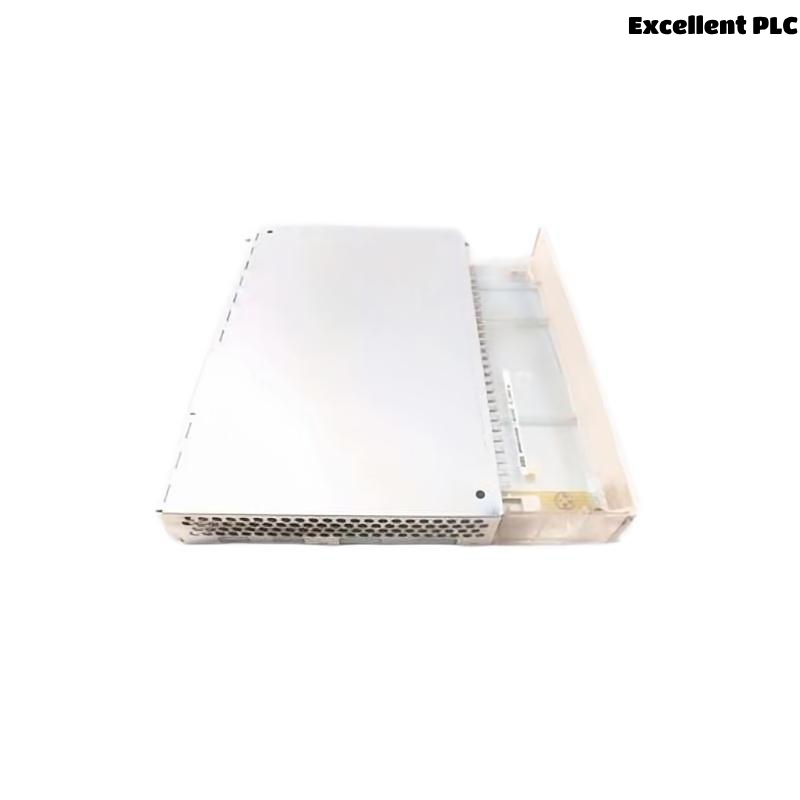

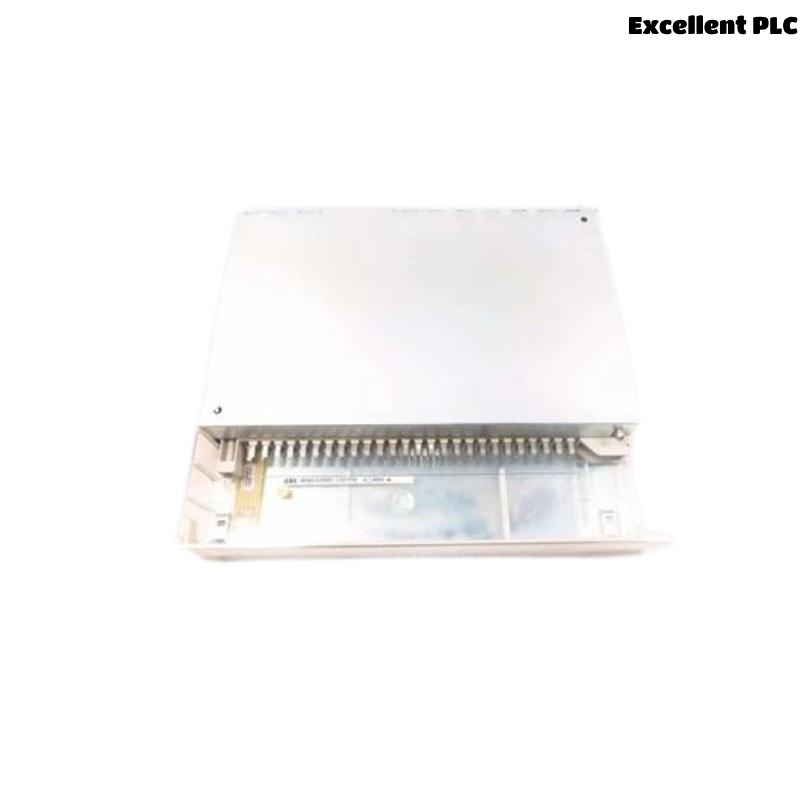

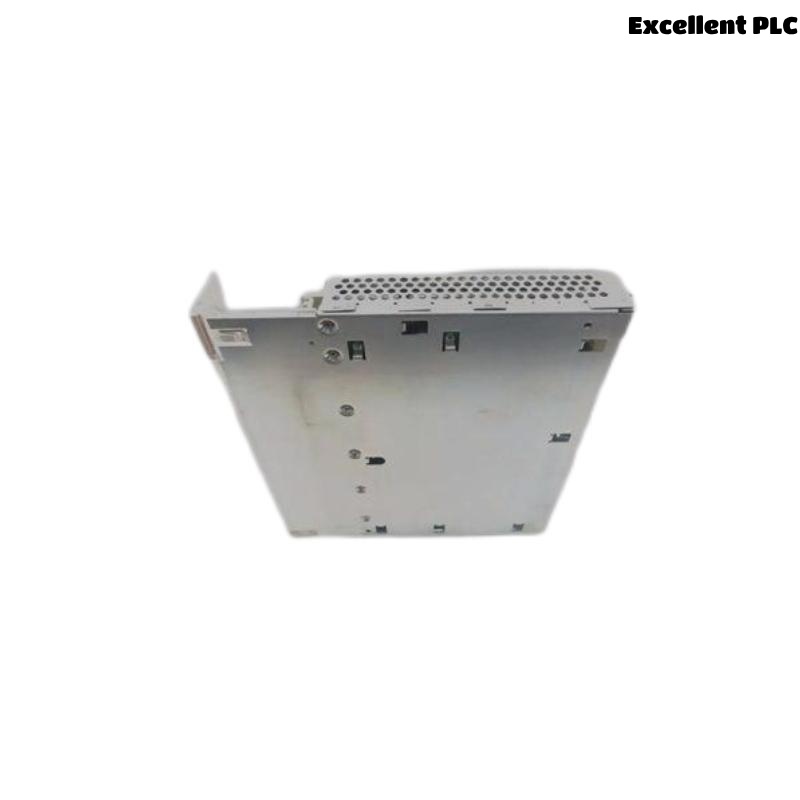

ABB AX645 3BHB001914R1 Analog I/O Module

Product Introduction

The ABB AX645 3BHB001914R1 is a high-performance analog I/O module engineered for industrial automation systems, specifically tailored for use in ABB’s Advant Master DCS (Distributed Control System) environment. Designed to offer precise and reliable analog signal interfacing, the AX645 plays a crucial role in connecting field instrumentation to the controller. Its robust architecture ensures longevity and stable operation under demanding industrial conditions. The AX645 provides seamless integration with existing ABB control systems and is highly valued in applications where signal accuracy, electrical isolation, and system reliability are paramount.

Technical Specifications

Applications

The ABB AX645 is ideal for use in a variety of industries and environments, including:

• Power Generation Plants – for monitoring and controlling analog parameters in turbines, boilers, and auxiliary systems.

• Chemical and Petrochemical Processing – reliable signal interfacing in hazardous and high-precision control environments.

• Water and Wastewater Treatment – accurate data acquisition from flow, pH, and pressure sensors.

• Oil and Gas Refining – ensuring reliable signal transmission in upstream and downstream processes.

• Manufacturing Automation – integrated with PLC/DCS systems to control process variables in real-time.

• Pharmaceutical Industry – precise data logging and regulatory compliance for critical process controls.

Product Advantages

• High Signal Accuracy: Supports 12-bit resolution for detailed analog signal interpretation.

• Strong Electrical Isolation: Galvanic isolation reduces risk of signal distortion and system damage.

• Compact and Modular Design: Saves cabinet space while offering scalability for future expansion.

• Easy Integration: Fully compatible with ABB’s Advant Master systems and other modular process control platforms.

• Industrial Durability: Operates reliably in wide temperature and humidity ranges.

• Low Power Consumption: Energy-efficient design makes it suitable for large-scale installations.

• Fast Response Time: < 1 ms update rate ensures near real-time signal processing.

• CE and UL Certified: Meets international safety and performance standards.

Frequently Asked Questions (FAQ)

1. What type of signals does the AX645 support?
   The AX645 supports both voltage and current signals including ranges like 0–10V and 4–20mA.

2. Is the module compatible with non-ABB systems?
   While it’s designed for ABB Advant Master systems, it may be integrated with third-party systems using standard analog interfacing.

3. Can the module operate in extreme environments?
   Yes, it can operate between -20 °C and +60 °C, with storage conditions down to -40 °C.

4. Is there isolation between input and output channels?
   Yes, galvanic isolation is provided to enhance protection and signal integrity.

5. How is the AX645 mounted?
   It can be DIN rail or rack mounted, offering flexibility for various cabinet layouts.

6. What diagnostic features are included?
   It supports internal diagnostics for power, signal quality, and communication status.

7. Does it support hot swapping?
   Generally, hot swapping is not recommended unless explicitly supported by the installed system architecture.

8. What is the resolution of analog conversion?
   The module offers 12-bit resolution for both inputs and outputs.

9. Is the AX645 certified for industrial use?
   Yes, it holds CE, UL, and RoHS certifications.

10. What is the weight of the module?
    1.2 kg.
