Product Introduction

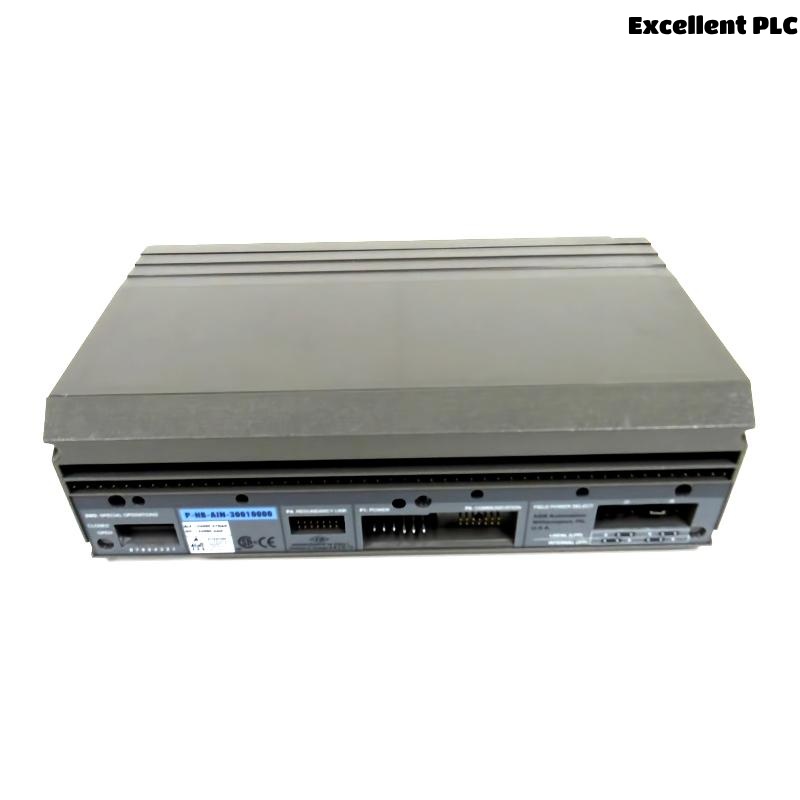

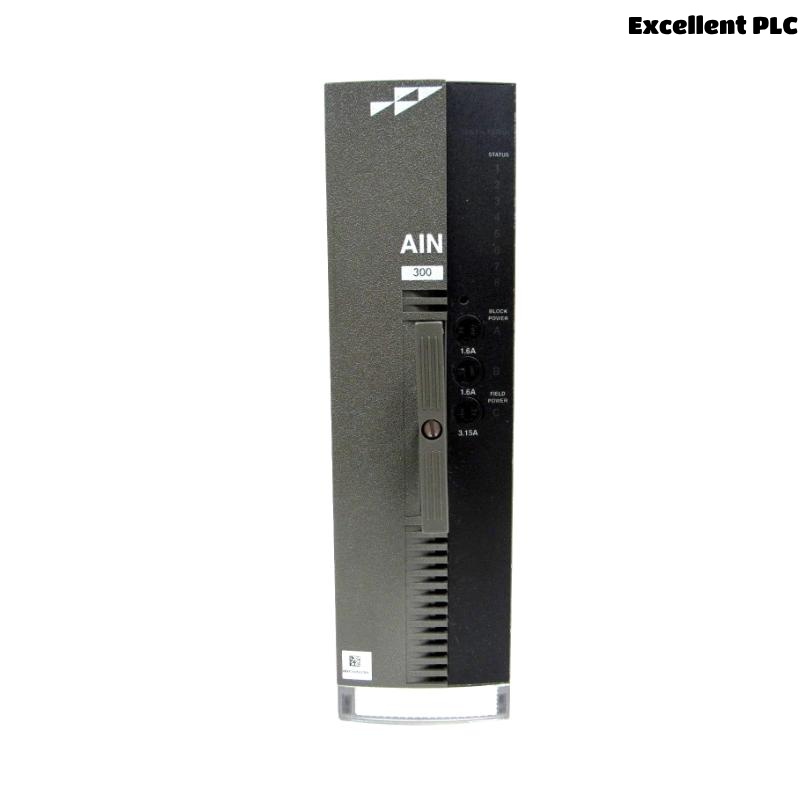

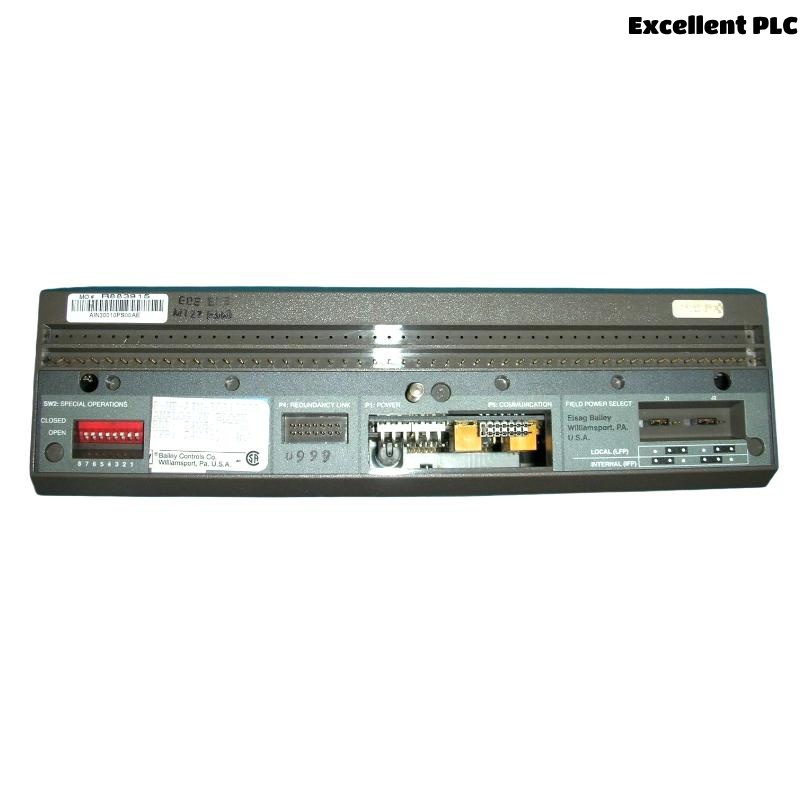

The ABB Bailey AIN300 P-HB-AIN-30010 000 is a Harmony Block Analog Input (AI) Termination Module designed to provide a secure and organized interface between field analog instrumentation and the ABB Bailey INFI 90 Distributed Control System (DCS). As part of the Harmony Series I/O architecture, the AIN300 plays a critical role in ensuring accurate and noise-resistant transmission of analog signals such as temperature, pressure, and flow measurements.
Built to support analog input interface modules (e.g., IIA101, IIA102), the AIN300 allows for precise and reliable signal conditioning, thanks to its high-integrity screw terminals, field-shielded wiring compatibility, and robust construction. The module acts as a physical termination point where sensor wiring is grouped and channeled efficiently to the control system.
With widespread usage in industries such as power generation, chemical processing, and water treatment, the AIN300 delivers consistent performance, ensuring long-term system uptime and data accuracy across complex industrial automation environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | AIN300 P-HB-AIN-30010 000 |
| Manufacturer | ABB Bailey |
| Product Series | Harmony / INFI 90 / Network 90 |
| Function | Analog Input Termination Module |
| Signal Type | Analog (4–20 mA, 0–10 V, RTD, Thermocouple via IIA modules) |
| Supported Modules | IIA101, IIA102, and similar AI interface cards |
| Channel Capacity | Up to 16 analog input channels |
| Terminal Type | Screw-type removable terminal blocks |
| Shielding Support | Yes (dedicated shield terminals) |
| Installation Method | Rack-mounted in Harmony or INFI 90 system chassis |
| Cooling Method | Passive air convection |
| Material | PCB with industrial aluminum mounting hardware |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | UL, CE, CSA |
| Dimensions | 266 x 76 x 162 mm |
| Weight | 1.7 kg |
Product Applications
The AIN300 module is a core component in analog signal processing within the ABB Bailey control ecosystem. Its versatility and reliability make it ideal for:
-
Power Plants
Used for reading analog data from turbine temperature sensors, fuel flow meters, and boiler instruments. -
Oil & Gas Facilities
Handles critical input signals from pressure transmitters, flow sensors, and tank level probes. -
Water & Wastewater Treatment
Interfaces with flow, chemical dosing, and quality monitoring instrumentation. -
Chemical & Petrochemical Plants
Transmits data from process sensors used in batch control, distillation, and safety interlocks. -
Food & Beverage Automation
Supports temperature and weight-based sensors for process consistency and compliance. -
Mining & Metals
Acquires analog signals from heavy-duty field transmitters in harsh industrial conditions.
Product Advantages
-
Reliable Analog Signal Termination
Ensures stable and organized connection of analog instrumentation wiring to the DCS. -
Flexible Signal Compatibility
Works with current (mA), voltage (V), and sensor-based signals via compatible IIA modules. -
Industrial-Grade Construction
Built to endure high-vibration and high-temperature environments with minimal maintenance. -
Simplified Field Wiring
Includes labeled, removable terminal blocks to streamline installation and serviceability. -
EMI/RFI Shielding Support
Dedicated shield terminals reduce noise interference for high signal fidelity. -
Modular Integration
Seamlessly integrates into existing Harmony or INFI 90 I/O racks without the need for modification. -
Passive and Fail-Safe
Contains no active electronics, enhancing long-term reliability and reducing failure points. -
Widely Proven in Legacy and Modern Systems
Successfully deployed in both legacy Bailey and current ABB Harmony installations.
Frequently Asked Questions (FAQ)
1. What is the AIN300’s main purpose in an ABB Harmony control system?
It serves as the termination point for analog signals from field devices, routing them to IIA analog interface modules for processing.
2. Can the AIN300 be used in both new installations and legacy system upgrades?
Yes, it is backward-compatible with Network 90 systems and forward-compatible with Harmony and INFI 90 systems.
3. What signal types can be handled through this module?
Through compatible IIA modules, it supports current (4–20 mA), voltage (0–10 V), RTDs, and thermocouples.
4. How are field cables connected to the AIN300?
Cables are connected using removable screw-type terminal blocks that are clearly labeled and easily accessible.
5. Does the module provide surge protection or signal conditioning?
Signal conditioning is handled by the analog interface modules. The AIN300 primarily acts as a termination base.
6. Is it possible to mix signal types on one AIN300?
No, each module is designed to support a uniform signal type as defined by the installed IIA card.
7. Are the terminal blocks replaceable in the field?
Yes, they are modular and designed for quick replacement during routine maintenance or troubleshooting.
8. How is the AIN300 secured in the rack?
It uses a standard rack-mount frame compatible with ABB I/O chassis, secured by screw-mounted brackets.
9. Is special shielding or grounding required?
Shielded cabling is recommended. The module supports shield ground termination to reduce electrical noise.
10. Can the AIN300 be used in high-vibration or industrial outdoor conditions?
Yes, when housed in a suitable enclosure, the rugged build allows deployment in harsh industrial environments.
Related Models (Same Series or Functional Role)
| Model Number | Description | Signal Type | Channels | Weight |
|---|---|---|---|---|
| AIN301 | Analog Input Block with advanced grounding | mA, V | 16 | 1.8 kg |
| AIN320 | Analog Input Termination for remote stations | mA | 16 | 1.85 kg |
| DAIU01 | Dual-function Digital/Analog I/O base | Analog/Digital | 8 AI + 8 DI | 1.7 kg |
| AIN200 | Compact input base for smaller panel systems | mA | 12 | 1.5 kg |
| TBAIN100 | Termination base with integrated test features | mA | 16 | 1.9 kg |
| RTDIN200 | RTD-specific analog input termination module | RTD | 12 | 1.6 kg |
