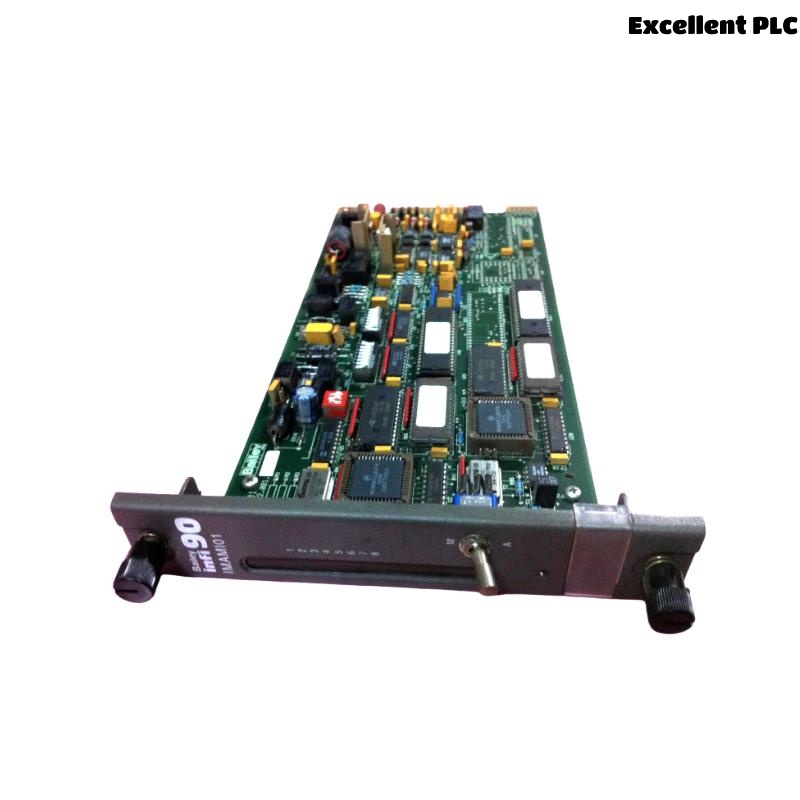

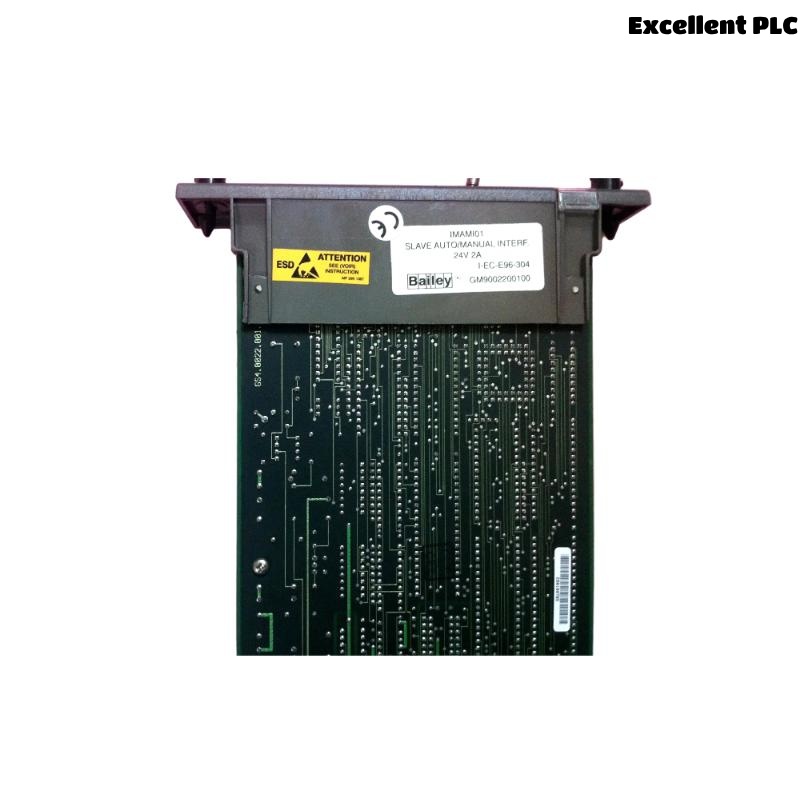

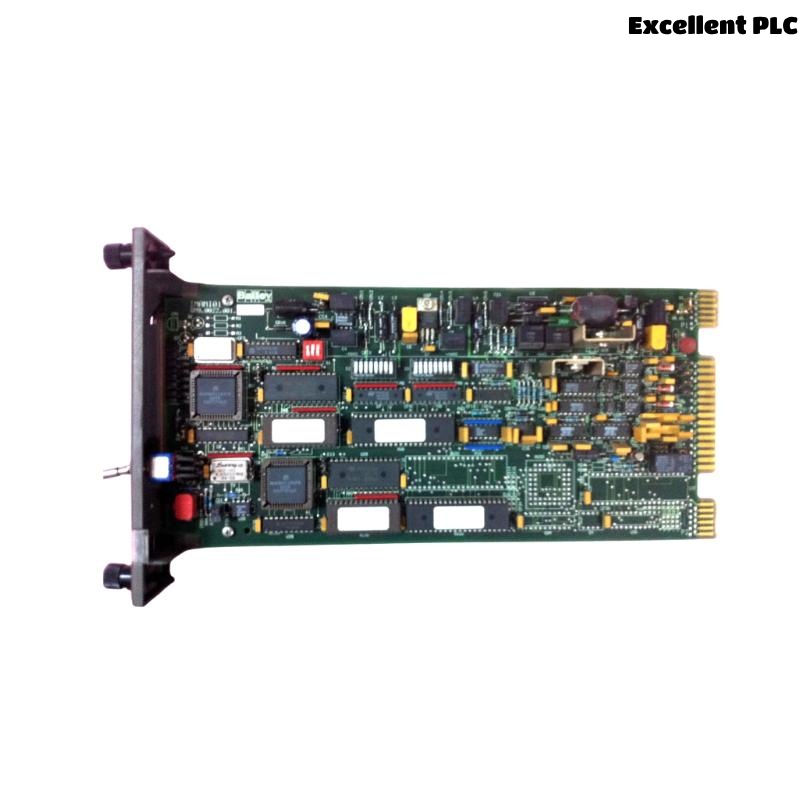

ABB Bailey IMAMI01 Auto Manual Interface Module

Product Introduction

The ABB Bailey IMAMI01 is a specialized Auto/Manual Interface Module designed for use within ABB’s INFI 90 Distributed Control System (DCS). It acts as a bridge between automatic control functions and manual operator intervention, ensuring that control strategies can be safely and seamlessly overridden or maintained during manual operations or maintenance conditions.

The IMAMI01 plays a crucial role in process industries where operator-driven control actions must override system automation without compromising safety, accuracy, or process integrity. Through robust design and reliable communication with multifunction processors and output modules, the IMAMI01 ensures a dependable switch between manual and automatic modes, contributing significantly to system flexibility and uptime.

Technical Specifications

Product Applications

The IMAMI01 is vital in a range of industrial process settings, particularly where human intervention and automation must coexist:

• Chemical & Petrochemical Plants: Enables operators to safely override automatic valve positions during abnormal events.

• Oil & Gas Facilities: Allows for manual pump operation during commissioning or shutdowns.

• Power Generation Units: Facilitates turbine or boiler manual control during testing and startup.

• Pharmaceutical Manufacturing: Used during batch corrections or manual sampling routines.

• Water Treatment Plants: Operators can manually adjust flow and dosage during calibration.

• Pulp & Paper Mills: Supports manual speed control of conveyors or rollers for maintenance purposes.

Product Advantages

• Safe Manual Override: Ensures uninterrupted process control when switching from auto to manual operation.

• High System Integration: Fully compatible with INFI 90 architecture and multifunction processors.

• Intuitive Operation: LED indicators provide clear visual status of control mode.

• Fail-Safe Design: Retains the last valid command to the output devices upon communication failure.

• Compact Form Factor: Fits in existing ABB rack systems with minimal installation effort.

• Reliable Communication: Uses the INFI 90 I/O bus for robust and fast data exchange.

• Operator Flexibility: Allows on-site personnel to make real-time adjustments as needed.

• Extended Operational Life: Industrial-grade construction ensures long-term durability.

Frequently Asked Questions (FAQ)

1. Q: What kind of signals does the IMAMI01 module process?
   A: The IMAMI01 handles both discrete input commands (from switches or operator panels) and outputs control signals to final control elements such as actuators or relays.

2. Q: How does the module transition between manual and automatic modes?
   A: The module uses internal logic with hardware switch inputs or commands from the control processor to toggle modes. LEDs indicate which mode is currently active.

3. Q: Can the module be used in continuous process environments?
   A: Yes. It is specifically designed for high-availability systems in continuous operation environments such as refineries and power plants.

4. Q: What happens to the output when switching modes?
   A: The transition is smooth; the output state is maintained or ramped according to configured logic to avoid process disturbance.

5. Q: Is manual operation possible without interrupting the automated process?
   A: Yes. Operators can intervene in real time using manual mode while the system keeps other processes running in automatic.

6. Q: Can the IMAMI01 be configured remotely?
   A: While the module itself does not support remote configuration, the associated control logic in the DCS can be adjusted to influence its behavior.

7. Q: How is the IMAMI01 typically wired in the control system?
   A: It connects to the I/O rack’s backplane and receives control signals from multifunction processors while linking to field devices through terminal blocks.

8. Q: What safety measures are built into this module?
   A: The module includes fail-safe logic that retains the last command during communication loss and ensures that outputs do not switch erratically.

9. Q: Does this module support diagnostic feedback?
   A: Yes. The front panel LEDs offer real-time feedback on mode status and fault indicators, helping with quick diagnostics.

10. Q: What kind of maintenance does the IMAMI01 require?
    A: Routine maintenance includes visual inspection of LEDs, cleaning of connectors, and periodic testing of manual override switches.
