Product Overview

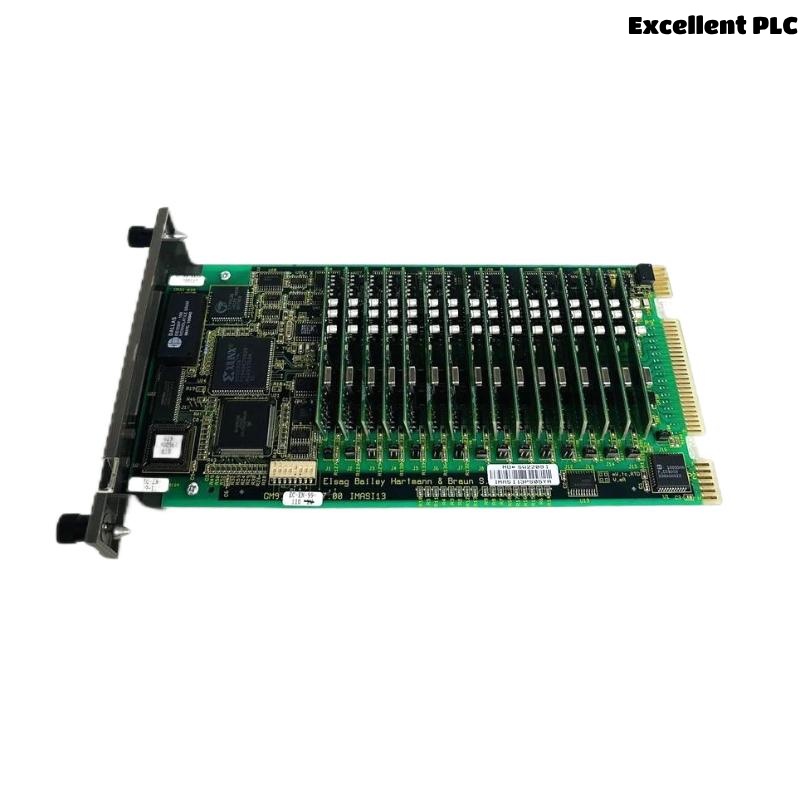

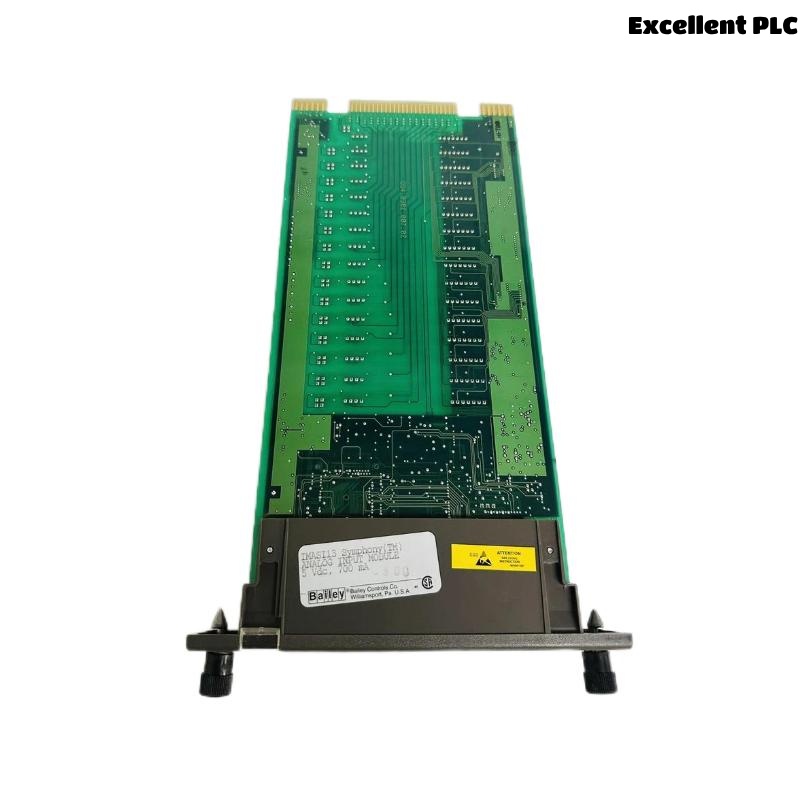

The ABB Bailey IMASI13 Analog Input Module is an essential component for Bailey INFI 90 and System 800xA automation systems, providing precise analog signal measurement and conversion in industrial control applications. It is designed to handle multiple input signals and deliver accurate data for monitoring temperature, pressure, flow, and other critical parameters. The module features advanced diagnostics, robust signal isolation, and exceptional reliability, making it ideal for demanding industrial environments.
This module supports standard 4-20 mA input signals, along with additional configurations such as 0-20 mA and 0-10 V. Its high accuracy and multi-channel capabilities make it a perfect choice for industries like power generation, chemical processing, oil & gas, and more. The IMASI13 is engineered to integrate seamlessly with the ABB Bailey INFI 90 and System 800xA systems, offering versatility and ensuring reliable data acquisition and control.
Key Features
-
Multiple Input Channels: Supports 8 input channels for versatile system configurations.
-
High Precision: Provides 12-bit resolution for precise signal conversion and measurement.
-
Built-in Diagnostics: Offers real-time diagnostics to monitor the health of both the module and the connected field devices.
-
Wide Signal Compatibility: Accepts signals in 4-20 mA, 0-20 mA, and 0-10 V configurations, ensuring compatibility with a variety of sensors.
-
Galvanic Isolation: Ensures protection against electrical surges and interference, maintaining signal integrity.
-
Compact Design: Space-saving, ideal for control panels with limited space.
-
Modular Integration: Fully compatible with Bailey INFI 90 and System 800xA, facilitating modular and scalable system setups.
-
Wide Operating Temperature Range: Can operate in temperatures ranging from -20°C to 60°C, making it adaptable to various environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IMASI13 |
| Part Number | 3BSE018144R1 |
| Function | Analog Input Module |
| Input Type | 4-20 mA, 0-20 mA, 0-10 V (configurable) |
| Channels | 8 input channels |
| Signal Range | 4-20 mA, 0-20 mA, 0-10 V |
| Resolution | 12-bit resolution |
| Accuracy | ±0.1% of full scale |
| Power Supply | 24 VDC (nominal) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 178 x 127 x 35 mm |
| Weight | 0.621 kg |
| Mounting | DIN rail mountable |
| Environmental Protection | IP20, suitable for indoor use |
| Compliance | CE, UL, RoHS |
Industry Applications
The ABB Bailey IMASI13 Analog Input Module is used in various industrial applications where precise signal acquisition is crucial for process control:
-
Power Generation: Monitoring temperature, pressure, and other critical variables in turbines, reactors, and power plants.
-
Chemical Processing: Accurately controlling process variables such as flow, pH, and pressure in chemical reactors.
-
Oil & Gas: For measurement and control of critical parameters in drilling operations, pipeline monitoring, and refinery processes.
-
Water Treatment: Monitoring flow, pressure, and chemical levels in water and wastewater treatment plants.
-
Metals and Mining: Monitoring key parameters such as pressure, level, and temperature in mining and metallurgical processes.
-
Food & Beverage: Used for controlling process variables in production lines for food and beverage manufacturing.
-
Pharmaceuticals: Ensuring compliance with strict process control regulations in pharmaceutical production environments.
Product Advantages
-
High Accuracy: With a resolution of 12 bits and an accuracy of ±0.1% of full scale, the IMASI13 ensures precise signal measurement, crucial for critical process control.
-
Reliable Performance: The module is designed to operate in harsh industrial environments, ensuring continuous and reliable operation with minimal downtime.
-
Flexible Signal Input: Supports multiple input configurations, including 4-20 mA, 0-20 mA, and 0-10 V, making it highly versatile for different types of field devices.
-
Built-in Diagnostics: Provides real-time diagnostics, alerting users to potential faults in the system, thus reducing the need for manual inspection and improving overall system reliability.
-
Easy Integration: Seamlessly integrates with ABB’s Bailey INFI 90 and System 800xA, offering scalability and easy expansion in automation systems.
-
Compact and Space-saving: Ideal for installations where space is limited, with a DIN rail mounting design.
-
Galvanic Isolation: Prevents electrical surges from affecting the signals, ensuring accurate data collection and reliable system performance.
Frequently Asked Questions (FAQ)
-
Q: How many input channels does the IMASI13 have?
A: The IMASI13 module has 8 input channels, allowing for multiple signals to be monitored simultaneously. -
Q: What types of signals can be connected to the IMASI13?
A: The IMASI13 supports 4-20 mA, 0-20 mA, and 0-10 V signals, providing compatibility with a wide range of sensors and field devices. -
Q: What is the accuracy of the IMASI13?
A: The module offers ±0.1% accuracy of full scale, ensuring precise and reliable measurements. -
Q: What is the operating temperature range of the IMASI13?
A: The module operates in temperatures ranging from -20°C to 60°C (-4°F to 140°F), suitable for most industrial environments. -
Q: Can the IMASI13 module be used with hazardous equipment?
A: The IMASI13 is not intrinsically safe for hazardous locations, but it is ideal for general industrial use. -
Q: How is the IMASI13 mounted?
A: The module is designed for DIN rail mounting, making it easy to install and replace in industrial control panels. -
Q: What power supply is required for the IMASI13?
A: The module operates on a 24 VDC nominal power supply. -
Q: How does the diagnostic feature work on the IMASI13?
A: The built-in diagnostics monitor both the module and the connected field devices, providing real-time alerts if issues arise. -
Q: What certifications does the IMASI13 have?
A: The module is CE, UL, and RoHS certified, ensuring it meets global safety and environmental standards. -
Q: What is the weight of the IMASI13 module?
A: The module weighs approximately 0.621 kg, making it easy to handle during installation.
