Product Overview

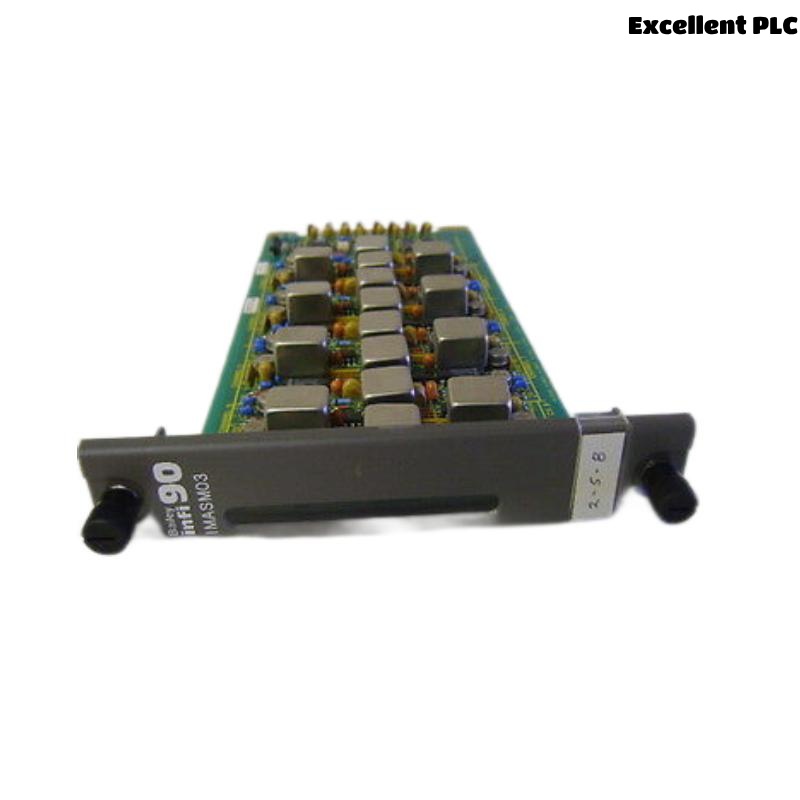

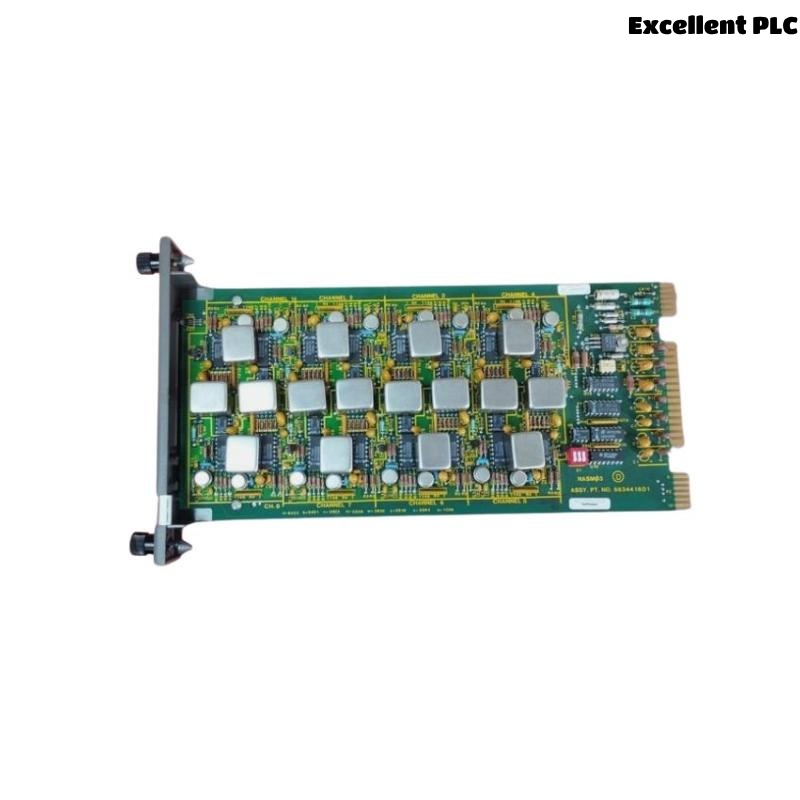

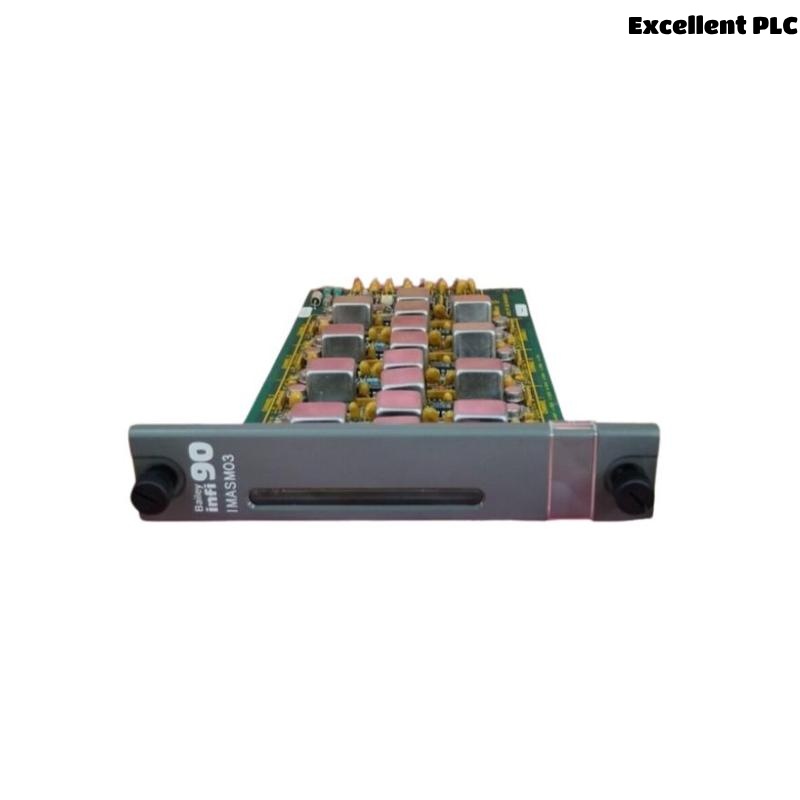

The ABB Bailey IMASM03 Analog Input Slave Module is a versatile and reliable component designed for Bailey INFI 90 and System 800xA automation systems. It is part of ABB’s advanced suite of modules for process control and automation, ensuring precise and reliable measurement of analog signals in industrial settings. The IMASM03 module interfaces seamlessly with ABB’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), enabling accurate real-time monitoring and control of various process parameters such as temperature, pressure, flow, and level.
The IMASM03 is designed for environments that demand high accuracy, fast response times, and robust signal processing capabilities. With advanced diagnostics and flexible input configurations, it is well-suited for applications in industries such as chemical processing, oil & gas, power generation, and water treatment. This module supports 4-20 mA and 0-10 V input signals, making it compatible with a wide range of industrial sensors and devices.
Key Features
-
High-Precision Measurements: Provides accurate analog signal processing with a high-resolution capability of 12-bits.
-
Multiple Input Configurations: Supports 4-20 mA, 0-10 V, and 0-20 mA input signals, allowing for flexibility in connecting different field devices.
-
Modular Design: Designed for easy integration into the Bailey INFI 90 and System 800xA systems.
-
Advanced Diagnostics: Includes built-in diagnostics for continuous monitoring of both the module and the connected field devices, alerting operators to any potential issues.
-
High-Environmental Tolerance: Capable of operating in demanding industrial conditions with a wide temperature range.
-
Compact and Efficient: Space-saving design suitable for installation in control panels with limited space.
-
Robust Isolation: Offers galvanic isolation for enhanced protection against electrical surges and interference.
-
Wide Compatibility: Compatible with a variety of sensors, offering high scalability and ease of integration in process control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IMASM03 |
| Part Number | 3BSE018145R1 |
| Function | Analog Input Slave Module |
| Input Types | 4-20 mA, 0-10 V, 0-20 mA |
| Channels | 8 input channels |
| Resolution | 12-bit |
| Signal Range | 4-20 mA, 0-20 mA, 0-10 V |
| Accuracy | ±0.1% of full scale |
| Power Supply | 24 VDC (nominal) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 200 x 100 x 50mm |
| Weight | 0.59 kg |
| Mounting | DIN rail mountable |
| Environmental Protection | IP20, suitable for indoor use |
| Compliance | CE, UL, RoHS |
Industry Applications
The ABB Bailey IMASM03 Analog Input Slave Module is designed for use in a variety of industrial automation applications where precise measurement and control of process variables are crucial:
-
Chemical Processing: Monitoring and controlling chemical reactions, pH levels, and flow rates.
-
Power Generation: Temperature, pressure, and level monitoring in boilers, turbines, and reactors.
-
Water Treatment: Measurement of flow rates, levels, and chemical concentrations in water purification processes.
-
Oil & Gas: Monitoring of pressure, temperature, and flow in drilling and refining operations.
-
Food & Beverage: Process control for consistency in production lines, including temperature and pressure monitoring.
-
Pharmaceuticals: Ensuring accurate measurements in critical drug manufacturing processes.
-
Metals and Mining: Used in the control of smelting and extraction processes, ensuring stable conditions for high-efficiency production.
Product Advantages
-
High Accuracy: With a 12-bit resolution and ±0.1% accuracy, the IMASM03 ensures accurate and reliable signal conversion for industrial processes.
-
Compact Size: The small form factor and DIN rail mounting make it ideal for use in panels with limited space.
-
Advanced Diagnostics: Provides detailed diagnostics to monitor both the module and the connected field devices, reducing downtime and improving operational efficiency.
-
Wide Signal Compatibility: Accepts 4-20 mA, 0-10 V, and 0-20 mA signals, allowing integration with a wide range of field instruments.
-
Flexible Integration: Seamlessly integrates with Bailey INFI 90 and System 800xA, offering ease of expansion and scalability in large systems.
-
Robust Isolation: Galvanic isolation ensures protection from electrical noise and surges, improving the reliability of the data being collected.
Frequently Asked Questions (FAQ)
-
Q: What is the function of the IMASM03 module?
A: The IMASM03 is an analog input slave module that collects analog signals from field devices and interfaces with ABB’s automation systems. -
Q: How many channels are available on the IMASM03?
A: The IMASM03 has 8 input channels, providing flexibility to monitor multiple parameters simultaneously. -
Q: What types of input signals are supported by the IMASM03?
A: The module supports 4-20 mA, 0-20 mA, and 0-10 V input signals. -
Q: Can the IMASM03 module be used in hazardous environments?
A: The IMASM03 is suitable for general industrial use but is not intrinsically safe for hazardous locations. -
Q: What is the operating temperature range of the IMASM03?
A: The module operates in temperatures from -20°C to 60°C (-4°F to 140°F). -
Q: What is the power supply requirement for the IMASM03?
A: The IMASM03 requires a 24 VDC power supply. -
Q: How is the IMASM03 mounted?
A: The module is designed for DIN rail mounting, allowing for easy installation in industrial control panels. -
Q: What certifications does the IMASM03 have?
A: The module is CE, UL, and RoHS certified. -
Q: What is the accuracy of the IMASM03?
A: The module offers ±0.1% accuracy of full scale. -
Q: How do the diagnostics work in the IMASM03?
A: The IMASM03 includes built-in diagnostics that continuously monitor the health of both the module and the connected field devices, alerting operators to potential issues.
