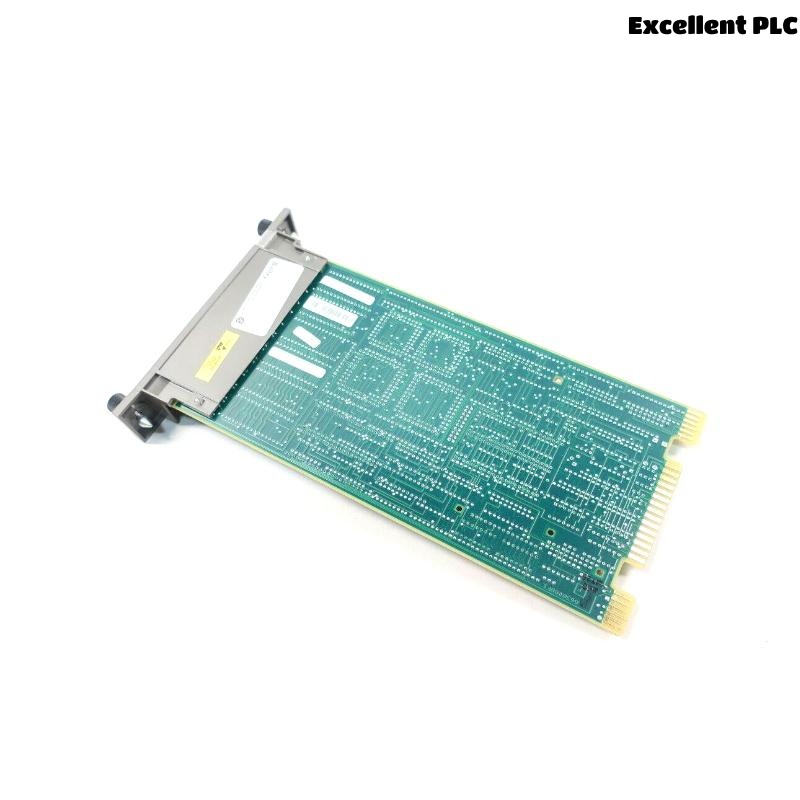

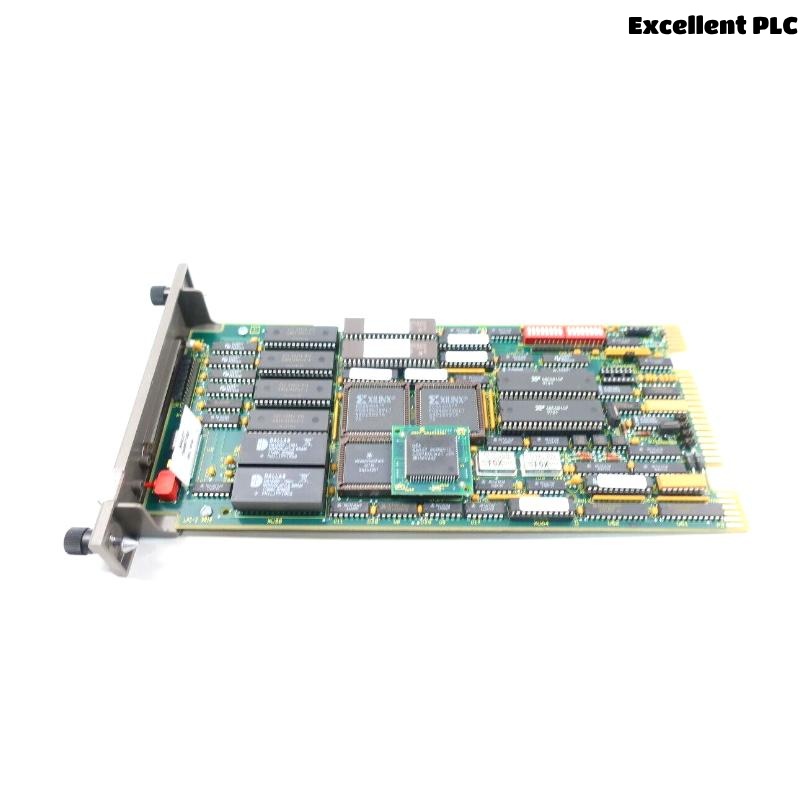

The ABB Bailey IMCKN02 clock network module is a critical time synchronization component in the Bailey INFI 90 distributed control system (DCS) . Designed to manage and distribute a consistent and synchronized time reference across multiple controllers and processors, it ensures precise coordination between various automation functions in complex industrial environments.
The IMCKN02 plays a central role in aligning time-stamped events, recording the order of events, and enabling real-time control operations. By maintaining unified clock data throughout the system, it improves process diagnostics, increases reporting accuracy, and supports deterministic control behavior, especially in large-scale or safety-critical applications.
Technical Specifications
| scope | detail |
|---|---|
| Product Name | IMCKN02 |
| Manufacturer | ABB (Bailey Controls) |
| Module Type | Clock network module |
| System compatibility | INFI 90 Distributed Control System |
| Main Features | Synchronize system clocks across multiple modules/processors |
| Input signal | External time reference (optional), internal oscillator |
| Output | Clock pulse, time synchronization signal |
| Communication Protocol | INFI-NET or local timing bus |
| Time accuracy | ±1 ms (internal), higher accuracy with external synchronization |
| Power supply voltage | 24 VDC (connected through backplane) |
| Status indicator | LED indicators for signal activity, sync status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Method | Standard Bailey rack mount |
| Failover Handling | Internal oscillator maintains basic timing during sync loss |
| Material | Coated industrial-grade PCB with metal faceplate |
| Certifications | CE, UL, CSA (when installed in certified system) |
| Dimensions (W×H×D) | 200 x 150 x 50 mm |
| Weight | 1.2 kg |
Product Applications
The IMCKN02 module is widely utilized in industries where time alignment and precision synchronization are vital. Typical applications include:
-
Power Generation Facilities: Ensures accurate sequence-of-events recording during system disturbances.
-
Petrochemical Plants: Coordinates distributed control units for simultaneous actions and logging.
-
Oil and Gas Pipelines: Maintains event time stamps across geographically separated control nodes.
-
Batch Processing: Supports time-based control steps and compliance with traceability requirements.
-
Utility Grids: Enhances fault detection through synchronized data acquisition across substations.
-
Manufacturing Plants: Helps in time-synchronized quality and production reporting.
Product Advantages
-
High-Precision Time Coordination: Enables synchronized operation of distributed controllers and I/O systems.
-
System-Wide Event Logging: Supports accurate time stamps for diagnostics and reporting.
-
Failsafe Internal Oscillator: Maintains core timing functions even during external reference loss.
-
Seamless Integration: Natively compatible with INFI 90 DCS infrastructure.
-
Robust Design: Industrial-grade durability for use in high-demand environments.
-
LED Indicators: Simplifies diagnostics and verification of sync status.
-
Minimized Downtime: Time sync consistency prevents data integrity issues during event recording.
-
Legacy System Support: Keeps aging INFI 90 systems aligned with modern time-critical requirements.
Frequently Asked Questions (FAQ)
-
Q: What is the core function of the IMCKN02 Clock Network Module?
A: It synchronizes internal clocks across all INFI 90 controllers and processors to ensure consistent time-stamping and coordinated operations. -
Q: Does the module support external time references like GPS?
A: While the IMCKN02 primarily uses its internal oscillator, it can be interfaced with an external sync source through system configuration. -
Q: What happens if the external time signal is lost?
A: The module switches to its internal oscillator, maintaining basic clock functions without halting the system. -
Q: How is the IMCKN02 installed?
A: It is mounted in a standard ABB Bailey INFI 90 rack and connects via the system backplane. -
Q: Can the module synchronize across multiple remote stations?
A: Yes, when combined with INFI-NET communication, it supports wide-area time sync across remote nodes. -
Q: Is the IMCKN02 hot-swappable?
A: No, power should be removed before installation or replacement to avoid damage. -
Q: How do you know the time sync is working correctly?
A: LED indicators on the module show sync status, and system logs confirm time alignment. -
Q: Can this module be used in safety instrumented systems?
A: It is suitable for use in support systems where accurate time coordination is required, but safety classification depends on system integration. -
Q: What is the sync accuracy of the internal oscillator?
A: It typically maintains an accuracy within ±1 millisecond, sufficient for most industrial applications. -
Q: Is periodic calibration required for the IMCKN02?
A: Generally, no calibration is needed unless specified by site-specific reliability protocols or in the presence of significant drift over time.
