Product Overview

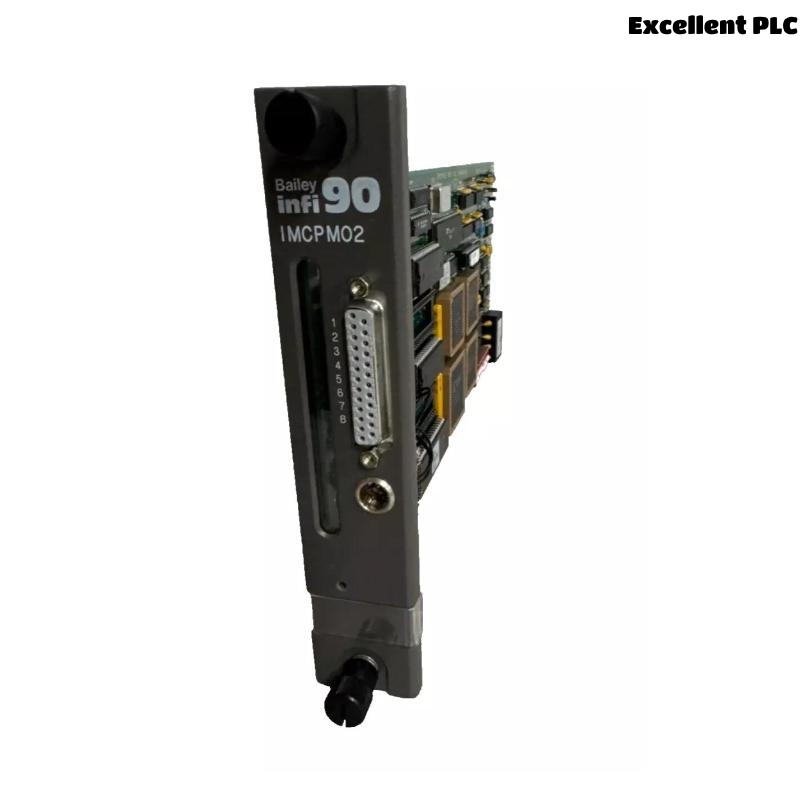

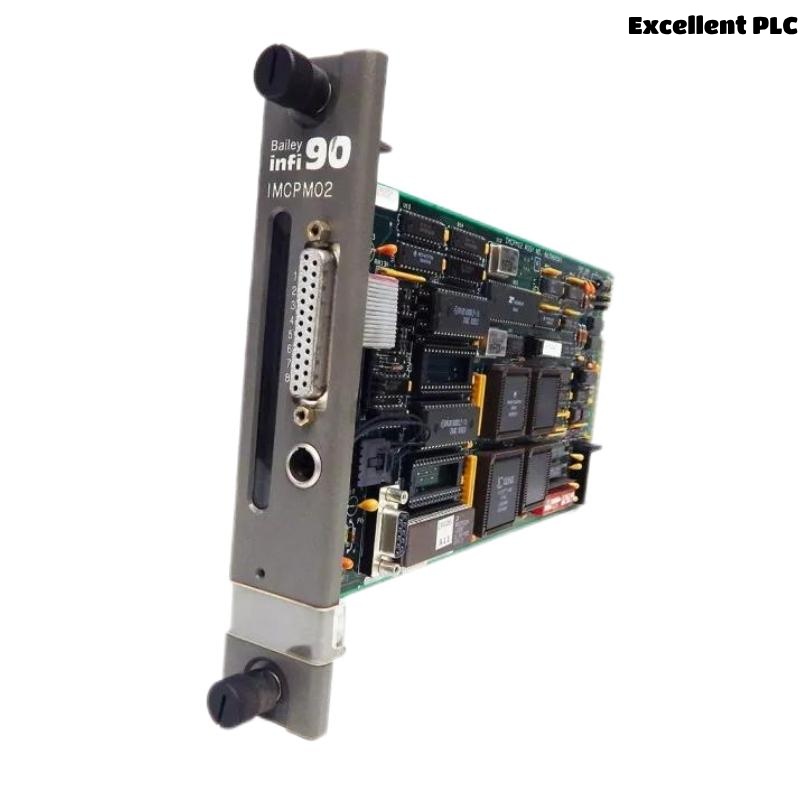

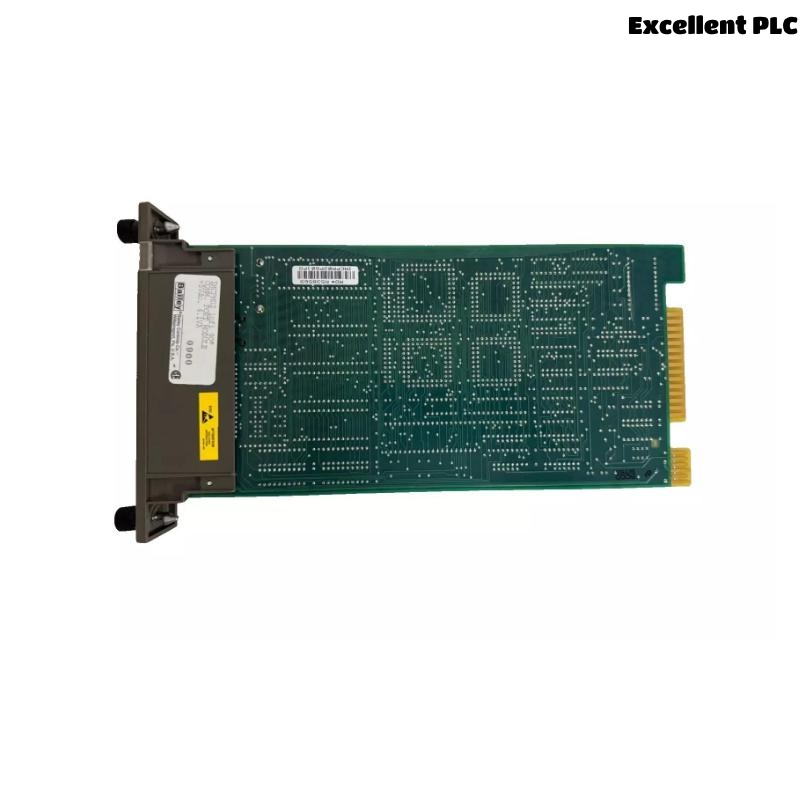

The ABB Bailey IMCPM02 Configuring the Port Module is a specialized interface module designed for integration within ABB’s INFI 90 and System 800xA control systems. It plays a crucial role in networking and communication, serving as a bridge between various system components, such as field devices and controllers, within an industrial automation environment. The IMCPM02 module is equipped with multiple communication ports, providing enhanced flexibility for data transfer and integration with different protocols. It allows for the configuration of communication parameters, ensuring reliable and real-time data exchange within the system.
This module is ideal for use in industries that rely on high-performance communication systems and where the seamless interaction of various devices is essential for maintaining operational continuity. Applications include industries such as chemical processing, oil and gas, power generation, water treatment, and food and beverage, where robust and fault-tolerant communication infrastructure is crucial.
Key Features
-
Multi-Port Configuration: Offers multiple communication ports that can be configured to meet specific networking needs, enabling seamless data exchange across devices.
-
Protocol Flexibility: Supports various communication protocols, making it compatible with a wide range of devices in industrial automation systems.
-
Real-Time Data Exchange: Enables real-time data transmission between connected devices, ensuring synchronized operation across the control system.
-
Enhanced Diagnostics: Provides built-in diagnostics that help identify faults, minimizing system downtime and improving overall system reliability.
-
Scalable Design: The modular nature of the IMCPM02 allows for easy expansion of the communication network, ideal for large-scale systems.
-
High-Speed Communication: Ensures high-speed data transfer for rapid decision-making in fast-paced industrial environments.
-
Security and Reliability: Built to meet stringent industrial standards, providing secure and reliable communication with high data integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IMCPM02 |
| Part Number | 3BSE040420R1 |
| Function | Configuring Port Module for Communication Networks |
| Supported Protocols | Modbus, Profibus, Ethernet/IP, DeviceNet, and more |
| Communication Ports | 2 x Ethernet, 1 x Profibus, 1 x Modbus |
| Data Transfer Rate | 100 Mbps (Ethernet), 12 Mbps (Profibus) |
| Power Supply | 24 VDC (nominal) |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 77 x 280 x 360mm |
| Weight | 0.363 kg |
| Mounting | DIN rail mountable |
| Environmental Protection | IP20, suitable for indoor use |
| Compliance | CE, UL, RoHS |
Industry Applications
The ABB Bailey IMCPM02 Configuring Port Module is used in industries where communication between various components of the control system is vital for operations:
-
Chemical Processing: For seamless data exchange between process control systems, sensors, and actuators in real-time.
-
Oil & Gas: Essential for networking equipment across drilling platforms and refineries, where communication integrity and speed are crucial.
-
Power Generation: Facilitates communication between generators, turbines, boilers, and the control system, ensuring efficient operation and monitoring.
-
Water Treatment: Connects different treatment equipment, such as pumps, valves, and sensors, to the central control system, enhancing efficiency and monitoring.
-
Food & Beverage: Ensures continuous communication between various stages of production, from raw material intake to final packaging.
-
Pharmaceuticals: Key in ensuring the monitoring and control of various equipment such as pumps, mixers, and temperature regulators in pharmaceutical production.
Product Advantages
-
Flexible Communication Options: The IMCPM02 module supports multiple communication protocols, making it compatible with various types of field devices and network infrastructure.
-
Scalable Network Integration: Its modular design allows for easy integration into large, complex systems, enabling network expansion as needed.
-
Enhanced Fault Detection: The built-in diagnostic capabilities improve system reliability by quickly identifying network faults, enabling quick responses to prevent downtimes.
-
High-Speed Data Transfer: Ideal for applications requiring rapid and real-time data exchange, ensuring uninterrupted communication and decision-making.
-
Robust and Secure: Built to meet stringent industrial standards, ensuring reliable, secure communication even in challenging industrial environments.
-
Easy Installation: The module is easy to install with DIN rail mounting, simplifying integration into existing control panels.
Frequently Asked Questions (FAQ)
-
Q: What is the IMCPM02 module used for?
A: The IMCPM02 is used for configuring communication ports and enabling data exchange between different devices and controllers in industrial automation systems. -
Q: How many communication ports does the IMCPM02 have?
A: The module features 2 Ethernet ports, 1 Profibus port, and 1 Modbus port, offering flexibility in networking. -
Q: What protocols does the IMCPM02 support?
A: The IMCPM02 supports Modbus, Profibus, Ethernet/IP, DeviceNet, and other industrial communication protocols. -
Q: Can the IMCPM02 be used in outdoor applications?
A: The IMCPM02 is designed for indoor use with IP20 protection. For outdoor use, additional environmental protection may be required. -
Q: What is the power requirement for the IMCPM02 module?
A: The module requires a 24 VDC power supply and consumes approximately 5 W of power. -
Q: Can the IMCPM02 module be integrated into an existing ABB INFI 90 system?
A: Yes, the IMCPM02 is specifically designed to be compatible with the ABB INFI 90 and System 800xA platforms. -
Q: What is the maximum data transfer rate for the communication ports?
A: The Ethernet port supports 100 Mbps, and the Profibus port supports 12 Mbps. -
Q: What is the operating temperature range of the IMCPM02 module?
A: The module operates in a temperature range of -20°C to 60°C (-4°F to 140°F). -
Q: Can the IMCPM02 module handle high-speed communication?
A: Yes, the IMCPM02 supports high-speed data transfer for rapid communication and real-time control in industrial applications. -
Q: What kind of diagnostics does the IMCPM02 offer?
A: The IMCPM02 provides built-in diagnostics, including fault detection and status indicators, to ensure smooth communication and quick identification of issues.
