Product Overview

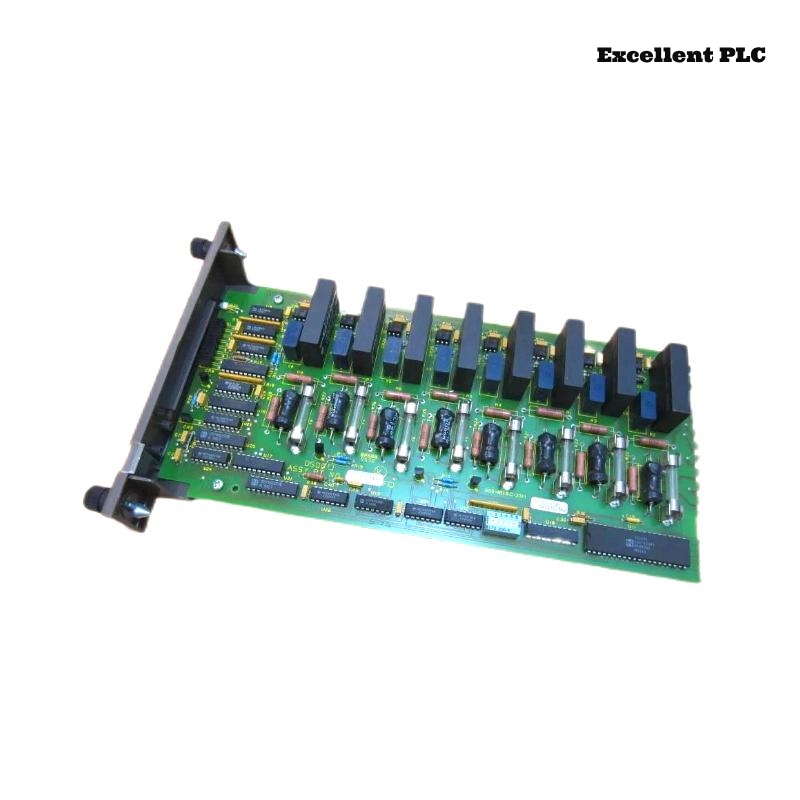

The ABB Bailey IMDSO03 6636037L1 Digital Output Slave Module is an integral component of ABB’s Bailey INFI 90 system. It is designed to provide reliable, high-performance digital output control for a range of industrial automation applications. This module is part of ABB’s advanced Distributed Control System (DCS), which is widely used in critical industries such as power, oil and gas, chemical, and water treatment. The IMDSO03 module ensures smooth, efficient operation by providing essential control over output devices such as actuators, valves, and other process-related equipment.
The IMDSO03 is designed to integrate seamlessly with other modules within the INFI 90 system, offering users the ability to manage complex processes in a safe, efficient, and accurate manner. It ensures that control signals are sent effectively to external devices, maintaining operational integrity while enhancing safety measures.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ABB Bailey IMDSO03 6636037L1 |
| Module Type | Digital Output Slave Module |
| Number of Channels | 16 Digital output channels |
| Output Type | Dry Contact (Relay Output) |
| Output Rating | 24 VDC, 0.5 A maximum per channel |
| Control Logic | Remote control via INFI 90 DCS |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 3.6 W maximum |
| Dimensions (W x H x D) | 190 x 110 x 25 mm |
| Weight | 0.567 kg |
| Communication Protocol | Profibus DP |
| Mounting | DIN Rail or Panel Mount |
| Diagnostic Features | LED indicators for Power, Status, and Communication |
| Protection | Overload protection per channel |
Applications
The ABB Bailey IMDSO03 6636037L1 Digital Output Slave Module is used in various industries requiring precise control of digital output signals. Common applications include:
-
Oil and Gas: Controls valves, pumps, and other critical equipment in both upstream and downstream operations, ensuring smooth and safe operations in hazardous environments.
-
Power Generation: Provides reliable output signals for controlling safety-critical systems in power plants, such as turbines, boilers, and emergency shutdown systems.
-
Chemical & Petrochemical: Regulates equipment like dosing pumps, actuators, and mixers in manufacturing processes, ensuring accurate chemical dosing and reaction controls.
-
Water and Wastewater Treatment: Used to control equipment such as pumps, valves, and motors, ensuring the safe and continuous operation of water treatment plants.
-
Automated Manufacturing: Controls automated machinery, robots, and process lines, contributing to the smooth production process and overall operational efficiency.
Advantages of ABB Bailey IMDSO03
-
Seamless Integration with INFI 90 System: The IMDSO03 module is fully compatible with the INFI 90 DCS, making it easy to integrate into existing automation systems without requiring complex reconfiguration.
-
High-Performance Digital Output: Offering 16 channels of digital output, the module delivers precise control over multiple output devices, reducing the need for additional hardware.
-
Versatile Communication Protocol: Utilizing the Profibus DP communication protocol, the IMDSO03 module ensures quick and reliable communication between modules, enhancing system response time.
-
Compact and Lightweight: With its compact size of 190 x 110 x 25 mm and weight of only 0.567 kg, the IMDSO03 module is easy to install in confined spaces and is suitable for a wide range of applications.
-
Overload Protection: The module features overload protection for each channel, ensuring that it operates safely even under heavy load conditions and preventing damage to the system.
-
Enhanced Diagnostics: Equipped with LED indicators for status, power, and communication, the module enables easy troubleshooting and system diagnostics.
-
Wide Operating Temperature Range: It can operate efficiently in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments, including extreme conditions.
-
Low Power Consumption: The module consumes only 3.6 W of power, ensuring energy-efficient operation while maintaining high performance.
