Product Introduction

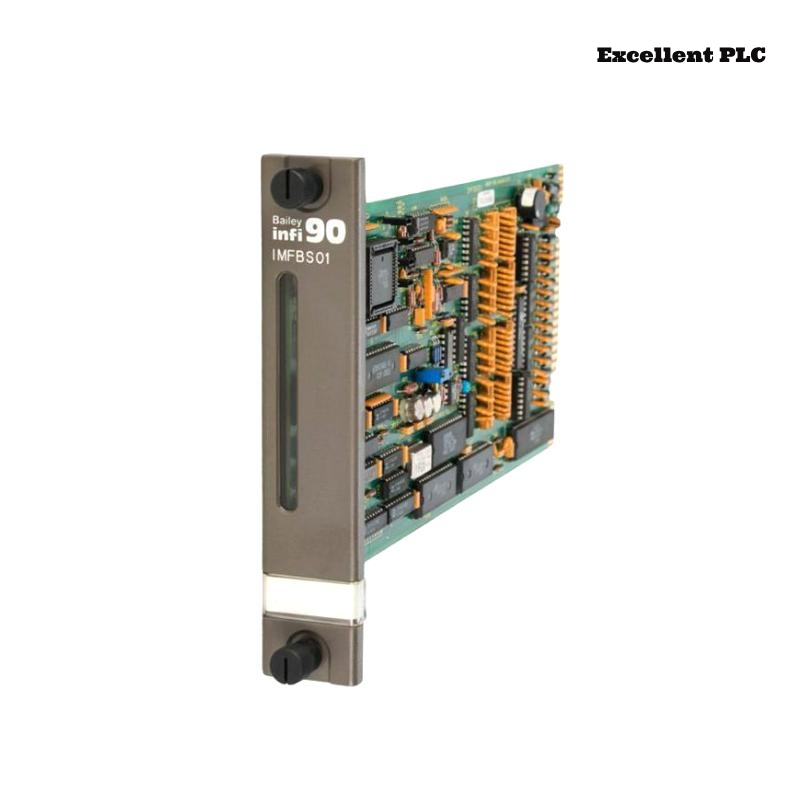

The ABB Bailey IMFBS01 Field Bus Slave Module is a critical component in the INFI 90 Distributed Control System (DCS). It serves as a communication interface between field devices and the control system, ensuring smooth and reliable data transmission. The module is specifically designed to integrate with analog input devices such as transmitters and sensors, allowing for accurate monitoring and control of industrial processes.
The IMFBS01 supports 15 independent analog input channels, making it ideal for large-scale industrial automation systems. It operates in three communication modes—FSK Field Bus Mode, FSK Analog Point-to-Point Mode, and Analog Point-to-Point Mode—providing flexibility for different types of industrial applications. With a rugged and compact design, the module is built to function effectively in harsh industrial environments while maintaining efficient power consumption.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | IMFBS01 |
| Function | Field Bus Slave Module |
| Analog Input Channels | 15 independently configurable channels |
| Communication Modes | – FSK Field Bus Mode – FSK Analog Point-to-Point Mode – Analog Point-to-Point Mode |
| Power Supply | – +5 VDC (±5%) at 85 mA (typical) – +15 VDC (±5%) at 25 mA (typical) – -15 VDC (±5%) at 20 mA (typical) |
| Power Dissipation | 1.1 W (typical) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Dimensions | 127.5 x 59 x 186 mm |
| Weight | 0.322 kg |
| Mounting Type | Rack-mounted |
| Compliance Standards | IEC 61131, CE, UL |
Product Applications
The ABB Bailey IMFBS01 Field Bus Slave Module is widely used in industries where precise process monitoring and automation are essential. Some of its primary applications include:
- Process Automation: Used in large industrial plants to gather and transmit real-time data from field devices.
- Power Generation: Helps in monitoring critical parameters like temperature, pressure, and flow in power plants.
- Oil & Gas: Ensures stable data transmission in refining, pipeline monitoring, and offshore drilling operations.
- Chemical Processing: Provides precise monitoring of chemical reactions, enhancing process safety and efficiency.
- Water Treatment: Assists in measuring water quality and controlling treatment processes.
Product Advantages
- Multiple Communication Modes – Supports FSK Field Bus and Analog Point-to-Point communication for flexible system integration.
- High Channel Capacity – Offers 15 independently configurable analog input channels to handle large-scale automation tasks.
- Low Power Consumption – Operates with only 1.1 W power dissipation, making it an energy-efficient choice.
- Compact and Durable Design – Rugged construction allows installation in industrial environments with limited space.
- Wide Temperature Range – Works effectively in environments between 0°C to 70°C, ensuring reliable performance under extreme conditions.
- Compatibility with Smart Transmitters – Fully compatible with Bailey-Fischer & Porter transmitters, enhancing system interoperability.
- Reliable Data Transmission – Maintains consistent and error-free communication, reducing the risk of process failures.
Latest News Titles
- ABB Enhances Process Automation with IMFBS01 Field Bus Slave Module
- How the IMFBS01 is Revolutionizing Industrial Communication Systems
- Case Study: IMFBS01 Implementation in a Power Generation Plant
- ABB’s Field Bus Technology: A Game Changer for the Oil & Gas Industry
- Ensuring Data Integrity with ABB’s IMFBS01 Module
- User Success Stories: How the IMFBS01 is Streamlining Operations
- Future Trends in Field Bus Communication and ABB’s Role
- The Evolution of ABB Bailey’s Field Bus Solutions
- ABB’s Commitment to Industrial Automation: The IMFBS01 Advantage
- Reducing Downtime with ABB’s Reliable Field Bus Slave Module
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB Bailey IMFBS01 module?
- The IMFBS01 is a Field Bus Slave Module designed to facilitate communication between field devices and the INFI 90 DCS.
-
How many input channels does the IMFBS01 have?
- The module supports 15 independent analog input channels, allowing for extensive data collection.
-
What communication modes does the IMFBS01 support?
- It operates in FSK Field Bus Mode, FSK Analog Point-to-Point Mode, and Analog Point-to-Point Mode for flexible data transmission.
-
What are the power requirements for the IMFBS01 module?
- It requires +5VDC, +15VDC, and -15VDC, consuming approximately 1.1 W of power.
-
What is the operating temperature range of the IMFBS01?
- The module functions in temperatures between 0°C to 70°C (32°F to 158°F).
-
Is the IMFBS01 compatible with smart transmitters?
- Yes, it is fully compatible with Bailey-Fischer & Porter smart transmitters.
-
How is the IMFBS01 mounted within a control system?
- It is rack-mounted, making it easy to integrate into existing automation systems.
-
What are the dimensions and weight of the IMFBS01?
- It measures 127.5 x 59 x 186 mm and weighs 0.322 kg.
-
What industries commonly use the IMFBS01 module?
- It is used in power generation, oil & gas, chemical processing, and water treatment industries.
-
How does the IMFBS01 enhance industrial automation?
- It provides stable and reliable communication, reducing system failures and improving operational efficiency.
