Product Introduction

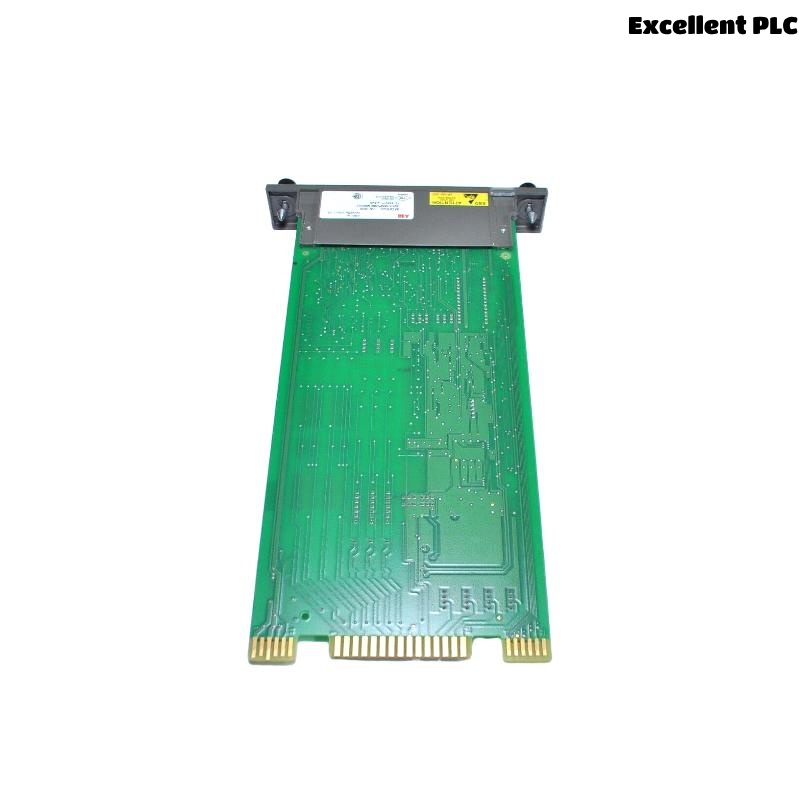

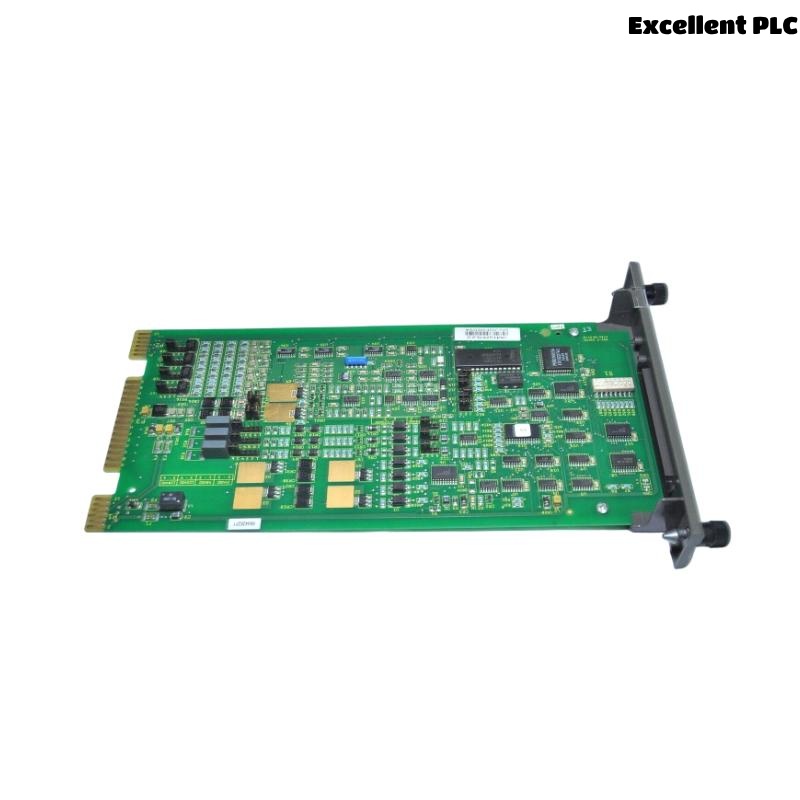

The ABB Bailey IMQRS22 is a high-speed Quick Response I/O Module, engineered to perform rapid data acquisition and output operations within ABB’s Symphony and INFI 90 control systems. This module is specifically designed to handle applications where low latency and deterministic I/O behavior are critical, such as in emergency shutdown systems, turbine control loops, or real-time process alarms.
With its capability to process digital I/O changes nearly instantaneously, the IMQRS22 plays a vital role in safety instrumented systems and high-speed interlocking operations. It ensures that field data is captured and acted upon with minimal delay, thereby safeguarding process stability and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | Bailey INFI 90 / Symphony |
| Model Number | IMQRS22 |
| Module Type | Quick Response I/O Module |
| I/O Channels | 16-channel high-speed digital I/O (configurable) |
| Input Voltage Range | 18–32 VDC (Nominal 24 VDC) |
| Output Type | Relay or open-collector type (module specific) |
| I/O Processing Speed | Sub-millisecond response time |
| Synchronization | Local control net with optional timing integration |
| Communication Interface | I/O expander bus |
| Power Supply Requirement | 24 VDC ±10% |
| Power Consumption | Approx. 6 W |
| Redundancy Support | Yes (for critical applications) |
| LED Indicators | Power, Communication, Channel Status |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Mounting Type | Rack-mounted |
| Certifications | CE, UL, CSA |
| Dimensions (L × W × H) | 330.2 x 177.8 x 50.8 mm |
| Weight | 0.2 kg |
Applications
The IMQRS22 module is utilized in mission-critical systems where real-time responsiveness is non-negotiable. It serves diverse roles in:
-
Turbine and Generator Control Systems: For immediate response to speed, pressure, and temperature thresholds.
-
Emergency Shutdown Systems (ESD): To execute interlocks with minimal delay.
-
Oil and Gas Automation: Monitoring and controlling safety-critical field signals.
-
Substation Automation: Ensuring millisecond switching actions for circuit breakers.
-
Manufacturing Systems: Used in fast mechanical control environments such as robotics or conveyor logic.
-
Alarm and Annunciation Systems: Captures and acts on fault signals in near real-time.
Product Advantages
-
Ultra-Low Latency: Designed for sub-millisecond I/O response, enabling prompt reactions in critical systems.
-
Dual Functionality: Supports both input and output signals on a single board, reducing hardware requirements.
-
High Reliability: Incorporates diagnostic features and redundancy capabilities for failsafe operations.
-
Flexible Integration: Easily integrates with ABB Symphony/INFI 90 systems without complex configuration.
-
Industrial Grade Design: Withstands harsh environmental conditions typical of process facilities.
-
Visual Diagnostics: LED indicators for immediate I/O and system status verification.
Frequently Asked Questions (FAQ)
-
What does the IMQRS22 module do?
It enables fast response digital I/O operations within process automation and safety systems. -
How fast can it react to input changes?
It can process and respond to changes in under one millisecond. -
Can the channels be configured as both input and output?
Yes, depending on system setup, each channel can be configured for either input or output. -
What types of systems require quick response I/O?
Systems such as turbine control, ESD systems, and alarm handling units benefit most. -
Is it suitable for safety instrumented functions?
Yes, especially when used in redundant architectures for mission-critical systems. -
Does the IMQRS22 support time synchronization?
It synchronizes with local ABB time standards and works well with modules like IMSET01. -
What happens if power is lost?
The module resumes operation immediately upon restoration and can work with backup systems. -
Is this module compatible with legacy ABB systems?
Yes, it is compatible with most existing Bailey INFI 90 configurations. -
How many I/O channels does it support?
It provides 16 configurable channels for digital input/output tasks. -
Can it be replaced while the system is running?
Typically, it is not hot-swappable; a system halt is recommended for replacement.
