Product Introduction

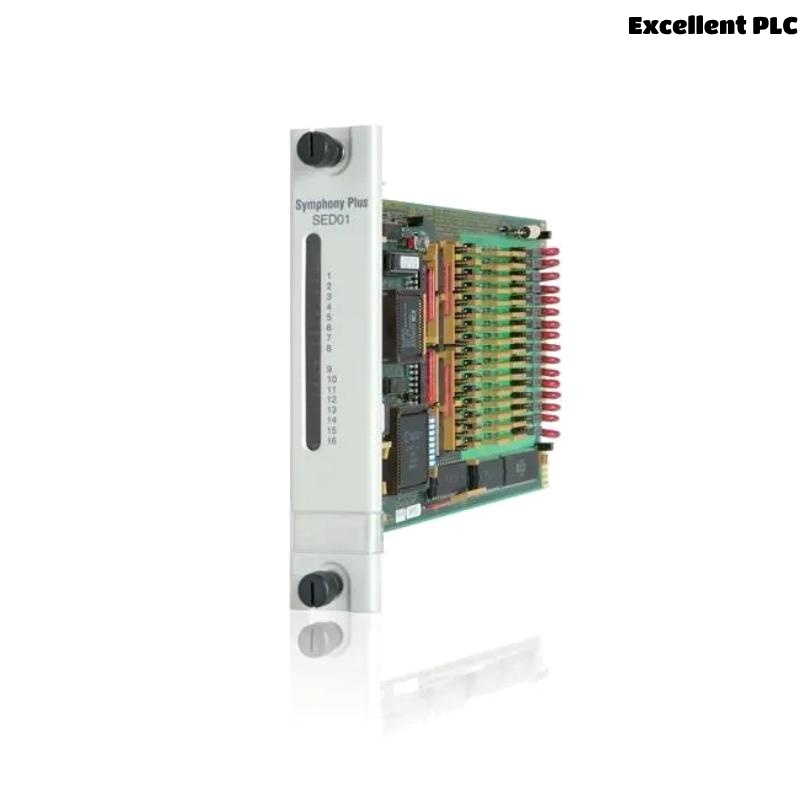

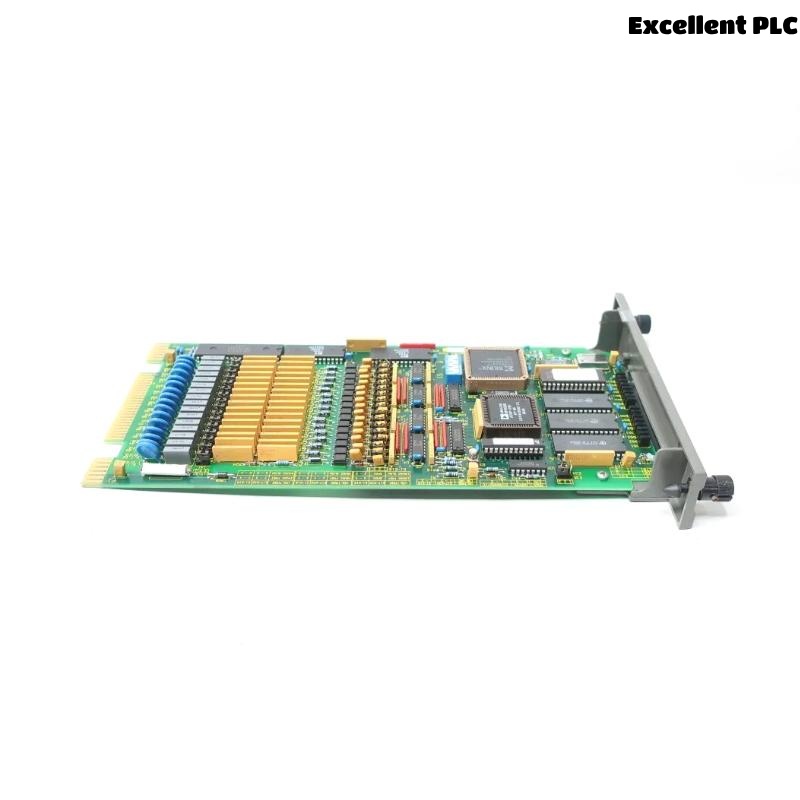

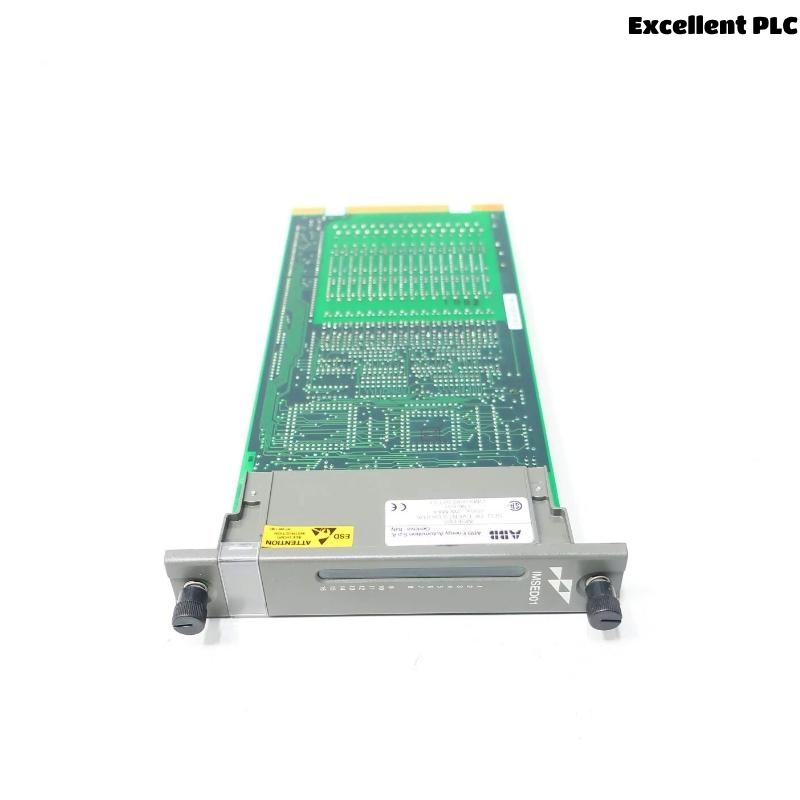

The ABB Bailey IMSED01 is a Sequence of Events (SOE) Digital Inputs Module, designed for precise event capturing and real-time data logging within industrial automation systems. As part of the ABB INFI 90 or Symphony series, the IMSED01 is tailored to monitor and timestamp the status changes of digital signals with millisecond-level accuracy. It plays a critical role in providing chronological evidence of operational events, alarms, and system transitions, especially in power generation, petrochemical, and manufacturing sectors.
This module supports integration into complex DCS (Distributed Control System) environments, allowing engineers and operators to trace sequences, analyze faults, and ensure compliance with safety and operational protocols.
Product Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Series | Bailey INFI 90 / Symphony |
| Model Number | IMSED01 |
| Module Type | Sequence of Events (SOE) Digital Input Module |
| Input Channels | 16 isolated digital inputs |
| Input Voltage Range | 18–32 VDC (Nominal 24 VDC) |
| Input Isolation | Optical Isolation, channel-to-ground |
| Timestamp Accuracy | ±1 millisecond |
| Input Filtering | Software programmable debounce filtering |
| Communication Interface | I/O Bus to I/O Processor |
| Power Consumption | Approx. 5 Watts |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Installation | DIN rail or panel-mounted |
| Certifications | CE, UL, CSA compliant |
| Module Dimensions (L×W×H) | 100 x 120 x 40 mm |
| Weight | 0.281 kg |
Applications
The IMSED01 module is widely used in time-critical and event-sensitive industrial operations. Its major application areas include:
-
Power Generation Plants: Capturing relay status, circuit breaker positions, and fault events.
-
Oil and Gas Facilities: Monitoring safety interlocks and ESD (Emergency Shutdown) events.
-
Petrochemical Refineries: Tracking valve status changes and alarm sequences.
-
Process Industries: Event logging for compliance and diagnostics.
-
Substation Automation: Timestamping digital transitions for fault isolation.
-
Water & Wastewater Plants: Event detection in control systems for pumps and gates.
Product Advantages
-
High Timestamp Precision: Provides millisecond-level accuracy for precise sequence logging.
-
Reliable Isolation: Optical isolation prevents electrical noise and cross-talk.
-
Flexible Filtering: Software-configurable debounce filtering enhances input integrity.
-
Modular Design: Easy integration and hot-swappable capability within ABB’s INFI 90 system.
-
Robust Construction: Designed for industrial environments with wide temperature tolerance.
-
System Compatibility: Seamless integration with Symphony/INFI 90 platforms ensures long-term compatibility.
Frequently Asked Questions (FAQ)
-
What is the primary function of the IMSED01 module?
It is designed to capture and timestamp the status changes of digital input signals for Sequence of Events (SOE) logging. -
How accurate is the timestamping feature?
It offers a timestamp resolution with an accuracy of ±1 millisecond. -
Can the IMSED01 module be hot-swapped?
Yes, it is designed to be hot-swappable within the INFI 90 system environment. -
Is it compatible with older Bailey INFI 90 systems?
Yes, it maintains full backward compatibility with legacy INFI 90 architectures. -
What type of digital signals can it handle?
It accepts standard 24 VDC digital input signals within an 18–32 VDC range. -
What makes this module suitable for fault diagnostics?
It records the exact sequence of digital events, helping pinpoint the cause and timing of faults. -
Can input filtering be customized?
Yes, debounce filtering is programmable for each channel via software. -
Is this module certified for global industrial use?
Yes, it complies with CE, UL, and CSA standards for industrial automation. -
How is it typically mounted?
It can be DIN rail or panel-mounted, depending on system configuration. -
What happens in case of power loss?
The data is managed via the control processor and backed by the system’s redundant architecture to prevent data loss.
