Product Introduction

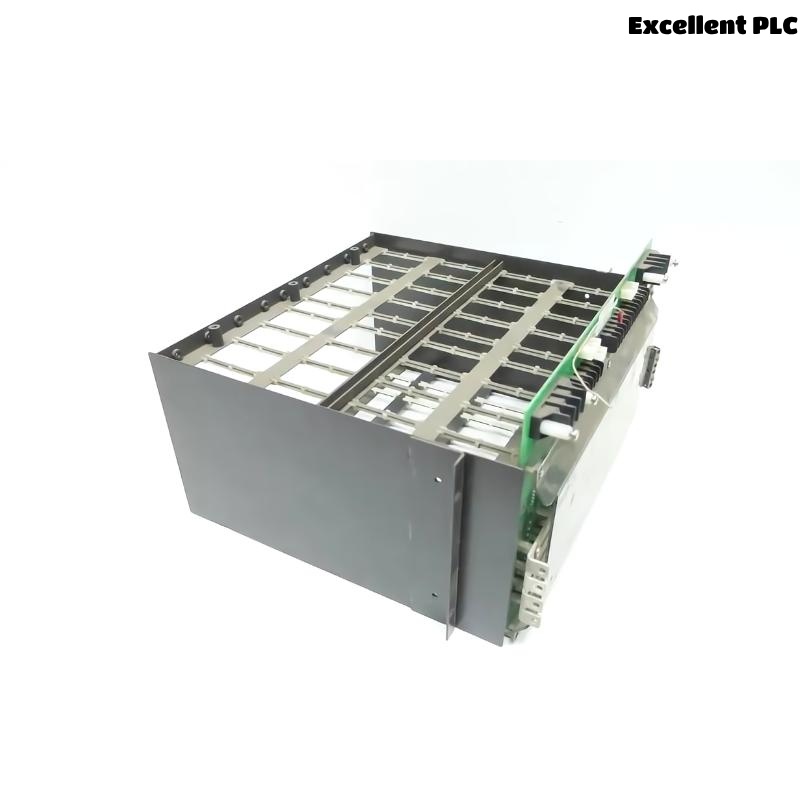

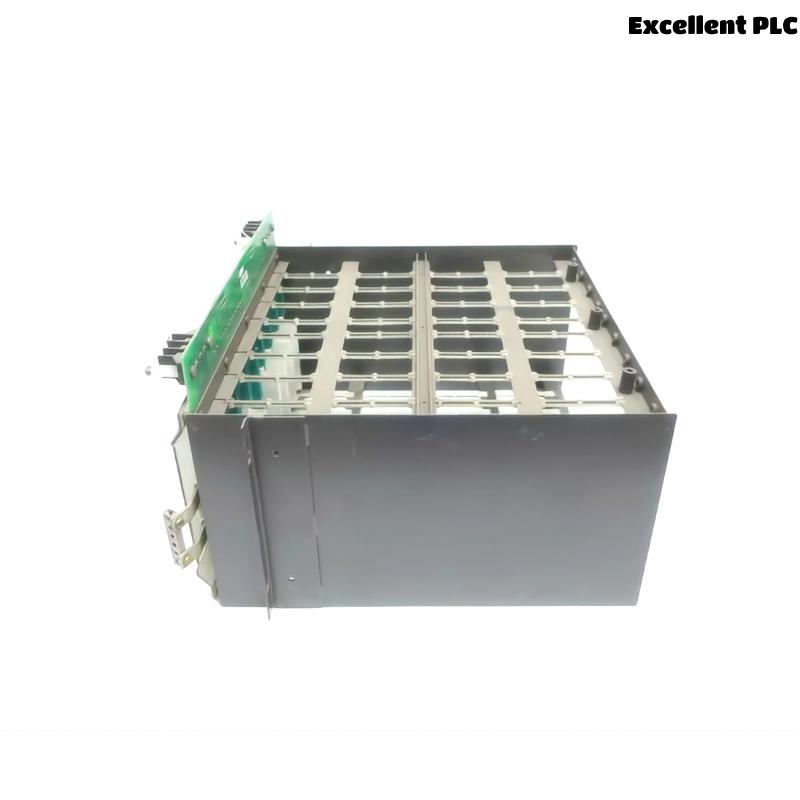

The ABB Bailey IPCHS01 Power Module Chassis is a critical component designed to house the power supply modules for control systems. This chassis is specifically engineered to integrate with ABB’s automation systems, providing a centralized solution for distributing power to various control modules and devices. It is known for its durable build quality, easy integration, and high reliability in demanding industrial environments.
The IPCHS01 chassis ensures that your control modules receive the necessary power to function optimally. It can support multiple power modules in a single unit, minimizing the need for separate enclosures and reducing the overall footprint of the system. The modular design allows for flexibility in the configuration, making it suitable for various industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IPCHS01 |
| Manufacturer | ABB |
| Input Voltage | 110/220 VAC |
| Output Voltage | Varies depending on the module |
| Power Supply Slots | 6 Slots |
| Mounting Type | Rack-Mountable |
| Dimensions (L x W x H) | 223.5 x 482.6 x 444.5 mm |
| Weight | 7.55 kg |
| Operating Temperature | -10°C to +55°C |
| Cooling Method | Natural Convection |
| Material | Steel (Powder-coated) |
| Compatibility | Compatible with ABB power modules (e.g., IPBLC01) |
Applications
The ABB Bailey IPCHS01 Power Module Chassis is widely used in industrial automation systems to support various power modules and control devices. Its primary applications include:
-
Process Control Systems: The chassis houses multiple power modules that supply power to PLCs, controllers, and I/O modules.
-
Energy Management Systems: Used in energy distribution setups, the chassis ensures that power is efficiently distributed to different components.
-
Factory Automation: Ideal for centralizing power supplies for automation systems and machinery.
-
Environmental Control: Powers systems that manage environmental conditions, ensuring smooth and reliable operation.
-
Safety Instrumented Systems: Provides power to critical safety systems, ensuring reliable performance during emergencies.
Advantages
-
High Capacity: The chassis supports up to 6 power supply modules, providing sufficient power for multiple devices in one compact unit.
-
Modular Design: The modular structure allows for easy scalability, so you can expand the system as needed.
-
Durable Build: Made of high-quality steel and powder-coated for durability, ensuring long-term performance even in harsh industrial environments.
-
Space Efficiency: With a rack-mountable design, it minimizes space usage in control cabinets or racks, making it ideal for space-constrained installations.
-
Flexible Compatibility: The chassis is compatible with various ABB power modules, offering flexibility in system configuration.
-
Natural Cooling: It employs natural convection cooling, ensuring effective heat dissipation without the need for active cooling systems.
-
Wide Temperature Range: The chassis operates in a broad temperature range of -10°C to +55°C, ensuring versatility in various environments.
Frequently Asked Questions (FAQ)
-
What is the input voltage for the ABB Bailey IPCHS01?
-
The chassis supports an input voltage of 110/220 VAC.
-
-
How many power modules can the IPCHS01 chassis accommodate?
-
It can house up to 6 power supply modules.
-
-
What is the weight of the IPCHS01 Power Module Chassis?
-
The chassis weighs 7.55 kg.
-
-
Is the ABB Bailey IPCHS01 compatible with all ABB power modules?
-
It is compatible with ABB’s range of power modules, including models like the IPBLC01.
-
-
What are the dimensions of the IPCHS01 chassis?
-
The dimensions are 223.5 x 482.6 x 444.5 mm.
-
-
How does the IPCHS01 dissipate heat?
-
The chassis utilizes natural convection for heat dissipation, eliminating the need for additional cooling systems.
-
-
What material is the chassis made from?
-
It is constructed from high-quality steel with a powder-coated finish for enhanced durability.
-
-
What temperature range does the IPCHS01 operate in?
-
It operates in a temperature range from -10°C to +55°C.
-
-
Can I mount the IPCHS01 chassis in a control rack?
-
Yes, the chassis is rack-mountable, allowing for easy installation in standard control racks.
-
-
Is the ABB Bailey IPCHS01 chassis easy to maintain?
-
Yes, the chassis design is simple and requires minimal maintenance, with easy access to the power modules.
-
Recommended Models from the Same Series
| Model Number | Power Supply Slots | Input Voltage | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| IPCHS02 | 6 Slots | 110/220 VAC | 400 mm x 250 mm x 120 mm | 4.6 kg |
| IPCHS03 | 8 Slots | 110/220 VAC | 450 mm x 300 mm x 150 mm | 5.0 kg |
| IPCHS04 | 12 Slots | 110/220 VAC | 500 mm x 350 mm x 180 mm | 6.0 kg |
| IPCHS05 | 6 Slots | 110/220 VAC | 400 mm x 250 mm x 120 mm | 4.7 kg |
| IPCHS06 | 6 Slots | 110/220 VAC | 400 mm x 250 mm x 130 mm | 4.8 kg |
| IPCHS07 | 6 Slots | 110/220 VAC | 400 mm x 250 mm x 120 mm | 4.5 kg |
Popular Models from ABB
| Model Number | Input Voltage | Output Voltage | Power Supply Slots | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| 07KT98C | 110/220 VAC | 24 VDC | 4 Slots | 350 mm x 200 mm x 100 mm | 2.5 kg |
| 07AC91 | 110/220 VAC | 24 VDC | 4 Slots | 350 mm x 200 mm x 90 mm | 2.2 kg |
| 07DI81 | 110/220 VAC | 24 VDC | 6 Slots | 400 mm x 250 mm x 120 mm | 3.5 kg |
| 07DC91 | 110/220 VAC | 48 VDC | 4 Slots | 380 mm x 240 mm x 110 mm | 3.0 kg |
| 07KT96 | 110/220 VAC | 24 VDC | 4 Slots | 370 mm x 210 mm x 100 mm | 2.7 kg |
| 07KT92C | 110/220 VAC | 24 VDC | 6 Slots | 420 mm x 260 mm x 120 mm | 3.8 kg |
