Product Introduction

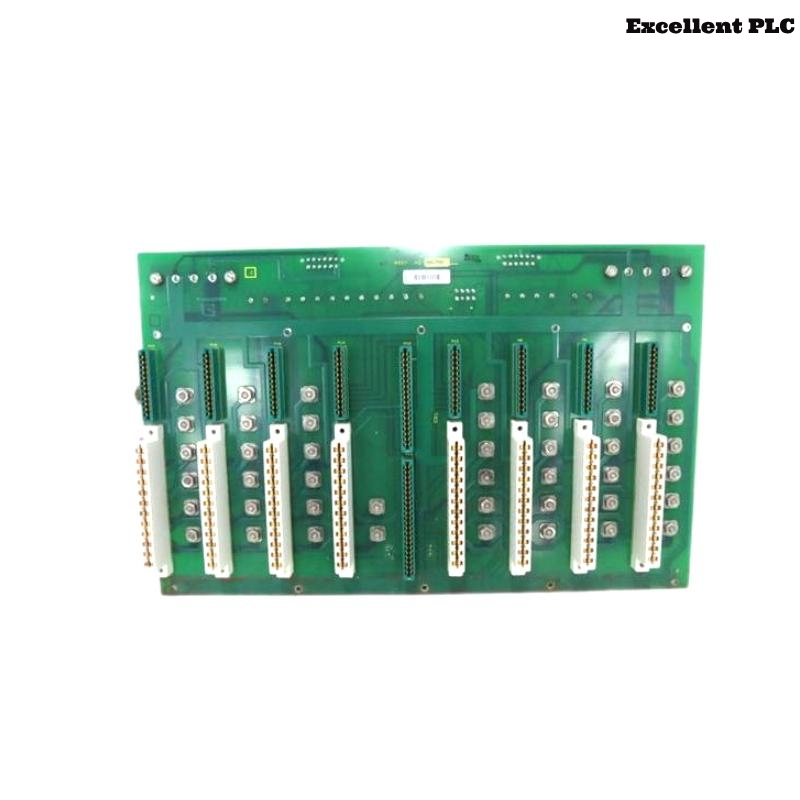

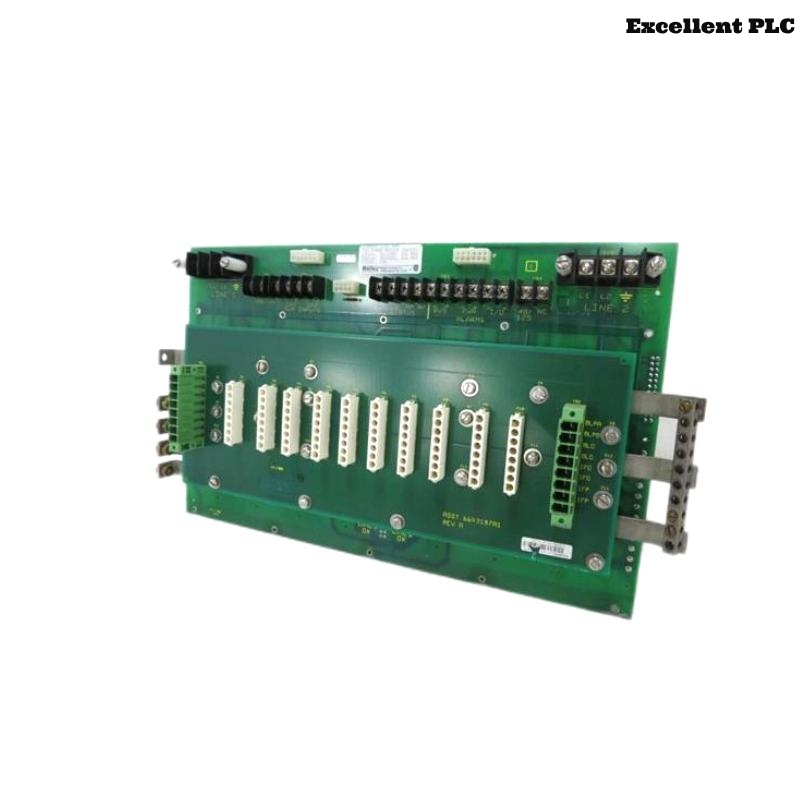

The ABB Bailey IPCHS02 is a Power Module Chassis designed for the Infi 90 Distributed Control System (DCS). It serves as a housing and interconnection point for various power modules, facilitating the distribution of power within the control system. The IPCHS02 chassis supports multiple voltage levels and includes features for monitoring and managing power distribution effectively.
Product Specifications
| Parameter | Details |
| Model Number | IPCHS02 |
| Type | Power Module Chassis |
| Compatibility | ABB Bailey Infi 90 DCS |
| Supported Voltages | 5 VDC, 15 VDC, -15 VDC, 25.5 VDC, 48 VDC, 125 VDC |
| Auxiliary Inputs | Two selectable auxiliary inputs for 24, 48, or 125 VDC external sources |
| Temperature Monitor Inputs | Two cabinet temperature monitor inputs |
| Power Fail Interrupt Alarm | Configurable for latching or non-latching |
| Logic Level Status Inputs | Two contact logic inputs |
| Dimensions (H x W x D) | 200 x 150 x 50 mm |
| Weight | 0.5 kg |
Product Applications
-
Distributed Control Systems (DCS): Used within ABB Bailey Infi 90 systems to manage and distribute power to various modules.
-
Industrial Automation: Facilitates reliable power distribution in complex industrial automation setups.
-
Process Control Systems: Ensures stable power supply to critical components in process control environments.
Product Advantages
-
Multi-Voltage Support: Accommodates a range of voltage levels, enhancing flexibility in power distribution.
-
Redundant Power Inputs: Supports redundant power sources, increasing system reliability.
-
Integrated Monitoring: Includes inputs for temperature monitoring and power fail interrupt alarms, aiding in proactive maintenance.
-
Modular Design: Allows for easy integration and replacement of power modules, simplifying system upgrades and maintenance.
Latest News Headlines
-
“ABB Enhances Infi 90 DCS with Advanced Power Module Chassis”
-
“New Developments in ABB’s Power Distribution Solutions for Industrial Automation”
-
“ABB’s IPCHS02 Chassis: A Step Forward in Modular Power Management”
Frequently Asked Questions (FAQ)
1.What is the ABB Bailey IPCHS02 Power Module Chassis used for?
The IPCHS02 Power Module Chassis is used to house and provide power to various components within the Infi 90 Distributed Control System (DCS). It ensures stable power distribution and is integral to maintaining system reliability.
2.What are the key features of the IPCHS02 chassis?
The key features of the IPCHS02 include high power efficiency, modular design for easy scalability, compatibility with multiple ABB systems, and robust protection mechanisms for power and system stability.
3.What power outputs are supported by the IPCHS02?
The IPCHS02 supports a range of power outputs suitable for powering various field devices and controllers, including both 24V and 48V systems.
4.Is the IPCHS02 compatible with other ABB DCS systems?
Yes, the IPCHS02 is designed to be compatible with other ABB DCS systems, especially the Infi 90 series, for seamless integration into existing infrastructure.
5.How does the IPCHS02 ensure system protection?
The IPCHS02 is equipped with overcurrent, overvoltage, and short-circuit protection, ensuring safe operation under all conditions.
6.Can the IPCHS02 be used in harsh industrial environments?
Yes, the IPCHS02 is built to withstand harsh industrial environments, including temperature extremes and electrical surges, making it suitable for a variety of industrial applications.
7.What are the dimensions and weight of the IPCHS02?
The IPCHS02’s dimensions and weight depend on the specific configuration, but it is designed to be compact and lightweight, allowing for easy installation in standard control racks.
8.What are the most common applications of the IPCHS02?
The IPCHS02 is typically used in process control industries, including oil and gas, power generation, and manufacturing, to ensure reliable power distribution and system operation.
9.How do I install the IPCHS02 chassis?
Installation of the IPCHS02 is straightforward and can be done within standard control racks. It requires proper electrical wiring and grounding to ensure safe operation.
10.What maintenance is required for the IPCHS02 chassis?
Regular maintenance includes checking the power outputs, ensuring the cooling system operates effectively, and inspecting for any wear and tear on electrical components. It is recommended to follow the manufacturer’s maintenance guidelines.
Related Models from the Same Series or Category
| Model Number | Description |
| IPCHS01 | Power Module Chassis for Infi 90 DCS with standard voltage support |
| IPMON01 | Power Monitor Module for monitoring power status within the system |
| IPFLD24 | Field Power Module providing 24 VDC output for field devices |
| IPFLD48 | Field Power Module providing 48 VDC output for field devices |
| IPFLD125 | Field Power Module providing 125 VDC output for field devices |
| IPECB11 | Power Entry Circuit Breaker Module for system protection |
| IPESW11 | Power Entry Switch Module for controlling power input |
| IPFCH01 | Power Fan Chassis for cooling and ventilation within the system |
