Product Introduction

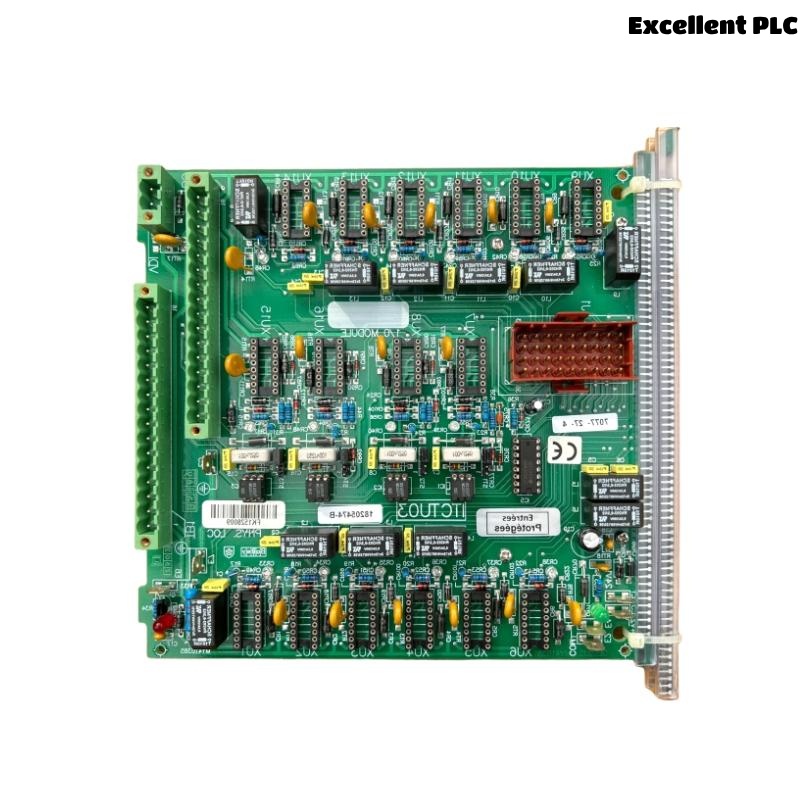

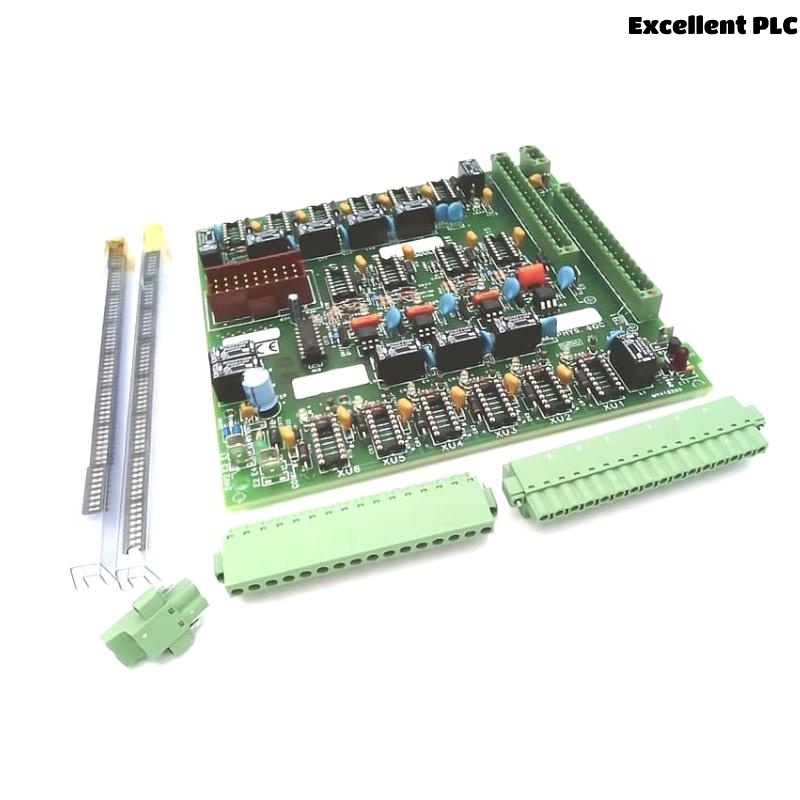

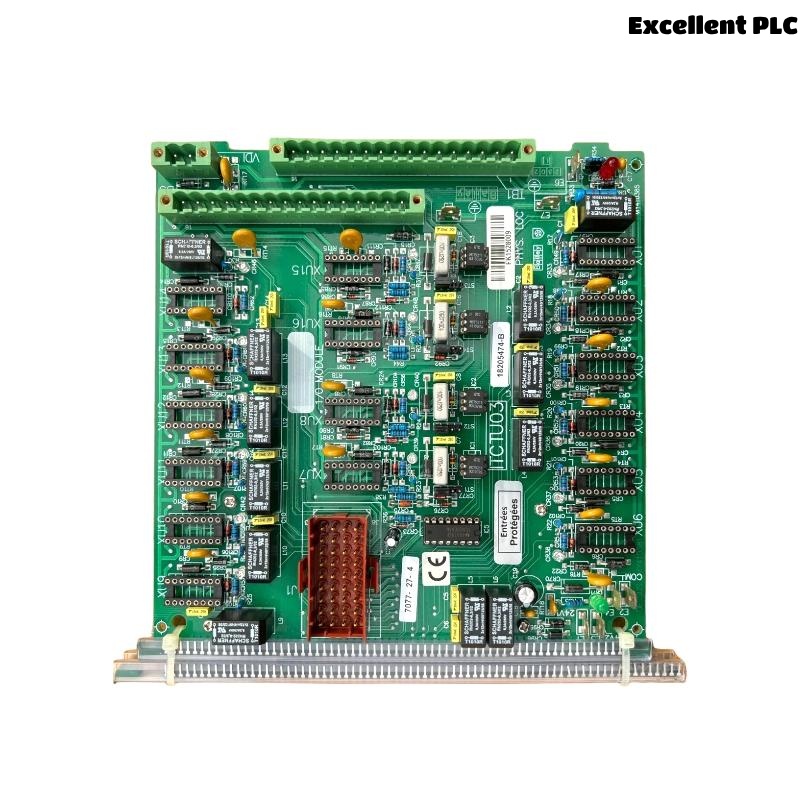

The ABB Bailey ITCTU03 Termination Unit is an essential component designed for use in automation and control systems. It is part of the Bailey Infi 90 series, providing robust termination solutions for industrial control systems, including fieldbus and other automation technologies. The ITCTU03 unit is engineered to offer high reliability and compatibility, ensuring smooth connections between field devices and control systems. It is widely used in various industries, including power generation, chemical processing, oil and gas, and manufacturing, where precise and reliable signal termination is crucial.
The unit is designed to manage input and output signals from a range of field instruments and sensors, making it an integral part of control loops. It ensures that the signals from process devices are correctly interpreted by the central control system, enhancing the overall accuracy and efficiency of industrial processes. With its modular design, the ITCTU03 offers ease of integration into larger control systems, making it ideal for both new installations and system expansions.
Product Specifications
Parameter | Value |
---|---|
Product Name | ABB Bailey ITCTU03 Termination Unit |
Product Code | ITCTU03 |
Series | Infi 90 |
Connection Type | Fieldbus, Analog I/O, Digital I/O |
Input/Output Terminations | 32 inputs / 32 outputs (configurable) |
Mounting Type | DIN rail mounted |
Operating Voltage | 24 VDC |
Signal Type | Analog, Digital |
Maximum Signal Voltage | 24 VDC (input/output) |
Protection Features | Short-circuit protection, overvoltage protection |
Operating Temperature Range | -20°C to +60°C |
Storage Temperature Range | -40°C to +85°C |
Humidity Range | 5% to 95% non-condensing |
Dimensions (H x W x D) | 170 x 120 x 70 mm |
Weight | 0.322 kg |
Certifications | CE, UL, CSA |
EMC Standards | EN 61000-6-2, EN 61000-6-4 |
Product Applications
The ABB Bailey ITCTU03 Termination Unit is primarily used in process control systems and plays a critical role in connecting field devices (sensors, actuators) with the central control unit. Common applications include:
-
Process Automation: Used in industries such as chemical, pharmaceutical, and food processing to connect various field devices to control systems.
-
Power Generation: Essential for connecting various instruments in power plants, ensuring reliable signal transmission for monitoring and control.
-
Oil & Gas: Widely used in upstream and downstream operations for field device interfacing, particularly in hazardous environments.
-
Water & Wastewater Treatment: Helps integrate sensors and actuators in automated treatment processes, maintaining operational efficiency.
-
Manufacturing Automation: Integral for connecting equipment in automated production lines, controlling and monitoring machinery and sensors.
-
Building Automation: Used for integrating HVAC systems, security sensors, and other systems into central control for optimized building management.
Product Advantages
-
High Reliability: The ITCTU03 termination unit is known for its high reliability, ensuring stable signal transmission in critical industrial environments.
-
Modular Design: Its modular structure makes it easy to integrate into existing systems, facilitating upgrades and expansions.
-
Wide Compatibility: Supports both analog and digital signal types, providing flexibility for various process control applications.
-
Robust Protection: Equipped with short-circuit and overvoltage protection to safeguard both the unit and connected equipment.
-
Efficient Signal Termination: It allows for precise and efficient termination of signals from field devices, ensuring accurate data transmission to the control system.
-
Compact Form Factor: The unit’s compact design allows for easy installation in control panels and on DIN rails, saving space in tight installations.
-
Wide Temperature Range: Operates effectively in a broad range of temperatures (-20°C to +60°C), making it suitable for use in diverse environments.
-
Global Certifications: CE, UL, and CSA certified, ensuring compliance with international safety and quality standards.
-
Cost-Effective: Offers a highly efficient termination solution at a competitive price point, making it an economical choice for industrial applications.
Frequently Asked Questions (FAQ)
1. What is the primary function of the ABB ITCTU03 Termination Unit?
The primary function of the ITCTU03 is to manage the termination of input and output signals from field devices, ensuring reliable communication between field devices and control systems.
2. What types of signals does the ITCTU03 support?
It supports both analog and digital signals, providing flexibility for various types of field devices.
3. What is the maximum number of terminations the unit supports?
The ITCTU03 can handle up to 32 inputs and 32 outputs, which are configurable depending on the application.
4. How is the ITCTU03 mounted?
The unit is designed for easy installation on a DIN rail, making it convenient for integration into existing control systems.
5. What is the operating temperature range of the ITCTU03?
The unit operates in temperatures ranging from -20°C to +60°C, making it suitable for a variety of industrial environments.
6. Is the ITCTU03 compatible with other ABB systems?
Yes, the ITCTU03 is part of the Infi 90 series and is fully compatible with other ABB automation and control systems.
7. What protection features does the ITCTU03 include?
It includes short-circuit protection and overvoltage protection to safeguard both the unit and connected devices.
8. What certifications does the ITCTU03 have?
The ITCTU03 is CE, UL, and CSA certified, ensuring it meets international safety and quality standards.
9. Can the ITCTU03 be used in hazardous environments?
While the ITCTU03 is not intrinsically safe, it can be used in standard industrial environments. For hazardous areas, additional protective measures may be required.
10. What is the weight of the ITCTU03?
The ITCTU03 weighs 0.322 kg, making it easy to handle and install.
