Product Introduction

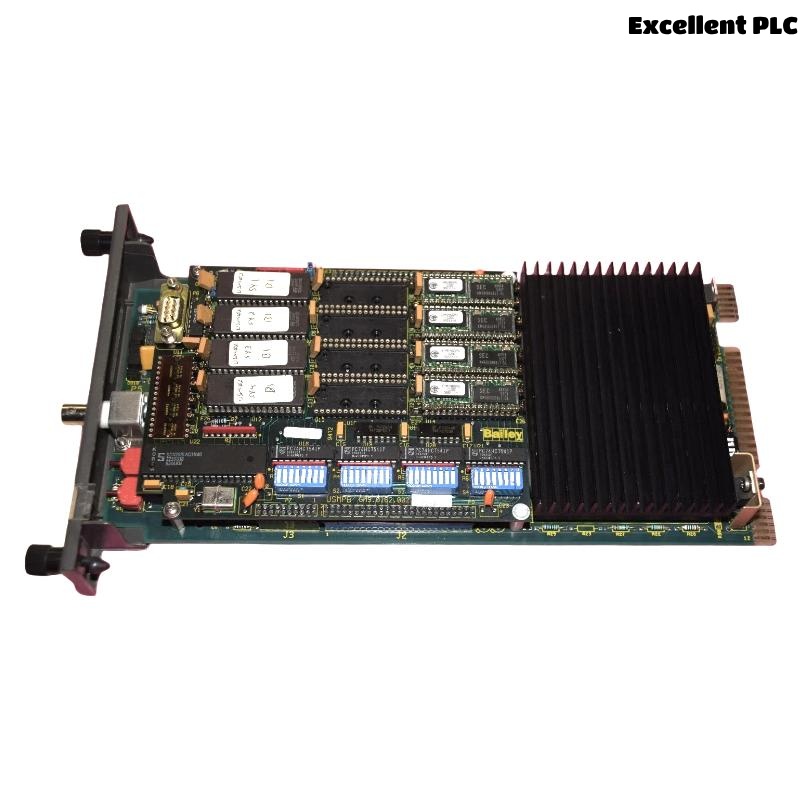

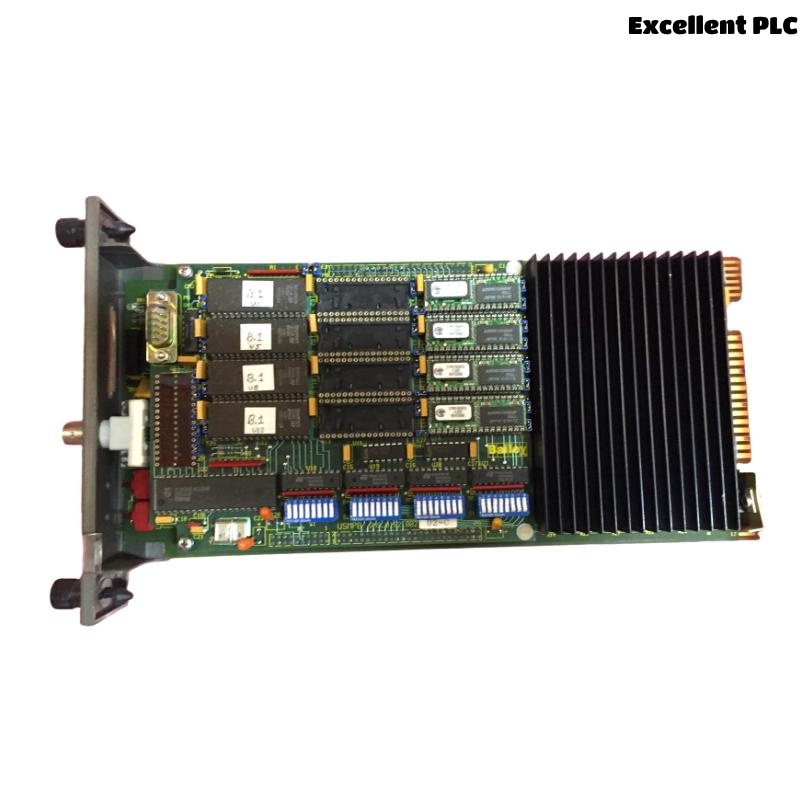

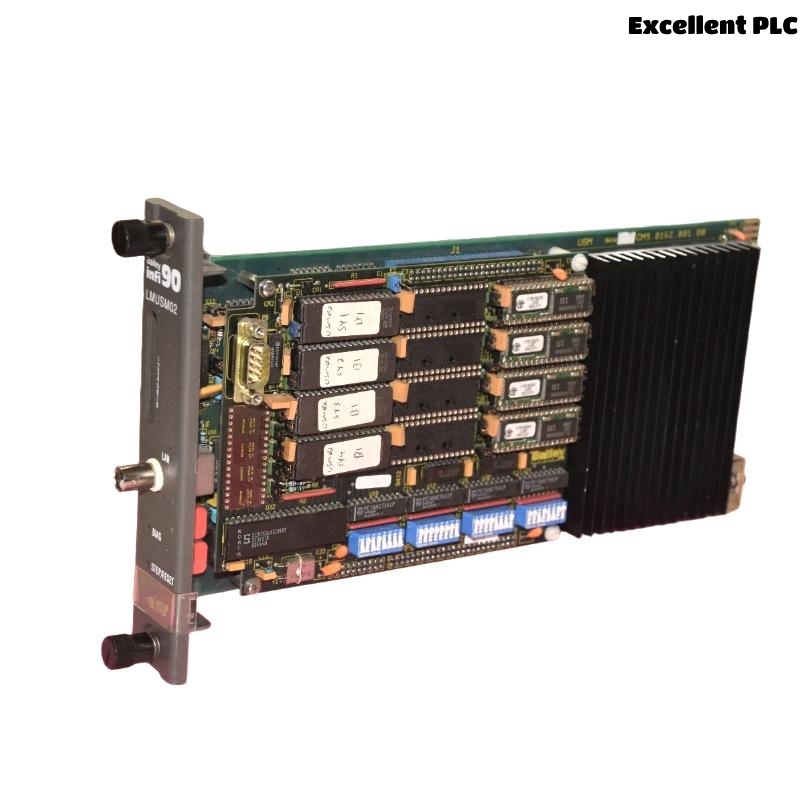

The ABB Bailey LMUSM02 Universal Simulation Module is a specialized hardware module designed for simulation and diagnostic testing in process control systems. Belonging to the legacy INFI 90 and Bailey Net 90 DCS platforms, this module plays a crucial role in allowing plant engineers and technicians to simulate field inputs during maintenance, commissioning, and troubleshooting without needing live process signals.
With its robust construction and high precision, the LMUSM02 provides controlled analog and digital signal simulation to I/O modules, enabling verification of control strategies, system responses, and alarm conditions. It is particularly valuable during factory acceptance tests (FAT), training environments, and during live system diagnostics where isolating real-time process input is not feasible.
The module’s versatility and reliability make it a vital tool in any industrial plant relying on ABB Bailey control systems, especially in sectors like oil and gas, petrochemicals, energy, and water treatment.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | LMUSM02 |
| Product Type | Universal Simulation Module |
| Brand | ABB Bailey |
| System Compatibility | INFI 90, Net 90, Symphony DCS Systems |
| Functionality | Simulates analog/digital I/O signals for system testing |
| Signal Simulation | 0–20 mA, 4–20 mA, 1–5 V, digital HIGH/LOW signals |
| Channels | Multiple configurable channels (analog and digital) |
| Interface Type | Plug-in backplane connection |
| Hot Swap Capability | No (requires safe handling procedures) |
| Power Supply | Supplied via system backplane |
| Indicators | LED status indicators for signal/channel status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
| Certifications | CE, UL, CSA (as applicable per system build) |
| Housing Material | Industrial-grade enclosure with electrostatic protection |
| Mounting Method | Chassis-mounted within controller bay |
| Dimensions (H × W × D) | 290 × 30 × 150 mm |
| Weight | 0.92 kg |
Product Applications
The LMUSM02 Universal Simulation Module is commonly used in the following environments:
-
Factory Acceptance Testing (FAT): Simulates sensor inputs during system validation without real devices.
-
System Commissioning: Enables control system testing before physical field installation.
-
Training Facilities: Offers a safe and controlled simulation environment for operator and technician training.
-
Maintenance and Troubleshooting: Simulates fault conditions or sensor values to isolate system errors.
-
Loop Checks: Validates analog/digital signal routing in DCS systems during calibration or startup.
-
Engineering Development: Supports control logic design and verification in test labs.
Product Advantages
-
Full Simulation Capabilities: Simulates both analog and digital I/O signals with configurable ranges.
-
Diagnostic Tool: Aids in identifying issues in I/O cards, controllers, and field wiring.
-
Legacy System Compatibility: Designed specifically for ABB Bailey systems like INFI 90 and Net 90.
-
Time-Saving Utility: Reduces commissioning time by allowing pre-operation logic testing.
-
Safe Testing Environment: Removes the need for live process signals, improving safety and efficiency.
-
Precision Engineering: Delivers accurate and stable simulated signals to test system response.
-
Modular Form Factor: Easily integrates into existing control racks without additional mounting hardware.
Frequently Asked Questions (FAQ)
-
What is the primary use of the LMUSM02?
It simulates I/O signals for ABB control systems to support testing, commissioning, and diagnostics. -
Which ABB systems are compatible with LMUSM02?
It is designed for ABB Bailey INFI 90, Net 90, and compatible Symphony systems. -
Can LMUSM02 simulate both analog and digital signals?
Yes, it supports both types, including 4–20 mA, 1–5 V, and digital HIGH/LOW outputs. -
Does it support hot-swapping?
No, it should be installed and removed only when the system is safely powered down. -
Is LMUSM02 suitable for use in training simulators?
Absolutely. It is ideal for education and simulation environments. -
Can I simulate fault conditions with this module?
Yes, it can help test system responses to abnormal or edge-case values. -
How many simulation channels does it support?
The number may vary depending on the system setup, but typically multiple configurable channels. -
Is calibration needed for simulation accuracy?
Minimal calibration is required, but it’s advised to periodically check signal output with test equipment. -
Does this module come with diagnostics?
LED indicators provide basic status and channel condition information. -
What’s the physical size and weight?
Dimensions are 290 × 30 × 150 mm; weight is 0.92 kg.
Related Models (Same Series or Function)
| Model Number | Description | Function |
|---|---|---|
| LMUAS02 | Universal Analog Simulator | Analog signal simulation |
| IMASI23 | Analog Input Module (16-channel) | For analog signal processing |
| IMDSO14 | Digital Output Module (14-channel) | Outputs digital signals to field devices |
| IMDSI12 | Digital Input Module (12-channel) | Receives digital signals from field devices |
| LMUPO01 | Power Output Simulator Module | Simulates load and power output scenarios |
| LMUIM01 | Input Multiplexing Simulator | Allows selection among multiple input types |
