Product Introduction

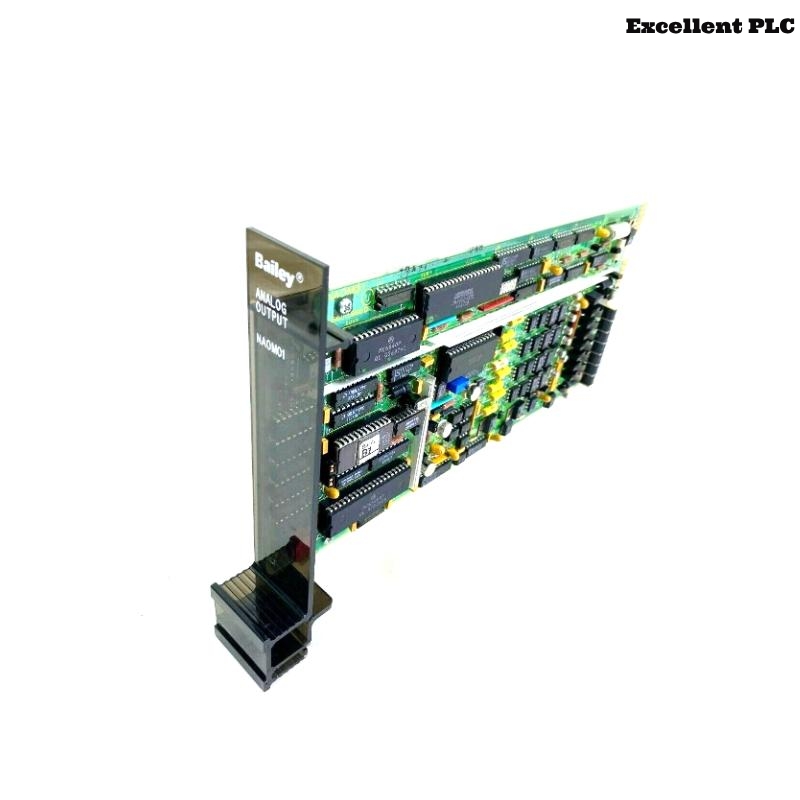

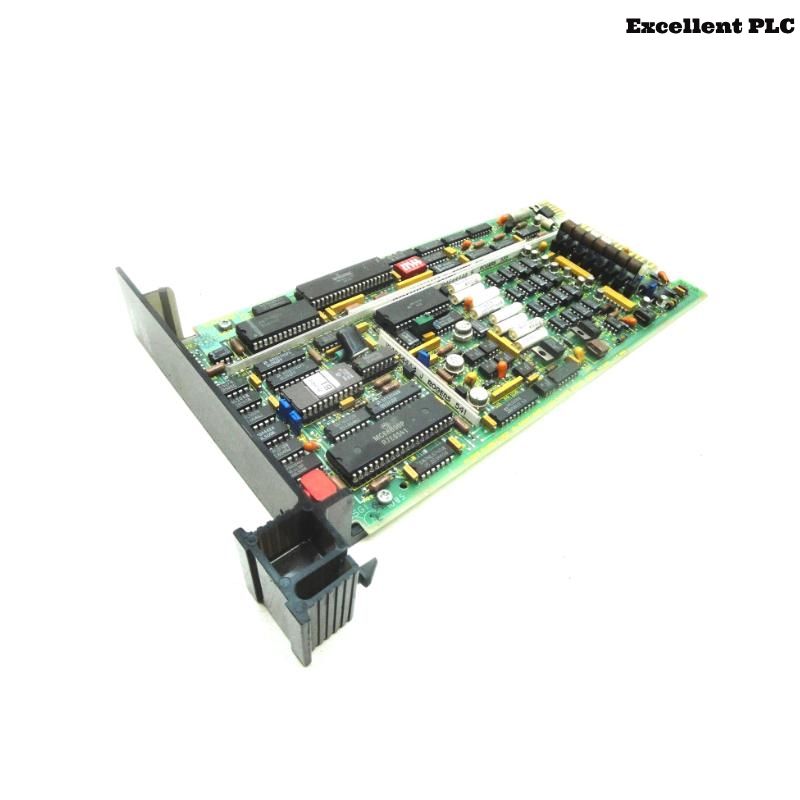

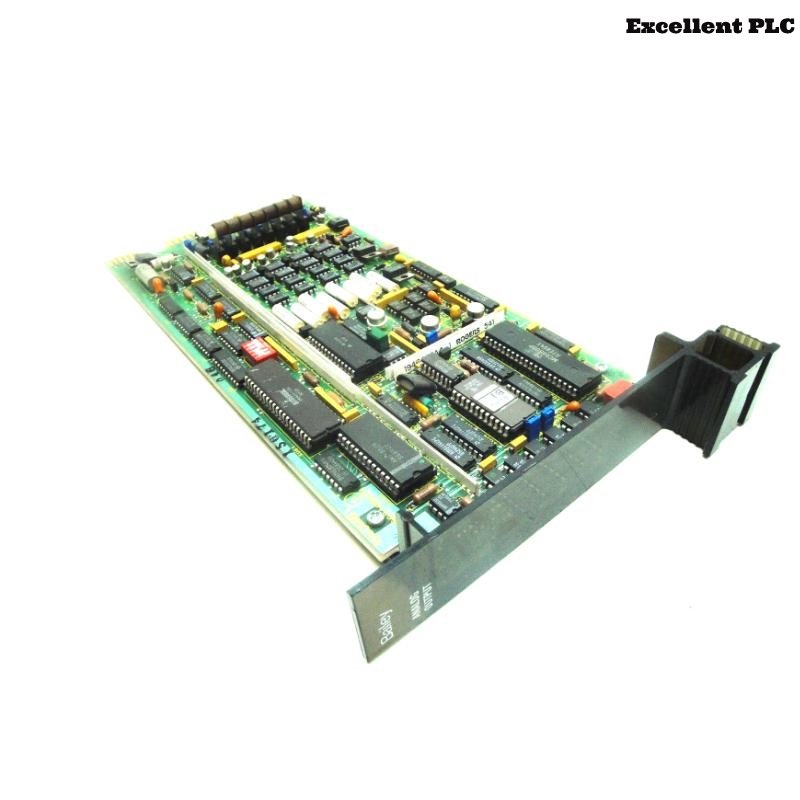

The ABB Bailey NAOM01 is a robust and highly reliable analog output module designed for use in distributed control systems (DCS) such as ABB’s INFI 90 and Symphony series. Engineered to ensure accurate analog signal transmission, the NAOM01 provides analog outputs to control actuators, valves, drives, or other field devices in industrial automation processes.
This module translates digital control signals from the controller into analog current or voltage outputs, typically in the 4–20 mA or 0–10 VDC range, depending on system configuration. Its ability to function effectively in mission-critical industrial environments makes it a key component in process industries such as oil and gas, chemical production, power generation, and water treatment.
Known for its stability, precision, and durability, the NAOM01 helps improve process responsiveness and enhances the overall performance of control systems by ensuring seamless interaction with field devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NAOM01 |
| Product Type | Analog Output Module |
| Output Signal Range | 4–20 mA (standard), configurable |
| Output Channels | 8 isolated analog outputs |
| Resolution | 12-bit Digital-to-Analog conversion |
| Load Resistance | 600 ohms max (current output mode) |
| Accuracy | ±0.1% of span at 25°C |
| Output Type | Isolated analog current (or voltage with config) |
| Power Supply | Supplied by system backplane |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Diagnostic Capability | Channel status and fault detection |
| Dimensions | 290 × 130 × 40 mm |
| Weight | 0.45 kg |
| Mounting Type | DIN rail or card chassis slot (system dependent) |
| Compliance | CE, UL, CSA, and RoHS compliant |
| System Compatibility | INFI 90, Symphony, Symphony Plus systems |
Applications
The ABB Bailey NAOM01 is used extensively in industries where precise analog control is critical:
-
Process Control Systems: Valve and actuator control in continuous and batch processes
-
Power Plants: Turbine governor control, boiler control loops
-
Oil & Gas: Flow control, pipeline automation, separator management
-
Water/Wastewater: Pump regulation, chemical dosing systems
-
Pharmaceutical: Temperature and pressure regulation in clean environments
-
Chemical Manufacturing: Reactor and column control with high accuracy outputs
Product Advantages
-
High-precision output control ensuring smooth process regulation
-
Multiple isolated channels reduce cross-talk and interference
-
Built-in diagnostics enhance system reliability by quickly identifying faults
-
Modular design allows easy replacement and system scalability
-
Wide operating temperature range suitable for demanding environments
-
Reliable integration with ABB’s Symphony and INFI 90 DCS platforms
-
Low maintenance requirements, reducing long-term operational costs
-
Strong compliance with industrial safety and reliability standards
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB NAOM01 module?
It converts digital controller signals into analog outputs (typically 4–20 mA) for controlling field devices. -
How many output channels does the NAOM01 support?
The module supports 8 isolated analog output channels. -
Can this module be used with non-ABB systems?
It is specifically designed for ABB INFI 90 and Symphony systems, though custom interfacing may allow integration in limited cases. -
Is there isolation between output channels?
Yes, the channels are electrically isolated from each other and from ground. -
What is the resolution of the analog output?
The NAOM01 offers 12-bit resolution for accurate analog signal conversion. -
Does the module require an external power supply?
No, it is powered via the system backplane it is installed into. -
What is the maximum load resistance for each output channel?
Up to 600 ohms in current output mode. -
Can the NAOM01 output voltage instead of current?
While designed for current output, some system configurations allow voltage output with signal conditioning. -
What happens if an output channel fails?
The module provides diagnostic feedback, and the faulty channel can be isolated and reported to the control system. -
Is this module hot-swappable?
No, for safety and signal integrity, the system should be powered down before removing or inserting the module.
Related Models (Same Series or Functionally Compatible)
| Model Number | Description |
|---|---|
| NCOM01 | Communication module for data handling and system interface |
| NAMM01 | Analog Multiplexer Module for INFI 90 |
| INNIS01 | Network Interface Module for Symphony DCS |
| NTCL01 | Thermocouple input module for temperature measurements |
| INIIT01 | Isolated Input Terminal module for analog signal acquisition |
| NISF01 | Signal Filter Module for analog conditioning |
