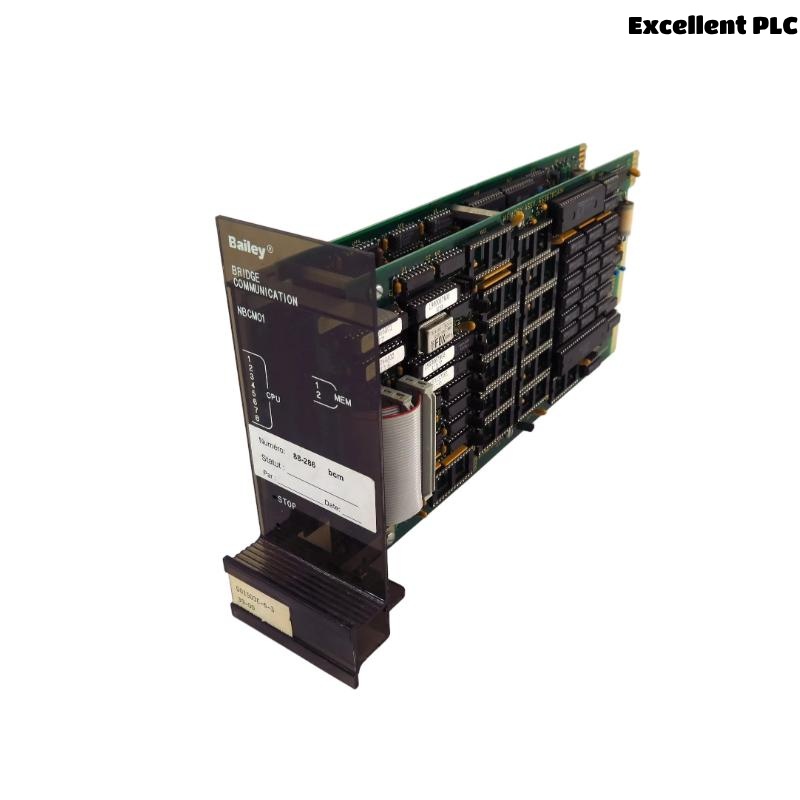

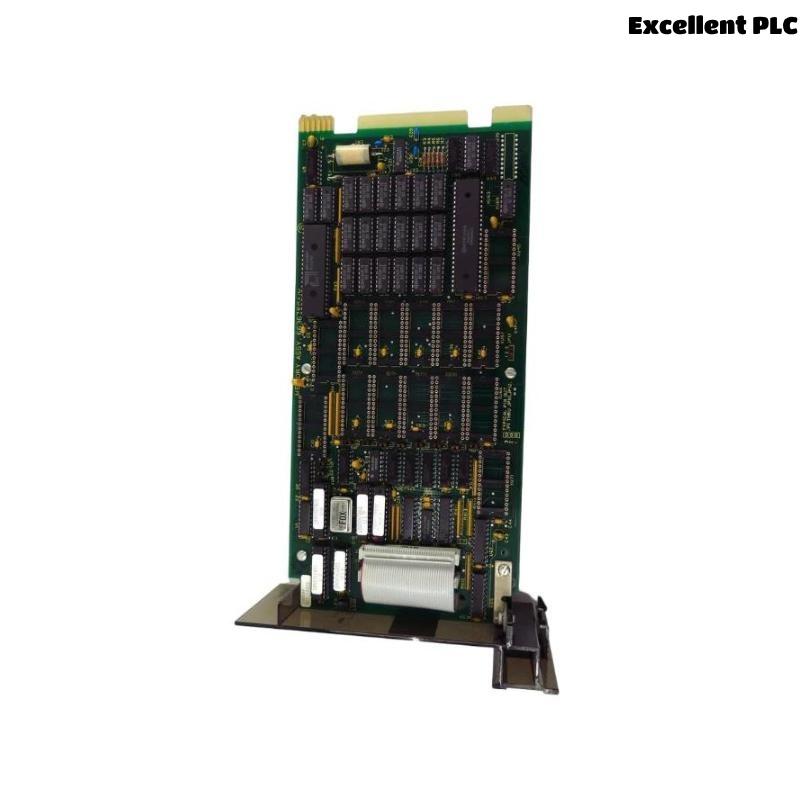

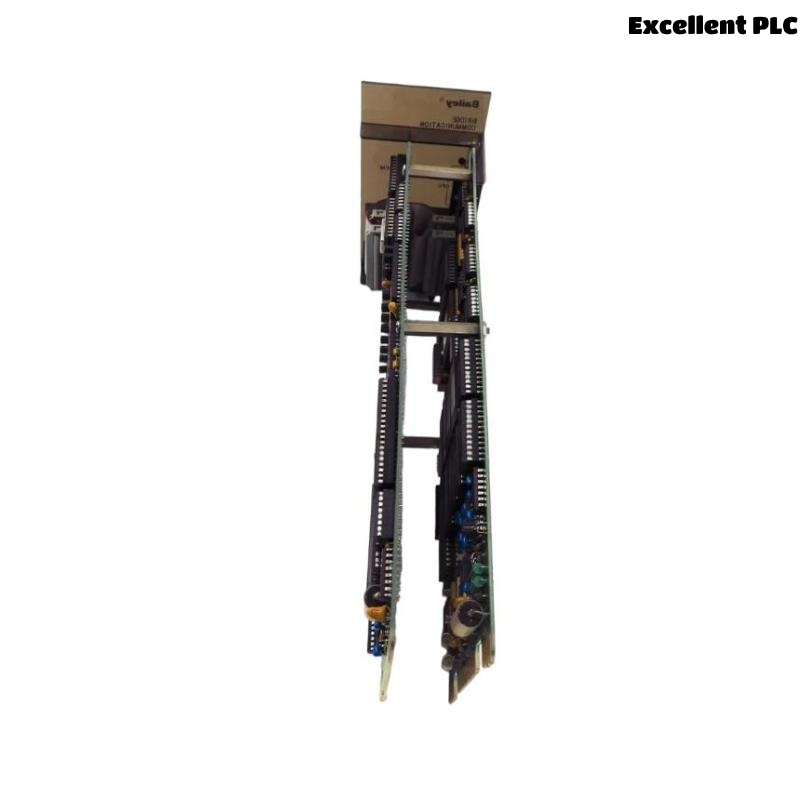

ABB Bailey NBCM01 Bridge Communication Module

Product Overview

The ABB Bailey NBCM01 Bridge Communication Module is an industrial-grade communication interface designed to enable data transfer and protocol bridging between different segments within the ABB INFI 90 or Symphony DCS (Distributed Control System). It plays a critical role in distributed automation architectures by facilitating seamless communication between control modules, workstations, and I/O networks located in separate physical locations or different network domains.

Built for high reliability and robustness, the NBCM01 supports real-time deterministic data exchange while maintaining system integrity and performance. Whether used for segmenting control strategies, integrating legacy and modern systems, or expanding network topologies, the NBCM01 ensures efficient communication over extended distances.

Key Features

• High-speed, deterministic bridge communication

• Connects separate control modules or subsystems within INFI 90/Symphony networks

• Supports redundant communication paths for high availability

• Optical isolation for noise immunity and electrical safety

• Real-time synchronization and data consistency

• Hot-swappable design in supported configurations

• LED indicators for module and link status

• Compact, rack-mounted form factor for space optimization

• Built-in diagnostics and fault isolation

Technical Specifications

Industry Applications

The NBCM01 is essential in distributed control scenarios where communication across different control segments is required:

• Power Generation – Facilitates real-time bridging between turbine, boiler, and generator control segments.

• Oil & Gas – Connects upstream and downstream control domains over long distances.

• Water Treatment – Links control areas like pumping stations, reservoirs, and treatment plants.

• Chemical & Petrochemical – Integrates control systems across hazardous and non-hazardous zones.

• Manufacturing – Enables communication between distributed controllers on production lines.

• Metals & Mining – Provides communication resilience in harsh, segmented control areas.

Product Advantages

• Reliable Bridging – Maintains secure and synchronized data transfer between isolated networks.

• Redundant Paths – Dual-channel support provides communication resilience.

• Electrical Safety – Optical isolation protects against surges and ground faults.

• Compact Design – Minimal space usage with high functionality.

• Ease of Maintenance – LED indicators and built-in diagnostics simplify fault analysis.

• Future-Proofing – Allows legacy ABB DCS components to integrate with newer infrastructure.

Frequently Asked Questions (FAQ)

1. Q: What is the primary function of the NBCM01 module?
   A: It serves as a bridge between separate ABB INFI 90/Symphony networks for communication and data exchange.

2. Q: How many communication ports does the module offer?
   A: It provides two redundant communication channels for high availability.

3. Q: Is the NBCM01 module hot-swappable?
   A: Yes, it can be hot-swapped when installed in a system configured for redundancy.

4. Q: What communication protocol does it use?
   A: It uses ABB’s proprietary high-speed control protocols for reliable synchronization.

5. Q: Can NBCM01 operate in harsh industrial environments?
   A: Yes, it is designed to withstand a temperature range of 0°C to +60°C and up to 95% humidity.

6. Q: Does the module provide electrical isolation?
   A: Yes, it has optical isolation between ports and logic circuitry.

7. Q: What type of diagnostics are included?
   A: Built-in diagnostics detect link status, communication errors, and internal faults.

8. Q: How is the module powered?
   A: It is powered through the control system’s I/O chassis.

9. Q: How are faults indicated?
   A: LED indicators on the front panel display link and module status.

10. Q: What is the physical size and weight of the NBCM01?
    A: It measures 145mm × 45mm × 130 mm and weighs approximately 0.4 kg.
