Product Introduction

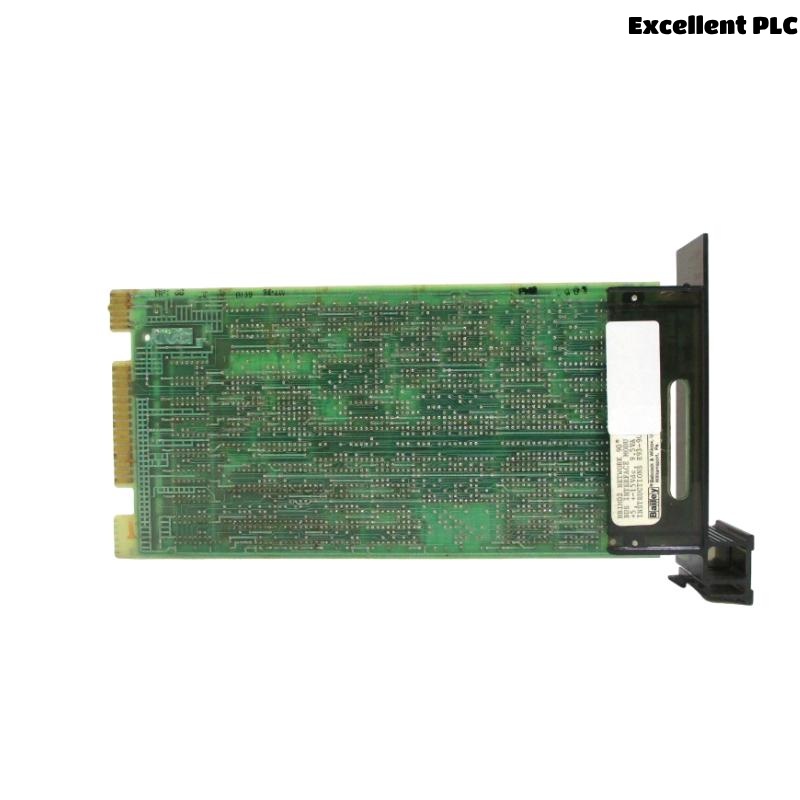

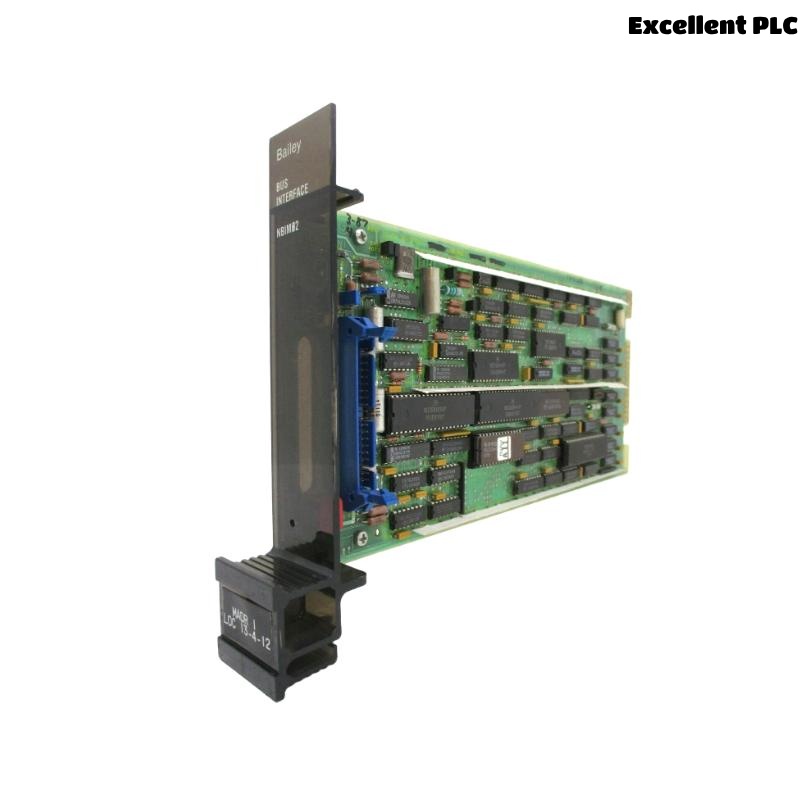

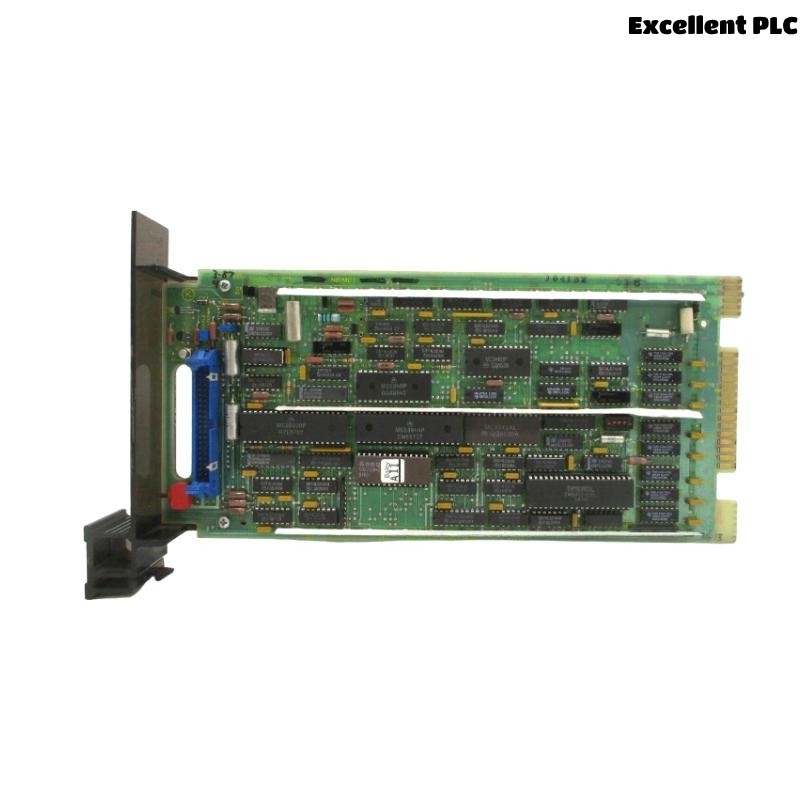

The ABB Bailey NBIM02 Bus Interface Module is a key communication element used within ABB’s INFI 90 and Symphony process control systems. Functioning as a vital bridge, the NBIM02 manages the bidirectional communication between central processors and the distributed input/output subsystem across the control network.
Designed for environments where reliable, high-speed data transmission is non-negotiable, the NBIM02 excels in redundancy-supported configurations, ensuring that control systems maintain operational continuity, even in the presence of faults or disturbances. The module serves as a replacement or upgrade to the NBIM01, providing enhanced diagnostic and fault handling capabilities, while retaining complete compatibility with existing Bailey system infrastructure.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | NBIM02 |
| Product Type | Bus Interface Module |
| System Compatibility | INFI 90, Symphony, Symphony Plus |
| Communication Type | I/O Bus (INFI-Net) |
| Primary Function | Transfers data between controller and I/O subsystem |
| Redundancy Support | Yes, dual redundant bus support |
| Diagnostic Features | Advanced internal diagnostics, bus fault detection |
| LED Indicators | Power, Bus A/B Status, Fault |
| Mounting Style | Standard 19-inch rack mounting |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Power Source | Supplied via backplane |
| Backplane Compatibility | Standard I/O rack configuration |
| Communication Integrity | CRC error checking, time-synchronized transmission |
| Certifications | UL, CSA, CE |
| Dimensions (H x W x D) | 120 × 80 × 40 mm |
| Weight | 0.34 kg |
Product Applications
The NBIM02 module is widely applied in industries requiring continuous and deterministic control over distributed systems. Common application scenarios include:
-
Power Plants – Coordinating turbine, boiler, and auxiliary control systems.
-
Chemical Plants – Managing real-time sensor input and actuator control for hazardous material processing.
-
Oil & Gas Facilities – Ensuring safe and efficient operation of refineries and pipeline systems.
-
Water and Wastewater Plants – Supervising pump stations, filtration systems, and automated treatment units.
-
Metals and Mining – Facilitating communication between grinding, smelting, and material handling systems.
-
Pulp and Paper Mills – Supporting synchronized control over the paper machine’s distributed nodes.
Product Advantages
-
Enhanced Diagnostics: The NBIM02 provides real-time fault isolation and system health data.
-
Redundancy Enabled: Built-in support for dual redundant bus paths ensures high availability and fault tolerance.
-
Backward Compatibility: Easily replaces NBIM01 without rewiring or reprogramming.
-
Modular Design: Plug-and-play capability in standard Bailey racks simplifies maintenance and expansion.
-
Industrial Durability: Designed to withstand the harsh environmental conditions of heavy industry.
-
Low Latency Data Transfer: Optimized for rapid data refresh and deterministic control loop execution.
-
Efficient Integration: Seamless operation with Symphony Plus engineering and diagnostic tools.
-
Long Lifecycle: Proven operational performance with multi-decade service expectancy.
-
Error Detection: Advanced checksum and parity error handling for communication accuracy.
Frequently Asked Questions (FAQ)
-
What is the key difference between NBIM01 and NBIM02?
NBIM02 offers improved diagnostic capabilities and enhanced reliability while retaining full backward compatibility with NBIM01 systems. -
Can NBIM02 be used in a redundant bus configuration?
Yes, NBIM02 supports dual bus operation, ensuring uninterrupted communication in case one bus fails. -
Is NBIM02 suitable for use in high-humidity environments?
Yes, it operates in relative humidity up to 95%, non-condensing, making it ideal for industrial settings. -
Does this module support hot-swapping?
While not officially hot-swappable, it can be replaced with minimal system disruption when proper shutdown procedures are followed. -
What kind of diagnostic indicators are present on NBIM02?
The module features LED indicators for power status, Bus A/B communication, and fault detection. -
How does the module communicate with the controller?
Via the INFI-Net system bus using TTL or differential signal levels, ensuring fast and noise-immune data exchange. -
Can NBIM02 be used in hybrid ABB systems?
Yes, it is compatible with both legacy INFI 90 and modern Symphony Plus environments. -
What kind of maintenance is required?
Periodic visual inspection and diagnostic checks through ABB’s control tools are usually sufficient. -
Does NBIM02 require firmware updates?
No, the firmware is embedded and optimized for its function; updates are not typically required. -
Where can spare parts or replacements be sourced?
We offer NBIM02 modules.
Related or Compatible ABB Bailey Models
| Model | Description | Function | System Compatibility |
|---|---|---|---|
| NBIM01 | Original Bus Interface Module | Standard I/O bus communication | INFI 90, Symphony |
| INICT13A | Control Network Interface Module | Gateway to Ethernet/IP Networks | Symphony Plus |
| IMMFP12 | Multi-Function Processor | Control Logic Processor | INFI 90 |
| NTMP01 | Time Multiplexer Processor | Signal Timing Coordination | INFI 90 |
| INNIS11 | Network Interface Slave | Bus Communication Slave Node | INFI 90 |
| NCOM01 | Communication Interface Module | External Communication Routing | INFI 90 |
