Product Introduction

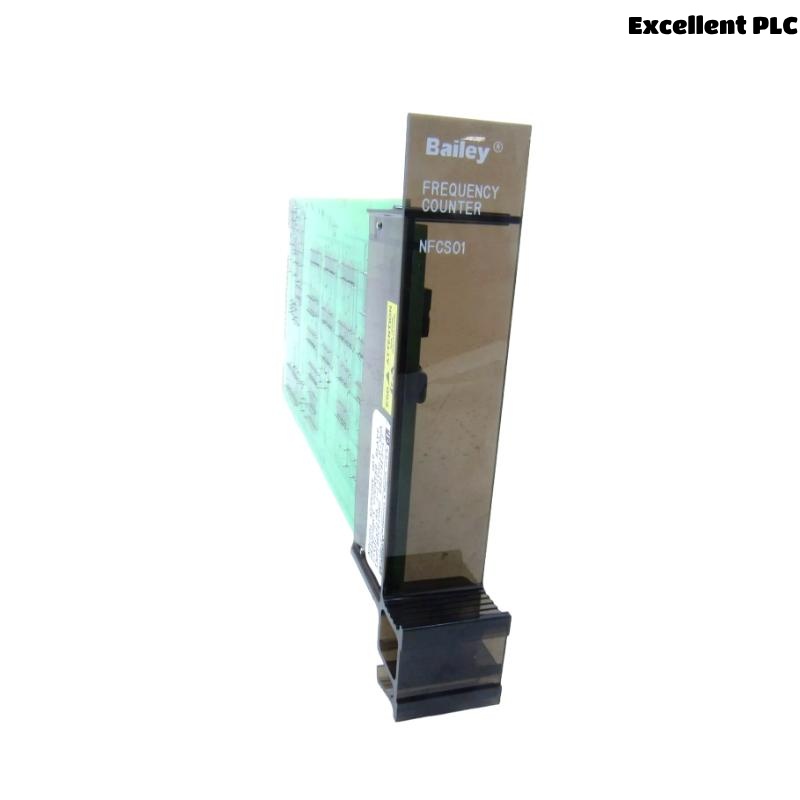

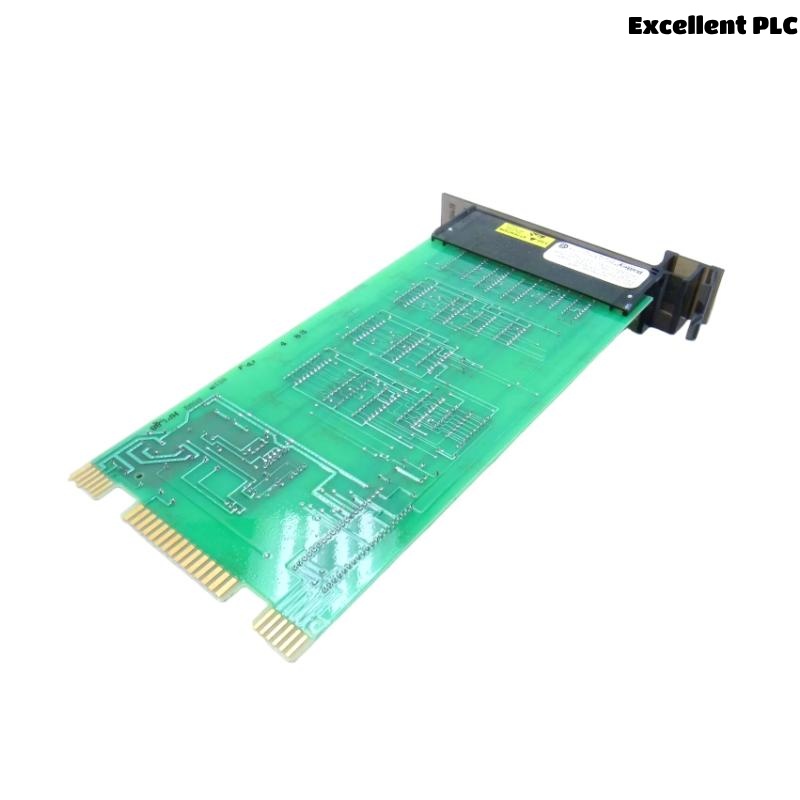

The ABB Bailey NFCS01 Frequency Counter Module is a high-precision industrial module designed to measure, analyze, and monitor frequency signals within automation and control systems. As part of the Bailey INFI 90 Distributed Control System (DCS) family, the NFCS01 ensures accurate frequency measurements in demanding industrial environments, supporting critical applications such as turbine speed monitoring, generator frequency control, rotating machinery diagnostics, and process control loops.
With robust integration into Bailey’s INFI 90 architecture, this module provides real-time frequency data through high-speed signal processing and advanced filtering techniques. Its ability to handle complex frequency ranges and deliver consistent output even under fluctuating signal conditions makes it an indispensable component for engineers seeking reliable measurement accuracy in dynamic environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Input Signal Type | TTL, Open Collector, Voltage Pulse Input |
| Frequency Range | 0.01 Hz to 100 kHz |
| Input Voltage Range | 5 VDC to 24 VDC |
| Input Sensitivity | < 1 V RMS for low-level signals |
| Measurement Resolution | 0.001 Hz |
| Response Time | < 50 ms |
| Accuracy | ±0.01% of reading |
| Output Type | Digital via INFI 90 I/O Bus |
| Power Supply | 5 VDC (via INFI 90 backplane) |
| Temperature Range (Operating) | -10 °C to +60 °C |
| Temperature Range (Storage) | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Cooling | Convection cooled |
| Dimensions | 120 x 80 x 40 mm |
| Weight | 0.5 kg |
| Mounting | DIN rail or chassis mount in INFI 90 rack |
| Compliance | CE, RoHS, UL |
Applications
The NFCS01 module serves in a wide range of industrial and process control applications:
-
Turbine Speed Monitoring
Accurate monitoring of gas and steam turbine rotational speeds. -
Generator Frequency Regulation
Maintaining synchronization and frequency stability in power generation systems. -
Pumps and Rotating Machinery
Tracking the operating frequency of critical pumps, compressors, and fans. -
Vibration and Diagnostic Systems
Measuring shaft frequencies for predictive maintenance and condition monitoring. -
Industrial Process Loops
Integrating frequency measurements as control variables in sophisticated process automation. -
Testing and Calibration Rigs
Providing precision frequency feedback in automated test benches and calibration equipment.
Product Advantages
-
High Accuracy and Resolution
Measures frequencies with ±0.01% accuracy and 0.001 Hz resolution, supporting demanding precision applications. -
Wide Frequency Range
Flexible handling of signals from 0.01 Hz to 100 kHz, accommodating both slow and high-speed rotating equipment. -
Seamless System Integration
Fully compatible with Bailey INFI 90 DCS, ensuring simple installation, setup, and real-time communication. -
Robust Signal Conditioning
Advanced noise rejection and signal filtering capabilities maintain stability in harsh electrical environments. -
Fast Response Time
Frequency changes detected and reported in less than 50 ms, ideal for dynamic process environments. -
Industrial Durability
Designed for continuous 24/7 operation in extreme temperature and humidity ranges, ensuring long-term reliability.
FAQ
-
What frequency range is supported by the NFCS01 module for precise measurement of rotating equipment?
The module handles frequencies from 0.01 Hz to 100 kHz with high accuracy and low latency. -
How is the NFCS01 module calibrated to ensure measurement accuracy over time?
The module undergoes factory calibration with reference frequency sources and supports field verification using external signal generators. -
What types of input signal conditioning are available on the NFCS01 module?
It includes internal voltage level detection, hysteresis filtering, and noise suppression for stable signal interpretation. -
Is the NFCS01 suitable for turbine overspeed protection applications?
Yes, with its fast response and high precision, it can serve as part of overspeed monitoring and protection systems. -
Can the NFCS01 handle pulse signals with variable duty cycles?
The module is designed to accurately measure frequency regardless of pulse duty cycle variations. -
How is frequency data communicated to the control system?
The measured frequency is transmitted digitally via the INFI 90 backplane communication bus. -
Does the NFCS01 support redundancy configurations within INFI 90 systems?
It can be deployed in redundant system architectures for high-availability monitoring. -
What environmental protections does the NFCS01 feature?
It meets industrial temperature, humidity, and vibration standards, with conformal coating to resist environmental stress. -
What are the power consumption characteristics of the NFCS01 module?
The module typically consumes less than 2 W from the INFI 90 system’s 5 VDC power supply. -
How does the NFCS01 handle low signal-to-noise ratio environments?
The module employs advanced filtering and hysteresis techniques to maintain accurate measurements even under noisy conditions.
