Product Introduction

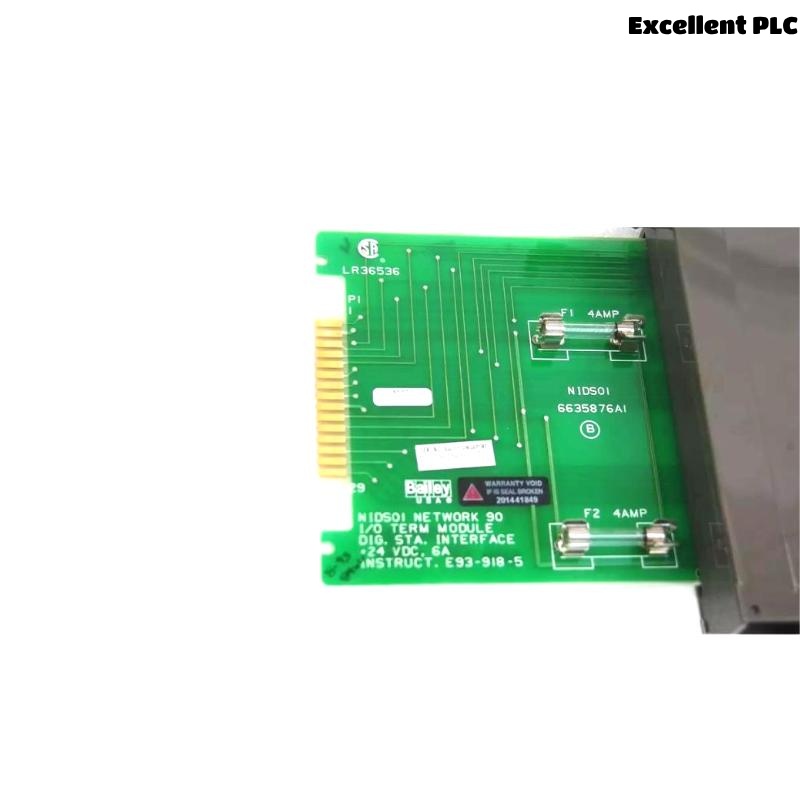

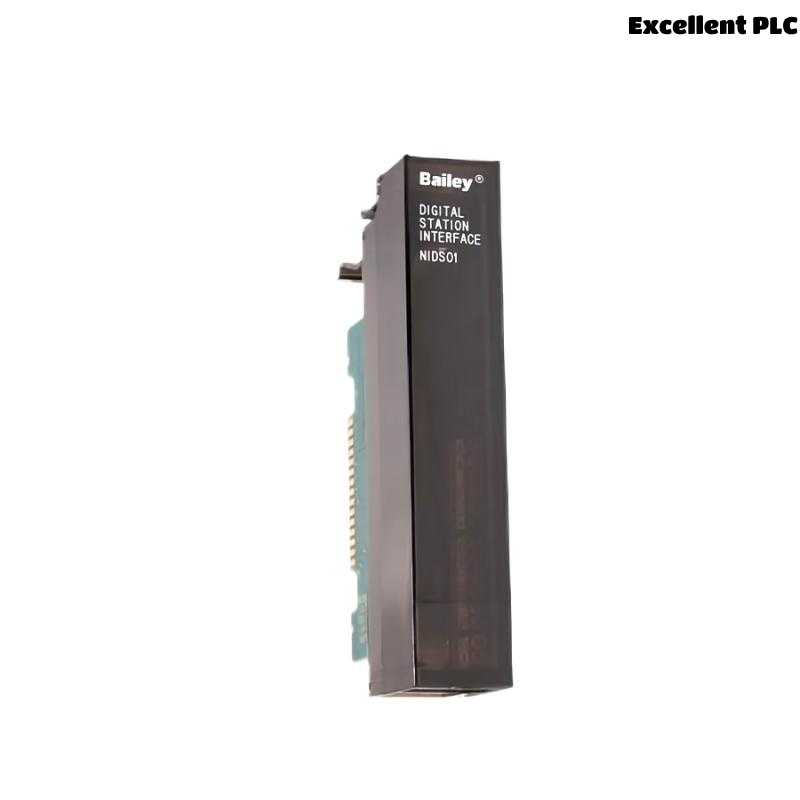

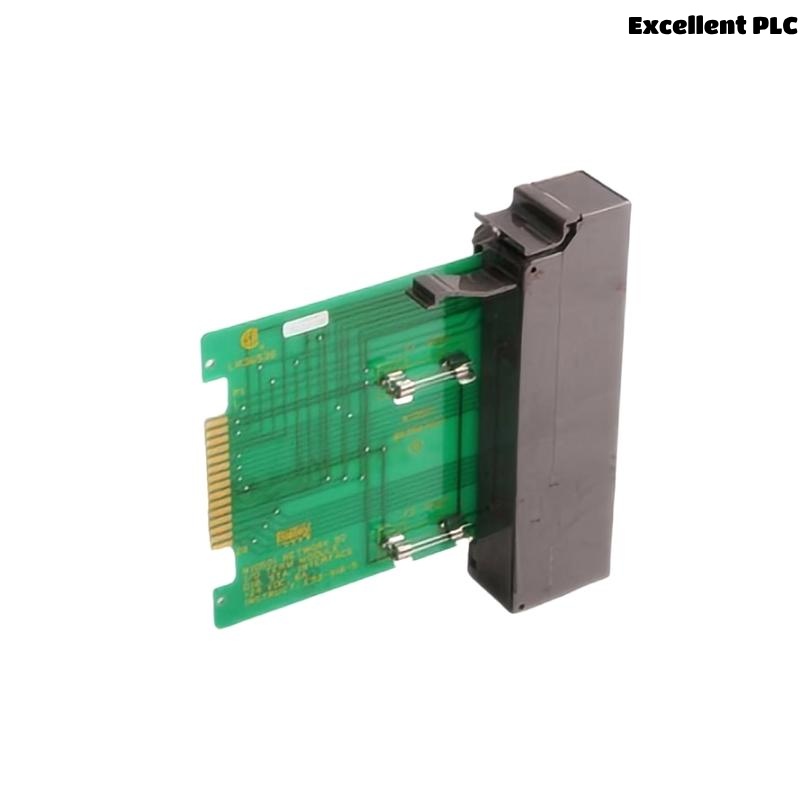

The ABB Bailey NIDS01 Digital Station Interface Module plays a critical role in ABB’s INFI 90 Distributed Control System (DCS), serving as the communication bridge between the DCS and various operator stations, engineering workstations, or supervisory systems. It ensures that process data, alarms, and control commands are transferred seamlessly and reliably between the control hardware and the human-machine interface (HMI) or supervisory control and data acquisition (SCADA) system.
The NIDS01 is built for high reliability and industrial robustness, making it an ideal solution for large-scale process control systems requiring constant, high-speed communication. It is especially valued in environments where maintaining real-time data visibility and control is critical for plant performance and safety.
With ABB’s advanced communication protocols and compatibility with legacy systems, the NIDS01 supports modernization projects as well as new DCS implementations.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | NIDS01 |
| Product Type | Digital Station Interface Module |
| Communication Interface | Ethernet / Serial (depending on config) |
| Supported Protocols | INFI-NET, MODBUS, proprietary ABB protocols |
| Data Transmission Speed | Up to 10 Mbps (Ethernet), 19.2 kbps (Serial) |
| Station Compatibility | Operator Stations, Engineering Workstations, SCADA |
| Data Types Supported | Process variables, alarms, events, control signals |
| Operating Voltage | 5 VDC (from backplane) |
| Isolation | Galvanic isolation between interface and control logic |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC Compliance | IEC 61000-6-2 / IEC 61000-6-4 |
| Mounting Type | DIN Rail or Panel Mounting |
| Dimensions (H x W x D) | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.7 kg |
Product Applications
The NIDS01 Digital Station Interface Module is used extensively in industries that depend on reliable, real-time data transfer between control systems and operator interfaces. Typical applications include:
-
Power Generation: Real-time monitoring and control of turbines, boilers, and balance-of-plant equipment.
-
Oil & Gas: SCADA integration for upstream platforms, pipelines, and refining operations.
-
Chemicals & Petrochemicals: Supervisory control in batch and continuous process plants.
-
Metals & Mining: High-availability control and monitoring of heavy-duty equipment.
-
Pulp & Paper: Process visualization and operational control of paper machines.
-
Water & Wastewater Treatment: SCADA systems for municipal and industrial treatment plants.
-
Pharmaceuticals: Data tracking, alarm management, and regulatory reporting interfaces.
Product Advantages
-
Reliable High-Speed Communication: Enables real-time data exchange between the DCS and operator workstations.
-
Broad Protocol Support: Offers compatibility with multiple industry protocols and ABB proprietary systems.
-
Robust Isolation: Protects control system from potential communication-related faults.
-
Industrial Grade Design: Operates reliably in harsh environments with wide temperature and humidity tolerance.
-
Flexible Integration: Can be used in both legacy ABB Bailey INFI 90 systems and modernized DCS environments.
-
Future-Proof Compatibility: Supports integration into hybrid or evolving control architectures.
-
Modular & Scalable: Easily expanded with additional modules to accommodate growing control networks.
-
Low Maintenance: Solid-state design with minimal moving parts reduces maintenance needs.
-
Enhanced Diagnostics: Built-in status LEDs and diagnostic tools simplify troubleshooting.
-
Compact Form Factor: Space-efficient for dense cabinet installations.
Frequently Asked Questions (FAQ)
1. What is the function of the ABB Bailey NIDS01 module?
It facilitates digital communication between the DCS hardware and operator stations or SCADA systems.
2. Which communication protocols does it support?
NIDS01 supports INFI-NET, MODBUS, and ABB proprietary protocols.
3. Can it be used in legacy ABB Bailey systems?
Yes, it is fully compatible with ABB Bailey INFI 90 and Symphony systems.
4. What is the data transmission speed?
It supports up to 10 Mbps on Ethernet, and up to 19.2 kbps on serial links.
5. Is the communication interface electrically isolated?
Yes, galvanic isolation is provided to protect system components.
6. What types of data can the module handle?
Process variables, control signals, alarms, and event data.
7. Can NIDS01 integrate with modern SCADA platforms?
Yes, it can communicate with modern SCADA and HMI systems through standard protocols.
8. What is the typical service life of the module?
10+ years with proper installation and maintenance.
9. How does NIDS01 help in system upgrades?
It enables integration of legacy ABB systems with modern operator workstations without full system replacement.
10. What maintenance is required for NIDS01?
Routine visual inspection and periodic verification of communication links; otherwise, the module is largely maintenance-free.
Recommended Related Models (Same Series / Function)
| Model | Description |
|---|---|
| NIDS02 | Enhanced Digital Station Interface Module |
| INNIS21 | Network Interface Module |
| INICT13A | Ethernet Communication Interface |
| INPCI01 | PC Interface Module for INFI-NET |
| NIMP01 | Input Module Processor |
| NIPI01 | Input Processor Interface |
