Product Introduction

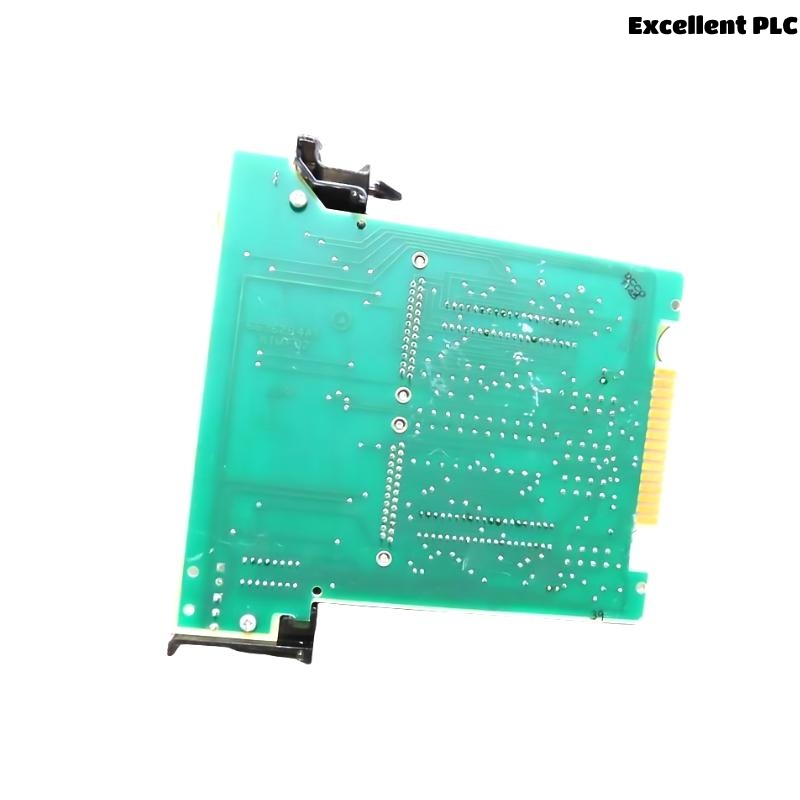

The ABB Bailey NIMF02 Multifunction Controller Terminal Module is a vital component of the ABB Bailey INFI 90 Distributed Control System (DCS), engineered to provide high-density, reliable signal termination for multifunction processor modules and interface units. It acts as the primary physical connection point between the control system’s I/O modules and the field wiring.
Designed for modern industrial environments, the NIMF02 simplifies complex wiring configurations, ensuring robust connectivity and excellent signal integrity. It enhances system flexibility by accommodating multiple signal types—analog, digital, and low-power—within a single module.
In demanding applications where uptime, system clarity, and signal quality are critical, the NIMF02 serves as an essential part of a reliable control system architecture, making it suitable for both new installations and system upgrades.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | NIMF02 |
| Product Type | Multifunction Controller Terminal Module |
| Primary Function | High-density field wiring termination |
| Supported Signal Types | Analog Input (AI), Analog Output (AO), Digital Input (DI), Digital Output (DO), Low-Voltage Power |
| Number of Terminal Points | 64 terminals (High-Density Configuration) |
| Compatible Controllers | IMMFP12, IMMPI01, IMMFP01, and related interface processors |
| Power Supply | Passive termination (no power required) |
| Signal Isolation | Galvanic isolation between field and system signals |
| Supported Voltage Range | Field signals up to 48 VDC |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| EMC Compliance | IEC 61000-6-2 / IEC 61000-6-4 |
| Mounting Type | DIN Rail Mounting / Panel Mounting |
| Dimensions (H x W x D) | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.7 kg |
Product Applications
The NIMF02 Terminal Module is designed to meet the needs of a broad range of industrial applications, providing a highly organized and efficient method of managing the connection between field devices and control system processors. Typical applications include:
-
Power Generation (Thermal, Nuclear, Hydro): Termination for process control signals in turbines, boilers, and balance-of-plant equipment.
-
Oil & Gas: Supporting SCADA, ESD, and PCS systems across upstream, midstream, and downstream facilities.
-
Chemical & Petrochemical: Reliable wiring interface for batch and continuous process control.
-
Pulp & Paper: Termination for field devices used in paper machine automation and process control.
-
Metals & Mining: Rugged interface for connecting sensors and actuators in harsh operating environments.
-
Water & Wastewater Treatment: Streamlined termination for process instruments and control equipment.
-
Pharmaceuticals: Provides a validated signal interface in highly regulated environments.
Product Advantages
-
High-Density Design: Supports up to 64 field connections in a compact module, saving cabinet space.
-
Multi-Signal Support: Compatible with both analog and digital signal types, as well as low-voltage power connections.
-
Enhanced Isolation: Galvanic isolation protects the control system from electrical noise and field faults.
-
Simplified Installation: Modular layout with clearly labeled terminals reduces wiring complexity and installation time.
-
Versatility: Compatible with a wide range of ABB Bailey controller processors, providing flexibility across system designs.
-
Industrial Robustness: Built to withstand harsh industrial environments with wide temperature and humidity tolerances.
-
Reliability: Passive design with no active components results in low failure rates and extended service life.
-
Reduced Maintenance: Minimal ongoing maintenance required beyond routine inspection.
-
Future-Proof: Supports both legacy and upgraded INFI 90 system architectures.
-
International Compliance: Certified for use in demanding industrial environments worldwide.
Frequently Asked Questions (FAQ)
1. What is the primary role of the NIMF02 module?
It acts as a termination point for field wiring, providing organized connection of analog and digital signals to the controller.
2. What types of signals does the NIMF02 support?
It supports analog inputs and outputs, digital inputs and outputs, and low-voltage power signals.
3. How many terminal points are available on the module?
The module provides 64 terminal points.
4. Is the module powered?
No, it is a passive termination module and does not require a separate power supply.
5. What controllers are compatible with the NIMF02?
It is compatible with IMMFP12, IMMFP01, IMMPI01, and other ABB Bailey INFI 90 interface processors.
6. Does NIMF02 offer signal isolation?
Yes, it provides galvanic isolation between the field wiring and the control system.
7. What is the operating temperature range?
The module operates between -20°C and +60°C.
8. Can the NIMF02 be used in safety-critical applications?
Yes, with its reliable design and compliance with industrial standards, it is suitable for critical applications.
9. Does the module require special tools for installation?
No, standard field wiring tools can be used for installation on DIN rails or panels.
10. What is the expected service life of the NIMF02?
The module is designed for long-term use, typically exceeding 10 years with routine inspection.
Recommended Related Models (Same Series / Function)
| Model | Description |
|---|---|
| NIMF01 | Multifunction Controller Terminal Module |
| NIMP01 | Digital Input Module Processor |
| NIPI01 | Digital Input Processor Interface |
| NIDI01 | Digital Input Termination Module |
| NIDO01 | Digital Output Termination Module |
| IMMPI01 | Multi-Point Interface Module |
