Product Overview

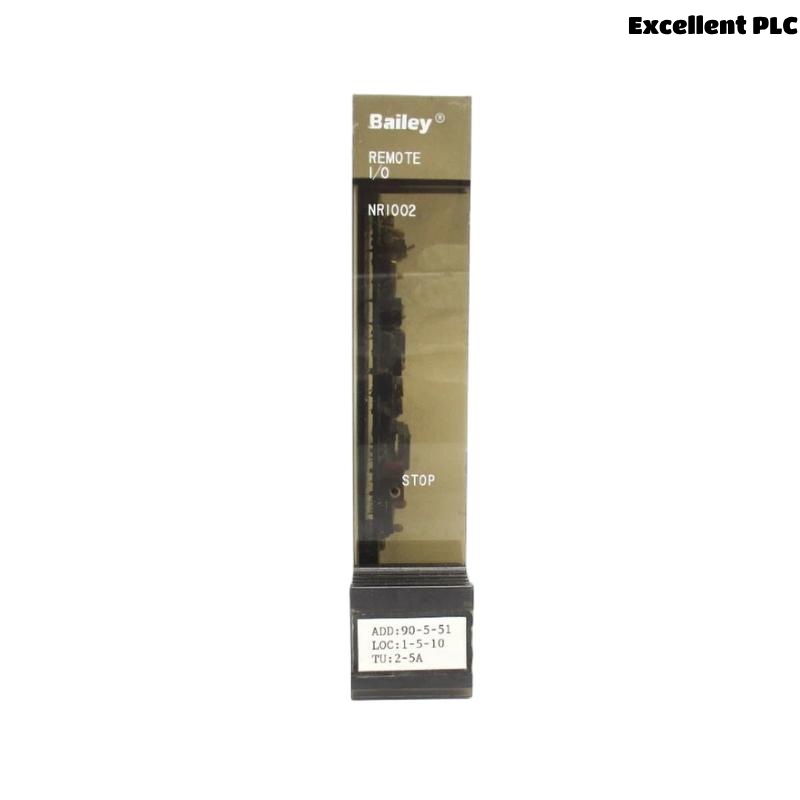

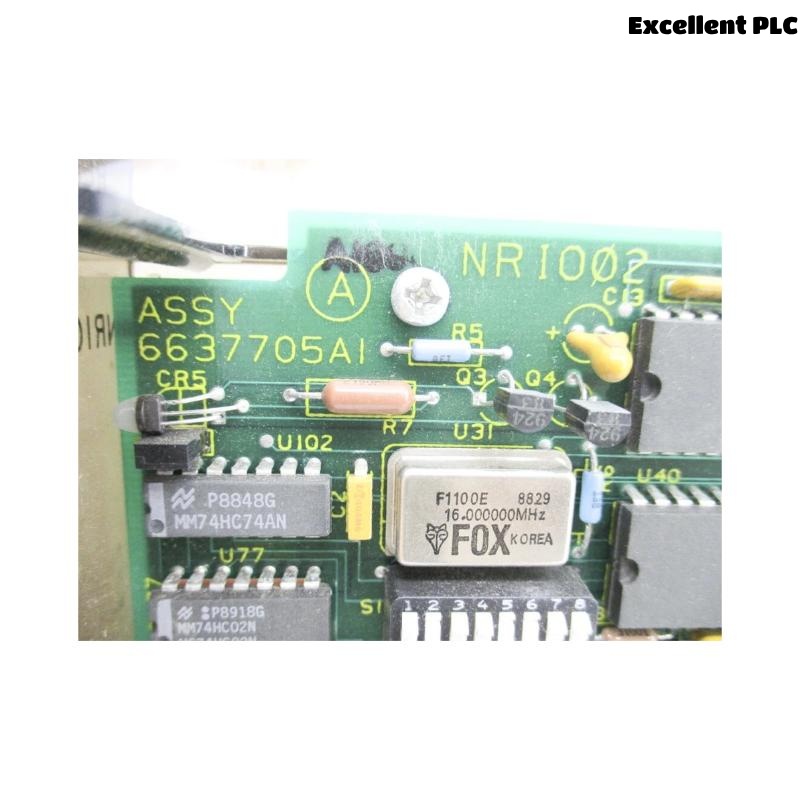

The ABB Bailey NRIO02 6637705A1 Remote I/O Module is an industrial-grade remote input/output module designed for use within ABB Bailey INFI 90 and Symphony distributed control systems (DCS). It enables reliable remote signal acquisition and control, extending the reach of the DCS to field instrumentation and devices located away from the main control system.
The NRIO02 6637705A1 simplifies the integration of distributed I/O, providing a cost-effective and scalable solution for large and complex automation systems. With robust construction and reliable communication capabilities, this module is widely used in demanding industrial environments where high system availability and performance are required.
Key Features
-
Remote I/O interface for ABB Bailey INFI 90 and Symphony DCS platforms
-
Facilitates connection of field devices to centralized control systems
-
Supports a variety of input and output signal types
-
Enables distributed architecture for complex process control applications
-
Industrial-grade design suitable for harsh operating environments
-
Compact, modular construction for easy installation and maintenance
-
High reliability with minimal maintenance requirements
-
Clear labeling for terminal identification and wiring accuracy
-
Designed for long service life in mission-critical applications
-
Fully compatible with ABB Bailey legacy and modern control infrastructure
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Remote I/O Module |
| Brand | ABB |
| Series | Bailey INFI 90 / Symphony |
| Model Number | NRIO02 6637705A1 |
| Function | Remote acquisition and control of I/O signals |
| Compatible Systems | ABB Bailey INFI 90, Symphony DCS |
| Supported Signal Types | Analog and discrete signals |
| Terminal Type | Screw-clamp connections |
| Communication Type | Remote I/O bus interface |
| Installation | DIN-rail or panel-mounted |
| Housing Material | Industrial-grade plastic or metal casing |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Shock Resistance | IEC 60068-2-27 compliant |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Certifications | CE, UL, CSA |
| Dimensions | 150 × 120 × 50 mm |
| Weight | 1.0 kg |
Industry Applications
The ABB NRIO02 6637705A1 Remote I/O Module is widely used across industries where reliable, distributed I/O connections are essential:
-
Oil & Gas: Remote I/O integration for monitoring and control of pipelines, processing units, and safety systems
-
Power Generation: Distributed acquisition of signals from substations, turbines, and auxiliary systems
-
Chemical and Petrochemical: Integration of field devices into plant-wide automation networks
-
Water and Wastewater Treatment: Remote monitoring and control of pumping stations, valves, and sensors
-
Metals and Mining: Harsh environment remote I/O connectivity for process control and monitoring
-
Industrial Manufacturing: Scalable I/O solutions for large-scale production facilities
Product Advantages
-
Reliable Distributed I/O Integration: Enables remote connection of field signals to ABB control systems
-
Scalable Architecture: Supports expansion of I/O capacity for complex automation projects
-
High Durability: Industrial-grade materials ensure long-term reliable operation in demanding environments
-
Ease of Installation: Modular construction and labeled terminals simplify setup and maintenance
-
Versatile Signal Handling: Accommodates both analog and discrete input/output signals
-
Improved System Flexibility: Facilitates control system design with distributed components
-
Enhanced Signal Integrity: Maintains high-quality signal transmission over remote distances
-
Low Maintenance Requirements: Robust design minimizes downtime and service needs
-
Compatibility with Legacy Systems: Fully integrates with existing ABB Bailey infrastructure
-
Compliance with Global Standards: Certified for safe, reliable operation in worldwide industrial applications
Frequently Asked Questions (FAQ)
1. What is the main purpose of the NRIO02 6637705A1 module?
It serves as a remote I/O interface, connecting field signals to ABB Bailey INFI 90 or Symphony DCS systems.
2. Which types of signals does the module support?
It supports both analog and discrete signals for monitoring and control applications.
3. Can the module be used in harsh environments?
Yes, it is designed to withstand industrial shock, vibration, and wide temperature ranges.
4. Is the module compatible with legacy ABB control systems?
Yes, it integrates seamlessly with existing ABB Bailey INFI 90 and Symphony platforms.
5. How is the module installed?
It can be DIN-rail mounted or panel-mounted, depending on system design.
6. What type of connections are used for field wiring?
Screw-clamp terminals are provided for secure, reliable field wiring.
7. Does the module require regular maintenance?
Minimal maintenance is required due to its durable industrial-grade design.
8. What materials are used in the module’s housing?
It features industrial-grade plastic or metal construction for durability.
9. Are terminals labeled for easy wiring?
Yes, all terminals are clearly labeled to reduce wiring errors and simplify troubleshooting.
10. Is the module certified for global industrial use?
Yes, it meets CE, UL, and CSA certifications for international deployment.
