Product Introduction

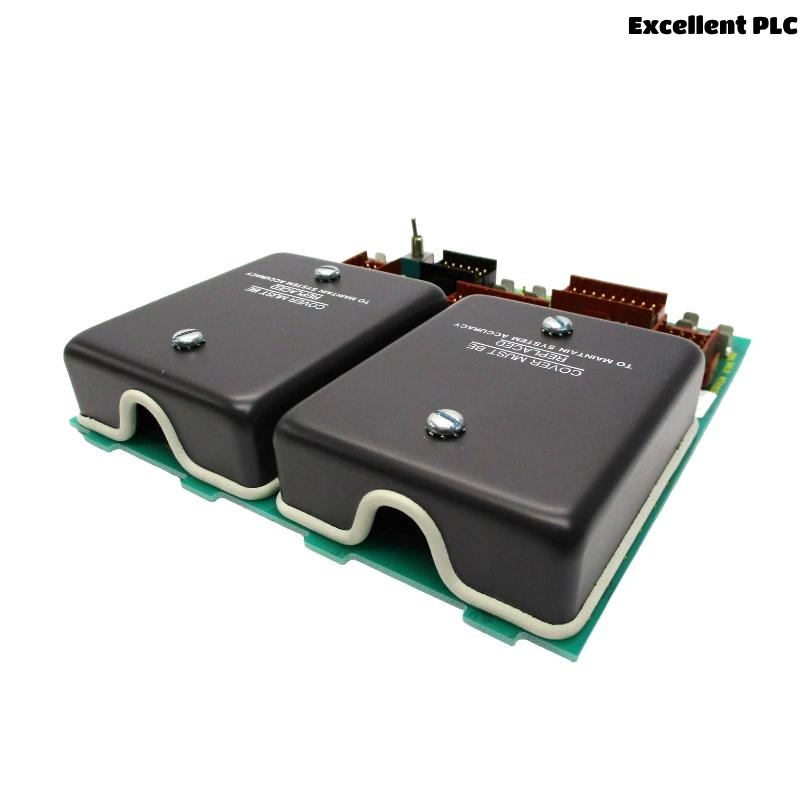

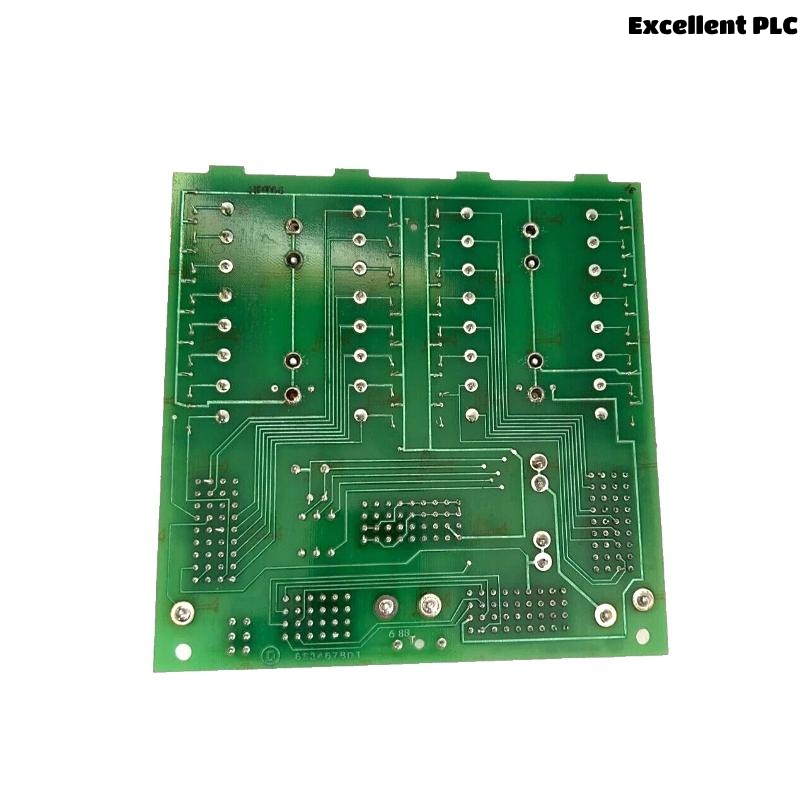

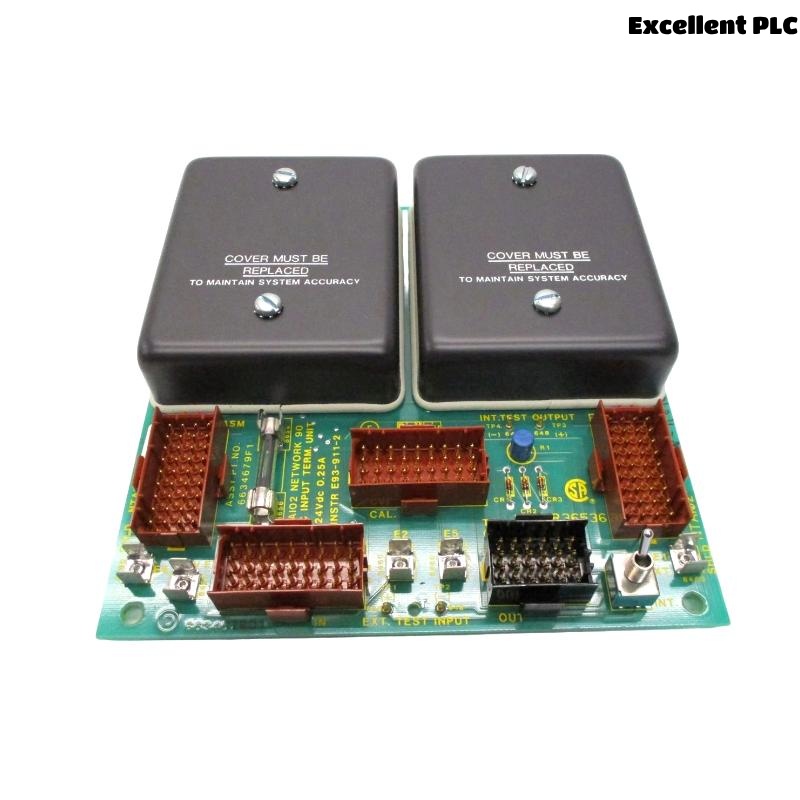

The ABB Bailey NTAI02 6634679F1 Analog Input Termination Unit is an essential component used in industrial control systems for managing analog signal connections between sensors, transmitters, and automation equipment. This termination unit is designed to handle a variety of input types, providing a reliable interface for signal processing. It is commonly integrated into ABB’s distributed control systems (DCS), enabling seamless communication and ensuring accurate data acquisition for monitoring and controlling industrial processes.
The NTAI02 unit is particularly effective in environments where multiple sensors and devices require consistent analog signal processing. Its modular design allows for easy integration into control cabinets, making it an ideal choice for industries such as power generation, chemical manufacturing, oil & gas, and water treatment plants.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | NTAI02 6634679F1 |
| Product Type | Analog Input Termination Unit |
| Input Channels | 16 Channels |
| Input Signal Range | 0–20 mA, 4–20 mA, 0–10 V, 0–5 V |
| Input Impedance | 250 Ohms (for current) |
| Operating Voltage | 24V DC ± 20% |
| Dimensions (L x W x H) | 78.74 x 215.9 x 233.68 mm |
| Weight | 0.54 kg |
| Mounting Type | DIN Rail Mounting |
| Environmental Protection | IP20 |
| Operating Temperature Range | -20°C to +60°C |
| Connector Type | Screw Terminal Blocks |
| Compliance | UL, CE Certified |
Applications
-
Power Generation: The NTAI02 is used to connect temperature sensors, pressure transducers, and other analog devices within power generation plants to measure and monitor equipment performance.
-
Oil and Gas Industry: The unit is essential for transmitting data from field instruments, such as flow meters and level sensors, to central control systems for real-time monitoring.
-
Chemical Processing: Used to interface with various sensors that monitor chemical reactions, temperature, and pressure, ensuring safe and efficient operations in chemical plants.
-
Water Treatment Plants: The NTAI02 ensures that data from water quality sensors, flow meters, and level sensors are accurately processed and transmitted to control systems.
-
Manufacturing Automation: Essential for monitoring production lines where analog signals, such as pressure, temperature, and level, are crucial for system feedback and process control.
-
Building Automation: Used in large commercial and industrial buildings for the monitoring of HVAC systems, lighting, and security through accurate analog input signal processing.
Advantages
-
Multiple Input Types: The NTAI02 supports various input signal types, including 4–20 mA, 0–10 V, and 0–5 V, making it highly versatile for use with a wide range of industrial sensors.
-
High Channel Capacity: The unit can handle up to 16 analog input channels, allowing it to process signals from a large number of devices, making it suitable for large-scale industrial systems.
-
Compact and Space-Saving Design: The NTAI02 is designed to be mounted on a DIN rail, saving space in control cabinets while providing easy installation and maintenance.
-
Reliable Signal Termination: It offers reliable signal termination with a high degree of accuracy, ensuring that the data transmitted to the control system is precise and free from interference.
-
Durable and Robust: With an IP20 protection rating, the unit is designed for use in indoor environments, offering protection against dust and physical damage.
-
Wide Operating Temperature Range: The NTAI02 operates in a temperature range of -20°C to +60°C, ensuring reliable performance even in extreme conditions.
-
UL and CE Certifications: Compliant with international standards, the NTAI02 ensures high safety and quality standards, making it suitable for use in critical industrial applications.
-
Ease of Integration: The modular design allows for easy integration with other ABB control systems, streamlining installation and reducing the complexity of setup.
Frequently Asked Questions (FAQ)
-
What is the main function of the NTAI02 Analog Input Termination Unit?
The NTAI02 serves to provide a reliable interface for processing and transmitting analog signals from sensors and devices to control systems. -
How many input channels does the NTAI02 support?
The NTAI02 supports up to 16 input channels for connecting multiple analog sensors. -
What types of input signals does the NTAI02 support?
The unit supports 4–20 mA, 0–10 V, and 0–5 V input signals, making it versatile for use with a variety of industrial sensors. -
What is the weight of the NTAI02 unit?
The weight of the unit is 0.54 kg. -
What is the operating temperature range for the NTAI02?
The NTAI02 operates in a temperature range of -20°C to +60°C. -
What is the input impedance of the NTAI02?
The input impedance for current inputs is 250 Ohms. -
How is the NTAI02 mounted?
The unit is designed for DIN rail mounting, making it easy to integrate into control cabinets. -
What is the environmental protection rating of the NTAI02?
The NTAI02 has an IP20 rating, which provides protection against dust and physical damage in indoor environments. -
What is the input voltage range of the NTAI02?
The input voltage range for the NTAI02 is 24V DC ±20%. -
Is the NTAI02 suitable for use in hazardous environments?
The NTAI02 is designed for standard industrial environments and is not certified for use in hazardous or explosive environments.
Recommended Related Models (Same Series or Related Input Termination Units)
| Model Number | Product Type | Input Channels | Weight (kg) | Dimensions (mm) | Notes |
|---|---|---|---|---|---|
| NTAI03 | Analog Input Termination Unit | 16 Channels | 2.7 | 300 x 150 x 120 | Supports additional signal conditioning |
| NTAI04 | Analog Input Termination Unit | 8 Channels | 2.5 | 280 x 140 x 100 | More compact version for small systems |
| NTAI05 | Analog Input Termination Unit | 32 Channels | 3.0 | 350 x 180 x 130 | Higher channel capacity for large systems |
| NTAI06 | Analog Input Termination Unit | 16 Channels | 2.6 | 300 x 150 x 120 | Includes advanced filtering options |
| NTAI07 | Analog Input Termination Unit | 24 Channels | 3.1 | 310 x 160 x 120 | Suited for complex multi-input systems |
| NTAI08 | Analog Input Termination Unit | 12 Channels | 2.8 | 290 x 150 x 110 | Ideal for medium-sized systems |
