Product Introduction

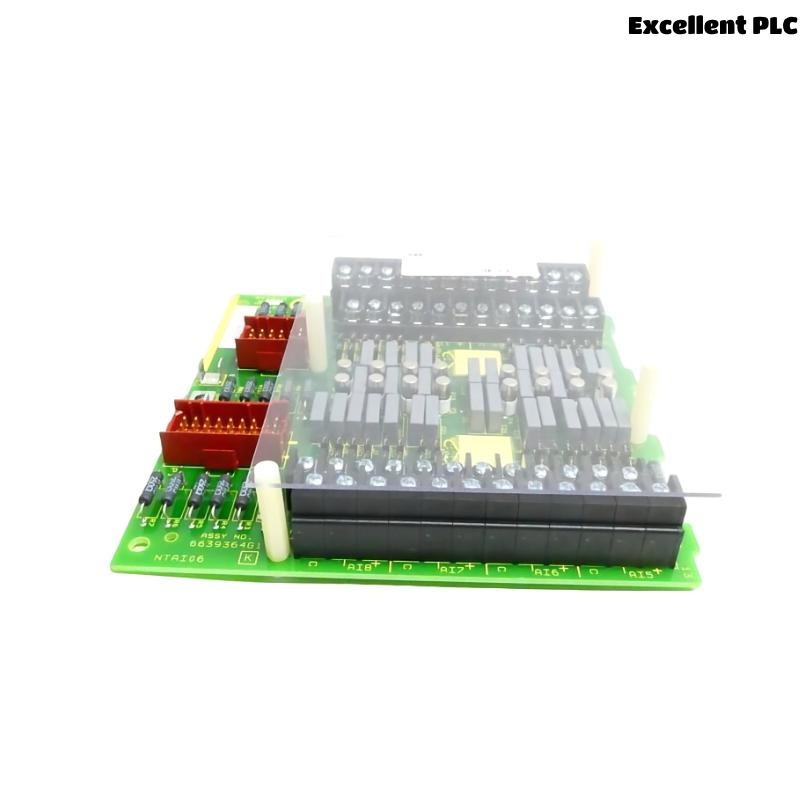

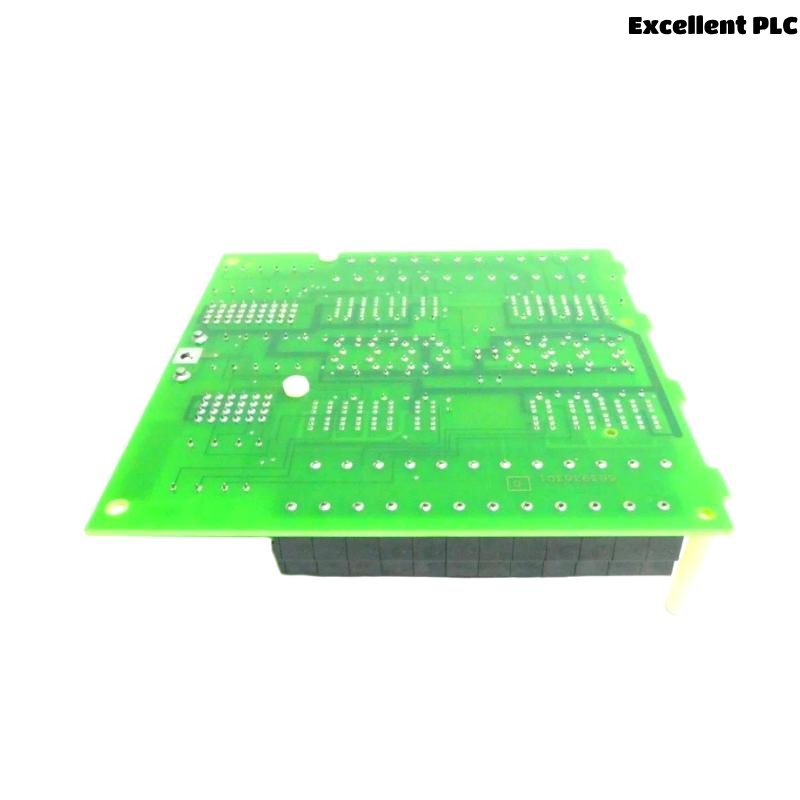

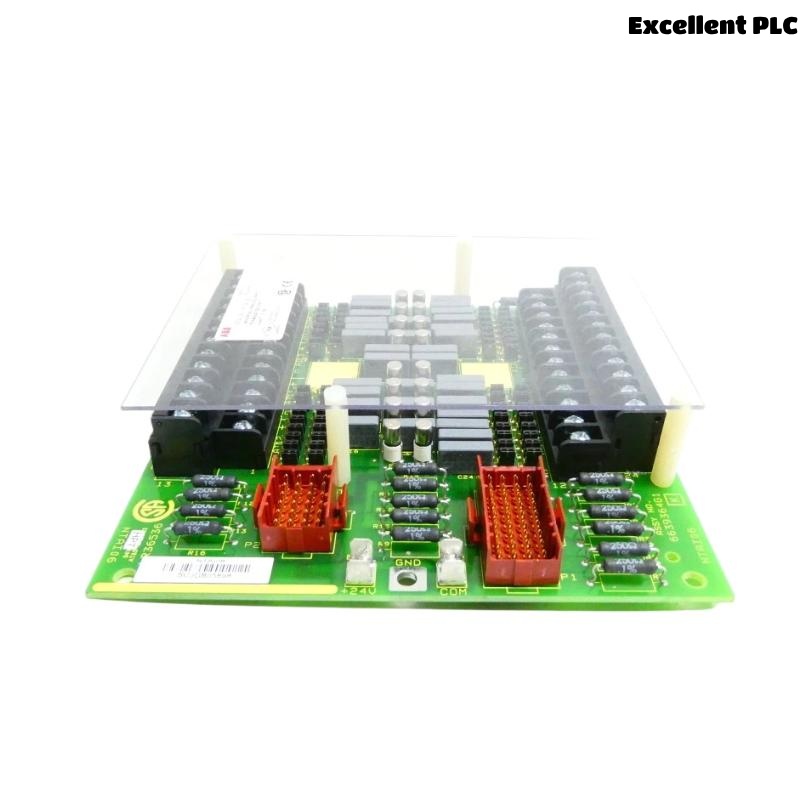

The ABB Bailey NTAI06 Analog Input Termination Unit is a key component in ABB’s INFI 90 Distributed Control System (DCS), designed specifically for terminating and conditioning analog input signals. This unit facilitates the reliable connection between field instrumentation—such as sensors and transmitters—and the control system’s analog input modules.
The NTAI06 provides field wiring termination points, signal conditioning, and essential electrical isolation to ensure signal integrity across harsh industrial environments. It supports various analog signal types, including voltage and current inputs (e.g., 0–10V, 4–20mA), ensuring that raw sensor data is accurately transmitted to the control system for processing.
Widely recognized for its robust design and compatibility with ABB’s process control architecture, the NTAI06 helps optimize system uptime, streamline wiring installations, and ensure dependable operation in critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NTAI06 |
| Manufacturer | ABB Bailey |
| Function | Analog Input Termination Unit |
| System Compatibility | INFI 90 DCS |
| Signal Types | Voltage (0–10V), Current (4–20mA) |
| Channels | 8 or 16 analog input channels (depending on variant) |
| Wiring Type | Screw terminal, shielded input supported |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Protection | Surge protection, overvoltage protection |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions (H × W × D) | 96.52 x 236.22 x 218.44 mm |
| Weight | 0.635 kg |
Product Applications
The NTAI06 is tailored for a broad spectrum of analog signal termination applications across various industries. It plays a pivotal role in connecting process sensors to control systems, with typical use cases including:
-
Oil & Gas – Accurate sensor data collection from pressure, temperature, and flow transmitters.
-
Chemical & Petrochemical – Condition monitoring and process control feedback for batch processes.
-
Power Generation – Monitoring turbine conditions, temperatures, fuel flows, and more.
-
Water & Wastewater Treatment – Reading analog values from pH, turbidity, and flow meters.
-
Pharmaceutical Manufacturing – Ensuring precision in temperature and process variable control.
-
Pulp & Paper – Interfacing with instrumentation across steam systems and dryers.
Product Advantages
-
Reliable Signal Termination: Provides stable and accurate signal transition from the field to the control system.
-
Electrical Isolation: Reduces the risk of noise, ground loops, and cross-channel interference.
-
Simplified Maintenance: Modular wiring structure makes it easy to replace or troubleshoot field connections.
-
Wide Compatibility: Works with various ABB analog input modules and sensor types.
-
Industrial Ruggedness: Designed for use in high-temperature and high-humidity environments.
-
Safety Built-In: Incorporates built-in surge and overvoltage protection to safeguard both equipment and personnel.
Frequently Asked Questions (FAQ)
-
What is the main purpose of the ABB NTAI06 unit?
It terminates analog field signals and conditions them for accurate processing by the control system. -
How many channels does the NTAI06 support?
It typically supports 8 or 16 channels, depending on the configuration. -
What types of analog signals are supported?
Voltage (e.g., 0–10V) and current (e.g., 4–20mA) input signals. -
Does the unit offer electrical isolation?
Yes, the NTAI06 provides isolation between channels and between the system and field. -
Can the NTAI06 be used with third-party control systems?
It is primarily designed for ABB INFI 90 systems, but may be used with others depending on interface compatibility. -
What is the wiring method for the unit?
Field signals are connected via screw terminals, with shielded wiring supported for noise reduction. -
Is this module field-serviceable?
Yes, components such as fuses and terminal connectors can be maintained on-site. -
Can the NTAI06 be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options. -
What kind of protection does the unit provide?
Surge protection, overvoltage protection, and isolation safeguards are built-in. -
Is the NTAI06 certified for industrial use?
Yes, it meets CE, UL, and CSA industrial safety standards.
Related Models from the Same Series or Function
| Model | Description | Signal Type | Application |
|---|---|---|---|
| NTAI05 | Analog Input Termination Unit | Voltage/Current | General analog signal input |
| NTAO05 | Analog Output Termination Unit | Voltage/Current Output | Controls valves, actuators |
| NTDI01 | Digital Input Termination Unit | Discrete Input | Field switch or contact monitoring |
| NTDO01 | Digital Output Termination Unit | Discrete Output | Relay and device activation |
| NISB01 | Isolated Signal Barrier | Analog/Discrete | Intrinsically safe field connections |
| INAI01 | Analog Input Module | Voltage/Current | Captures and converts analog signals |
