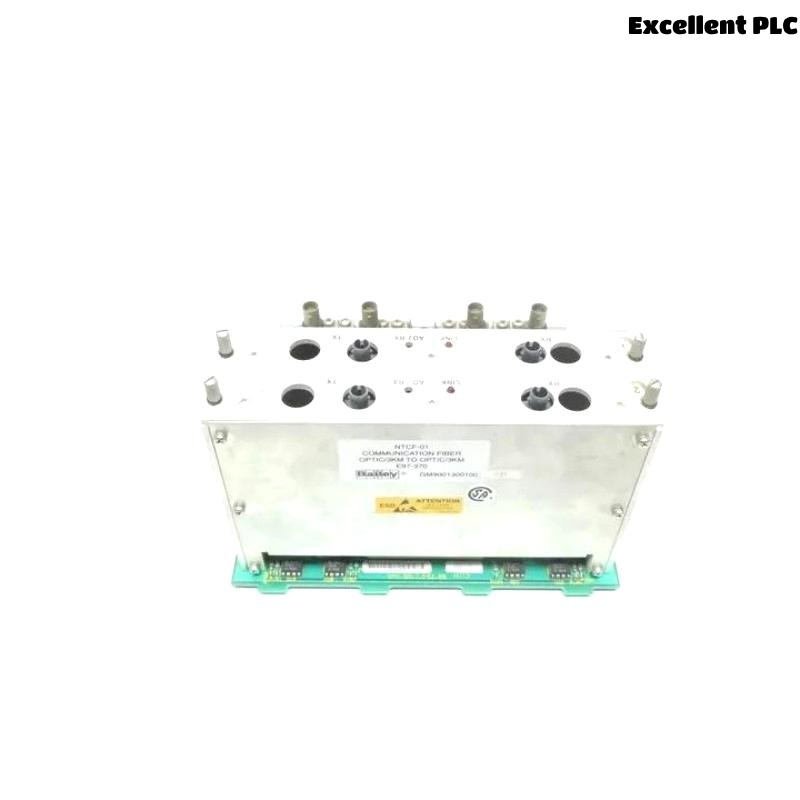

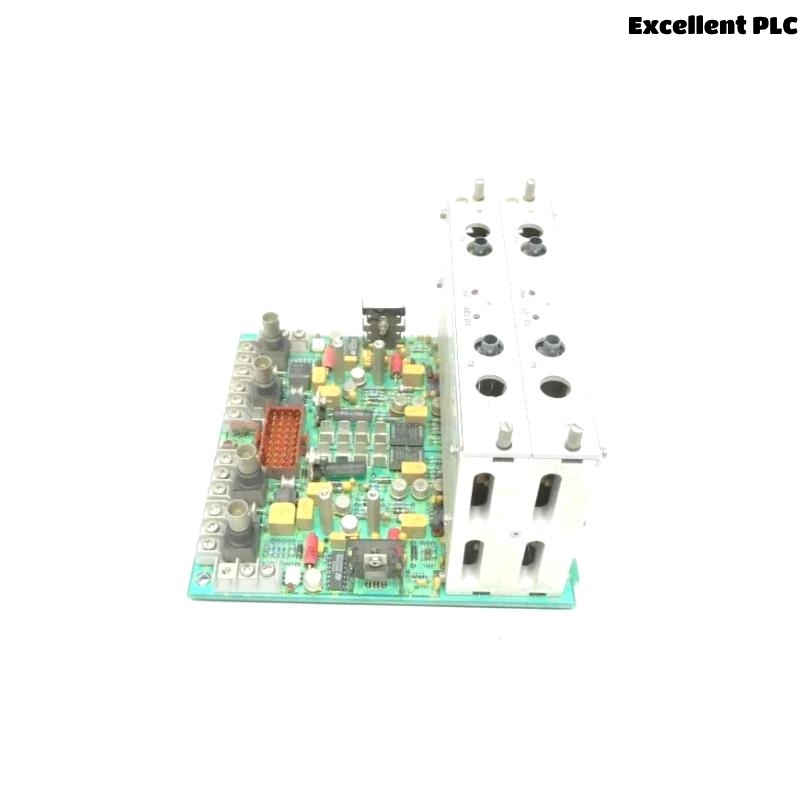

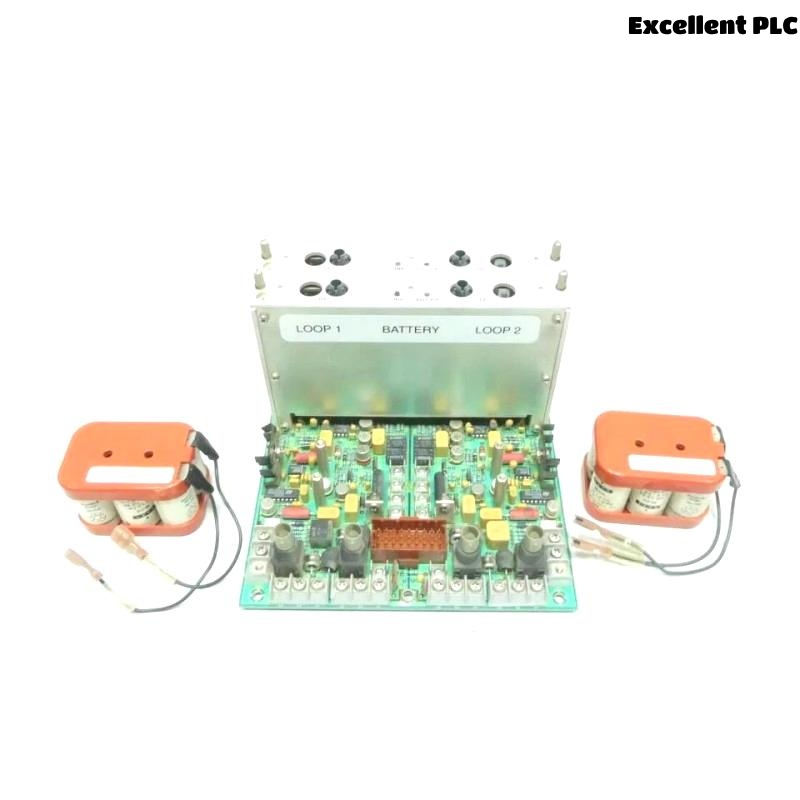

The ABB Bailey NTCF01 is a Termination Unit designed for the Infi 90 Distributed Control System (DCS). It serves as a crucial interface between field wiring and system modules, ensuring accurate signal routing and system integrity. This unit facilitates secure and organized termination of field signals, improving maintenance efficiency and system reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | NTCF01 |
| System | Infi 90 DCS |
| Function | Termination Unit |
| Dimensions (H x W x D) | 127 x 51 x 127 mm |
| Weight | 0.2 kg |
| Mounting Type | Panel Mount |
| Terminal Type | Screw Terminal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Material | Industrial-grade plastic |
Applications
-
Signal termination for analog and digital modules
-
Industrial process automation
-
Power generation plants
-
Oil & gas installations
-
Chemical and petrochemical systems
-
Utility management and control rooms
Product Advantages
-
Compatible with Infi 90 system modules
-
Compact and space-efficient design
-
Reliable field signal interface
-
Easy maintenance and wiring access
-
Enhances system modularity and clarity
-
Rugged design for industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the function of the NTCF01 unit?
A1: It provides signal termination between field devices and Infi 90 system modules.
Q2: Can this unit be used with both analog and digital modules?
A2: Yes, it supports termination for both analog and digital signal types.
Q3: What are the mounting options for the NTCF01?
A3: It is designed for panel mounting within control cabinets.
Q4: Is the NTCF01 compatible with other ABB DCS systems?
A4: It is specifically made for Infi 90 and may not be directly compatible with other ABB systems.
Q5: Does it require any firmware or software configuration?
A5: No, it is a passive unit that does not require firmware or software.
Q6: What is the recommended operating temperature?
A6: It operates reliably between 0°C and 60°C.
Q7: What terminal type does it use?
A7: It uses screw-type terminals for secure field wiring.
Q8: Is it field-replaceable?
A8: Yes, it can be replaced in the field during maintenance.
Q9: What material is used for the housing?
A9: It is made of durable industrial-grade plastic.
Q10: How does it contribute to system reliability?
A10: By ensuring clean and secure signal routing, it minimizes wiring errors and signal loss.
Related Models from the Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| NTCF02 | Termination Unit, Extended Channels | 127 x 51 x 127 | 0.2 kg |
| NTDI01 | Digital I/O Termination Unit | 127 x 51 x 127 | 0.2 kg |
| NTCL01 | Loop Interface Termination Unit | 127 x 51 x 127 | 0.2 kg |
| NTAI03 | Analog Input Termination Unit | 127 x 51 x 127 | 0.2 kg |
| NTAO01 | Analog Output Termination Unit | 127 x 51 x 127 | 0.2 kg |
| NTAM01 | Master Termination Unit | 127 x 51 x 127 | 0.2 kg |
